Product Details | UNION NUT
4730-00-542-5955 An internally threaded nut which has an internal seat or shoulder designed to engage the nut retaining flange of a union tailpiece. The threaded portion is used to engage the thread piece of a union, union elbor or the like. Excludes NUT (1), TUBE COUPLING.202109000004730000000
Part Alternates: M1183/10-56N1, M11831056N1, MILF1183, MIL-F-1183, 4730-00-542-5955, 00-542-5955, 4730005425955, 005425955
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1961 | 00-542-5955 | 19964 ( NUT, UNION ) |

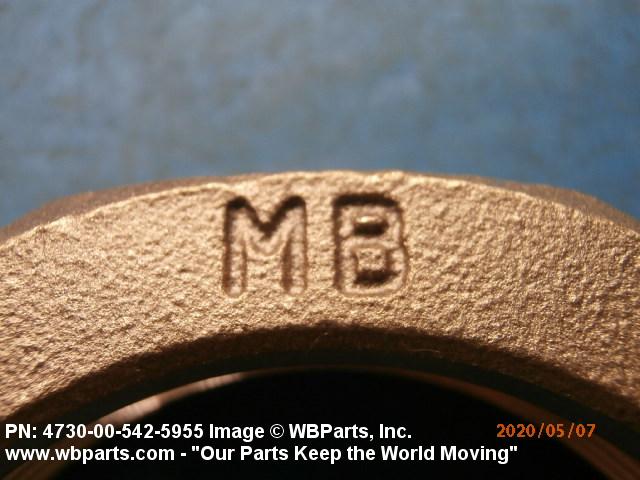

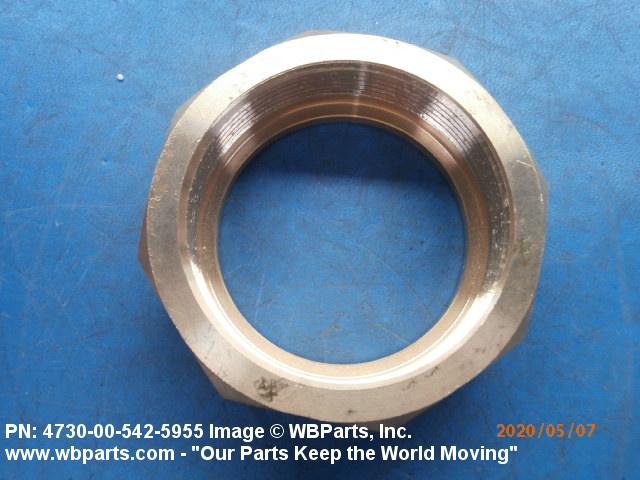

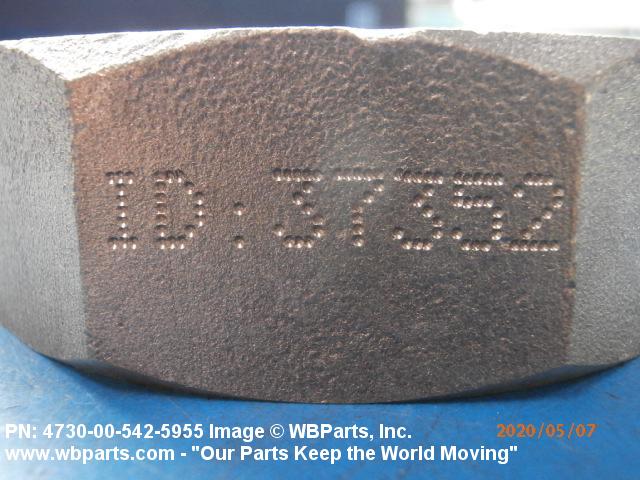

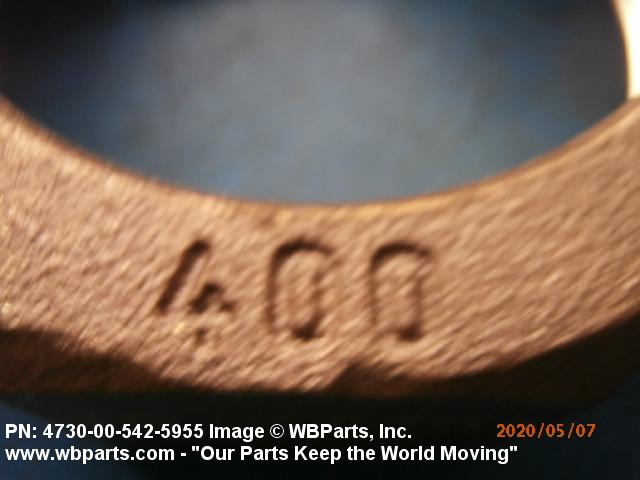

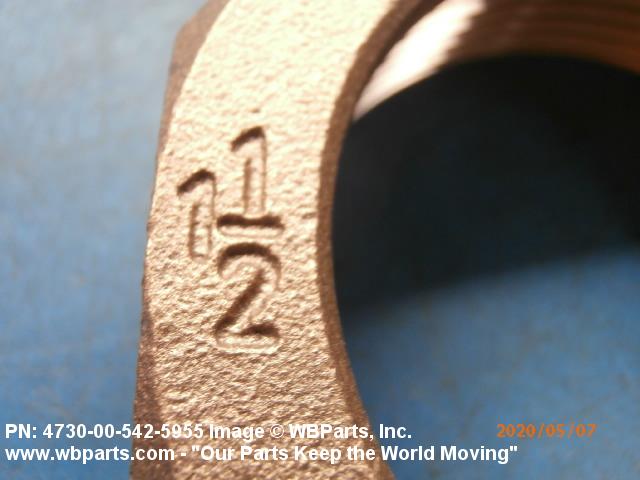

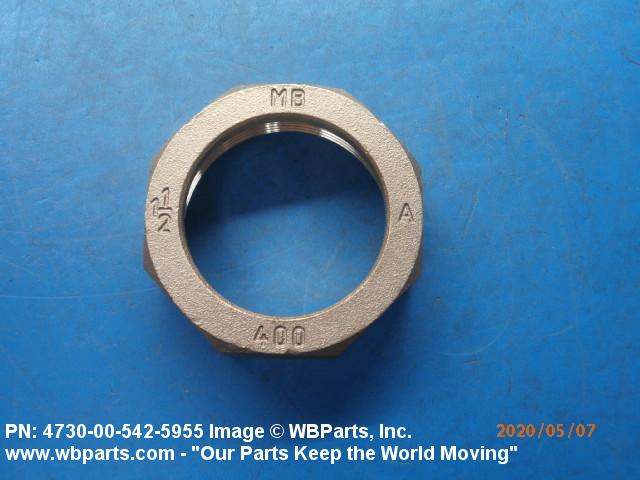

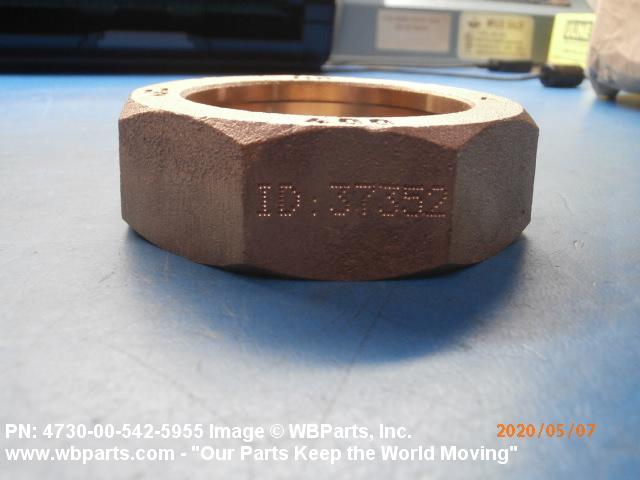

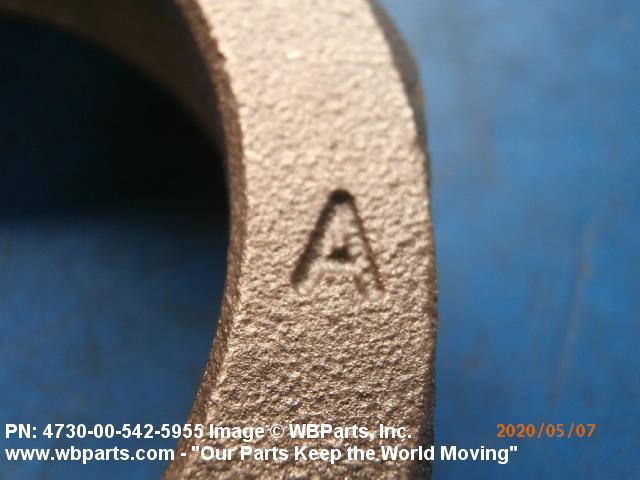

Drawings & Photos | NSN 4730-00-542-5955
Demand History | NSN 4730-00-542-5955
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-542-5955 | 2020-04-16 | 10 | United States |
| MILF1183 | 2019-03-04 | 8 | US |
| 4730-00-542-5955 | 2018-06-28 | 290 | DIBBS |
| 4730-00-542-5955 | 2018-04-11 | 28 | US |
| 4730-00-542-5955 | 2018-02-01 | 102 | DIBBS |
| MILF1183 | 2017-05-17 | 1 | United States |
| 4730-00-542-5955 | 2016-07-13 | 102 | DIBBS |
| 4730-00-542-5955 | 2016-04-13 | 42 | DIBBS |
| 4730-00-542-5955 | 2014-07-29 | 357 | US |
| 4730-00-542-5955 | 2014-06-09 | 357 | DIBBS |
| 4730-00-542-5955 | 2014-05-28 | 357 | DIBBS |
| MILF1183 | 2010-11-25 | 100 | FR |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-00-542-5955
Related Products | NSN 4730-00-542-5955
4730-00-542-5957, 4730-00-542-5958, 4730-00-542-5959, 4730-00-542-5960, 4730-00-542-5961
Technical Data | NSN 4730-00-542-5955
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNS |
| NOMINAL THREAD SIZE | 2.915 INCHES |

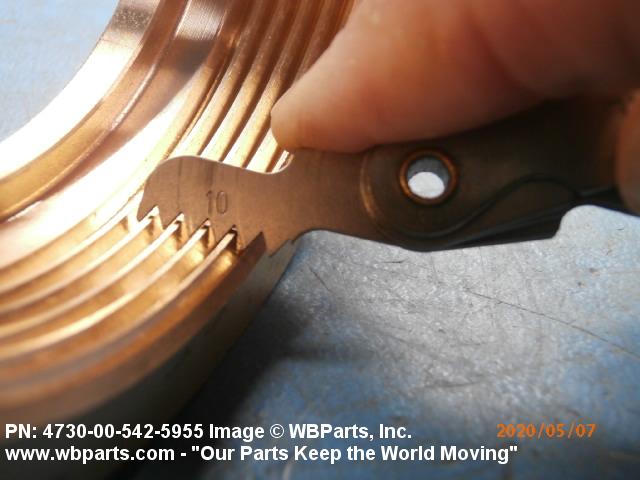

| THREAD QUANTITY PER INCH | 10 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | COPPER ALLOY 903 OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A371 HEXAGON |
| SHOULDER WIDTH | 0.109 INCHES NOMINAL |

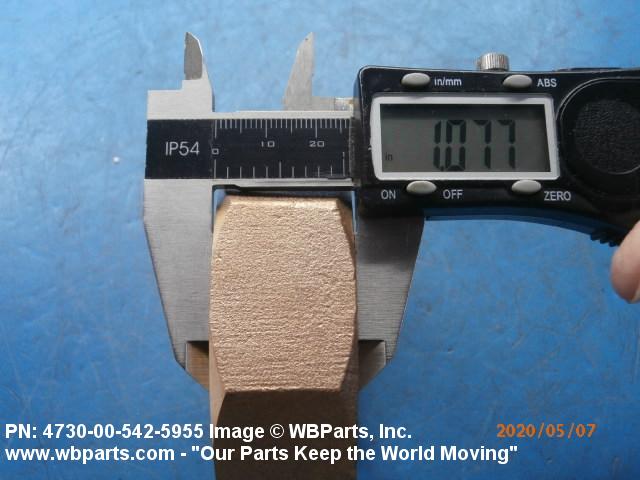

| NUT HEIGHT | 1.062 INCHES MINIMUM AND 1.109 INCHES MAXIMUM |

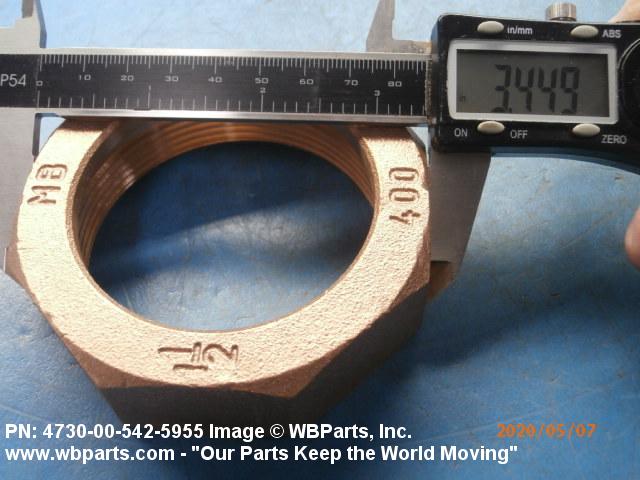

| WIDTH ACROSS FLATS | 3.391 INCHES NOMINAL |

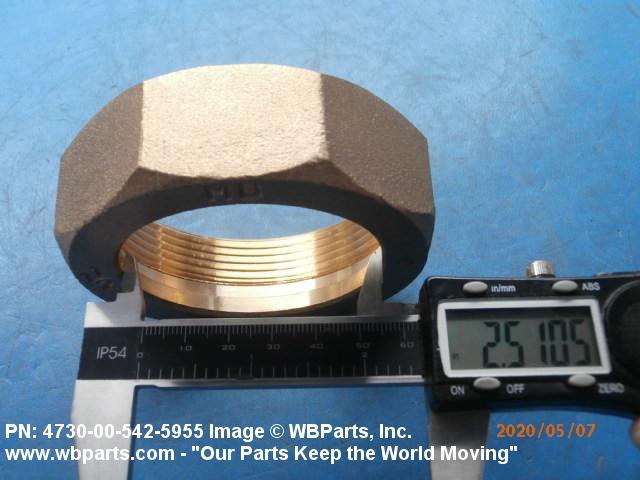

| SMALLEST INSIDE DIAMETER | 2.520 INCHES NOMINAL |
| SHOULDER STEP WIDTH | 0.220 INCHES NOMINAL |

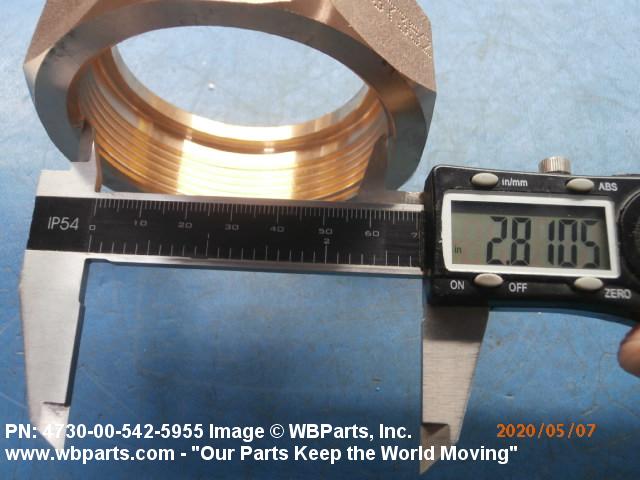

| SHOULDER SEAT DIAMETER | 2.806 INCHES MINIMUM AND 2.817 INCHES MAXIMUM |
| TEMP RATING | 150.0 DEG FAHRENHEIT MINIMUM AND 425.0 DEG FAHRENHEIT MAXIMUM |
| MAXIMUM WORKING PRESSURE RATING AND SERVICE FOR WHICH DESIGNED | 200.0 POUNDS PER SQUARE INCH STEAM AND 400.0 POUNDS PER SQUARE INCH AIR AND 400.0 POUNDS PER SQUARE INCH OIL AND 400.0 POUNDS PER SQUARE INCH WATER |
| SPECIFICATION/STANDARD DATA | 81349-MIL-F-1183J GOVERNMENT SPECIFICATION |
| NONDEFINITIVE SPEC/STD DATA | 3 FIGURE |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-F-1183 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M1183/10-56N1 |
Restrictions/Controls & Freight Information | NSN 4730-00-542-5955
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093460 | BOLTS/NUTS NOI BBC/ZINC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-542-5955
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | J | Ground Forces Support Materiel (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
