Product Details | TUBE TO BOSS STRAIGHT ADAPTER
4730-00-574-7219 An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE.
Part Alternates: 2551190, 4730-00-574-7219, 00-574-7219, 4730005747219, 005747219
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1963 | 00-574-7219 | 22675 ( ADAPTER, STRAIGHT, TUBE TO BOSS ) |

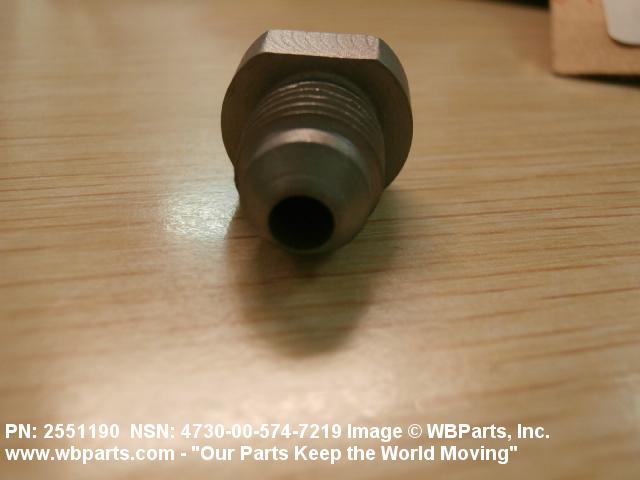

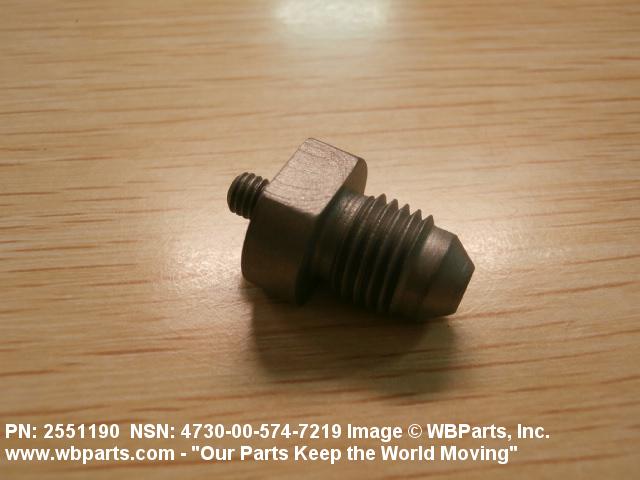

Drawings & Photos | NSN 4730-00-574-7219
Demand History | NSN 4730-00-574-7219
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-00-574-7219 | 2023-08-07 | 1 | United States |
| 4730-00-574-7219 | 2022-06-09 | 33 | DIBBS |
| 4730-00-574-7219 | 2022-03-16 | 8 | DIBBS |
| 4730-00-574-7219 | 2022-03-01 | 8 | DIBBS |
| 4730-00-574-7219 | 2021-03-11 | 9 | DIBBS |
| 4730-00-574-7219 | 2020-12-10 | 6 | DIBBS |
| 4730-00-574-7219 | 2020-12-07 | 2 | DIBBS |
| 4730-00-574-7219 | 2020-09-09 | 4 | DIBBS |
| 4730-00-574-7219 | 2020-02-24 | 2 | DIBBS |
| 4730-00-574-7219 | 2020-02-12 | 2 | DIBBS |
| 4730-00-574-7219 | 2020-02-11 | 2 | DIBBS |
| 4730-00-574-7219 | 2019-08-12 | 12 | DIBBS |
| 4730-00-574-7219 | 2019-08-01 | 12 | DIBBS |
| 4730-00-574-7219 | 2019-07-30 | 12 | DIBBS |
| 4730-00-574-7219 | 2019-07-17 | 12 | DIBBS |
| 4730-00-574-7219 | 2019-04-19 | 12 | DIBBS |
| 4730-00-574-7219 | 2019-04-07 | 2 | DIBBS |
| 4730-00-574-7219 | 2019-04-07 | 12 | DIBBS |
| 4730-00-574-7219 | 2018-06-20 | 7 | US |
| 4730-00-574-7219 | 2017-03-28 | 2 | DIBBS |
| 4730-00-574-7219 | 2017-03-14 | 2 | DIBBS |
| 2551190 | 2014-10-27 | 8 | United States |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4730-00-574-7219
4730-00-574-7418, 4730-00-574-7548, 4730-00-574-7766, 4730-00-574-7989, 4730-00-574-8009
Technical Data | NSN 4730-00-574-7219
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| CONNECTION TYPE | THREADED EXTERNAL TUBE 1ST END THREADED EXTERNAL BOSS 2ND END |
| CONNECTION STYLE | B67A PLAIN 1ST END B71A EXTERNAL SEAT FOR GASKET SEAL 2ND END |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.125 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 1ST END UNF 2ND END |
| NOMINAL THREAD SIZE | 0.190 INCHES 1ST END 0.438 INCHES 2ND END |
| THREAD CLASS | 3A 1ST END 3A 2ND END |
| NOMINAL OVERALL LENGTH | 1.000 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-00-574-7219
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-00-574-7219
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
