Product Details | SEDIMENT STRAINER
4730-00-834-6194 A strainer having inlet and outlet connections and designed to be connected in a pipe, tube or hose line.
Part Alternates: TYPESB3IN, 4730-00-834-6194, 00-834-6194, 4730008346194, 008346194
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 01 JAN 1962 | 00-834-6194 | 04200 ( STRAINER, SEDIMENT ) |
Drawings & Photos | NSN 4730-00-834-6194
Cross Reference | NSN 4730-00-834-6194
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| TYPESB3IN | 53059 | SPIRAX SARCO, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4730-00-834-6194
4730-00-834-6195, 4730-00-834-6879, 4730-00-834-7054, 4730-00-834-7055, 4730-00-834-7056
Technical Data | NSN 4730-00-834-6194
| Characteristic | Specifications |
|---|---|

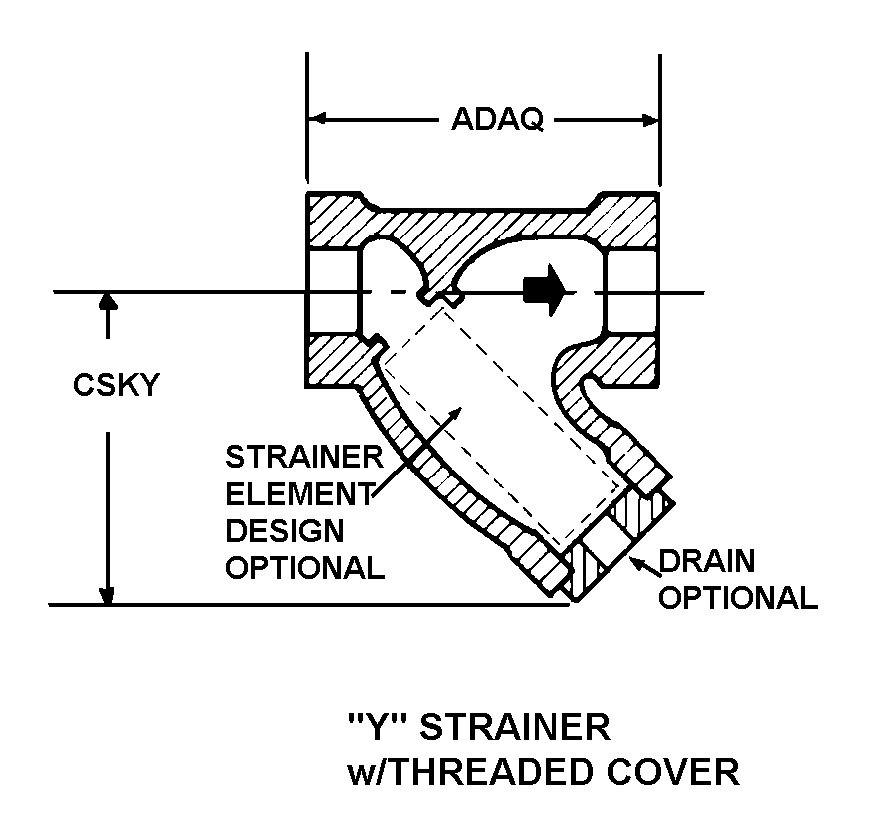

| STYLE DESIGNATOR | C3 Y STRAINER W/THREADED COVER |
| BODY LENGTH | 10.875 INCHES NOMINAL |
| BODY WIDTH | ANY ACCEPTABLE |
| BODY HEIGHT | 10.063 INCHES NOMINAL |
| MATERIAL | IRON CAST BODY COPPER ALLOY SCREENING |
| SURFACE TREATMENT | ANY ACCEPTABLE BODY |
| FILTERING MEDIA DESIGN | PERFORATED SINGLE FILTERING MEDIA RESPONSE |
| PERFORATION DIAMETER | 0.031 INCHES NOMINAL |
| PERFORATION QUANTITY | 324.0 PER SQUARE INCH |
| MAXIMUM OPERATING PRESSURE | 400.0 POUNDS PER SQUARE INCH |
| TEMP RATING | NOT RATED |
| FIRST INTAKE CONNECTION TYPE | THREADED INTERNAL PIPE SIDE |
| FIRST INTAKE THREAD SERIES DESIGNATOR | NPT |
| FIRST INTAKE NOMINAL THREAD SIZE | 3.000 INCHES |
| FIRST INTAKE THREAD DIRECTION | RIGHT-HAND |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
Restrictions/Controls & Freight Information | NSN 4730-00-834-6194
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
