Product Details | TUBE FITTING INSERT
4730-01-101-2454 A flanged cylindrical metallic or nonmetallic item designed to be inserted into soft plastic tubing to accommodate the sleeve of compression type tube fittings.
Part Alternates: 5001201N500, 50-012-01N500 , 5001201N504, 50-012-01N504, 4730-01-101-2454, 01-101-2454, 4730011012454, 011012454
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 25 SEP 1980 | 01-101-2454 | 32691 ( INSERT, TUBE FITTING ) |

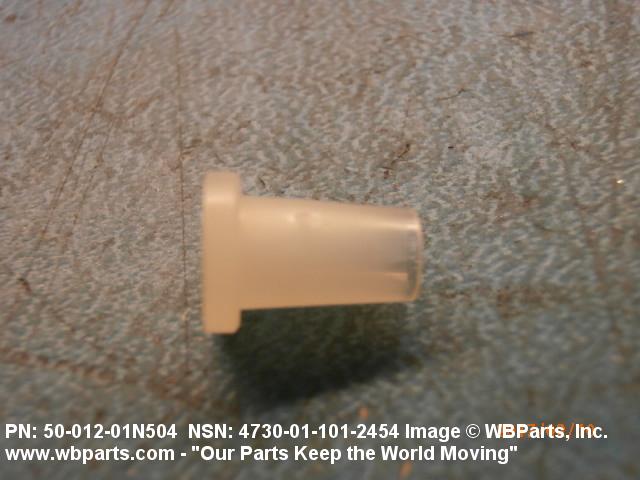

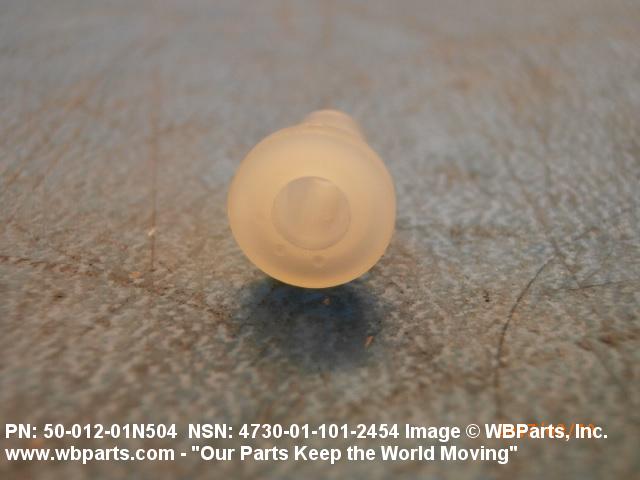

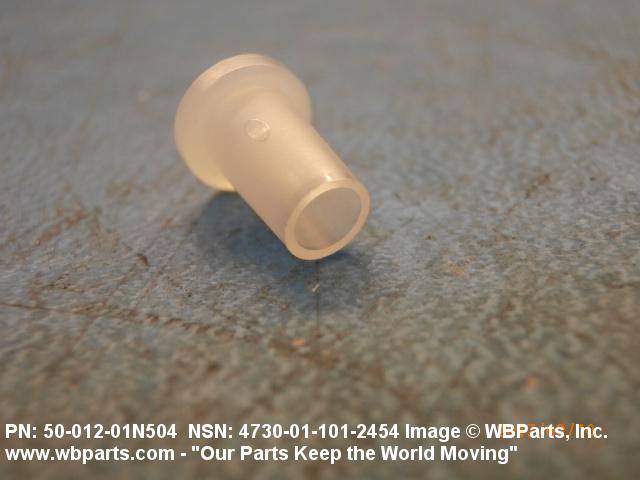

Drawings & Photos | NSN 4730-01-101-2454
Demand History | NSN 4730-01-101-2454
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-01-101-2454
Related Products | NSN 4730-01-101-2454
4730-01-101-2534, 4730-01-101-2538, 4730-01-101-2549, 4730-01-101-2709, 4730-01-101-2713
Technical Data | NSN 4730-01-101-2454
| Characteristic | Specifications |
|---|---|
| MATERIAL | POLYAMIDE NYLON |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |

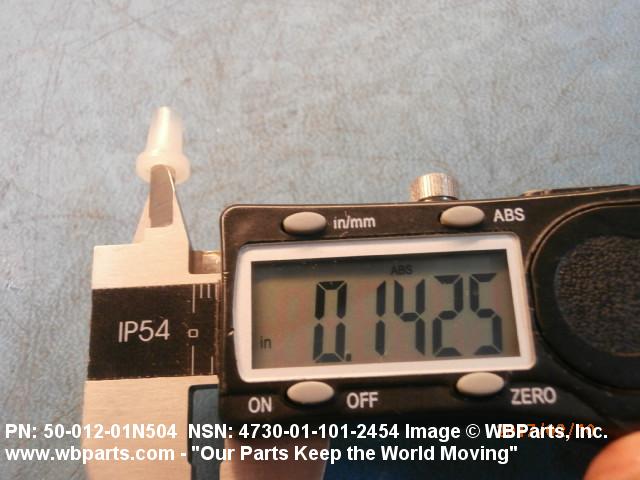

| TUBE INSIDE DIAMETER FOR WHICH DESIGNED | 0.141 INCHES NOMINAL |
| STYLE DESIGNATOR | V2 PLAIN |
| SPECIAL FEATURES | INSERT IS TAPERED ON OUTSIDE AND IS 0.406 IN.L. |
| III END ITEM IDENTIFICATION | 1270010724220 AIR DATA SUBSYSTEM |
| MANUFACTURERS CODE | 97499 |
| DESIGN CONTROL REFERENCE | 50-012-01N504 |
