Product Details | QUICK DISCONNECT COUPLING HALF
4730-01-135-0179 A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE.
Part Alternates: AE99977E, ST7M416, ST7M416S4, 10108715 , 4730-01-135-0179, 01-135-0179, 4730011350179, 011350179
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 16 JUL 1982 | 01-135-0179 | 18681 ( COUPLING HALF, QUICK DISCONNECT ) |
Drawings & Photos | NSN 4730-01-135-0179
Demand History | NSN 4730-01-135-0179
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| AE99977E | 2019-04-01 | 28 | DIBBS |
| ST7M416S4 | 2019-04-01 | 28 | DIBBS |
| AE99977E | 2019-03-19 | 28 | DIBBS |
| ST7M416S4 | 2019-03-19 | 28 | DIBBS |
| AE99977E | 2019-03-07 | 28 | DIBBS |
| ST7M416S4 | 2019-03-07 | 28 | DIBBS |
| AE99977E | 2019-01-22 | 21 | DIBBS |
| ST7M416S4 | 2019-01-22 | 21 | DIBBS |
| AE99977E | 2019-01-14 | 16 | DIBBS |
| ST7M416S4 | 2019-01-14 | 16 | DIBBS |
| AE99977E | 2019-01-10 | 21 | DIBBS |
| ST7M416S4 | 2019-01-10 | 21 | DIBBS |
| AE99977E | 2019-01-03 | 16 | DIBBS |
| ST7M416S4 | 2019-01-03 | 16 | DIBBS |
| 4730-01-135-0179 | 2018-10-18 | 4 | DIBBS |
| 4730-01-135-0179 | 2018-09-10 | 1 | DIBBS-RFPs |
| 4730-01-135-0179 | 2013-08-07 | 4 | DIBBS |
| 4730-01-135-0179 | 2013-07-21 | 13 | DIBBS |
| ST7M416S4 | 2012-11-06 | 20 | US |
| 4730-01-135-0179 | 2012-10-16 | 7 | DIBBS |
| 4730-01-135-0179 | 2012-09-26 | 8 | DIBBS |
| 4730-01-135-0179 | 2012-09-07 | 12 | DIBBS |
| 4730-01-135-0179 | 2012-03-02 | 9 | DIBBS |
| 4730-01-135-0179 | 2011-09-02 | 3 | DIBBS |
| 4730-01-135-0179 | 2011-06-28 | 9 | DIBBS |
| 4730-01-135-0179 | 2008-12-03 | 6 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4730-01-135-0179
4730-01-135-0180, 4730-01-135-0275, 4730-01-135-1031, 4730-01-135-1295, 4730-01-135-1297
Technical Data | NSN 4730-01-135-0179
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5643 ASSN STD SINGLE MATERIAL RESPONSE BODY |
| SURFACE TREATMENT | PASSIVATE BODY |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE BODY |
| STYLE DESIGNATOR | A1 MALE COUPLING HALF |
| CONNECTION TYPE | THREADED EXTERNAL TUBE FIRST FLUID END CONNECTION |

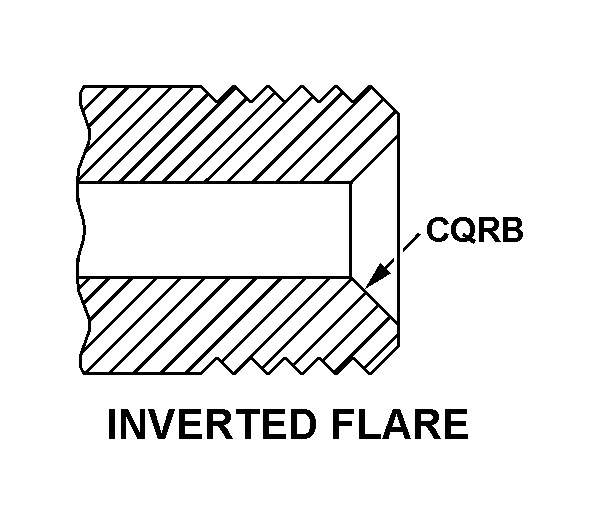

| CONNECTION STYLE | D1 INVERTED FLARE ALL ENDS |
| SEAT ANGLE | 8.5 DEGREES |
| QUICK DISCONNECT METHOD | PUSH-PULL ALL ENDS |
| QUICK DISCONNECT NOMINAL SIZE | 0.250 INCHES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |
| NOMINAL THREAD SIZE | 0.438 INCHES ALL ENDS |
| THREAD CLASS | 2A ALL ENDS |
| FEATURES PROVIDED | SELF-SEALING |
| (NON-CORE DATA) MAXIMUM OPERATING TEMP AND MEDIA FOR WHICH DESIGNED | 275.0 DEG FAHRENHEIT ANY ACCEPTABLE |
| (NON-CORE DATA) MAXIMUM OPERATING PRESSURE AND MEDIA FOR WHICH DESIGNED | 3000.0 POUNDS PER SQUARE INCH ANY ACCEPTABLE |
Restrictions/Controls & Freight Information | NSN 4730-01-135-0179
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 052190 | PIPE,TUBING,OR PIPE OR TUBING FITTI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-135-0179
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
