Product Details | TUBE TEE

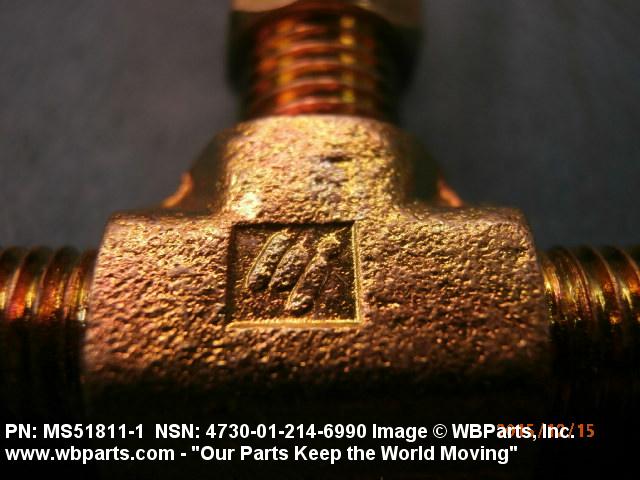

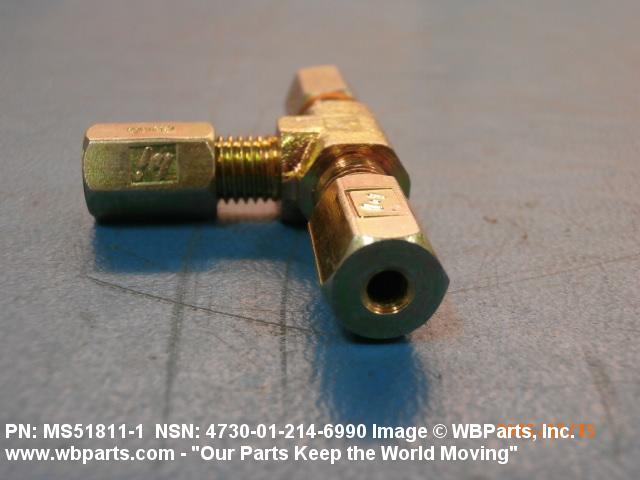

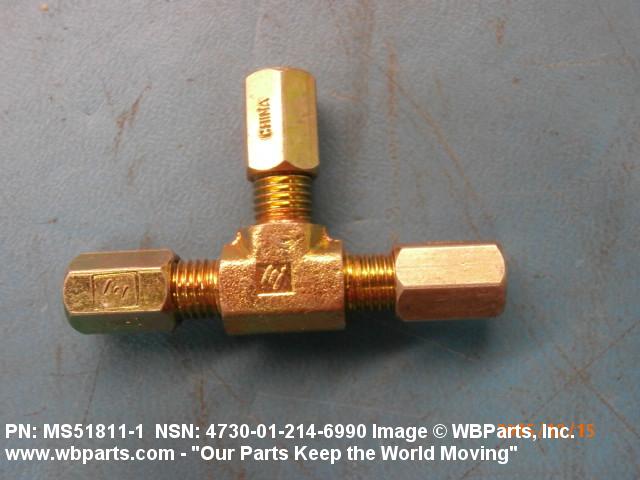

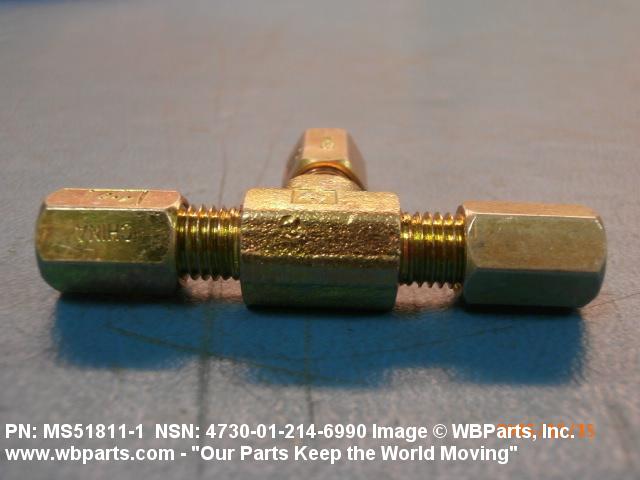

4730-01-214-6990 A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting.
Part Alternates: MS518111, MS51811-1, MILF18866, MIL-F-18866 , 2JBUS, 2JBU-S, 4730-01-214-6990, 01-214-6990, 4730012146990, 012146990
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 15 AUG 1985 | 01-214-6990 | 03809 ( TEE, TUBE ) |

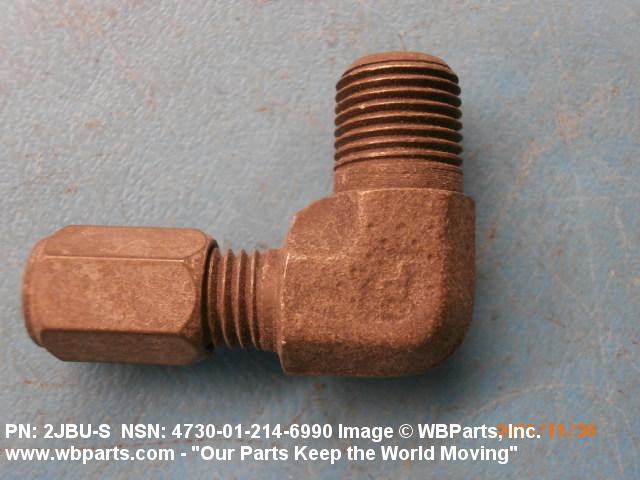

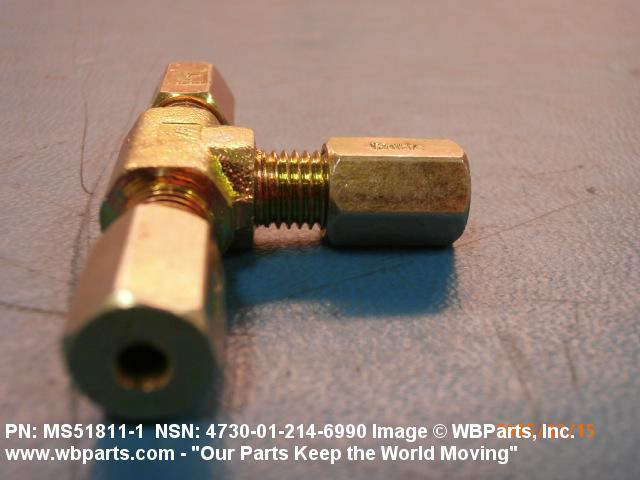

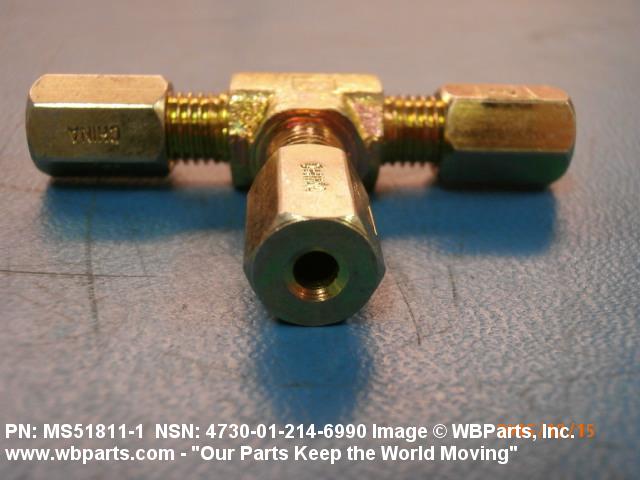

Drawings & Photos | NSN 4730-01-214-6990
Demand History | NSN 4730-01-214-6990
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4730-01-214-6990 | 2018-06-04 | 26 | KR |
| 4730-01-214-6990 | 2017-11-16 | 197 | DIBBS |
| 4730-01-214-6990 | 2016-08-11 | 104 | DIBBS |
| 4730-01-214-6990 | 2016-07-31 | 104 | DIBBS |
| 4730-01-214-6990 | 2015-11-18 | 8 | United States |
| 4730-01-214-6990 | 2011-07-06 | 61 | DIBBS |
| 4730-01-214-6990 | 2009-04-15 | 12 | DIBBS |
Cross Reference | NSN 4730-01-214-6990
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2JBU-S | 30780 | PARKER-HANNIFIN CORPORATION DBA TUBE FITTINGS DIVISION |
| 2JBU-S | 98441 | PARKER-HANNIFIN CORPORATION DBA STRATOFLEX PRODUCTS DIVISION |
| MIL-F-18866 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS51811-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-01-214-6990
Related Products | NSN 4730-01-214-6990
4730-01-214-6991, 4730-01-214-6993, 4730-01-214-6994, 4730-01-214-6995, 4730-01-214-6996
Technical Data | NSN 4730-01-214-6990
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 12L14 OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | J514 ASSN STD SINGLE TREATMENT RESPONSE AND MIL-C-81562, TY 1, CL 3 MIL SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MEDIA FOR WHICH DESIGNED | HYDRAULIC FLUID SINGLE RESPONSE |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 250.0 DEG FAHRENHEIT SINGLE RESPONSE |
| CONNECTION TYPE | THREADED EXTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B66 FLARELESS ALL ENDS |
| SEAT ANGLE | 12.0 DEGREES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.125 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | UNF ALL ENDS |

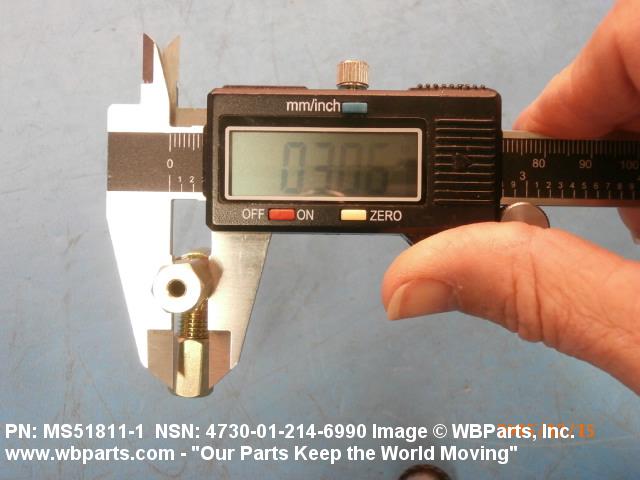

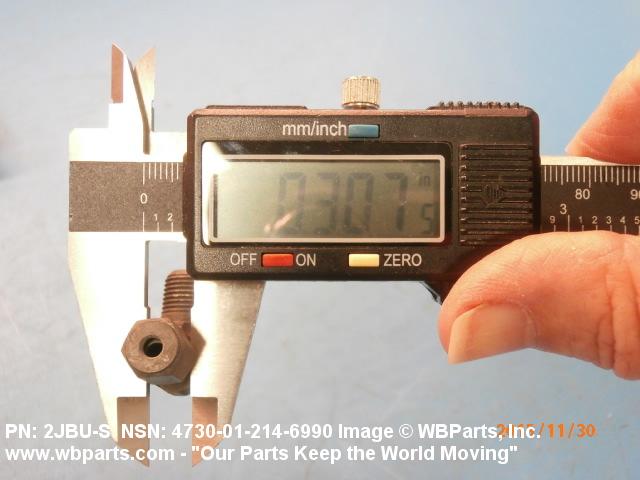

| NOMINAL THREAD SIZE | 0.312 INCHES ALL ENDS |
| THREAD CLASS | 2A ALL ENDS |

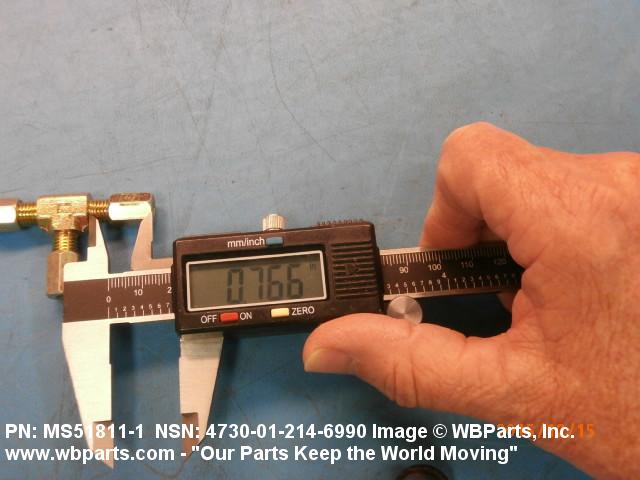

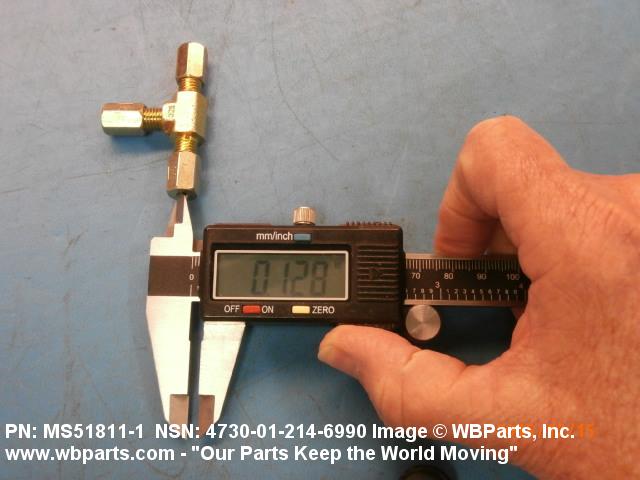

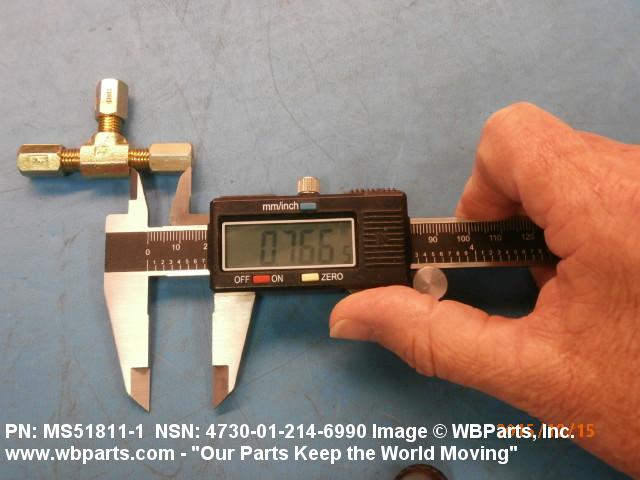

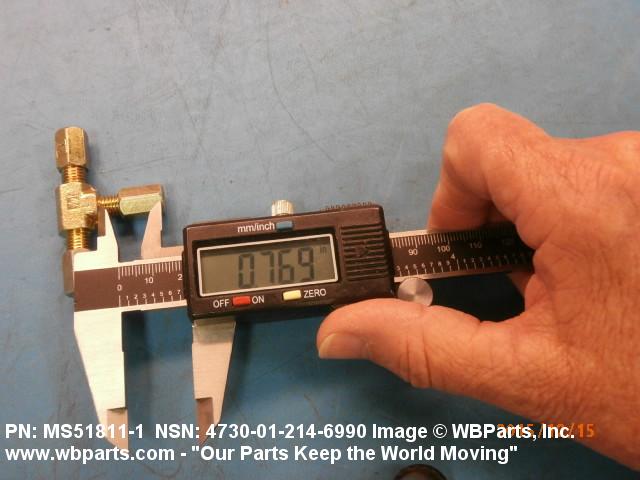

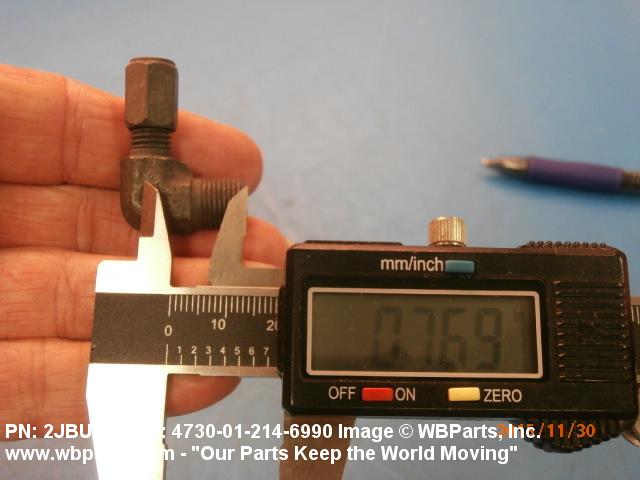

| LEG LENGTH | 0.766 INCHES NOMINAL 1ST END 0.766 INCHES NOMINAL 2ND END 0.766 INCHES NOMINAL 3RD END |
