Product Details | FLUID PASSAGE BOLT
4730-01-341-0091 A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 17P6W8247, 17P6W8247523, 17P6W8247-523, 4730-01-341-0091, 01-341-0091, 4730013410091, 013410091
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 23 JUN 1991 | 01-341-0091 | 18683 ( BOLT, FLUID PASSAGE ) |
Drawings & Photos | NSN 4730-01-341-0091
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4730-01-341-0091
4730-01-341-0094, 4730-01-341-0095, 4730-01-341-0134, 4730-01-341-0194, 4730-01-341-0195
Technical Data | NSN 4730-01-341-0091
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY |
| BODY STYLE | 24 PLAIN |
| CONCENTRIC HOLE DEPTH | 1.120 INCHES NOMINAL |
| CONCENTRIC HOLE DIAMETER | 0.350 INCHES NOMINAL |
| OVERALL LENGTH | 1.836 INCHES NOMINAL |
| FIRST DIAMETER FROM WRENCHING FEATURE | 0.375 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO END OF FIRST DIAMETER | 0.810 INCHES NOMINAL |
| FIRST RADIAL FLUID HOLE DIAMETER | 0.067 INCHES NOMINAL |
| SECOND RADIAL FLUID HOLE DIAMETER | 0.067 INCHES NOMINAL |
| DISTANCE FROM FIRST RADIAL HOLE CENTER TO END OF BOLT | 1.310 INCHES NOMINAL |
| DISTANCE FROM SECOND RADIAL HOLE CENTER TO END OF BOLT | 0.540 INCHES NOMINAL |
| LENGTH FROM BEARING SURFACE OF WRENCHING FEATURE TO BOLT END | 1.636 INCHES NOMINAL |
| WRENCHING FEATURE HEIGHT | 0.195 INCHES NOMINAL |
| FIRST END CONNECTION TYPE | THREADED EXTERNAL BOSS |

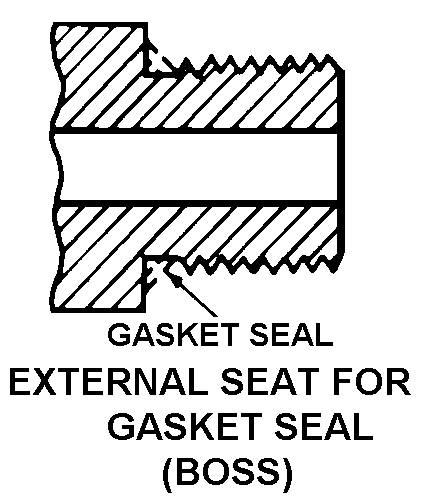

| FIRST END STYLE DESIGNATOR | C9 EXTERNAL SEAT FOR GASKET SEAL |
| FIRST END THREAD SERIES DESIGNATOR | UNJC |
| FIRST END NOMINAL THREAD SIZE | 0.312 INCHES |
| FIRST END THREAD CLASS | 3A |
| FIRST END THREAD DIRECTION | RIGHT-HAND |
| FIRST END THREAD LENGTH | 0.348 INCHES NOMINAL |
| SECOND END CONNECTION TYPE | THREADED INTERNAL TUBE |
| SECOND END STYLE DESIGNATOR | C14 DOUBLE COMPRESSION |
| SECOND END SEAT RADIUS | 0.062 INCHES NOMINAL |
| SECOND END THREAD SERIES DESIGNATOR | UNF |
| SECOND END NOMINAL THREAD SIZE | 0.250 INCHES |
| SECOND END THREAD CLASS | 3B |
| SECOND END THREAD DIRECTION | RIGHT-HAND |
| SECOND END THREAD LENGTH | 0.250 INCHES NOMINAL |
| WRENCHING FEATURE STYLE | 1 HEXAGON |
| WIDTH ACROSS FLATS | 0.560 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 4730-01-341-0091
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | N | The item does not have a critical feature such as tolerance, fit restrictions or application. Nuclear hardness properties have not been determined (not valid for input). |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
