Product Details | TUBE COUPLING
4730-01-361-3918 A straight fitting 12 inches (304 mm) long or under having the same or different type of connection of the same size on both ends. It is designed to join a tube or tube fitting to another tube or tube fitting. Excludes fittings with threaded external connections on both ends. Excludes NIPPLE, PIPE.
Part Alternates: AC1000D05, AP10100D05, H10036D05, LD83020D05, D10036D05, 7D0020D05, 4730-01-361-3918, 01-361-3918, 4730013613918, 013613918
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 16 JUL 1992 | 01-361-3918 | 06078 ( COUPLING, TUBE ) |

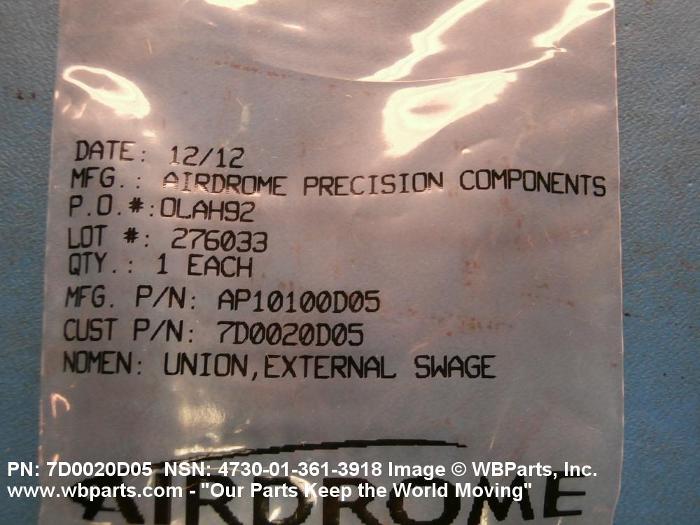

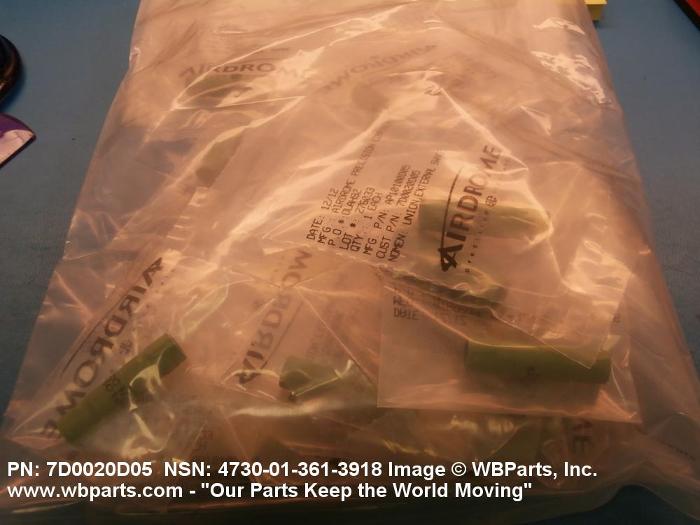

Drawings & Photos | NSN 4730-01-361-3918
Demand History | NSN 4730-01-361-3918
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 7D0020D05 | 2024-03-28 | 139 | DIBBS |
| AC1000D05 | 2024-03-28 | 139 | DIBBS |
| AP10100D05 | 2024-03-28 | 139 | DIBBS |
| H10036D05 | 2024-03-28 | 139 | DIBBS |
| 7D0020D05 | 2023-11-16 | 24 | DIBBS |
| AC1000D05 | 2023-11-16 | 24 | DIBBS |
| AP10100D05 | 2023-11-16 | 24 | DIBBS |
| H10036D05 | 2023-11-16 | 24 | DIBBS |
| 7D0020D05 | 2022-09-11 | 65 | DIBBS |
| AC1000D05 | 2022-09-11 | 65 | DIBBS |
| AP10100D05 | 2022-09-11 | 65 | DIBBS |
| H10036D05 | 2022-09-11 | 65 | DIBBS |
| 7D0020D05 | 2019-01-31 | 83 | DIBBS |
| AC1000D05 | 2019-01-31 | 83 | DIBBS |
| AP10100D05 | 2019-01-31 | 83 | DIBBS |
| H10036D05 | 2019-01-31 | 83 | DIBBS |
| 4730-01-361-3918 | 2017-12-28 | 93 | DIBBS |
| 4730-01-361-3918 | 2017-10-05 | 49 | DIBBS |
| 4730-01-361-3918 | 2017-09-24 | 49 | DIBBS |
| 4730-01-361-3918 | 2015-07-30 | 262 | DIBBS |
| 4730-01-361-3918 | 2014-12-04 | 109 | DIBBS |
| 7D0020D05 | 2013-02-28 | 20 | Canada |
| 4730-01-361-3918 | 2012-01-20 | 114 | DIBBS |
| 4730-01-361-3918 | 2009-01-09 | 130 | DIBBS |
Cross Reference | NSN 4730-01-361-3918
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 7D0020D05 | 88277 | BOEING COMPANY, THE DBA BOEING |
| AC1000D05 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
| AP10100D05 | 01673 | SPS TECHNOLOGIES, LLC DBA AIRDROME PRECISION COMPONENTS |
| D10036D05 | 14798 | DESIGNED METAL CONNECTIONS, INC. DBA PERMASWAGE |
| H10036D05 | 08199 | EATON AEROSPACE |
| LD83020D05 | 00624 | EATON CORPORATION DBA AEROSPACE DIV |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4730-01-361-3918
Related Products | NSN 4730-01-361-3918
4730-01-361-3919, 4730-01-361-3920, 4730-01-361-3937, 4730-01-361-4354, 4730-01-361-4355
Technical Data | NSN 4730-01-361-3918
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| MAXIMUM OPERATING PRESSURE | 3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE |
| MAXIMUM OPERATING TEMP | 450.0 DEG FAHRENHEIT SINGLE RESPONSE |

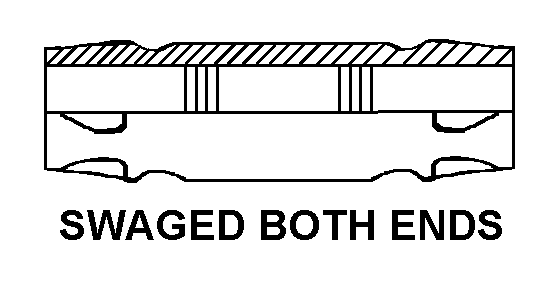

| STYLE DESIGNATOR | A37 SWAGED BOTH ENDS |
| CONNECTION TYPE | UNTHREADED INTERNAL TUBE ALL ENDS |
| CONNECTION STYLE | B48 SWAGED W/GROOVES ALL ENDS |
| NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED | 0.312 INCHES ALL ENDS |
| NOMINAL OVERALL LENGTH | 1.620 INCHES |
Restrictions/Controls & Freight Information | NSN 4730-01-361-3918
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051420 | CONDUITS,O/T EARTHEN:PIPE FITTINGS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 736 | unknown |
| Originating Activity Code | AH | Defense Supply Center Columbus Columbus, OH 43215 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4730-01-361-3918
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
