Product Details | SEDIMENT STRAINER BODY
4730-01-421-0050 A component of a STRAINER, SEDIMENT designed to contain a STRAINER ELEMENT, SEDIMENT. It may have inlet and/or outlet connections, means for mounting, or a drain plug(s) or cock(s). Excludes BOWL, SEDIMENT. See also FILTER BODY, FLUID.
Part Alternates: D-1175-1 ITEM 1, D11751ITEM1, D11751PC1, D-1175-1PC1, 4730-01-421-0050, 01-421-0050, 4730014210050, 014210050
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 30 OCT 1995 | 01-421-0050 | 19290 ( STRAINER BODY, SEDIMENT ) |
Drawings & Photos | NSN 4730-01-421-0050
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4730-01-421-0050
4730-01-421-0121, 4730-01-421-0123, 4730-01-421-0124, 4730-01-421-0125, 4730-01-421-0126
Technical Data | NSN 4730-01-421-0050
| Characteristic | Specifications |
|---|---|
| STYLE DESIGNATOR | C3 Y STRAINER W/THREADED COVER |
| FIRST INTAKE CONNECTION TYPE | RAISED FACE FLANGE LINE |

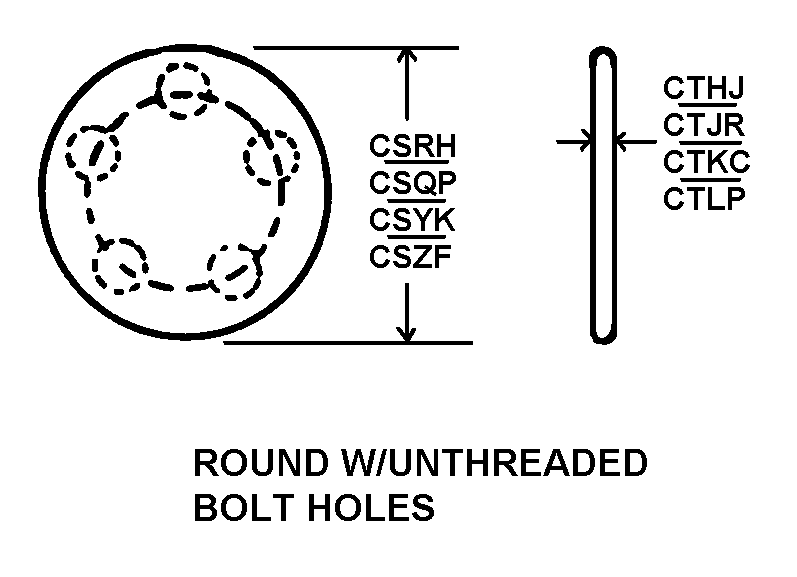

| FIRST INTAKE FLANGE SHAPE STYLE | 2 ROUND W/UNTHREADED BOLT HOLES |
| FIRST INTAKE FLANGE OUTSIDE DIAMETER | 7.500 INCHES NOMINAL |
| FIRST INTAKE FLANGE THICKNESS | 1.312 INCHES NOMINAL |

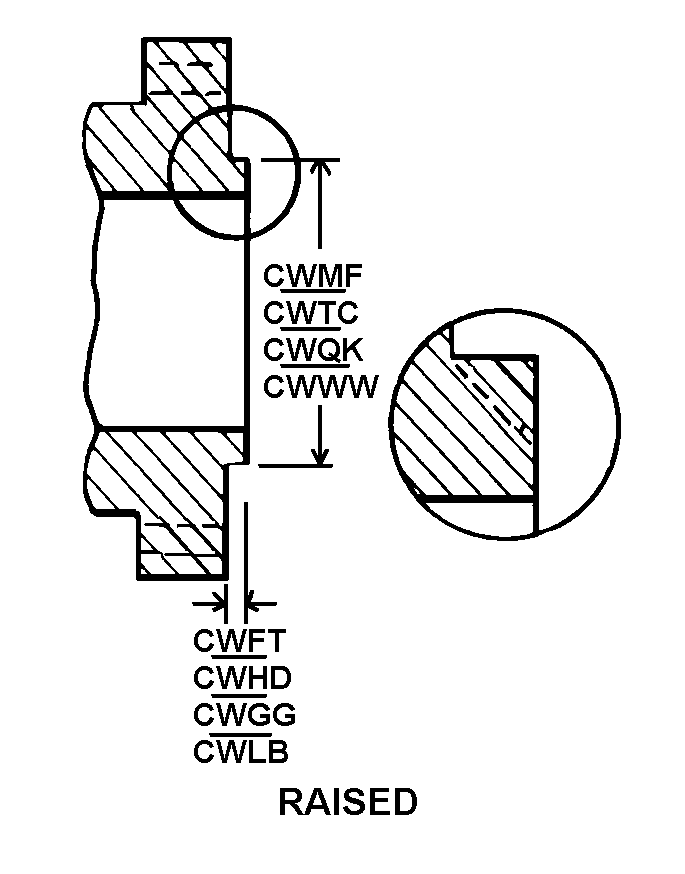

| FIRST INTAKE FLANGE FACE STYLE | 4 RAISED |
| FIRST INTAKE FLANGE RAISED FACE HEIGHT | 0.062 INCHES NOMINAL |
| FIRST INTAKE FLANGE RAISED FACE DIAMETER | 5.000 INCHES NOMINAL |
| FIRST DISCHARGE CONNECTION RELATIONSHIP TO INTAKE CONNECTION | IDENTICAL TO FIRST INTAKE CONNECTION |
| MOUNTING TYPE | INLET CONNECTION AND OUTLET CONNECTION LINE |
| III END ITEM IDENTIFICATION | STRATEGIC SEALIFT CONVERSION SHIPS CLASS |
Restrictions/Controls & Freight Information | NSN 4730-01-421-0050
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-421-0050
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
