Product Details | PIPE UNION
4730-01-597-9654 A straight pipe fitting designed to join two lengths of pipe or pipe fittings in such a manner that they may be disconnected without disturbing the rest of the pipe line. The end connections have pipe threads or are unthreaded and designed to accommodate a pipe.
Part Alternates: MF-FL601-1/212-8202673, MF-FL601-1/212-8202686, MFFL60112128202673, MFFL60112128202686, MF-FL601-2/212-8202673, MF-FL601-2/212-8202686, MFFL60122128202673, MFFL60122128202686, MF-FL601-3/212-8202673, MF-FL601-3/212-8202686, MFFL60132128202673, MFFL60132128202686, MF-FL601-4/212-8202673, MF-FL601-4/212-8202686, MFFL60142128202673, MFFL60142128202686, B1655INCSSCH120CL600MOD, 4730-01-597-9654, 01-597-9654, 4730015979654, 015979654
Pipe, Tubing, Hose, and Fittings | Hose, Pipe, Tube, Lubrication, and Railing Fittings
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 47 | 24 JUN 2011 | 01-597-9654 | 03785 ( UNION, PIPE ) |

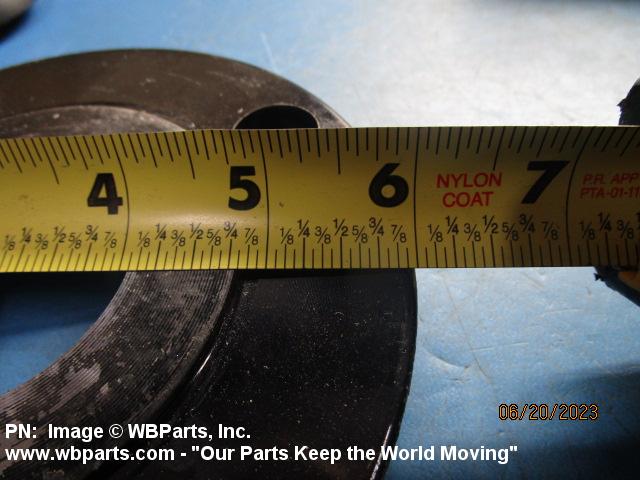

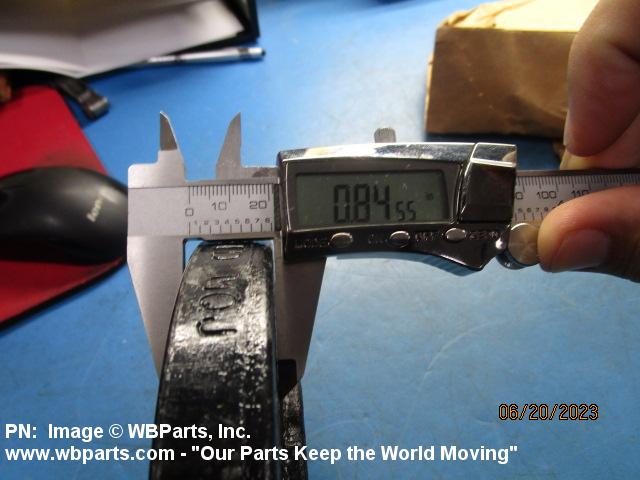

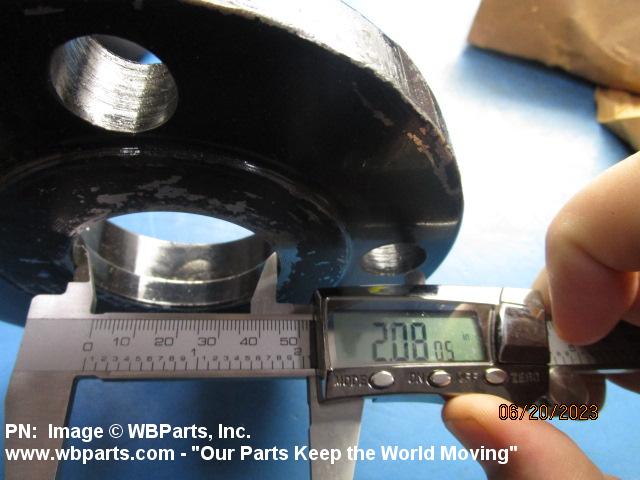

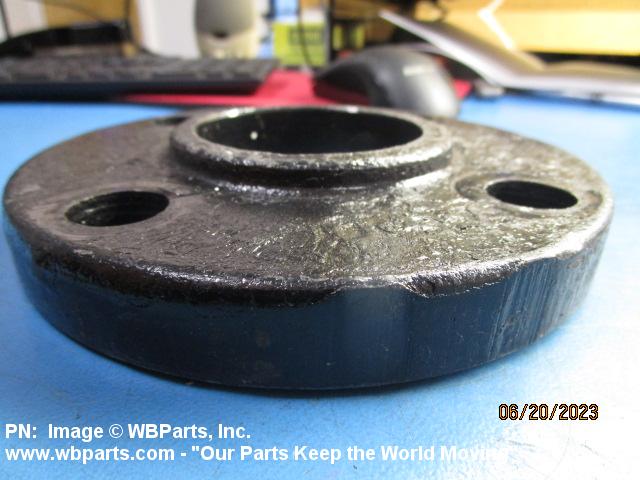

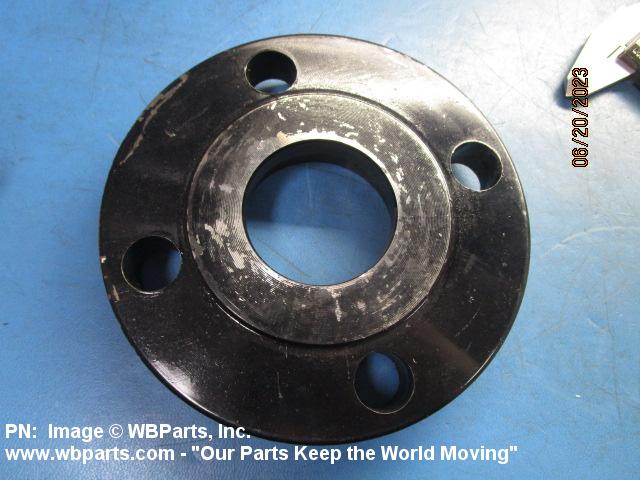

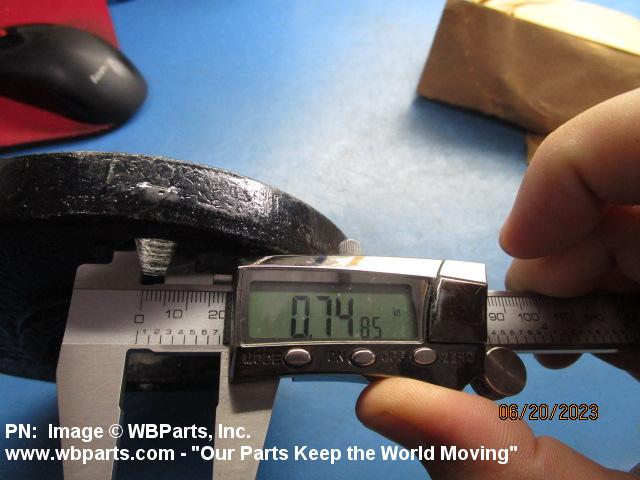

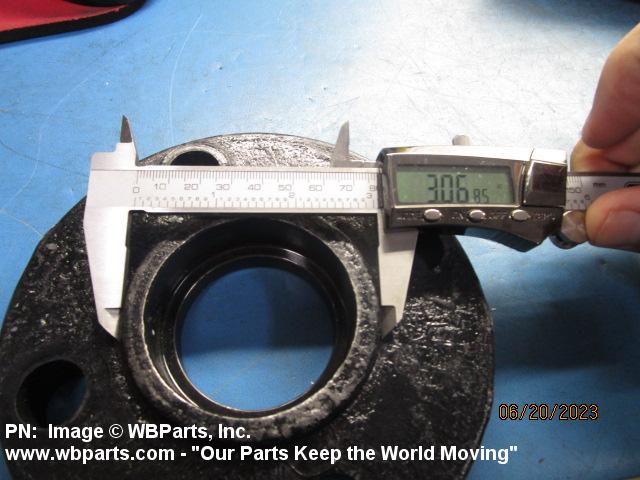

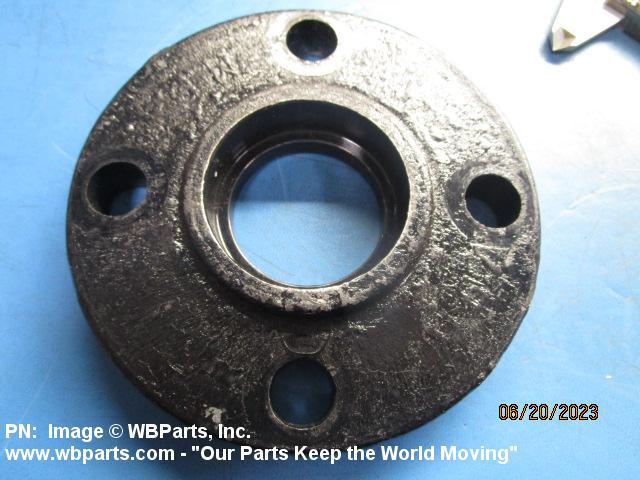

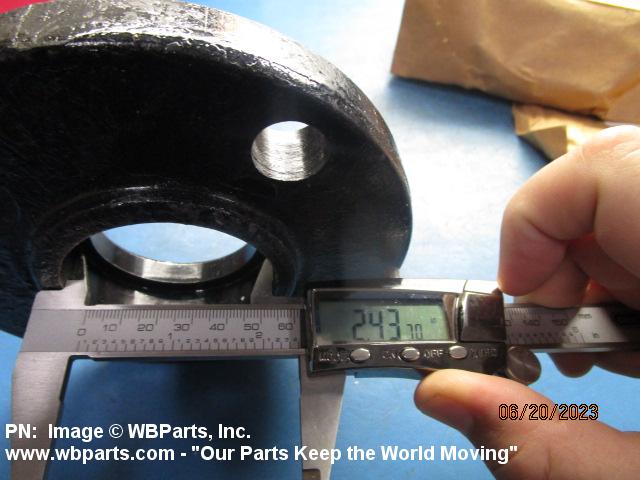

Drawings & Photos | NSN 4730-01-597-9654
Cross Reference | NSN 4730-01-597-9654
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| B16.5,5IN,CS,SCH120,CL600(MOD) | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MF-FL601-1/212-8202673 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| MF-FL601-1/212-8202686 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| MF-FL601-2/212-8202673 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| MF-FL601-2/212-8202686 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| MF-FL601-3/212-8202673 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| MF-FL601-3/212-8202686 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| MF-FL601-4/212-8202673 | 53711 | NAVAL SEA SYSTEMS COMMAND |
| MF-FL601-4/212-8202686 | 53711 | NAVAL SEA SYSTEMS COMMAND |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4730-01-597-9654
4730-01-597-9734, 4730-01-598-0291, 4730-01-598-1155, 4730-01-598-1334, 4730-01-598-1358
Technical Data | NSN 4730-01-597-9654
| Characteristic | Specifications |
|---|---|
| DEPARTURE FROM CITED DOCUMENT | MATERIAL WILL BE IN ACCORDANCE WITH NAVICP ACTIVITY HX QUALITY CONTROL, MANUFACTURING AND TESTING SPECIFICATIONS |
| CRITICALITY CODE JUSTIFICATION | ZZZW |
Restrictions/Controls & Freight Information | NSN 4730-01-597-9654
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | F | Munitions List Item or Commerce Control List Item. Demilitarization required. Demilitarization Instructions to be furnished by the Item/Technical Manager. |
| Controlled Inventory Item Code: | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | Y | The item does not have a nuclear hardened feature but does have other critical feature(s) such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 4730-01-597-9654
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | X3 | Nuclear Reactor Plant (NRP) material under the technical cognizance of the NAVSEA 08 special designed, manufactured and/or treated for use in a NRP or controls thereof. This category includes all other NRP items which are not coded X2 or X4. |
| Issue Repair, or Requisition | BL | Submit/refer requisitions to NAVICP MECH. Centralized control for issue of repair parts for specific programs/equipments. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | N35 | Naval Inventory Control Point Mechanicsburg, PA 17055-0788 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | 7 | NON-SENSITIVE (SRC-N/A) - UNCLASSIFIED AA&E: OR ITEMS ASSIGNED A DEMILITARIZATION CODE OTHER THAN A, B, Q, OR P FOR WHICH ANOTHER CIIC IS INAPPROPRIATE. (NOTE: THE LOSS, THEFT, UNLAWFUL DISPOSITION, AND/OR RECOVERY OF AN ITEM WITH CIIC 7 WILL BE INVESTIGATED IN ACCORDANCE WITH DOD-4000-25-2-M AND DOD 7200.14-R, VOLUME 12, CHAPTER 7). |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
