Product Details | DRAIN COCK
4820-00-141-9090 An item with one mounting end and one free flowing end with a metal to metal valve closure. It is designed to drain fluids from radiators, boilers, and similar items.
Part Alternates: K1340B, 4820-00-141-9090, 00-141-9090, 4820001419090, 001419090
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 00-141-9090 | 16988 ( COCK, DRAIN ) |
Drawings & Photos | NSN 4820-00-141-9090
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4820-00-141-9090
Related Products | NSN 4820-00-141-9090
4820-00-141-9096, 4820-00-141-9097, 4820-00-141-9165, 4820-00-141-9166, 4820-00-141-9173
Technical Data | NSN 4820-00-141-9090
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY BODY |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-376,ALLOY 355 FED SPEC SINGLE MATERIAL RESPONSE BODY |
| SURFACE TREATMENT | ANODIZE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625,TYPE 1 MIL SPEC SINGLE TREATMENT RESPONSE |

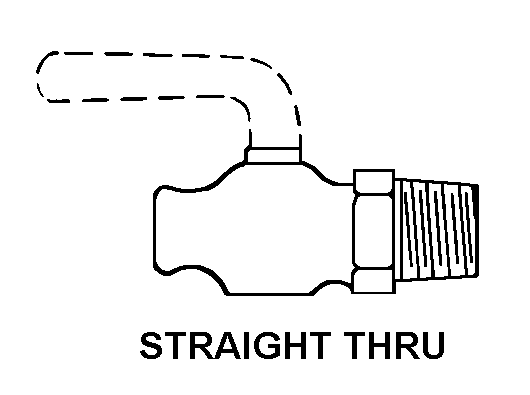

| STYLE DESIGNATOR | A10 STRAIGHT THRU |
| FLOW CONTROL DEVICE | DISK |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | UNTHREADED EXTERNAL HOSE 1ST END THREADED EXTERNAL BOSS 2ND END |

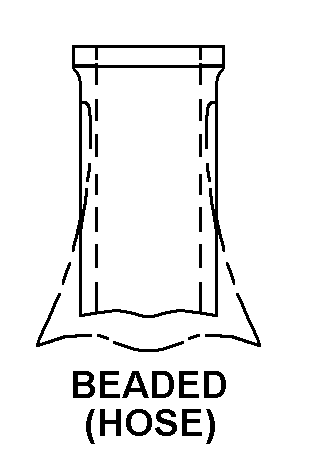

| CONNECTION STYLE | B62 BEADED 1ST END B50 EXTERNAL SEAT FOR GASKET SEAL 2ND END |
| NOMINAL INSIDE DIAMETER HOSE ACCOMMODATED | 1.250 INCHES 1ST END |
| THREAD SERIES DESIGNATOR | UNF 2ND END |
| NOMINAL THREAD SIZE | 1.500 INCHES 2ND END |
| THREAD CLASS | 3A 2ND END |
| THREAD DIRECTION | RIGHT-HAND 2ND END |
| RENEWABLE SEAT RING TYPE | WELDED |
Restrictions/Controls & Freight Information | NSN 4820-00-141-9090
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
