4820-00-486-4356 - POPPET DRAIN COCK, 004864356

Product Details | POPPET DRAIN COCK

4820-00-486-4356 An item designed to drain fluids from fuel systems, tanks, filters, or similar items. It has a mounting end, a free flowing end, and a quick-acting nonmetallic sealed closure, usually spring loaded, that holds it in an "off" position. It requires no lubrication other than from the fluid being drained.

Part Alternates: 004864356

Engine Accessories | Engine Fuel System Components, Aircraft and Missile Prime Movers

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
29		00-486-4356	16989 ( COCK, POPPET DRAIN )

Drawings & Photos | NSN 2915-00-486-4356

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 4820-00-486-4356

Compare

Related Products | NSN 4820-00-486-4356

2915-00-486-4514, 2915-00-486-4515, 2915-00-486-4532, 2915-00-486-4683, 2915-00-486-4849

Technical Data | NSN 4820-00-486-4356

Characteristic	Specifications
MATERIAL	COPPER ALLOY BODY
SURFACE TREATMENT	CADMIUM

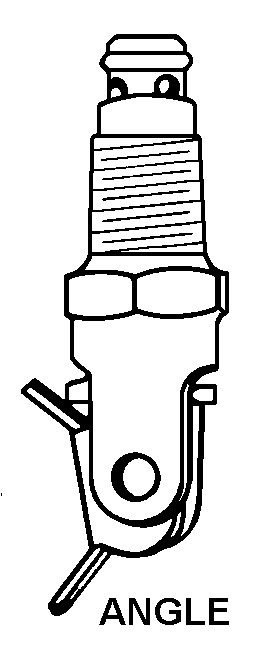

STYLE DESIGNATOR	A17 ANGLE
FLOW CONTROL DEVICE	POPPET
VALVE OPERATION METHOD	MANUAL
CONNECTION TYPE	THREADED EXTERNAL TUBE 1ST END
CONNECTION STYLE	B46A PLAIN 1ST END
SEAT ANGLE	37.0 DEGREES 1ST END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.438 INCHES 1ST END
THREAD SERIES DESIGNATOR	UNF 1ST END
NOMINAL THREAD SIZE	0.437 INCHES 1ST END
THREAD QUANTITY PER INCH	20 1ST END
THREAD CLASS	3A 1ST END
THREAD DIRECTION	RIGHT-HAND 1ST END
MANUFACTURERS CODE	92003
DESIGN CONTROL REFERENCE	K1750B1-1

Restrictions/Controls & Freight Information | NSN 4820-00-486-4356

Restictions
Freight

Category	Code	Description
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials

Category	Code	Description
No Freight Information
