4820-00-529-4287 - CHECK VALVE, 1112548887, 1112-548887, 1228549

Product Details | CHECK VALVE

4820-00-529-4287 A valve permitting flow in one direction only. It does not have a stem, except when equipped with a lever and weight and has no pressure adjustment. It may be inline or cartridge (manifold) design.

Part Alternates: 1112548887, 1112-548887, 1228549, 12-2854-9, 1R3082, 695019, 4820-00-529-4287, 00-529-4287, 4820005294287, 005294287

Valves | Valves, Nonpowered

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
48	01 JAN 1963	00-529-4287	05487 ( VALVE, CHECK )

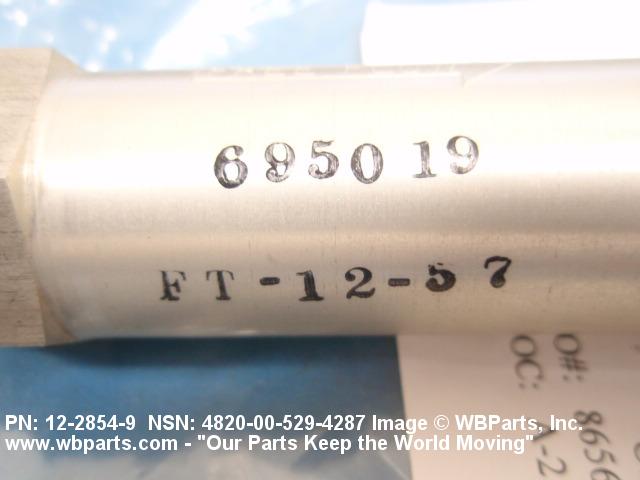

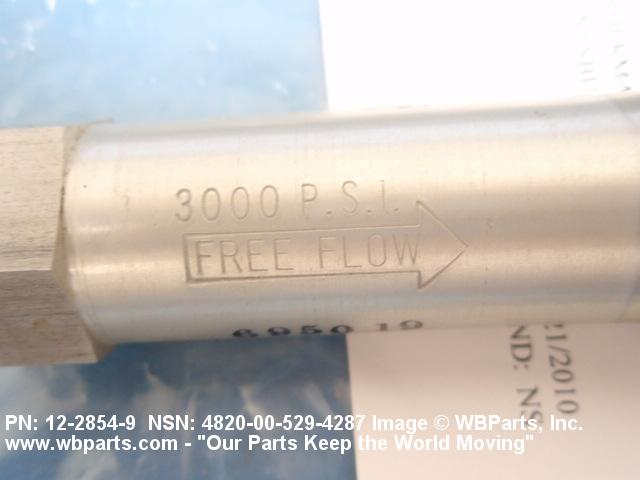

Drawings & Photos | NSN 4820-00-529-4287

Part Number	Request Date	QTY	Origin
4820-00-529-4287	2017-08-28	1	US
4820-00-529-4287	2016-02-16	41	DIBBS
4820-00-529-4287	2016-02-04	41	DIBBS
4820-00-529-4287	2016-01-03	27	DIBBS
4820-00-529-4287	2015-12-13	19	DIBBS
4820-00-529-4287	2015-10-29	11	DIBBS
4820-00-529-4287	2015-09-09	17	DIBBS
4820-00-529-4287	2015-07-30	8	DIBBS
1112548887	2014-05-29	1	Sri Lanka
4820-00-529-4287	2014-01-07	13	DIBBS
4820-00-529-4287	2013-11-24	3	DIBBS
1112548887	2012-06-06	1	ZA
4820-00-529-4287	2012-06-06	1	ZA
4820-00-529-4287	2012-03-29	15	DIBBS
4820-00-529-4287	2011-10-18	11	DIBBS
1112548887	2010-07-12	1	United States
1228549	2010-07-12	1	United States
4820-00-529-4287	2010-07-06	10	DIBBS
4820-00-529-4287	2009-08-14	3	DIBBS
4820-00-529-4287	2009-06-09	6	DIBBS

Cross Reference | NSN 4820-00-529-4287

Part Number	Cage Code	Manufacturer
1112-548887	0TR84	UNITED VALVE COMPANY, DIV OF FEDERAL INDUSTRIES, INC
1112-548887	3H889	PARKER-HANNIFIN CORPORATION DBA FLUID SYSTEMS DIVISION
1112-548887	45681	PARKER-HANNIFIN CORPORATION DIV CORPORATE HEADQUARTERS
1112-548887	92003	PARKER HANNIFIN CORPORATION DIV AEROSPACE GROUP HEADQUARTERS
12-2854-9	09990	PARKER-HANNIFIN CORPORATION DBA HYDRAULIC VALVE DIV
12-2854-9	86768	TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC
1R3082	26044	SAF INDUSTRIES LLC DBA GAR-KENYON AEROSPACE
695019	98897	LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS

Request a Quote

Comments | What our customers are saying...

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

NSNs for Compare ( up to 4 ): Add 4820-00-529-4287

Compare

Related Products | NSN 4820-00-529-4287

4820-00-529-4288, 4820-00-529-4289, 4820-00-529-4301, 4820-00-529-4322, 4820-00-529-4384

Technical Data | NSN 4820-00-529-4287

Characteristic	Specifications
MATERIAL	ALUMINUM BODY STEEL CORROSION RESISTING FLOW CONTROL DEVICE RUBBER SYNTHETIC SEAT
SURFACE TREATMENT	CADMIUM
STYLE DESIGNATOR	A3 STRAIGHT THRU
FLOW CONTROL DEVICE	CONE
MEDIA FOR WHICH DESIGNED	FUEL/OIL, HYDROCARBON SINGLE RESPONSE
MAXIMUM OPERATING PRESSURE	3000.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP	160.0 DEG FAHRENHEIT SINGLE RESPONSE
VALVE OPERATION METHOD	AUTOMATIC
CONNECTION TYPE	THREADED INTERNAL TUBE ALL ENDS
CONNECTION STYLE	B5A FLARE ALL ENDS
SEAT ANGLE	32.0 DEGREES 1ST END
NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED	0.500 INCHES ALL ENDS
THREAD SERIES DESIGNATOR	UNF ALL ENDS
NOMINAL THREAD SIZE	0.750 INCHES ALL ENDS
THREAD QUANTITY PER INCH	16 ALL ENDS
THREAD CLASS	3B ALL ENDS
THREAD DIRECTION	RIGHT-HAND ALL ENDS
MOUNTING POSITION	HORIZONTAL OR VERTICAL
RENEWABLE SEAT RING TYPE	PRESSED-IN
DISK LOADING METHOD	SPRING
SPECIFICATION/STANDARD DATA	81349-MIL-V-5524 GOVERNMENT SPECIFICATION
NONDEFINITIVE SPEC/STD DATA	8 SIZE

Restrictions/Controls & Freight Information | NSN 4820-00-529-4287

Restictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	051080	FAUCETS,BIBCOCKS,GATES VALVES
Less than car load rating
Less than truck load rating	W	Rating Variable
Water commodity Code	576	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 4820-00-529-4287

Air Force
Navy

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 EA : Each
