Product Details | PLUG VALVE
4820-00-698-3322 A valve designed to control the flow of a fluid by the rotation of a ported plug or plug sector within a suitable ported seat. The plug requires lubrication for ease of operation or contains a bonded composition seal(s). See also VALVE, SEATLESS and COCK, PLUG.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: X2710-3 1-4, X2710314, 710-3 1-4, 710-3-1/4B3, 710314, 710314B3, 8169232, 4820-00-698-3322, 00-698-3322, 4820006983322, 006983322
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 01 JAN 1963 | 00-698-3322 | 05490 ( VALVE, PLUG ) |
Drawings & Photos | NSN 4820-00-698-3322
Cross Reference | NSN 4820-00-698-3322
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 710-3 1-4 | 86768 | TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC |
| 710-3-1/4B3 | 86768 | TELEDYNE INDUSTRIES INC TELEDYNE FLUID SYSTEMS REPUBLIC |
| 8169232 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| X2710-3 1-4 | 96047 | REPUBLIC MFG CO |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4820-00-698-3322
Related Products | NSN 4820-00-698-3322
4820-00-698-3323, 4820-00-698-4058, 4820-00-698-5813, 4820-00-698-6026, 4820-00-698-6308
Technical Data | NSN 4820-00-698-3322
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY BODY COPPER ALLOY FLOW CONTROL DEVICE COPPER ALLOY SEAT |

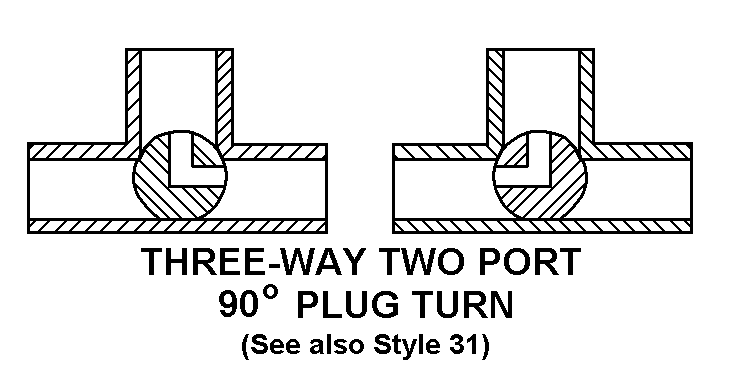

| FLOW STYLE | F10 THREE-WAY TWO PORT 90 DEGREE PLUG TURN |
| MEDIA FOR WHICH DESIGNED | AIR 1ST RESPONSE FUEL/OIL, HYDROCARBON 2ND RESPONSE WATER, FRESH 3RD RESPONSE |
| MAXIMUM OPERATING PRESSURE | 125.0 POUNDS PER SQUARE INCH 1ST RESPONSE 50.0 POUNDS PER SQUARE INCH 2ND RESPONSE 125.0 POUNDS PER SQUARE INCH 3RD RESPONSE |
| VALVE OPERATION METHOD | MANUAL |
| CONNECTION TYPE | THREADED INTERNAL PIPE ALL ENDS |
| CONNECTION STYLE | G9 PLAIN ALL ENDS |
| NOMINAL PIPE SIZE ACCOMMODATED | 0.250 INCHES ALL ENDS |
| THREAD SERIES DESIGNATOR | ANPT ALL ENDS |
| NOMINAL THREAD SIZE | 0.250 INCHES ALL ENDS |
| THREAD QUANTITY PER INCH | 18 ALL ENDS |
| THREAD DIRECTION | RIGHT-HAND ALL ENDS |
| MOUNTING FACILITY | BRACKET |
| FEATURES PROVIDED | NONADJUSTABLE ROTATION |
| SPECIAL FEATURES | SERVICE DETERMINED BY TYPE OF SERVICE LUBRICANT ADDED BEFORE USE |
