Product Details | FLUID VALVE STEM
4820-01-062-7511 An item usually metallic, threaded or unthreaded, used for securing to or positioning into a mating part. It is designed to be used in a globe, relief, regulator valve and the like as a means of controlling the flow of liquids or gases in a given system. One end may have an integral disk or be designed to accommodate a metallic or nonmetallic disk. The other end is designed for a handwheel, lever, spring, diaphragm and the like for nonpowered operation or to accommodate a gear, solenoid, air motor and the like for powered operation. The handwheel and/or disk may be furnished with the item. Excludes STEM, FAUCET; and STEM, NEEDLE VALVE.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: 2177525C5XX34, 2177525-C5XX-34, 8032177525, 803-2177525, 8102177525C56X34, 810-2177525C56X-34, 4820-01-062-7511, 01-062-7511, 4820010627511, 010627511
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 22 JUL 1978 | 01-062-7511 | 32528 ( STEM, FLUID VALVE ) |

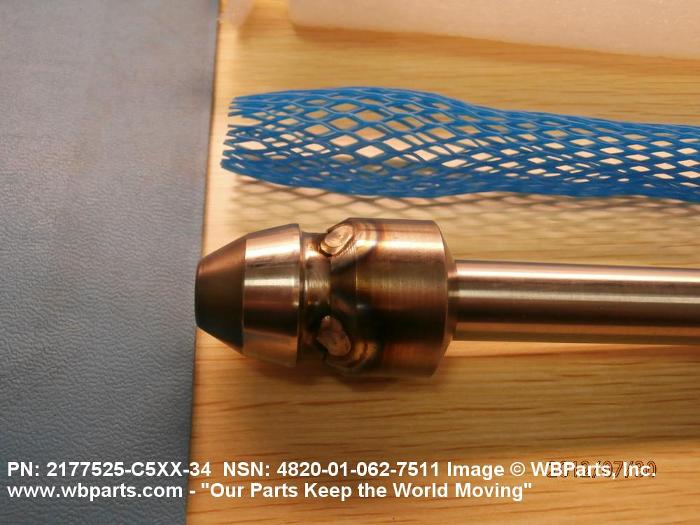

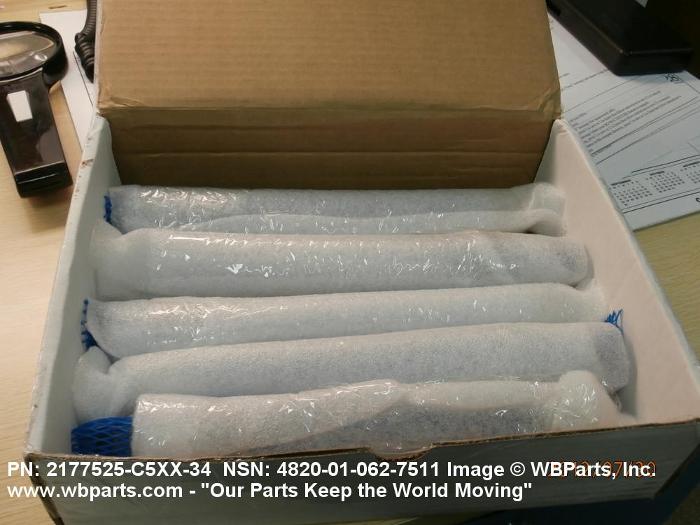

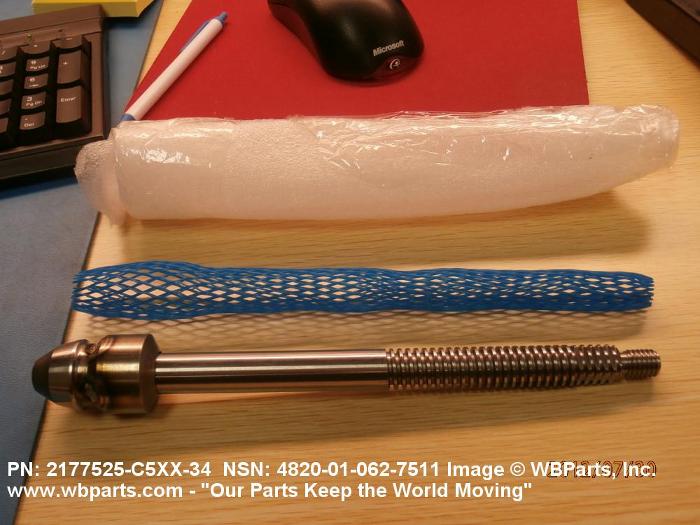

Drawings & Photos | NSN 4820-01-062-7511
Demand History | NSN 4820-01-062-7511
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4820-01-062-7511
4820-01-062-7914, 4820-01-062-7972, 4820-01-062-8011, 4820-01-062-8014, 4820-01-062-8021
Technical Data | NSN 4820-01-062-7511
| Characteristic | Specifications |
|---|---|
| VALVE TYPE FOR WHICH DESIGNED | GLOBE |
| LARGEST OUTSIDE DIAMETER | 1.188 INCHES NOMINAL |
| OVERALL LENGTH | 9.375 INCHES NOMINAL |
| STEM ACTUATING END TYPE | THREADED EXTERNALLY |
| FEATURES PROVIDED | INTEGRAL DISK |
Restrictions/Controls & Freight Information | NSN 4820-01-062-7511
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 051080 | FAUCETS,BIBCOCKS,GATES VALVES |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | AX | Defense Supply Center Columbus Columbus, OH 43216-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4820-01-062-7511
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
