Product Details | SELECTOR ROTARY VALVE
4820-01-142-6691 A manually or power operated valve designed to control the flow of a fluid by the rotation of a ported or curved rotor. A spring, ball, or cam detent may be included to locate or hold position. The item may be panel or subplate mounted, or be an inline design. Excludes VALVE, PLUG. See also VALVE, LINEAR, DIRECTIONAL CONTROL.20248100015Valves, Powered48200018Valves, Nonpowered
Part Alternates: D1D12354030705, D1D12-35-403-07-05, 026-42161-5, 026-62280-5, 4820-01-142-6691, 01-142-6691, 4820011426691, 011426691, 026421615, 026622805
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 48 | 18 NOV 1982 | 01-142-6691 | 45485 ( VALVE, ROTARY, SELECTOR ) |

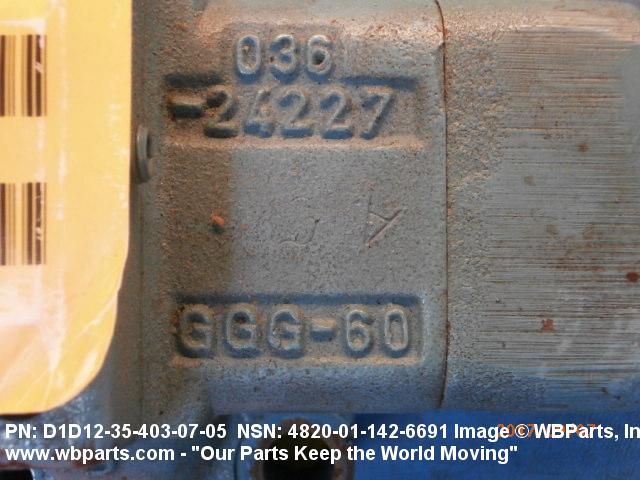

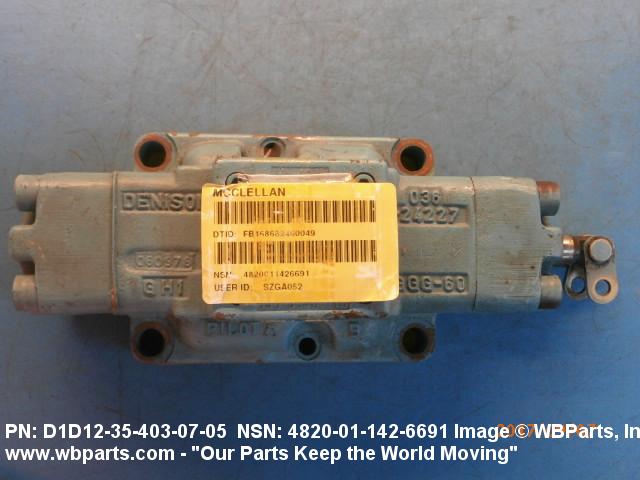

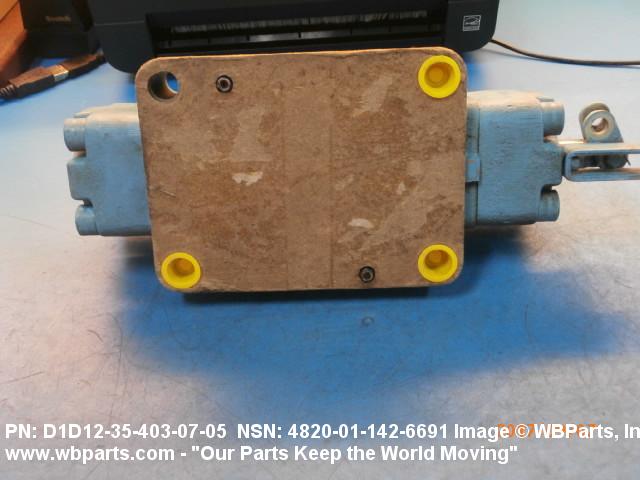

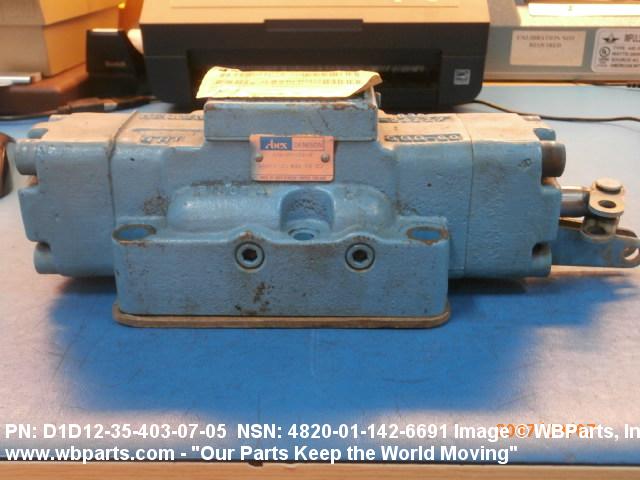

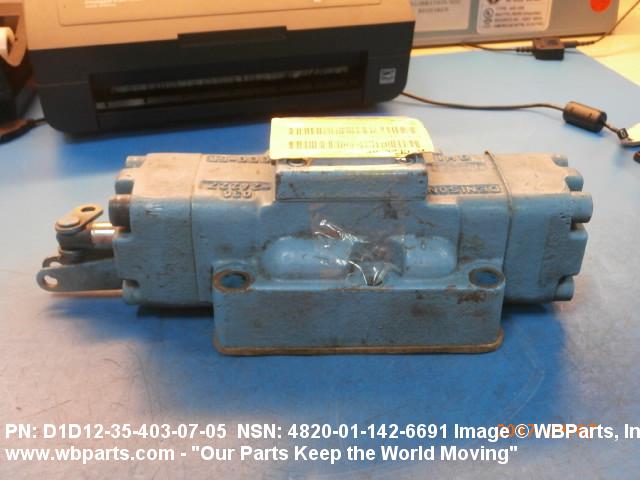

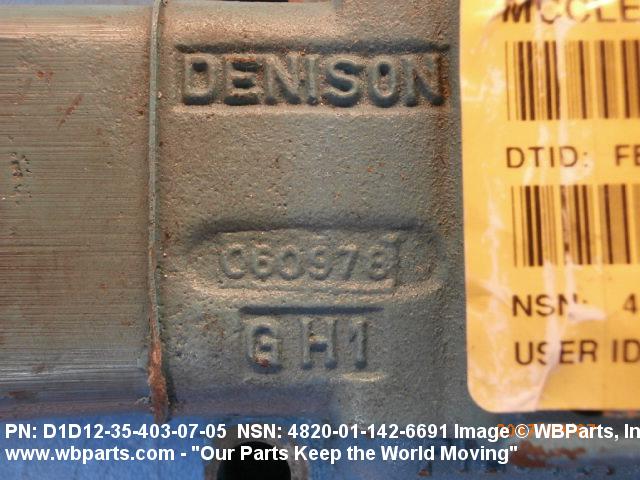

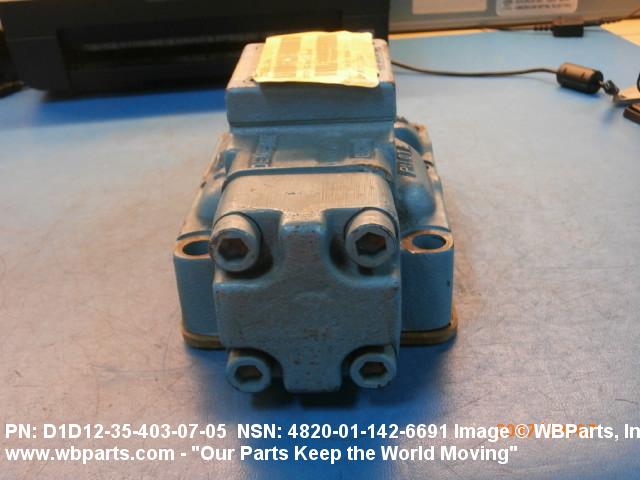

Drawings & Photos | NSN 4820-01-142-6691
Demand History | NSN 4820-01-142-6691
Cross Reference | NSN 4820-01-142-6691
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 026-42161-5 | 9F512 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION |
| 026-62280-5 | 9F512 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION |
| D1D12-35-403-07-05 | 9F512 | PARKER-HANNIFIN CORPORATION DBA HYDRAULIC PUMP DIVISION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 4820-01-142-6691
4820-01-142-7311, 4820-01-142-7459, 4820-01-142-7462, 4820-01-142-7468, 4820-01-142-7638
Technical Data | NSN 4820-01-142-6691
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | 4 WAY DIRECTIONAL CONTROL; 3/4 NPTF SUBPLATE CONNECTIONS; MAX FLOW 30 GPM; MAX PRESSURE 3000/5000 PSI |
| III END ITEM IDENTIFICATION | 4920010747836 |
| MANUFACTURERS CODE | 9F512 |
| DESIGN CONTROL REFERENCE | 026-62280-5 |
Restrictions/Controls & Freight Information | NSN 4820-01-142-6691
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 127220 | PRESSURE REG/RED/RELIEF VALVES NOI |
| Less than car load rating | P | 77.5 |
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 594 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
