Product Details | INDICATOR TEST SET
4920-00-799-7813 A test set specifically designed for use in making examinations of indicators.20349200058Aircraft Maintenance and Repair Shop Specialized Equipment66250070Electrical and Electronic Properties Measuring and Testing Instruments66800078Liquid and Gas Flow, Liquid Level, and Mechanical Motion Measuring Instruments
Part Alternates: SMS237, J667524, J667-524, TTU27E, TT3, 100198, 4920-00-799-7813, 00-799-7813, 4920007997813, 007997813
Maintenance and Repair Shop Equipment | Aircraft Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 01 JAN 1963 | 00-799-7813 | 03647 ( TEST SET, INDICATOR ) |

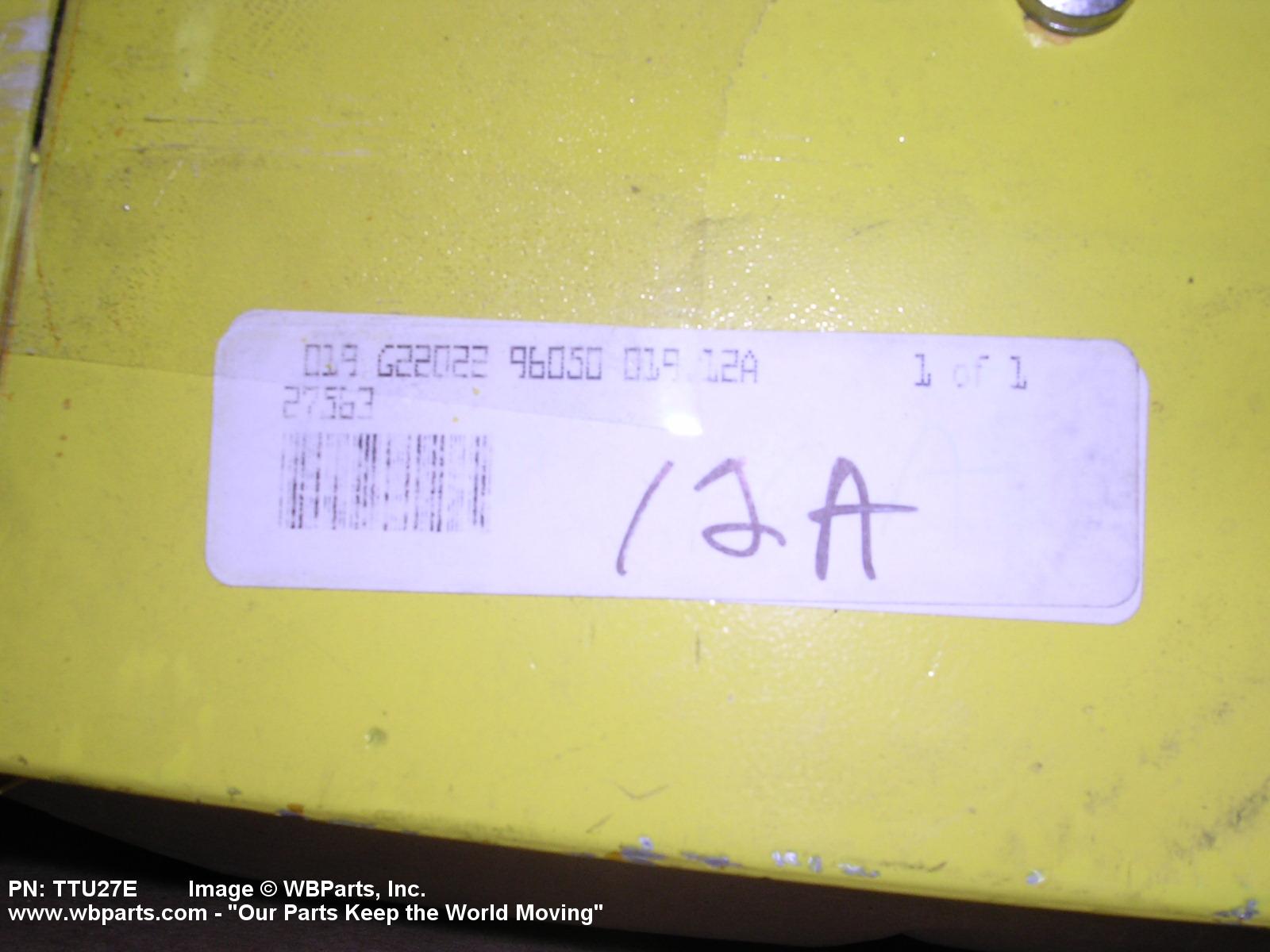

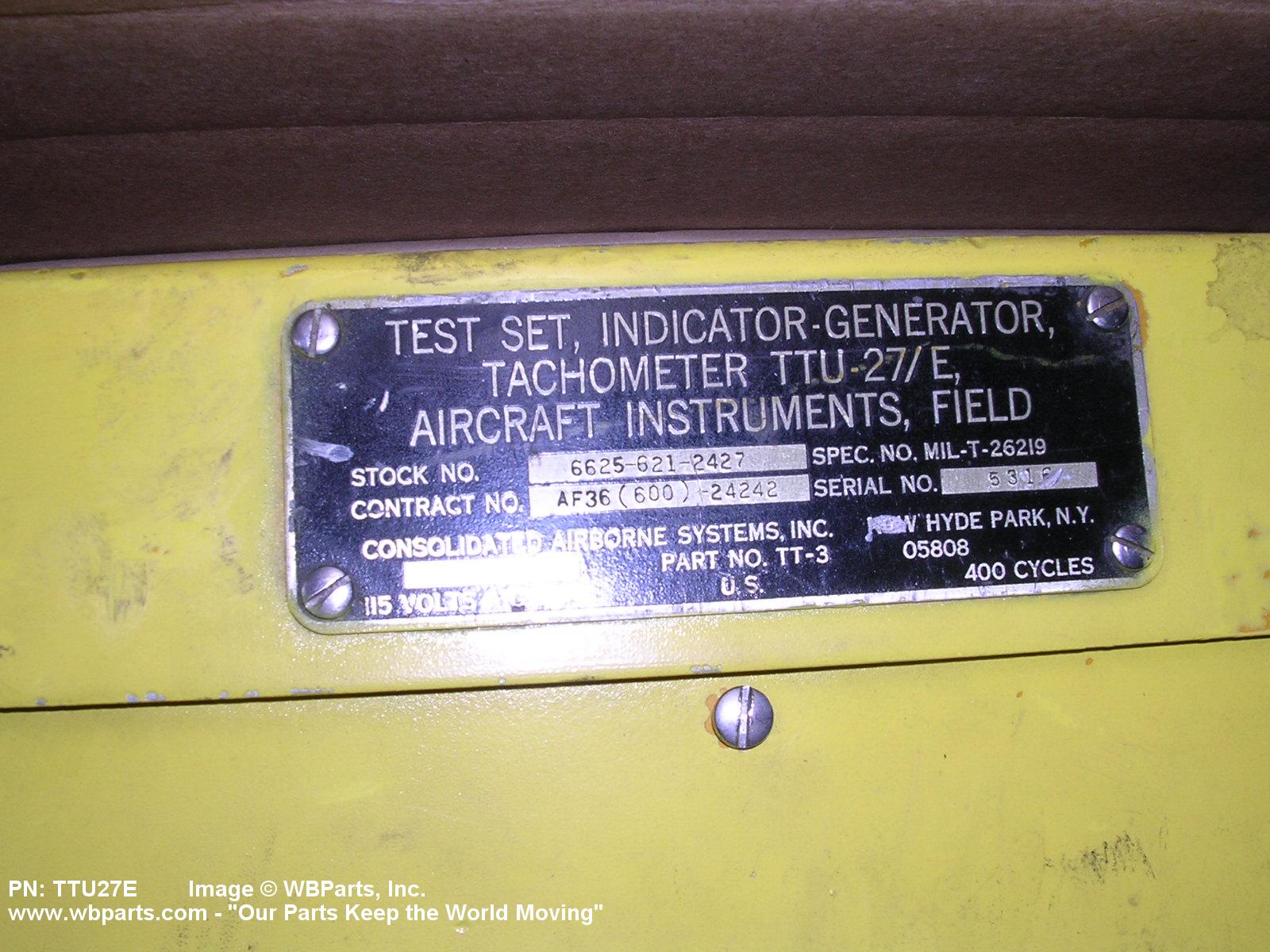

Drawings & Photos | NSN 4920-00-799-7813
Demand History | NSN 4920-00-799-7813
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| TTU27E | 2023-02-16 | 1 | US |
| 4920-00-799-7813 | 2020-01-29 | 2 | US |
| 4920-00-799-7813 | 2020-01-29 | 2 | US |
| 007997813 | 2020-01-15 | 2 | United States |
| 4920-00-799-7813 | 2019-03-14 | 1 | US |
| TTU27E | 2018-02-01 | 1 | Greece |
| TTU27E | 2017-02-08 | 1 | FX |
| TTU27E | 2014-12-30 | 4 | |
| 4920-00-799-7813 | 2014-12-27 | 4 | NECO |
| TTU27E | 2014-09-05 | 1 | TW |
| TTU27E | 2014-04-02 | 1 | KR |
| TTU27E | 2012-09-17 | 4 | US |
| 4920-00-799-7813 | 2012-07-05 | 4 | US |
| TTU27E | 2011-06-25 | 12 | |
| 4920-00-799-7813 | 2011-06-24 | 12 | NECO |
| 4920-00-799-7813 | 2010-10-04 | 1 | MX |
| TTU27E | 2009-06-08 | 1 | US |
| TTU27E | 2009-04-16 | 1 | Malaysia |
| 4920-00-799-7813 | 2009-03-10 | 1 | Malaysia |
| TTU27E | 2009-01-26 | 1 | Malaysia |
| TTU27E | 2008-10-10 | 1 | United States |
| 4920-00-799-7813 | 2008-08-29 | 1 | US |
| 4920-00-799-7813 | 2008-01-02 | 1 | United States |
| TTU27E | 2007-12-19 | 1 | US |
| 4920-00-799-7813 | 2007-11-27 | 1 | United States |
Cross Reference | NSN 4920-00-799-7813
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 100198 | 99251 | CARLETON LIFE SUPPORT SYSTEMS INC. DBA COBHAM MISSION SYSTEM |
| J667-524 | 53247 | PRODUCTS SUPPORT, INC. |
| SMS237 | 0UES3 | MID-AMERICA AVIATION, INC. |
| TT3 | 99251 | CARLETON LIFE SUPPORT SYSTEMS INC. DBA COBHAM MISSION SYSTEM |
| TTU27E | 81352 | AIR FORCE-NAVY AERONAUTICAL SPECIFICATIONS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4920-00-799-7813
Related Products | NSN 4920-00-799-7813
4920-00-799-7901, 4920-00-799-8213, 4920-00-799-8297, 4920-00-799-8298, 4920-00-799-8303
Technical Data | NSN 4920-00-799-7813
| Characteristic | Specifications |
|---|---|
| SPECIAL FEATURES | O/A DIM: 21.000 IN. LG,9.000 IN. W.,11.000 IN. H.; WT: 35 LBS; COMPANY ITEM NAME-TESTER, TACHOMETER |
| III FUNCTIONAL CLASSIFICATION | AA-6.1 |
| III FUNCTIONAL DESCRIPTION | USED TO TEST TACHOMETER INDICATORS FOR STARTING VOLTAGE AND CALIBRATION ACCURACY AND THE TACHOMETER GENERATORS FOR SPEED AND VOLTAGE OUTPUT UNDER LOAD. THE INDICATORS AND GENERATORS CAN BE TESTED WHEN REMOVED OR INSTALLED IN THE ACFT. USED FOR ORGANIZATIONAL AND INTERMEDIATE LEVELS OF MAINTENANCE |
| III RELATIONSHIP TO SIMILAR EQUIPMENT | ALTERNATES: PRODUCTS SUPPORT INC P/N R667-001; BULOVA SYSTEMS AND INSTRUMENTS CORP P/N BTT2ADM; CONSOLIDATED AIRBORNE SYSTEMS INC P/N TT3 |
| III REFERENCE DATA AND LITERATURE | NAVWEPS 17-15CM-2 |
| MANUFACTURERS CODE | 99251 |
| DESIGN CONTROL REFERENCE | TT3 |
Restrictions/Controls & Freight Information | NSN 4920-00-799-7813
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | Q | Strategic List Item (SLI). Demilitarization not required. SLI are non-MLI(Munitions List Items) controlled by the U.S. Dept. of Commerce through the Export Administration Regulations (EAR) and indicated on the Commerce Control List (CCL). Each CCL entry is preceded by a four-digit Export Control Commerce Control List Item (CCLI) – MUT to the point of scrap required outside the United States. Inside the United States, MUT is required when the DEMIL integrity code (IC) is “3” and MUT is not required when the DEMIL IC is “6.” |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061700 | ELEC APPLIANCES/INSTRUMENTS NOI |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 72D | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Q | Extremely fragile items including delicate instruments. |
| Special Handling Code | Q | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4920-00-799-7813
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Materiel Management Aggregation Code | RN | TG:GROUND SUPPORT EQUIPMENT (FSC RESIDUAL MMAC) |
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1R | Aeronautical, photographic, and meteorological material (consumable or expense type material) Naval Inventory Control Point, Philadelphia |
| Special Material ID | TX | Avionics support equipment and parts |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | W | Ground Support Equipment-End Items |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
