Product Details | AIRCRAFT ENGINE MAINTENANCE FIXTURE
4920-01-517-8462 A fixture designed to hold/position aircraft engine/engine components to facilitate inspection, maintenance, repair, testing and/or replacement of components.
Part Alternates: 856A2664G01, 4920-01-517-8462, 01-517-8462, 4920015178462, 015178462
Maintenance and Repair Shop Equipment | Aircraft Maintenance and Repair Shop Specialized Equipment
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 49 | 20 FEB 2004 | 01-517-8462 | 48925 ( FIXTURE, ENGINE MAINTENANCE, AIRCRAFT ) |

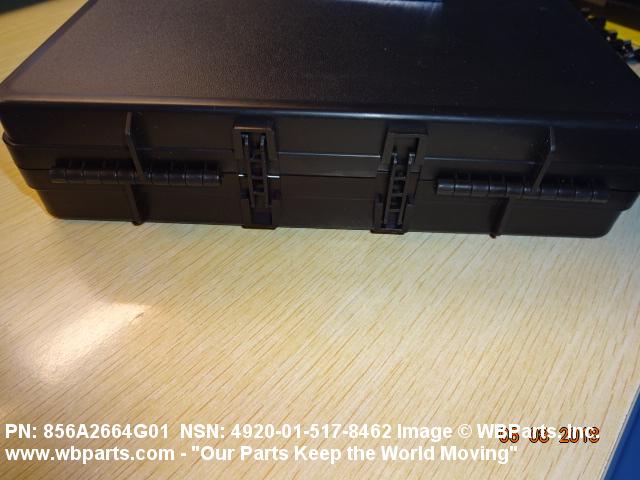

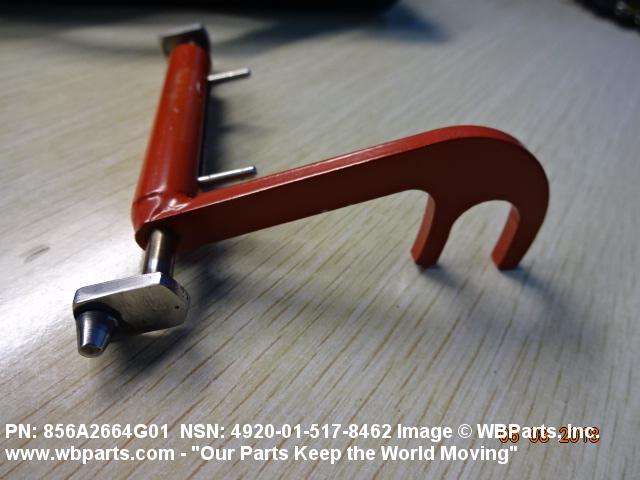

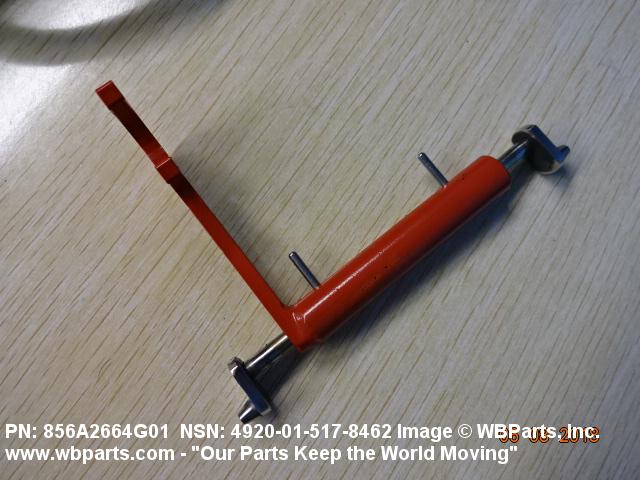

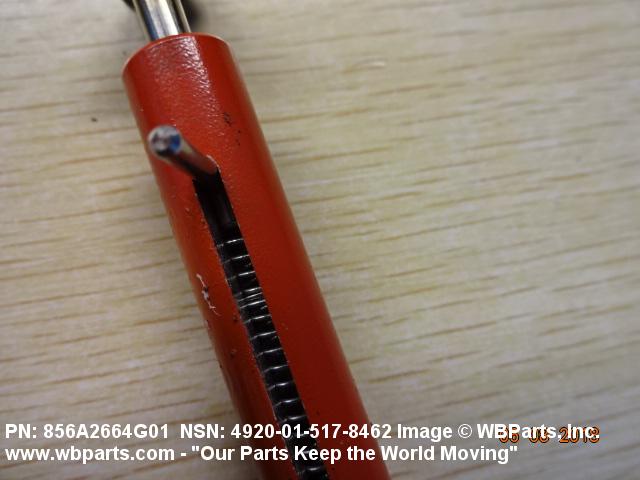

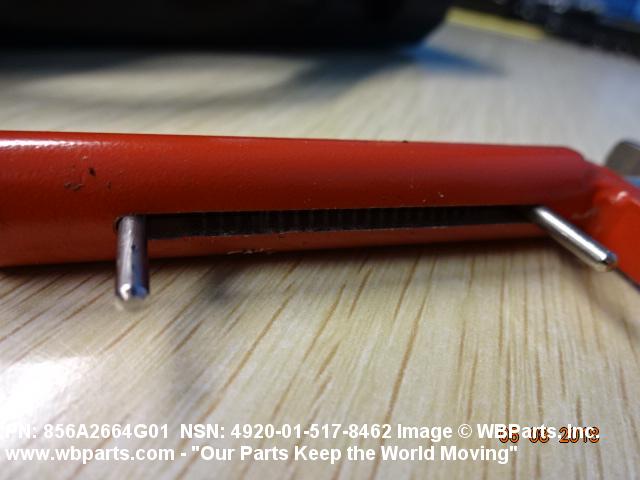

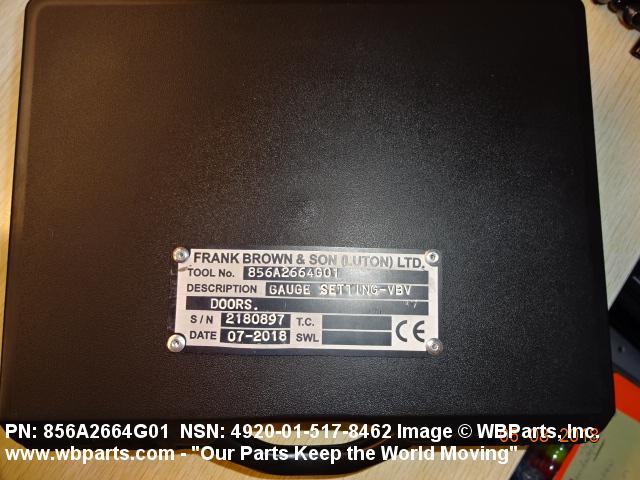

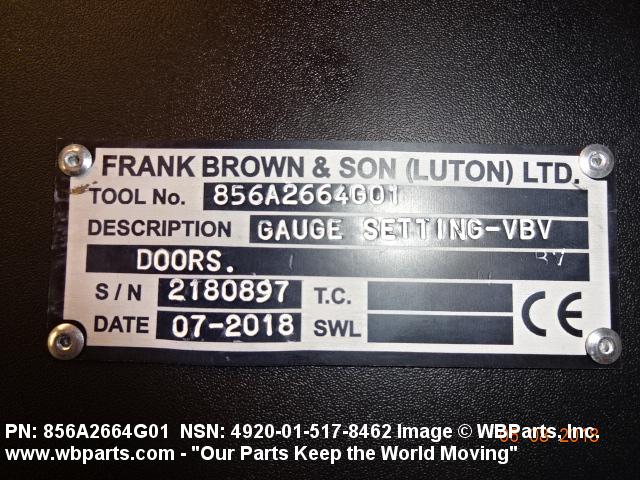

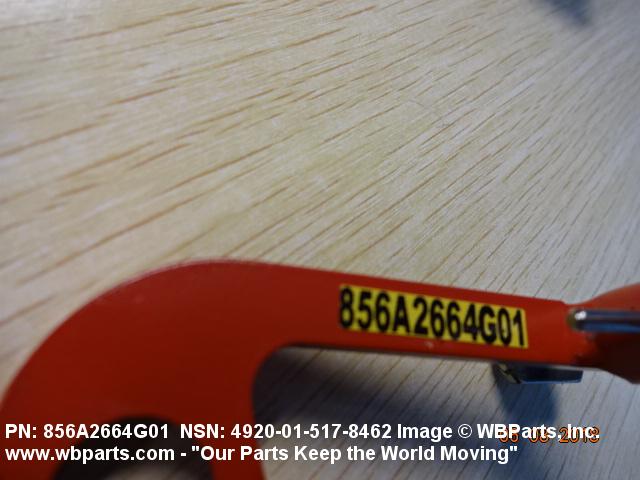

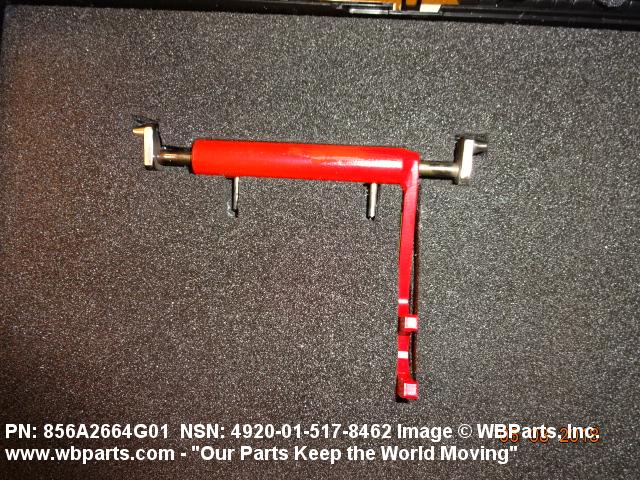

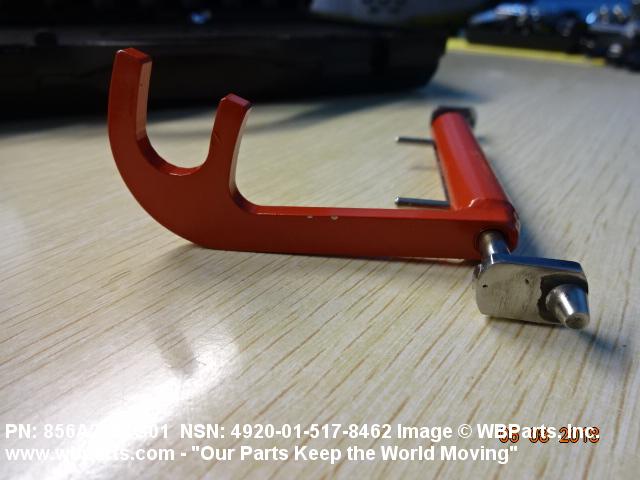

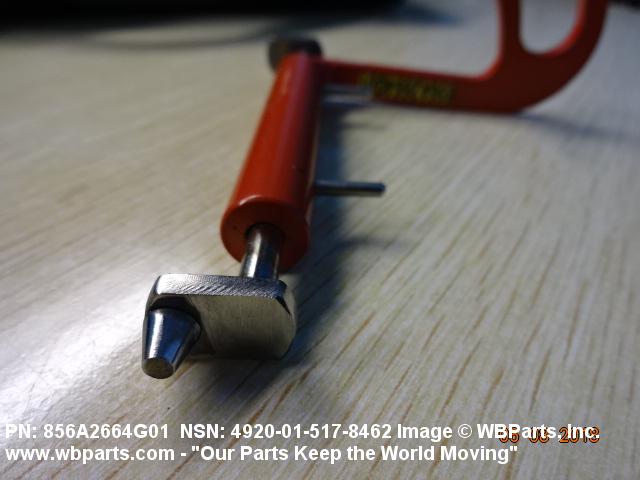

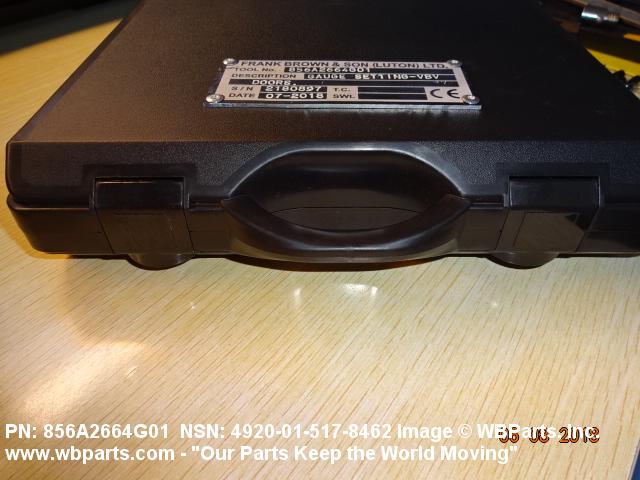

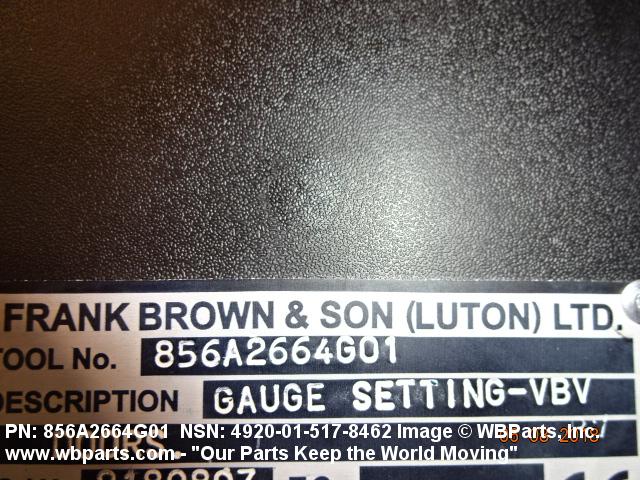

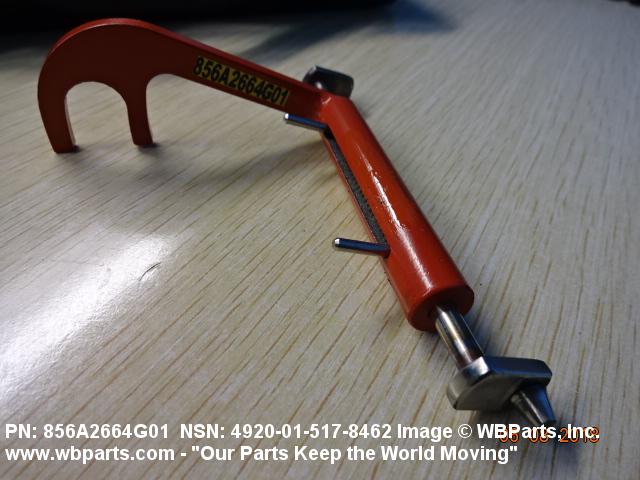

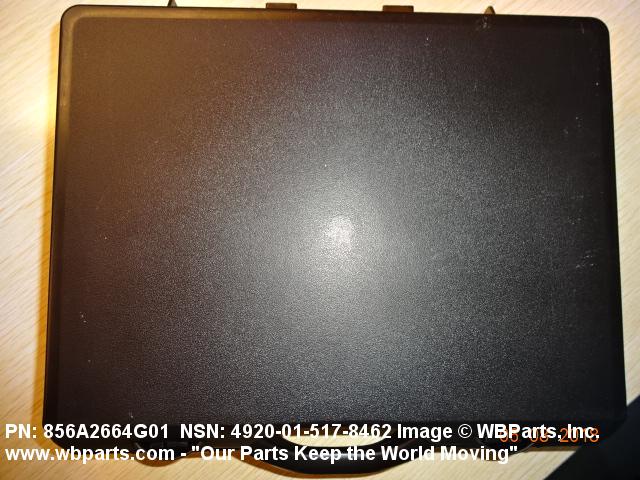

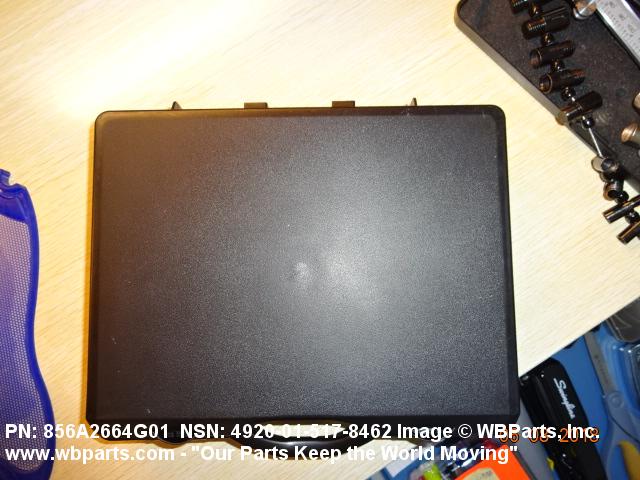

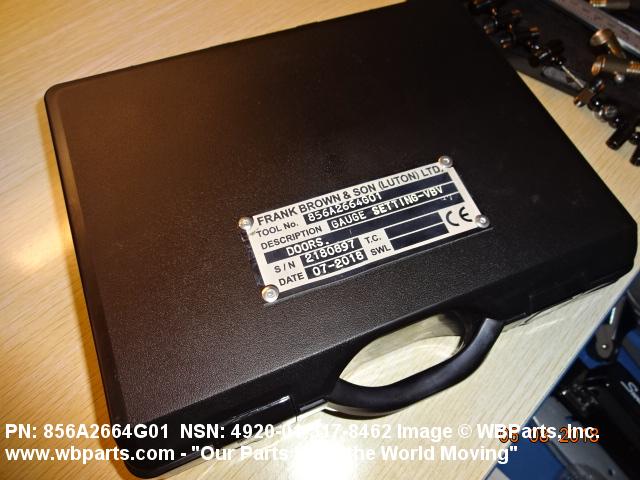

Drawings & Photos | NSN 4920-01-517-8462
Demand History | NSN 4920-01-517-8462
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 4920-01-517-8462 | 2020-11-30 | 1 | Oman |
| 4920-01-517-8462 | 2019-11-05 | 1 | United States |
| 4920-01-517-8462 | 2019-08-19 | 2 | United States |
| 856A2664G01 | 2018-11-05 | 1 | US |
| 856A2664G01 | 2018-06-20 | 1 | UK |
| 4920-01-517-8462 | 2018-01-19 | 2 | United States |
| 4920-01-517-8462 | 2012-09-25 | 1 | US |
| 4920-01-517-8462 | 2012-09-25 | 1 | US |
| 856A2664G01 | 2009-02-19 | 2 | US |
| 856A2664G01 | 2007-08-30 | 1 | US |
Cross Reference | NSN 4920-01-517-8462
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 856A2664G01 | 58828 | CFM INTERNATIONAL, INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 4920-01-517-8462
Related Products | NSN 4920-01-517-8462
4920-01-517-8464, 4920-01-517-9243, 4920-01-517-9421, 4920-01-517-9692, 4920-01-517-9702
Technical Data | NSN 4920-01-517-8462
| Characteristic | Specifications |
|---|---|
| FUNCTIONAL DESCRIPTION | USED TO SET THE VBV DOORS IN THE CLOSED POSITION |
| REFERENCE DATA AND LITERATURE | SERD:5597 |
| NOMINAL OVERALL LENGTH | 4.000 INCHES |
| NOMINAL OVERALL WIDTH | 2.000 INCHES |
| NOMINAL OVERALL HEIGHT | 3.000 INCHES |
| UNPACKAGED UNIT WEIGHT | 1.000 POUNDS |

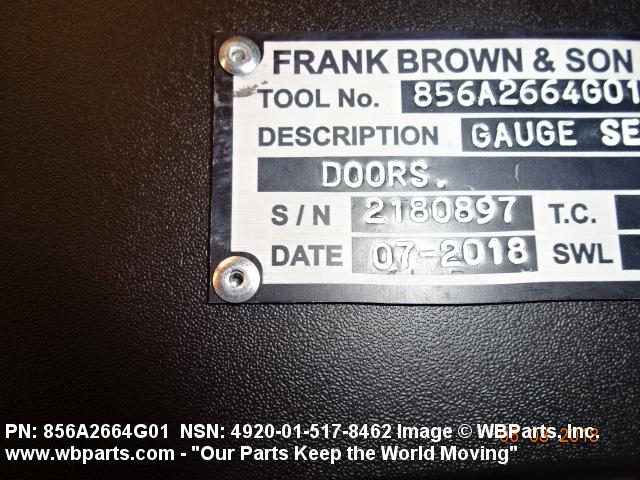

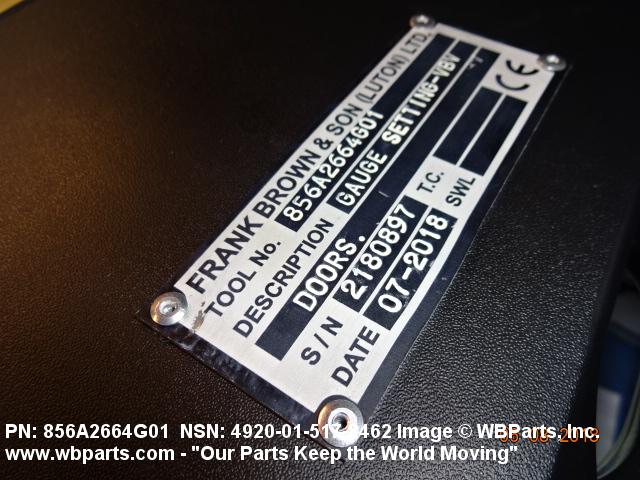

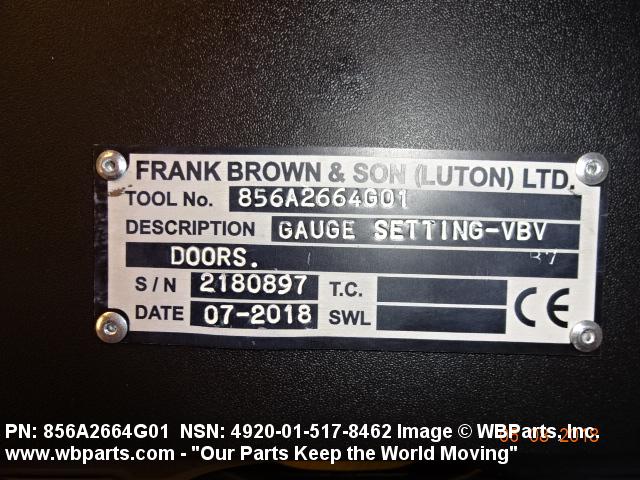

| PART NAME ASSIGNED BY CONTROLLING AGENCY | GAGE,SETTING-VBV DOORS |
| III END ITEM IDENTIFICATION | F108-CF-100 VBV DOORS |
Restrictions/Controls & Freight Information | NSN 4920-01-517-8462
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | B | Munitions List Item - Mutilation (MUT) to the point of scrap required. (Formerly: Demilitarization not required. Trade Security Controls (TSCs) required at disposition.) |
| Controlled Inventory Item Code: | M | HANDTOOLS AND SHOP EQUIPMENT |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 147650 | OUTFITS MILITARY EQUIP FOR REPAIR |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 72E | unknown |
| Originating Activity Code | TK | HQ AFMC/GLSC 401 SCM/GUMB Wright-Patterson AFB, OH 45433-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 4920-01-517-8462
Air Force| Category | Code | Description |
|---|---|---|
| Price Validation | P | The current standard price is the initial negotiated provisioned price.
|
| Budget Code | Y | variousO & M:AF centrally procured equipment items. They are separate, primary end items (other than the weapon system itself) needed by a user to perform an assigned mission. They are nonexpendable items (ERRCD NF or ND) which are not consumed in use, and they do not lose their original identity during periods of use by incorporation into, or attachment to another assembly. |
| Source of Supply | FLZ | Warner Robins Air Logistics Center Robins AFB, GA 31098-5609 |
| Agency | DF | Department of the Air Force |
| Service Organization | L | Lead Service - 22 (Repairable) |
| Reparability | U | AF Equipment Management System (AFEMS) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | M | HANDTOOLS AND SHOP EQUIPMENT |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
