Product Details | BOX WRENCH
5120-00-529-1008 A nonadjustable wrench having a box wrenching feature on one or both ends. Excludes WRENCH, OPEN END BOX; and WRENCH, BOX AND OPEN END, COMBINATION.
Part Alternates: T253040, 5120-00-529-1008, 00-529-1008, 5120005291008, 005291008
Hand Tools | Hand Tools, Nonedged, Nonpowered
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 51 | 01 JAN 1963 | 00-529-1008 | 03555 ( WRENCH, BOX ) |
Drawings & Photos | NSN 5120-00-529-1008
Cross Reference | NSN 5120-00-529-1008
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| T253040 | 03104 | TELEDYNE TECHNOLOGIES INC DBA TELEDYNE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5120-00-529-1008
5120-00-529-1009, 5120-00-529-1157, 5120-00-529-1474, 5120-00-529-1475, 5120-00-529-1483
Technical Data | NSN 5120-00-529-1008
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

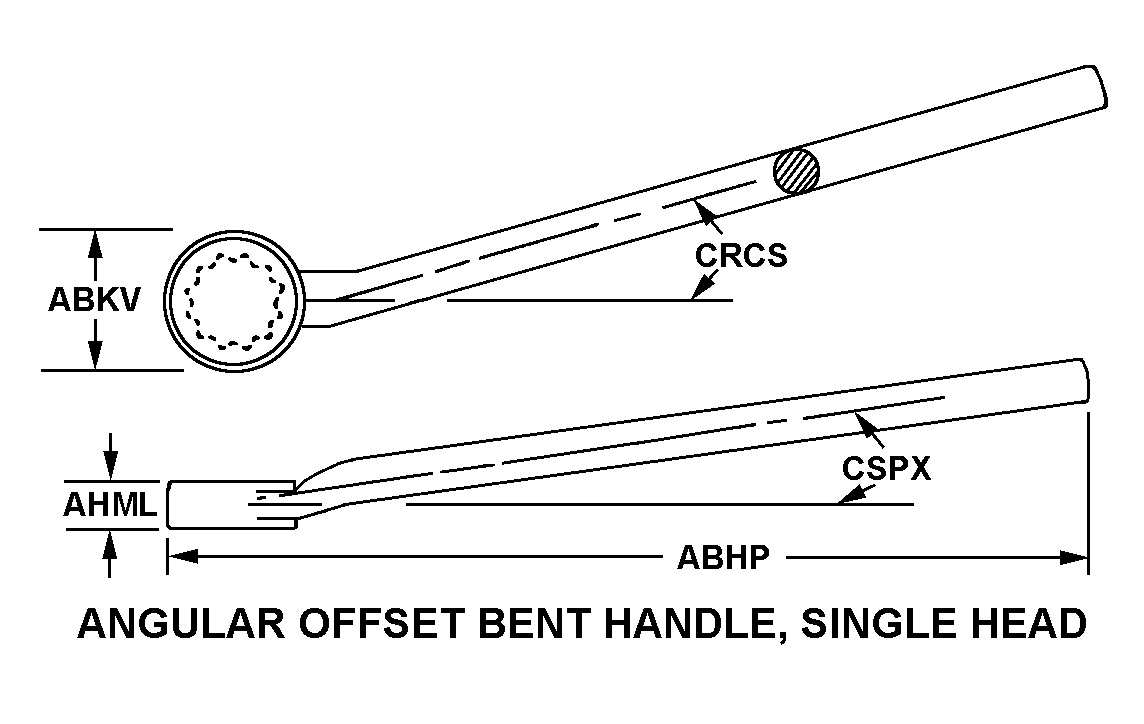

| STYLE DESIGNATOR | 22 ANGULAR OFFSET BENT HANDLE, SINGLE HEAD |
| HEAD ANGLE | 70.0 DEGREES NOMINAL |
| WRENCHING END OFFSET ANGLE | 10.0 DEGREES NOMINAL |
| WRENCHING SURFACE SIZE | 0.438 INCHES NOMINAL SINGLE END |
| WRENCHING SURFACE SHAPE | 12 POINT SINGLE END INTERNAL |
| MANUFACTURERS CODE | 03104 |
| DESIGN CONTROL REFERENCE | T253040 |
Restrictions/Controls & Freight Information | NSN 5120-00-529-1008
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 186620 | TOOLS, NOI HAND OTHER THAN POWER |
| Less than car load rating | Q | 70 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 732 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
