NSN 5305-01-011-4035 MS51023103, MS51023-103, FFS200

Product Details | SETSCREW


5305-01-011-4035 An externally threaded device whose threaded portion is of one nominal diameter with or without a head and having a cup, cone, or other type of machined point designed to prevent or restrict relative movement of parts and designed to be driven with either a wrench or inserted driver. A locking feature may be incorporated in the design of the head or threads.

Part Alternates: MS51023103, MS51023-103, FFS200, FF-S-200, LP54XF02J4, 46104139, 461-04139, 5305-01-011-4035, 01-011-4035, 5305010114035, 010114035

Hardware and Abrasives | Screws

Supply Group (FSG) NSN Assign. NIIN
53 22 OCT 1975 01-011-4035

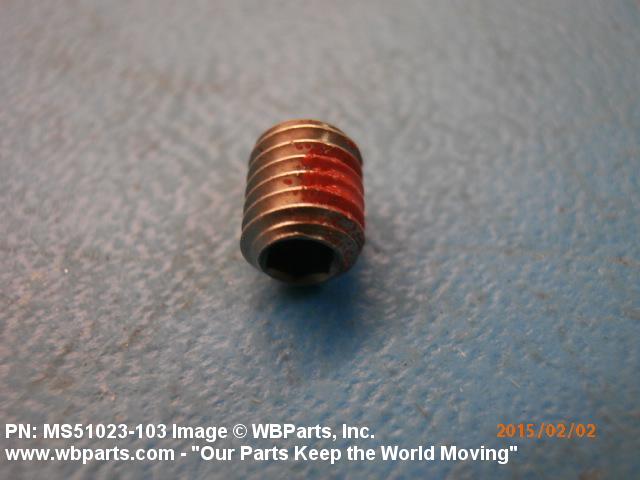

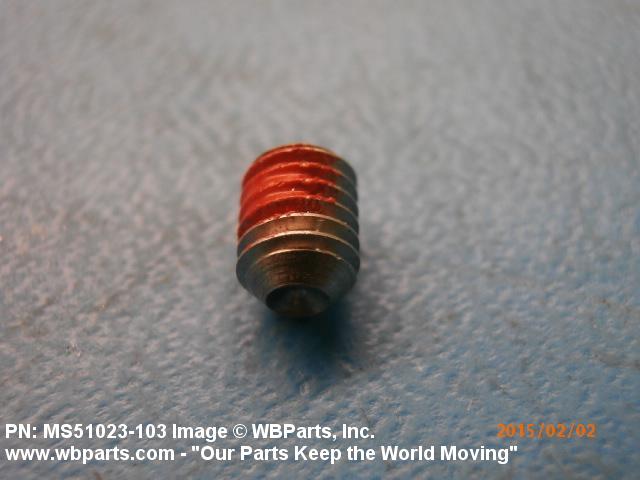

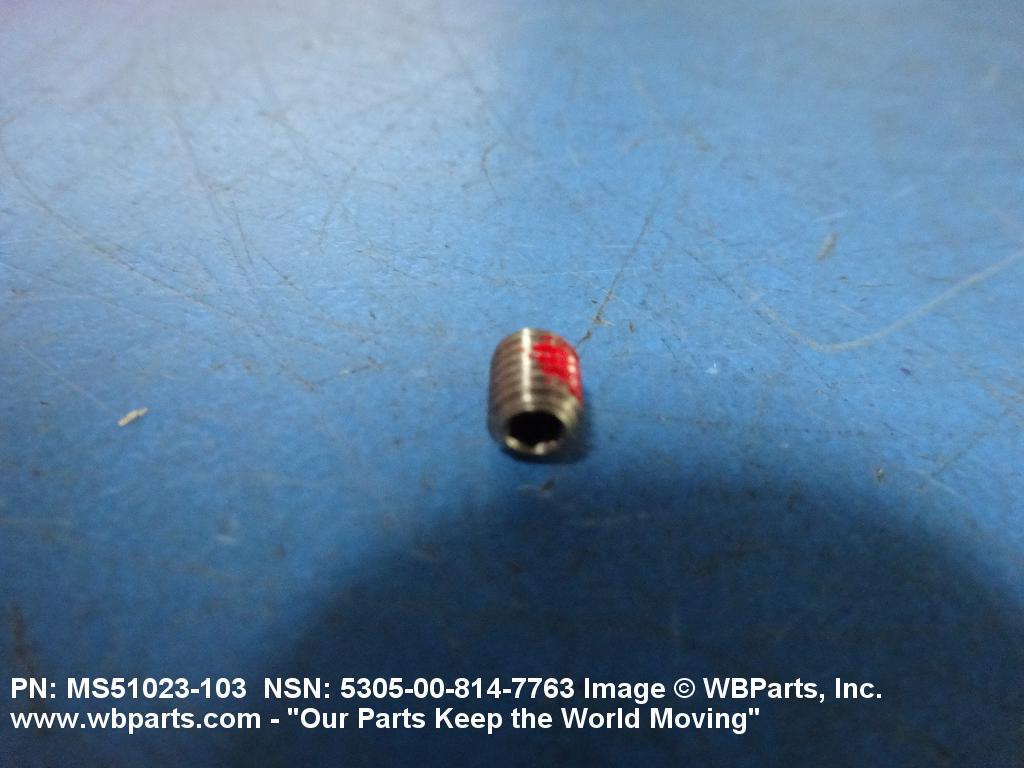

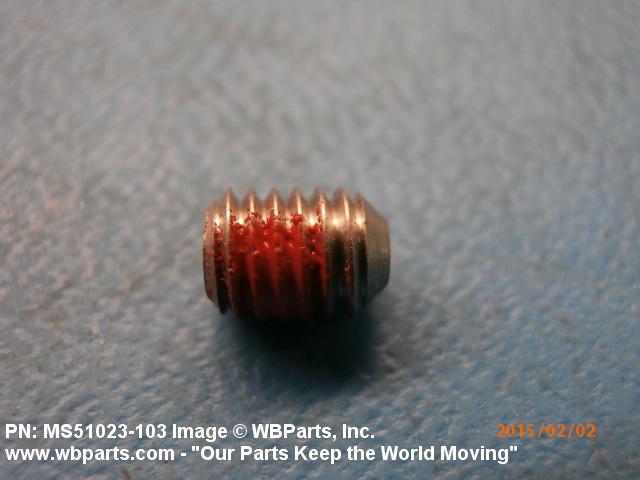

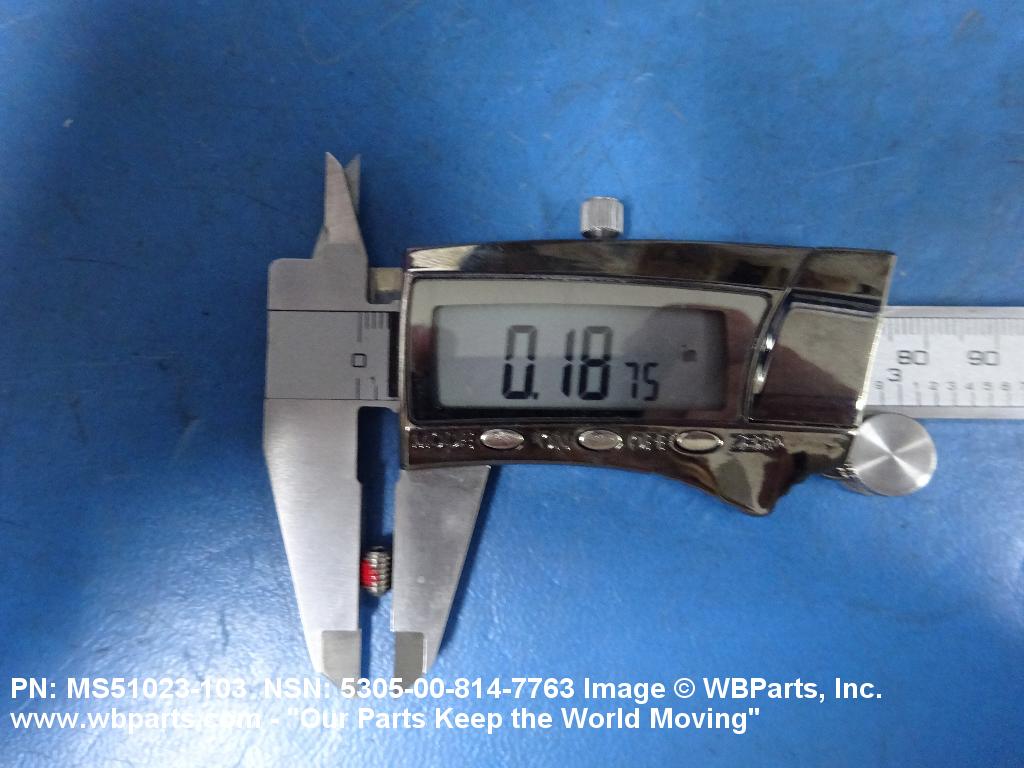

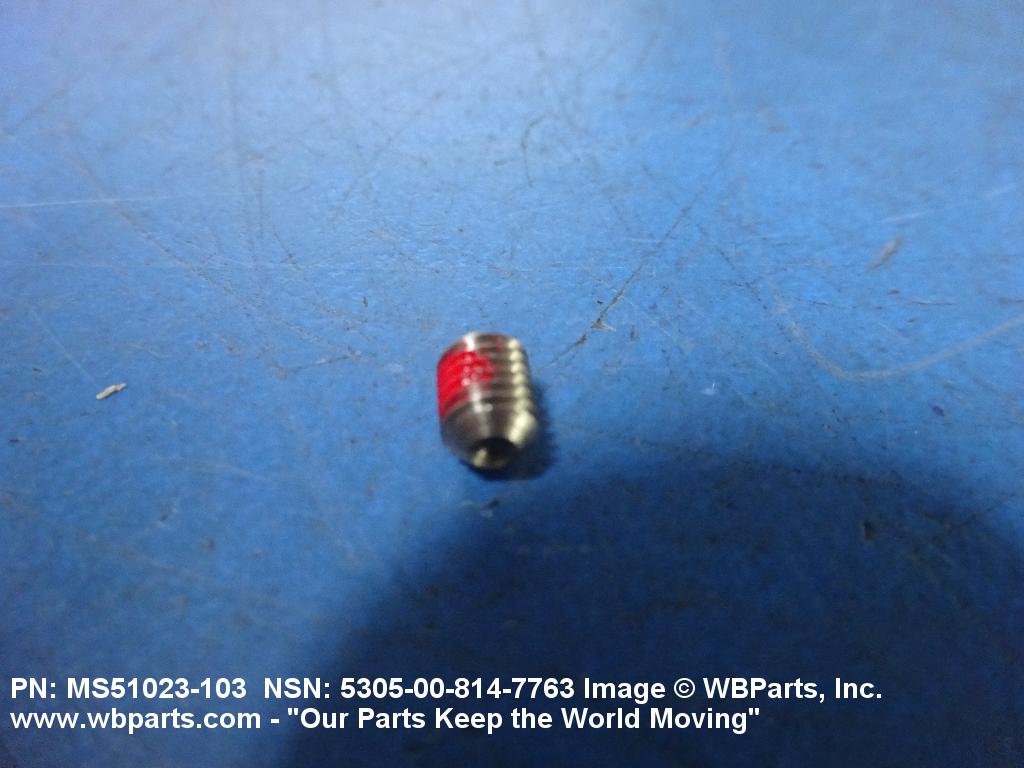

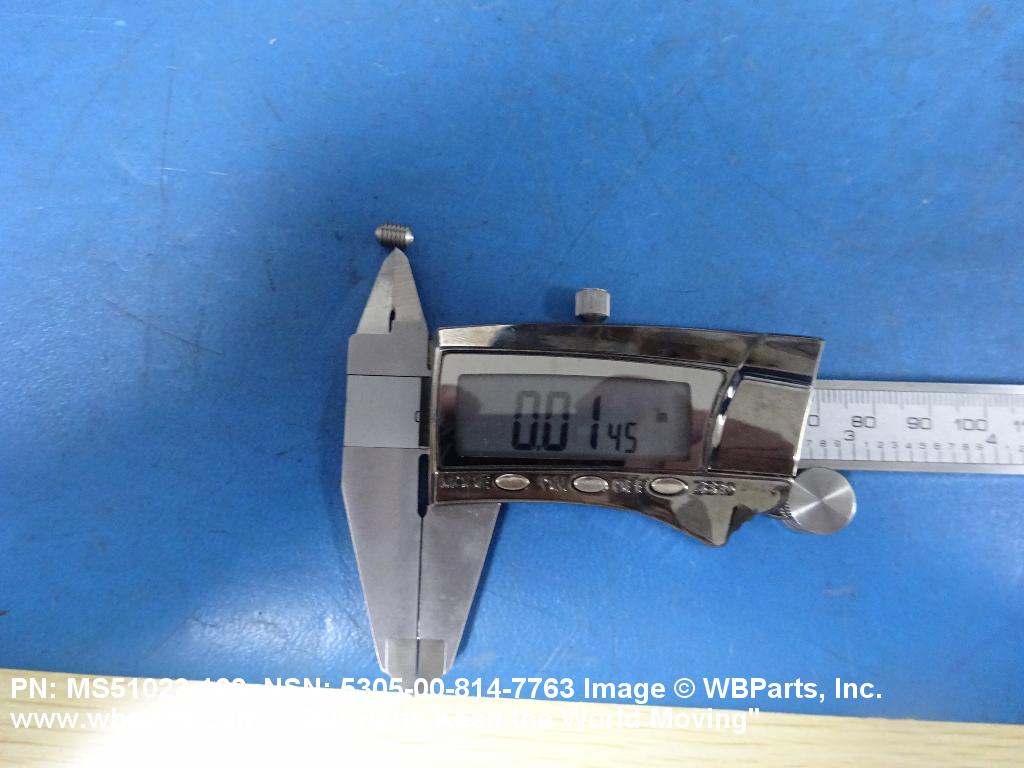

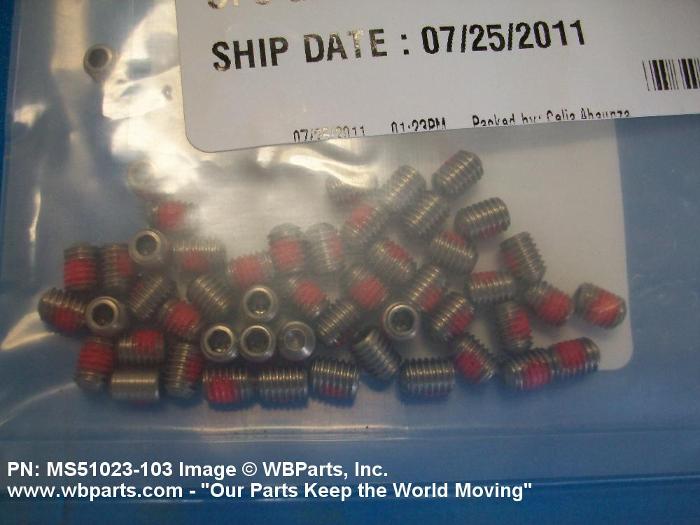

Drawings & Photos | NSN 5305-01-011-4035



Demand History | NSN 5305-01-011-4035


Part Number Request Date QTY Origin
MS51023103 2021-12-28 2 United States
MS51023103 2014-12-17 25 United States
FFS200 2011-10-07 28 United States
5305-01-011-4035 2011-07-19 50 United States
MS51023103 2011-05-26 3 United States
5305-01-011-4035 2011-04-07 5 United States
FFS200 2009-12-10 20 Canada
FFS200 2009-10-15 100 US

Cross Reference | NSN 5305-01-011-4035


Part Number Cage Code Manufacturer
461-04139 3AB10 SECURIPLEX INC
FF-S-200 81348 FEDERAL SPECIFICATIONS PROMULGATED BY GENERAL SERVICES
LP54XF02J4 16941 LONG-LOK FASTENERS CORPORATION
MS51023-103 96906 MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote



Comments | What our customers are saying...


Honeywell

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell
Raytheon

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon
General Dynamics

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics
US Airforce

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce
NASA

The response is quick and the price is often very good. We are completely satisfied.


NSNs for Compare ( up to 4 ): Add 5305-01-011-4035


Technical Data | NSN 5305-01-011-4035


Characteristic Specifications
THREAD SERIES DESIGNATOR UNF

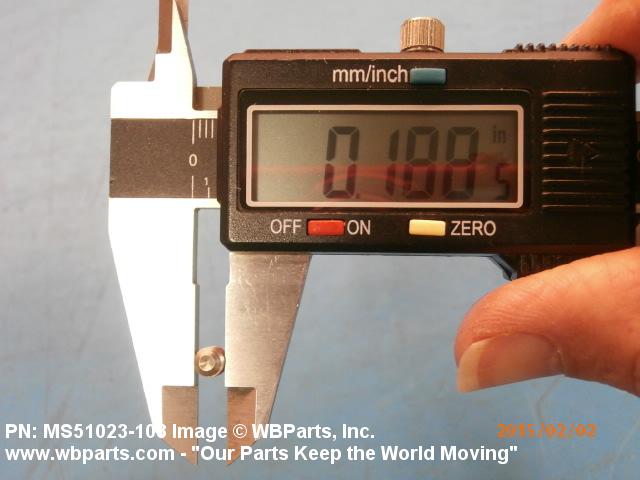

NOMINAL THREAD DIAMETER 0.190 INCHES
THREAD QUANTITY PER INCH 32
THREAD CLASS 3A
THREAD DIRECTION RIGHT-HAND

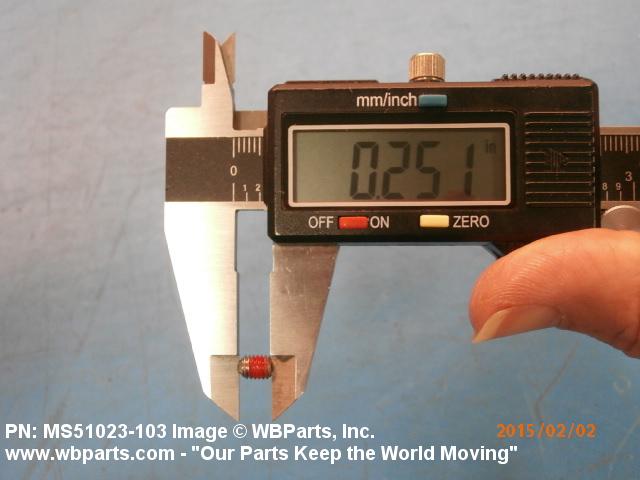

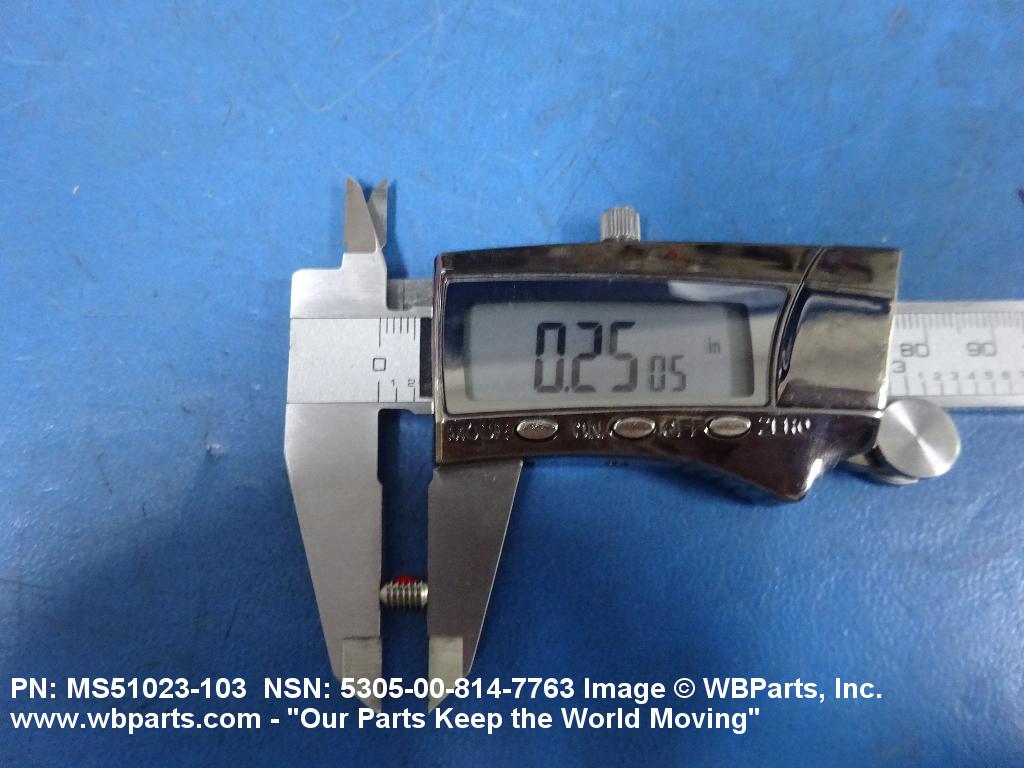

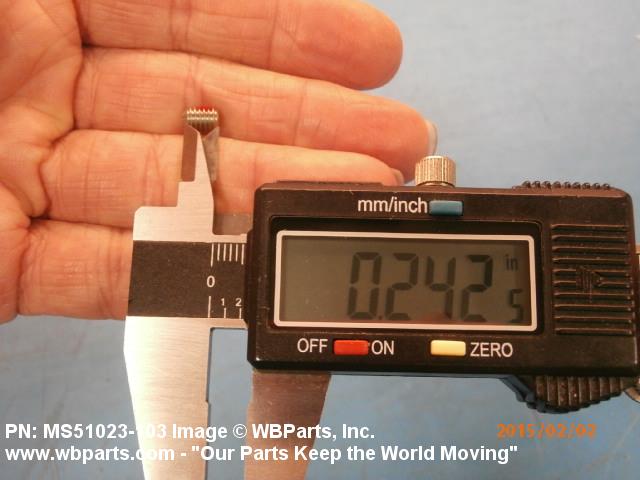

THREAD LENGTH 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM
FASTENER LENGTH 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM
MATERIAL STEEL COMP 301 OR STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 303F OR STEEL COMP 304 OR STEEL COMP 304L OR STEEL COMP 305 OR STEEL COMP 308 OR STEEL COMP 309 OR STEEL COMP 309S OR STEEL COMP 310 OR STEEL COMP 310S OR STEEL COMP 314 OR STEEL COMP 316 OR STEEL COMP 316L OR STEEL COMP 317 OR STEEL COMP 321 OR STEEL COMP 323 OR STEEL COMP 324 OR STEEL COMP 347 OR STEEL COMP 348 OR STEEL COMP 385 OR STEEL COMP 384 OVERALL
SURFACE TREATMENT PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAD STYLE C101 HEADLESS
INTERNAL DRIVE STYLE D5 HEXAGON

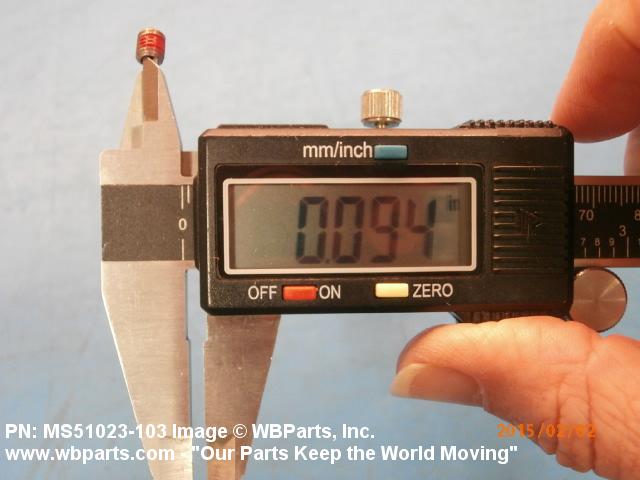

WIDTH ACROSS FLATS 0.094 INCHES NOMINAL
