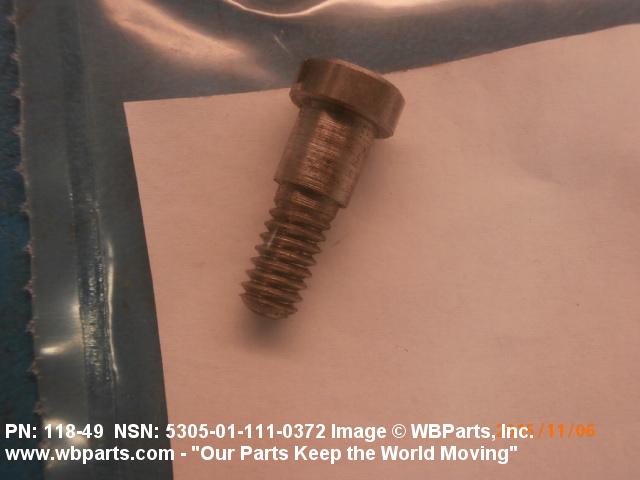

Product Details | SHOULDER SCREW
5305-01-111-0372 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 IN.) (1.5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is designed to be driven with either a wrench or an inserted driver or both in sizes below No. 10 (0.190 IN.) (5 mm) nominal diameter. No. 10 (0.190 IN.) (5 mm) and larger sizes must be designed for any type of inserted driver, but may also provide for external wrenching of the head. A locking feature may be incorporated in the design of the head or threads. For items which are both shouldered and have an externally relieved body, use SCREW, EXTERNALLY RELIEVED BODY. For items with a No. 10 (0.190 IN.) (5 mm) or larger thread diameter without an inserted driver head, use BOLT, SHOULDER. Excludes BOLT, INTERNAL WRENCHING and SCREW, CAP, SOCKET HEAD.
Part Alternates: 11849, 118-49, 5305-01-111-0372, 01-111-0372, 5305011110372, 011110372
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 APR 1981 | 01-111-0372 | 22846 ( SCREW, SHOULDER ) |

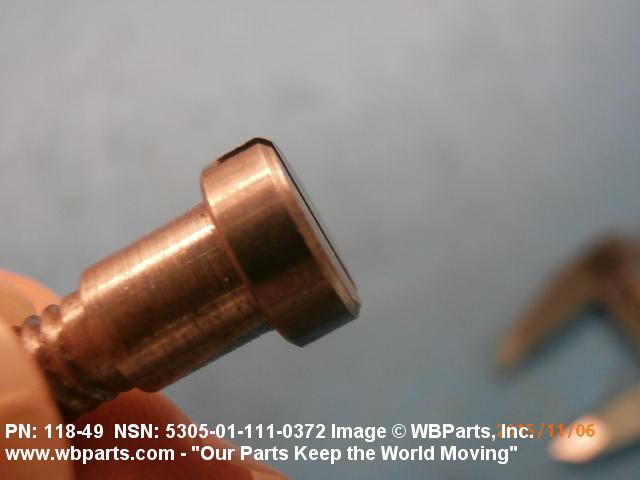

Drawings & Photos | NSN 5305-01-111-0372
Demand History | NSN 5305-01-111-0372
Cross Reference | NSN 5305-01-111-0372
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 118-49 | 41387 | SIEMENS ENERGY & AUTOMATION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5305-01-111-0372
5305-01-111-0497, 5305-01-111-0498, 5305-01-111-0616, 5305-01-111-0617, 5305-01-111-0620
Technical Data | NSN 5305-01-111-0372
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

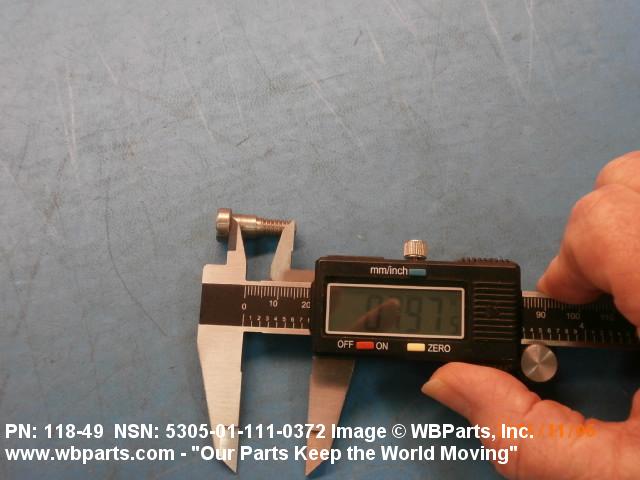

| THREAD LENGTH | 0.660 INCHES NOMINAL |

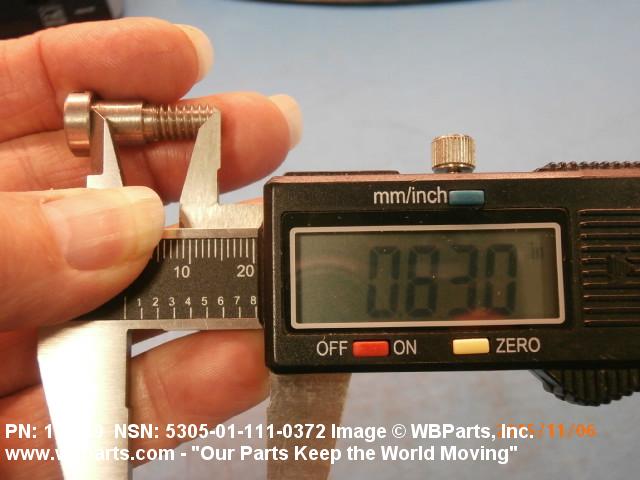

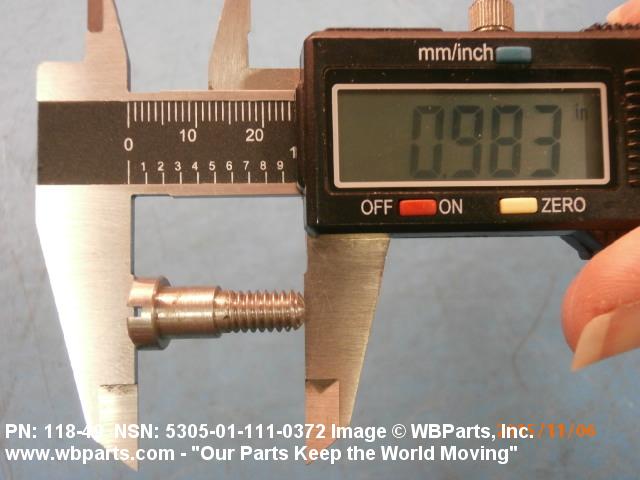

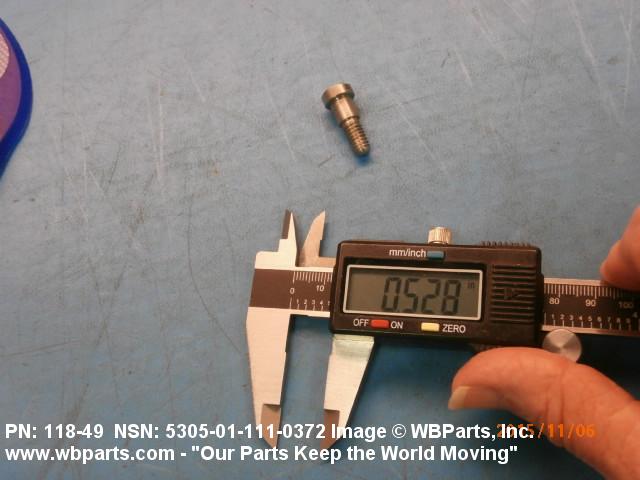

| FASTENER LENGTH | 0.820 INCHES NOMINAL |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| HEAD STYLE | C33 PAN NO. 2 |

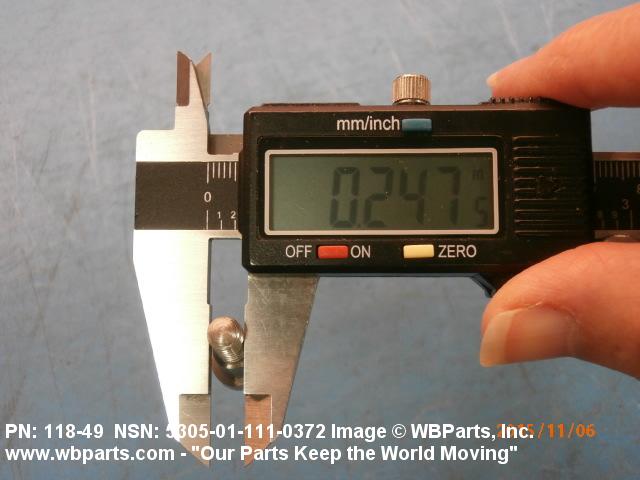

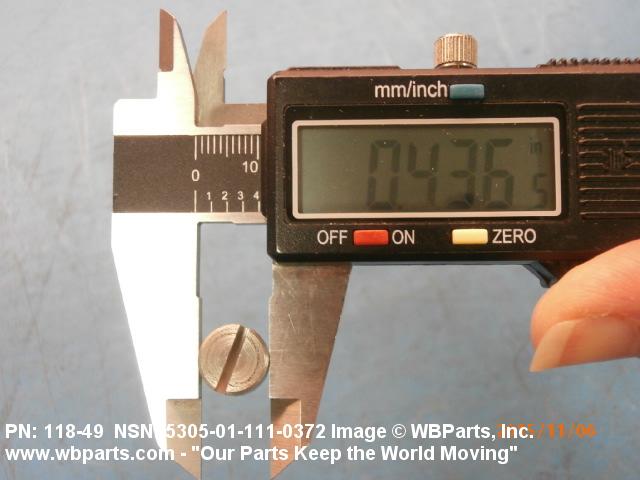

| HEAD DIAMETER | 0.440 INCHES NOMINAL |

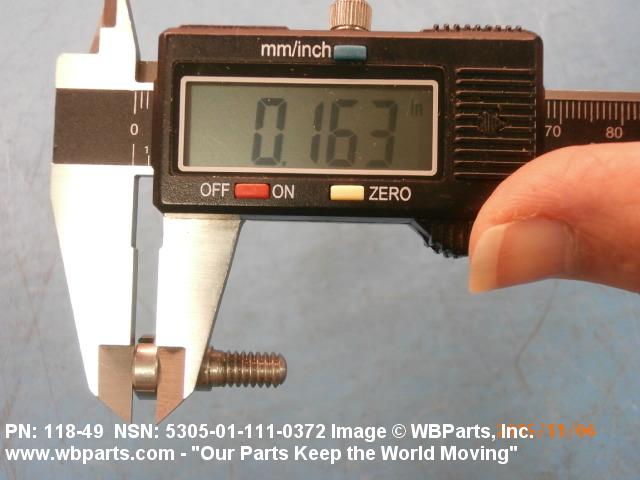

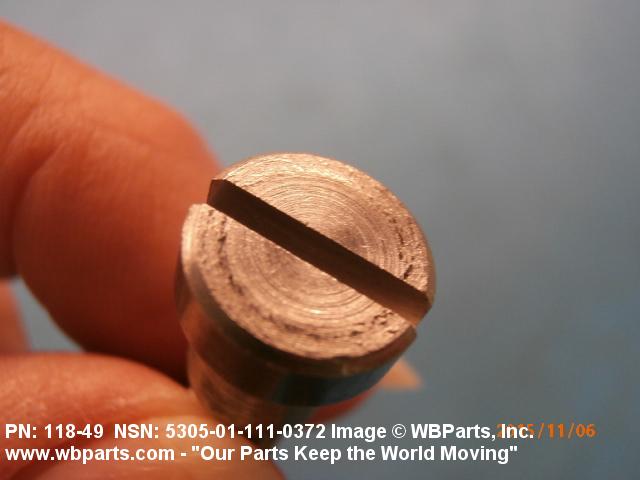

| HEAD HEIGHT | 0.160 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D14 SLOT |
| SHOULDER SHAPE | ROUND FIRST SHOULDER |

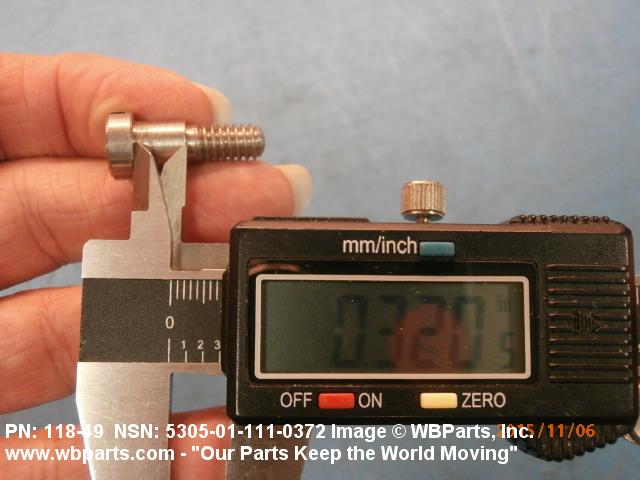

| SHOULDER LENGTH | 0.320 INCHES NOMINAL FIRST SHOULDER |
| MANUFACTURERS CODE | 41387 |
| DESIGN CONTROL REFERENCE | 118-49 |
