Product Details | MACHINE SCREW
5305-01-111-7291 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: PT233H2, 5305-01-111-7291, 01-111-7291, 5305011117291, 011117291
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 APR 1981 | 01-111-7291 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-01-111-7291
Cross Reference | NSN 5305-01-111-7291
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| PT233H2 | 55985 | CARO INC. DBA SOUTH BEND LATHE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5305-01-111-7291
5305-01-111-7407, 5305-01-111-7433, 5305-01-111-7517, 5305-01-111-7520, 5305-01-111-7522
Technical Data | NSN 5305-01-111-7291
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNC |
| NOMINAL THREAD DIAMETER | 0.625 INCHES |
| THREAD QUANTITY PER INCH | 11 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 2.625 INCHES NOMINAL |
| FASTENER LENGTH | 2.750 INCHES NOMINAL |
| SCREW MATERIAL | STEEL COMP 1137 |
| HARDNESS RATING | 37.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM |

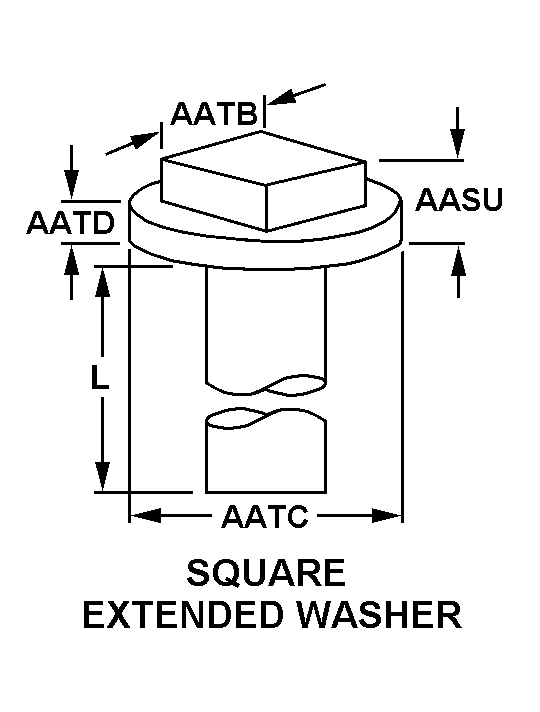

| HEAD STYLE | A12 SQUARE EXTENDED WASHER |
| HEAD HEIGHT | 0.906 INCHES NOMINAL |
| WIDTH BETWEEN FLATS | 0.556 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| EXTENDED WASHER DIAMETER | 0.751 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5305-01-111-7291
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
