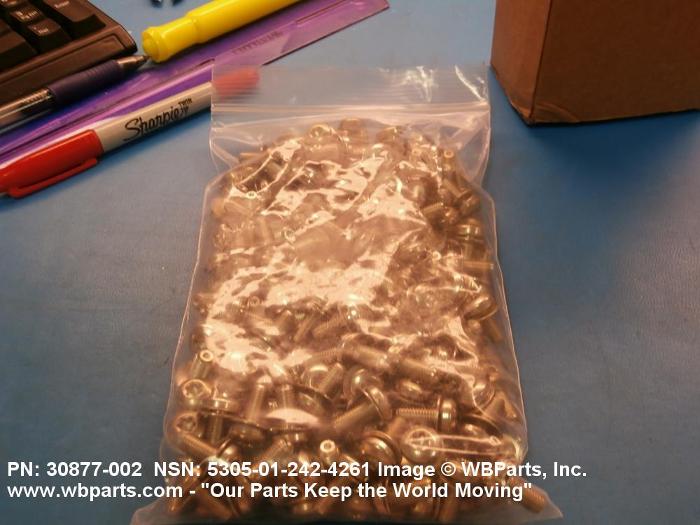

Product Details | ASSEMBLED WASHER SCREW

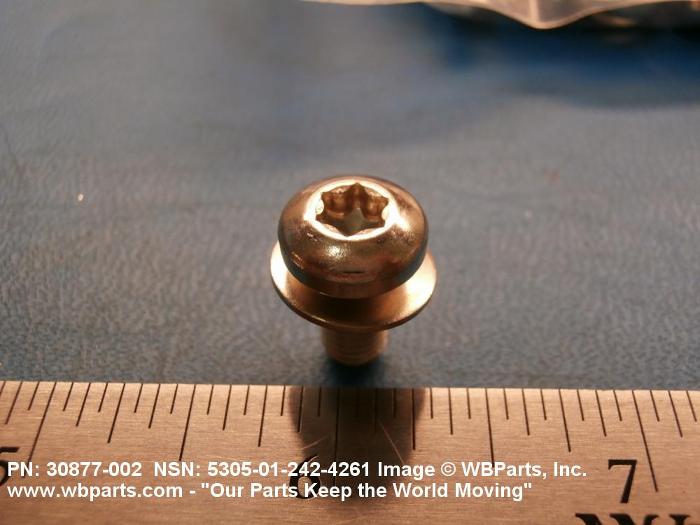

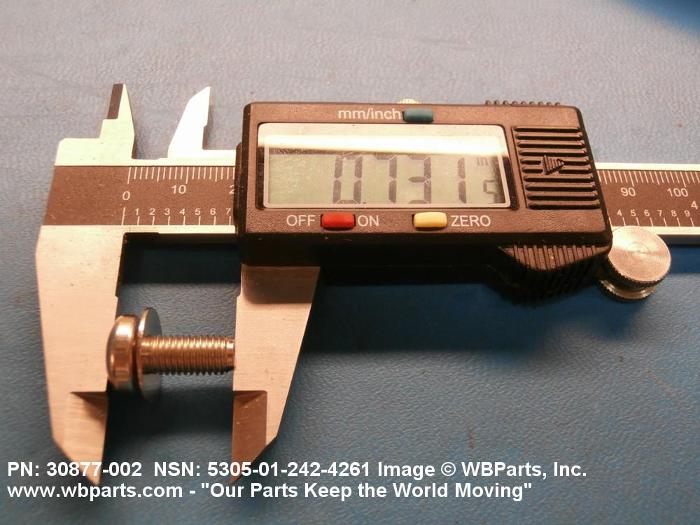

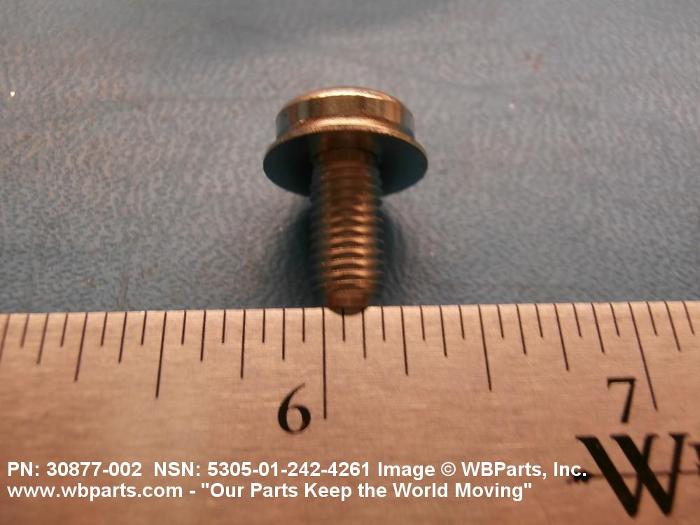

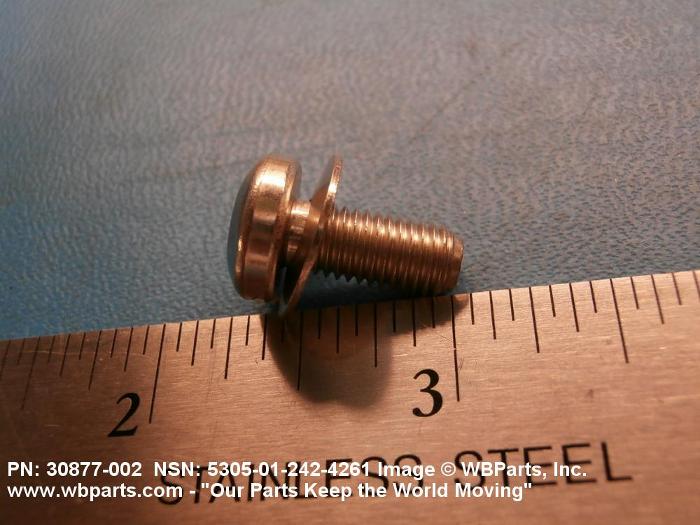

5305-01-242-4261 A SCREW, (as modified) to which has been assembled one or more nonremovable washer(s).
Part Alternates: 30877002, 30877-002, 5305-01-242-4261, 01-242-4261, 5305012424261, 012424261
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 OCT 1986 | 01-242-4261 | 06660 ( SCREW, ASSEMBLED WASHER ) |
Drawings & Photos | NSN 5305-01-242-4261
Demand History | NSN 5305-01-242-4261
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-242-4261 | 2016-05-01 | 200 | DIBBS |
| 5305-01-242-4261 | 2016-03-09 | 60 | DIBBS |
| 5305-01-242-4261 | 2014-12-11 | 10 | DIBBS |
| 5305-01-242-4261 | 2014-11-30 | 10 | DIBBS |
| 5305-01-242-4261 | 2014-06-30 | 200 | DIBBS |
| 5305-01-242-4261 | 2014-02-18 | 55 | DIBBS |
| 5305-01-242-4261 | 2014-02-02 | 55 | DIBBS |
| 5305-01-242-4261 | 2013-11-05 | 54 | DIBBS |
| 5305-01-242-4261 | 2013-11-05 | 26 | DIBBS |
| 5305-01-242-4261 | 2013-10-21 | 54 | DIBBS |
| 5305-01-242-4261 | 2013-10-21 | 54 | DIBBS |
| 5305-01-242-4261 | 2013-10-21 | 26 | DIBBS |
| 5305-01-242-4261 | 2013-10-21 | 100 | DIBBS |
| 5305-01-242-4261 | 2012-11-29 | 175 | Canada |
| 30877-002 | 2012-09-17 | 200 | |
| 5305-01-242-4261 | 2012-08-31 | 657 | DIBBS |
| 5305-01-242-4261 | 2012-07-24 | 1690 | DIBBS |
| 5305-01-242-4261 | 2012-07-23 | 657 | DIBBS |
| 5305-01-242-4261 | 2012-03-30 | 700 | DIBBS |
| 5305-01-242-4261 | 2012-03-12 | 157 | DIBBS |
| 5305-01-242-4261 | 2012-03-12 | 500 | DIBBS |
| 5305-01-242-4261 | 2012-02-19 | 200 | DIBBS |
| 5305-01-242-4261 | 2011-08-15 | 500 | DIBBS |
| 5305-01-242-4261 | 2011-04-28 | 157 | DIBBS |
| 5305-01-242-4261 | 2010-04-21 | 120 | Canada |
| 5305-01-242-4261 | 2010-02-03 | 120 | Canada |
| 5305-01-242-4261 | 2008-01-29 | 82 | DIBBS |
| 5305-01-242-4261 | 2008-01-29 | 136 | DIBBS |
Cross Reference | NSN 5305-01-242-4261
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 30877-002 | 74025 | MARATHONNORCO AEROSPACE, INC. DBA MARATHON BATTERY |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5305-01-242-4261
Related Products | NSN 5305-01-242-4261
5305-01-242-4264, 5305-01-242-4270, 5305-01-242-4271, 5305-01-242-4932, 5305-01-242-4980
Technical Data | NSN 5305-01-242-4261
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 0.422 INCHES MINIMUM |
| FASTENER LENGTH | 0.562 INCHES NOMINAL |
| SURFACE TREATMENT | NICKEL OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-N-290 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| MINIMUM TENSILE STRENGTH | 120000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C32 PAN |
| HEAD DIAMETER | 0.473 INCHES MINIMUM AND 0.492 INCHES MAXIMUM |
| HEAD HEIGHT | 0.162 INCHES MINIMUM AND 0.175 INCHES MAXIMUM |
| SPLINE MAJOR DIAMETER | 0.221 INCHES NOMINAL |
| WASHER QUANTITY | 1 |

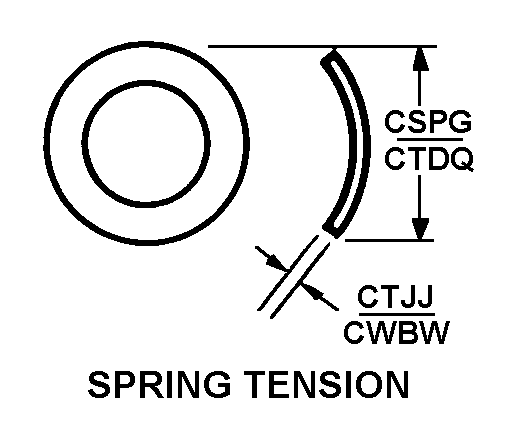

| PRIMARY WASHER STYLE | G16 SPRING TENSION |
