Product Details | PANEL SCREW ASSEMBLY
5305-01-262-7887 A headed, threaded fastening device over which may be assembled; (1) a stand-off; (2) a flanged bushing with washer(s) and/or a shouldered bushing without a flange, or it may have an internally threaded sleeve that is an integral part of the screw; a washer and an externally thread self-locking bushing that is driven by an inserted driver. Attached to panel by threaded bushing or by flaring end of stand-off, or bushing. Used in conjunction with a speed nut, nut plate, or driven into a threaded hole in the item that the panel is fastened to. May be spring loaded.
Part Alternates: FRSS75001082, FRSS7500-10-8-2, FT13001022, FT1300-10-2-2, 11438307-1, 5305-01-262-7887, 01-262-7887, 5305012627887, 114383071, 012627887
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 SEP 1987 | 01-262-7887 | 33044 ( SCREW ASSEMBLY, PANEL ) |

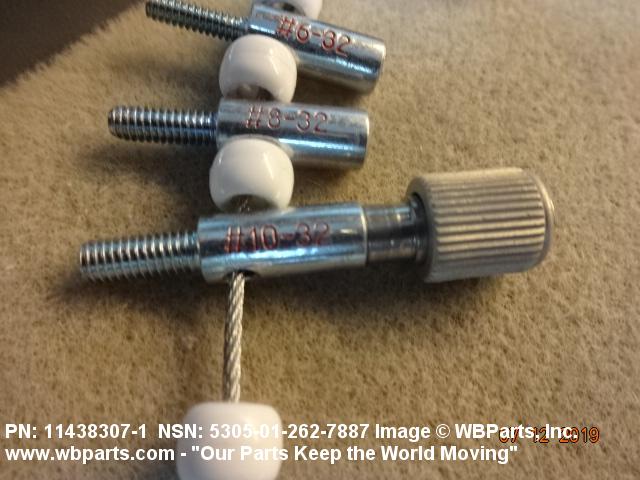

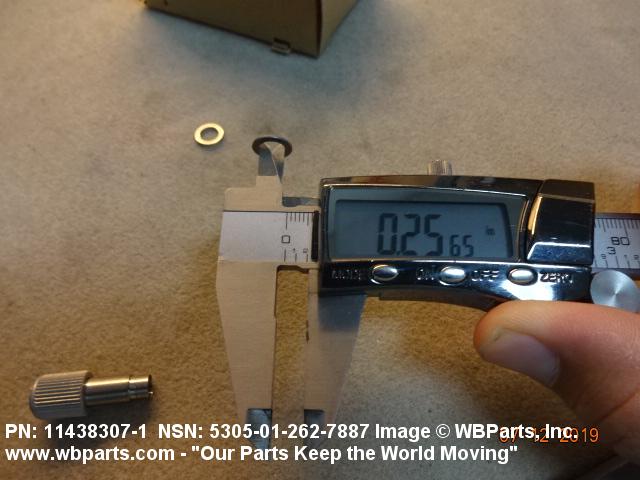

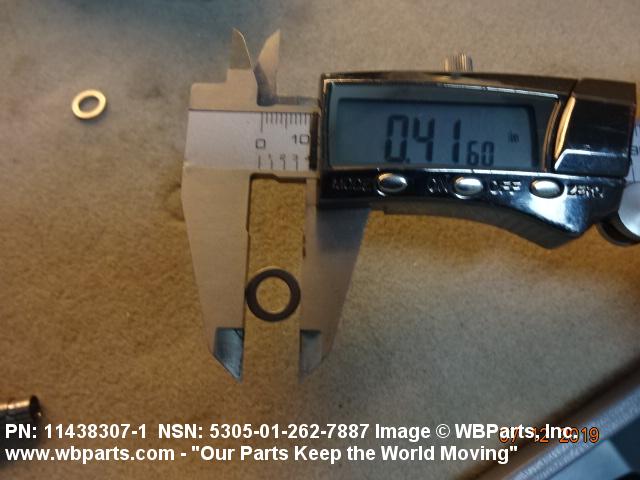

Drawings & Photos | NSN 5305-01-262-7887
Demand History | NSN 5305-01-262-7887
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| FRSS7500-10-8-2 | 2023-03-22 | 139 | DIBBS |
| FRSS7500-10-B-2DL | 2023-03-22 | 139 | DIBBS |
| FT1300-10-2-2 | 2023-03-22 | 139 | DIBBS |
| FRSS7500-10-8-2 | 2023-02-13 | 220 | DIBBS |
| FRSS7500-10-B-2DL | 2023-02-13 | 220 | DIBBS |
| FT1300-10-2-2 | 2023-02-13 | 220 | DIBBS |
| FRSS7500-10-8-2 | 2022-12-06 | 220 | DIBBS |
| FRSS7500-10-B-2DL | 2022-12-06 | 220 | DIBBS |
| FT1300-10-2-2 | 2022-12-06 | 220 | DIBBS |
| FRSS7500-10-8-2 | 2022-03-16 | 109 | DIBBS |
| FRSS7500-10-B-2DL | 2022-03-16 | 109 | DIBBS |
| FT1300-10-2-2 | 2022-03-16 | 109 | DIBBS |
| 5305-01-262-7887 | 2021-04-08 | 170 | United States |
| FRSS7500-10-8-2 | 2020-11-04 | 229 | DIBBS |
| FRSS7500-10-B-2DL | 2020-11-04 | 229 | DIBBS |
| FT1300-10-2-2 | 2020-11-04 | 229 | DIBBS |
| FRSS7500-10-8-2 | 2020-02-26 | 170 | DIBBS |
| FRSS7500-10-B-2DL | 2020-02-26 | 170 | DIBBS |
| FT1300-10-2-2 | 2020-02-26 | 170 | DIBBS |
| FRSS7500-10-8-2 | 2020-01-05 | 170 | DIBBS |
| FRSS7500-10-B-2DL | 2020-01-05 | 170 | DIBBS |
| FT1300-10-2-2 | 2020-01-05 | 170 | DIBBS |
| 5305-01-262-7887 | 2019-07-05 | 170 | United States |
| FRSS7500-10-8-2 | 2019-07-01 | 170 | DIBBS |
| FRSS7500-10-B-2DL | 2019-07-01 | 170 | DIBBS |
| FT1300-10-2-2 | 2019-07-01 | 170 | DIBBS |
| FRSS7500-10-8-2 | 2019-03-14 | 170 | DIBBS |
| FRSS7500-10-B-2DL | 2019-03-14 | 170 | DIBBS |
| FT1300-10-2-2 | 2019-03-14 | 170 | DIBBS |
| 5305-01-262-7887 | 2018-11-28 | 164 | DIBBS |
| 5305-01-262-7887 | 2018-11-20 | 288 | DIBBS |
| 5305-01-262-7887 | 2018-09-26 | 288 | DIBBS |
| 5305-01-262-7887 | 2018-05-02 | 288 | DIBBS |
| 5305-01-262-7887 | 2018-04-01 | 248 | DIBBS |
| 5305-01-262-7887 | 2018-03-02 | 232 | DIBBS |
| 5305-01-262-7887 | 2018-02-20 | 232 | DIBBS |
| 5305-01-262-7887 | 2017-11-14 | 168 | DIBBS |
| 5305-01-262-7887 | 2017-11-02 | 168 | DIBBS |
| 5305-01-262-7887 | 2017-08-11 | 232 | DIBBS |
| 5305-01-262-7887 | 2017-08-03 | 232 | DIBBS |
| 5305-01-262-7887 | 2017-07-17 | 16 | DIBBS |
| 5305-01-262-7887 | 2015-10-21 | 386 | DIBBS |
| 5305-01-262-7887 | 2013-11-20 | 394 | DIBBS |
| 5305-01-262-7887 | 2013-11-03 | 394 | DIBBS |
| FT13001022 | 2012-11-01 | 10 | United States |
| 5305-01-262-7887 | 2008-07-14 | 50 | US |
| 5305-01-262-7887 | 2007-12-14 | 500 | United States |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5305-01-262-7887
Related Products | NSN 5305-01-262-7887
5305-01-262-7888, 5305-01-262-8200, 5305-01-262-8232, 5305-01-262-8233, 5305-01-262-8234
Technical Data | NSN 5305-01-262-7887
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNF |
| NOMINAL THREAD DIAMETER | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2A |
| THREAD DIRECTION | RIGHT-HAND |

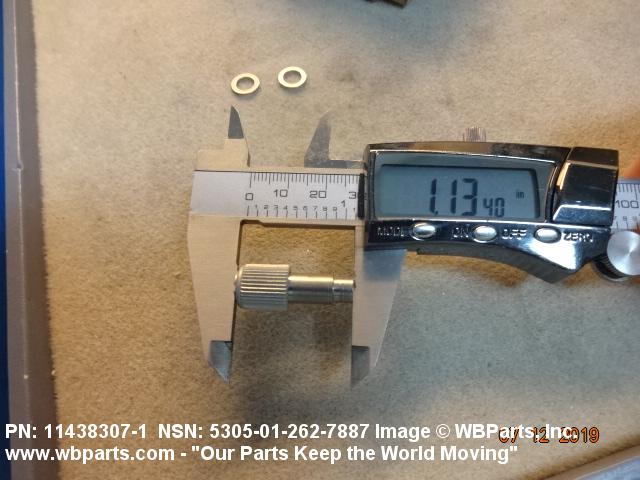

| FASTENER LENGTH | 1.134 INCHES NOMINAL |
| MATERIAL | STEEL COMP 1050 SECONDARY WASHER STEEL COMP 301 PRIMARY WASHER STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 310 OR STEEL COMP 316 OR STEEL COMP 347 OR STEEL COMP 410 OR STEEL COMP 420 OR STEEL COMP 430 SPRING STEEL COMP 304 STAND-OFF STEEL COMP 303 FASTENER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE PRIMARY WASHER QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OR MIL-S-23195 MIL SPEC SINGLE MATERIAL RESPONSE STAND-OFF |
| SURFACE TREATMENT | PASSIVATE PRIMARY WASHER PASSIVATE SPRING CADMIUM AND CHROMATE STAND-OFF PASSIVATE FASTENER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE PRIMARY WASHER QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SPRING QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE STAND-OFF QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE FASTENER |
| HEAD STYLE | C100 KNURLED NO. 5 |

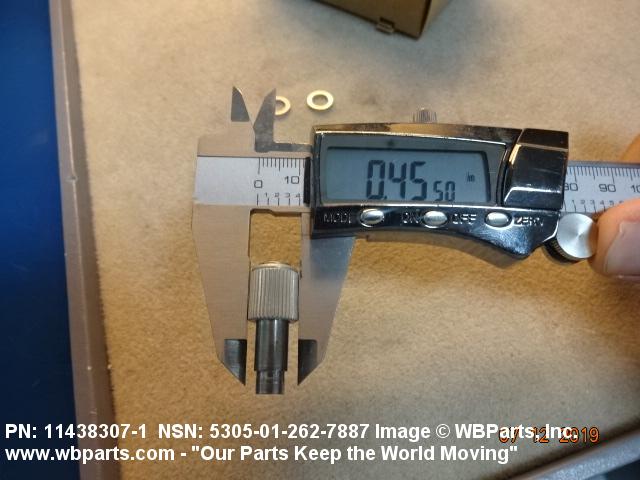

| HEAD DIAMETER | 0.451 INCHES NOMINAL |

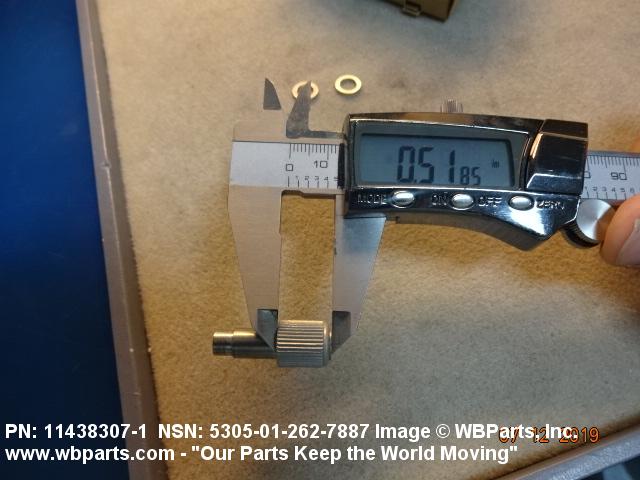

| HEAD HEIGHT | 0.520 INCHES NOMINAL |
| INTERNAL DRIVE STYLE | D14 SLOT |

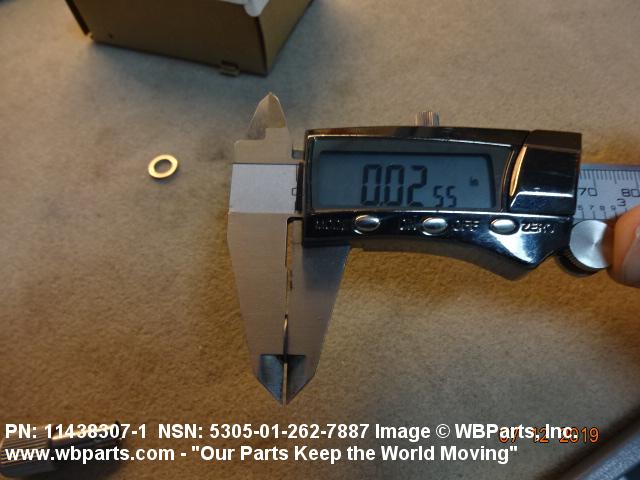

| MATERIAL ACCOMMODATED THICKNESS | 0.020 INCHES MINIMUM AND 0.030 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5305-01-262-7887
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5305-01-262-7887
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
