Product Details | SOCKET HEAD CAP SCREW
5305-01-515-4538 An externally threaded fastener whose threaded portion is of one nominal diameter. The head has an internal socket or multiple spline for use with an inserted driver. A locking feature may be incorporated in the design of the head or threads. Excludes items with bevel (conical) heads. See BOLT, INTERNAL WRENCHING. Excludes SCREW, SHOULDER; and SCREW, MACHINE.
Part Alternates: NA0069H030020, 5305-01-515-4538, 01-515-4538, 5305015154538, 015154538
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 25 NOV 2003 | 01-515-4538 | 16282 ( SCREW, CAP, SOCKET HEAD ) |
Drawings & Photos | NSN 5305-01-515-4538
Cross Reference | NSN 5305-01-515-4538
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NA0069H030020 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5305-01-515-4538
5305-01-515-4546, 5305-01-515-4550, 5305-01-515-4647, 5305-01-515-4826, 5305-01-515-4860
Technical Data | NSN 5305-01-515-4538
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | MJ |
| NOMINAL THREAD DIAMETER | 3.0 MILLIMETERS |
| THREAD PITCH IN MILLIMETERS | 0.5 |
| EXTERNAL THREAD TOLERANCE CLASS | 4H6H |
| THREAD DIRECTION | RIGHT-HAND |
| THREAD LENGTH | 20.0 MILLIMETERS NOMINAL |
| FASTENER LENGTH | 20.0 MILLIMETERS NOMINAL |
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5732 ASSN STD SINGLE MATERIAL RESPONSE OR AMS5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C49 FLAT CHAMFER |
| HEAD DIAMETER | 5.3 MILLIMETERS MINIMUM AND 5.5 MILLIMETERS MAXIMUM |
| HEAD HEIGHT | 2.8 MILLIMETERS MINIMUM AND 3.0 MILLIMETERS MAXIMUM |
| INTERNAL DRIVE STYLE | D5 HEXAGON |
| WIDTH ACROSS FLATS | 2.52 MILLIMETERS MINIMUM AND 2.56 MILLIMETERS MAXIMUM |

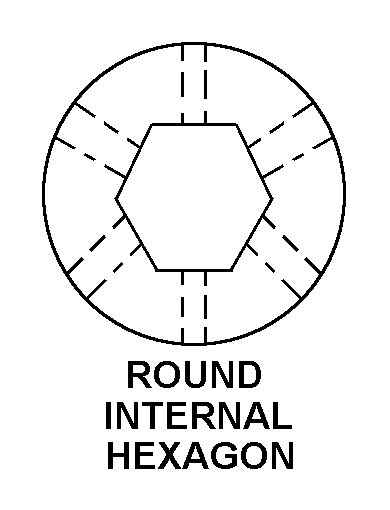

| HOLE CONFIGURATION STYLE | E11 ROUND INTERNAL HEXAGON |
| HOLE TYPE | DRILLED |
| HOLE QUANTITY | 2 |
| HOLE DIAMETER | 1.00 MILLIMETERS MINIMUM AND 1.14 MILLIMETERS MAXIMUM |
