Product Details | MACHINE SCREW
5305-01-535-4716 An externally threaded fastener whose threaded portion is of one nominal diameter, No 0 (0.060 in./1.5 mm) or larger, designed to be held or driven with either a wrench or an inserted driver or both (excluding internal socket or internal multiple spline types), in sizes below No. 10 (0.190 in./5 mm). No. 10 and larger sizes must have a head designed for any type inserted driver (excluding internal socket or internal multiple spline types), but may also be designed for external wrenching. A locking feature may be incorporated in the design of the head or threads. Excludes BOLT, CLEVIS; BOLT, EXTERNALLY RELIEVED BODY; SCREW, EXTERNALLY RELIEVED BODY; and SCREW, ASSEMBLED WASHER. See also, SCREW, INSTRUMENT; BOLT, MACHINE; BOLT, INTERNAL WRENCHING; and SCREW, CAP SOCKET HEAD.
Part Alternates: 1001738 , 456720106109, 6431753 , 643175301M1, 6431753-01M1 , 92210A638, 5305-01-535-4716, 01-535-4716, 5305015354716, 015354716
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 DEC 2005 | 01-535-4716 | 06657 ( SCREW, MACHINE ) |
Drawings & Photos | NSN 5305-01-535-4716
Demand History | NSN 5305-01-535-4716
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5305-01-535-4716 | 2014-04-07 | 5807 | DIBBS |
| 5305-01-535-4716 | 2014-03-25 | 5807 | DIBBS |
| 5305-01-535-4716 | 2013-12-17 | 11380 | DIBBS |
| 5305-01-535-4716 | 2013-09-23 | 3704 | DIBBS |
| 5305-01-535-4716 | 2012-12-03 | 13500 | DIBBS |
| 5305-01-535-4716 | 2012-11-29 | 2022 | DIBBS |
| 5305-01-535-4716 | 2012-09-24 | 1930 | DIBBS |
Cross Reference | NSN 5305-01-535-4716
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1001738 | 1EFH8 | GENERAL DYNAMICS LAND SYSTEMS - FORCE PROTECTION INC. |
| 6431753 | 6W728 | BAE SYSTEMS SURVIVABILITY SYSTEMS LLC |
| 6431753-01M1 | 6W728 | BAE SYSTEMS SURVIVABILITY SYSTEMS LLC |
| 92210A638 | 07BY4 | MCMASTER-CARR SUPPLY COMPANY DBA MCMASTER-CARR |
| 92210A638 | 6W728 | BAE SYSTEMS SURVIVABILITY SYSTEMS LLC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5305-01-535-4716
Related Products | NSN 5305-01-535-4716
5305-01-535-4844, 5305-01-535-4869, 5305-01-535-4881, 5305-01-535-4926, 5305-01-535-4929
Technical Data | NSN 5305-01-535-4716
| Characteristic | Specifications |
|---|---|
| THREAD DIRECTION | RIGHT-HAND |
| SCREW MATERIAL | STEEL |
| HEAD STYLE | A39 FLAT COUNTERSUNK |
| COUNTERSINK ANGLE | 82.0 DEGREES NOMINAL |

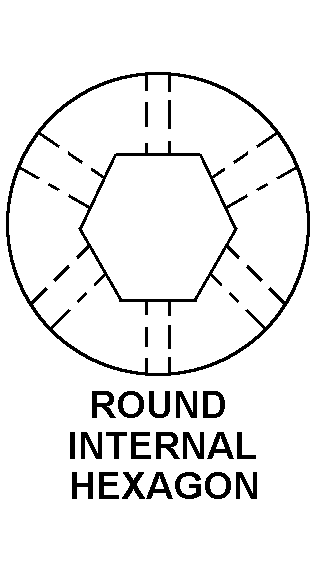

| HEAD HOLE CONFIGURATION STYLE | C10 ROUND INTERNAL HEXAGON |
| HOLE QUANTITY | 1 |
| HOLE DIAMETER | 0.218 INCHES NOMINAL |
| SPECIAL FEATURES | 3/8"-16 THREAD; SCREW LENGTH 4"; WIDTH BETWEEN FLATS .781 |
| III END ITEM IDENTIFICATION | NSN: 2320-01-413-3739 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | 18-8 STAINLESS STEEL FLAT SOCKET HEAD CAP SCREW |
