Product Details | SCREW
5305-14-296-7959 (All Except USA) A headed externally threaded fastener whose threaded portion may extend on part or whole of its shank. The head is designed to be held or driven with a tool. The threaded portion is cylindrical and its diameter 1.6 mm or more. For items with diameters below 1.6 mm see SCREW, INSTRUMENT. The item is designed to be driven in a preexisting mating screwthread or to accommodate a nut, insuring assembling of parts, with the part opposite the head acting as a nut, or insuring a grip between the bearing surface of its head and that of a nut screwed on its end. The threaded end may have a pilot for easier driving into a drilled hole. If the point is designed to prevent or restrict relative movements of parts see SETSCREW. Do not use if a more specific item name applies. If the item is furnished with attachments such as nut(s), washer(s), pin(s), and the like, see SCREW ASSEMBLY or BOLT (as modified).
Part Alternates: L222514010BCL, L22251-40-10BCL, L222564010BCL, L22256-40-10BCL, VISTF100M4X1035NC6CD8E, 22256040010BCL, 22256BC040010L, 9840041014, 5305-14-296-7959, 14-296-7959, 5305142967959, 142967959
Hardware and Abrasives | Screws
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14-296-7959 | 40001 ( SCREW ) |

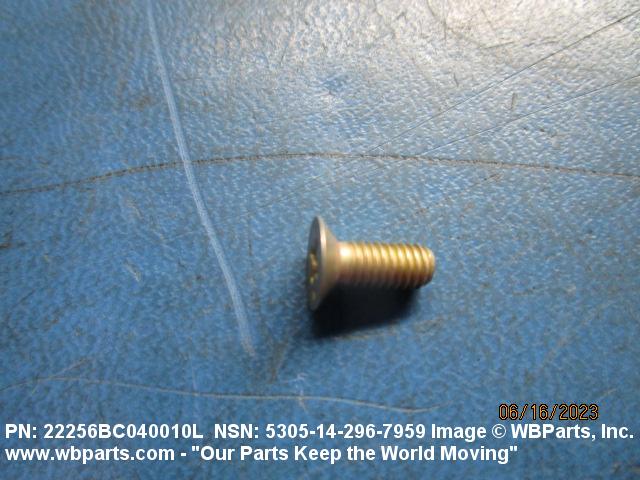

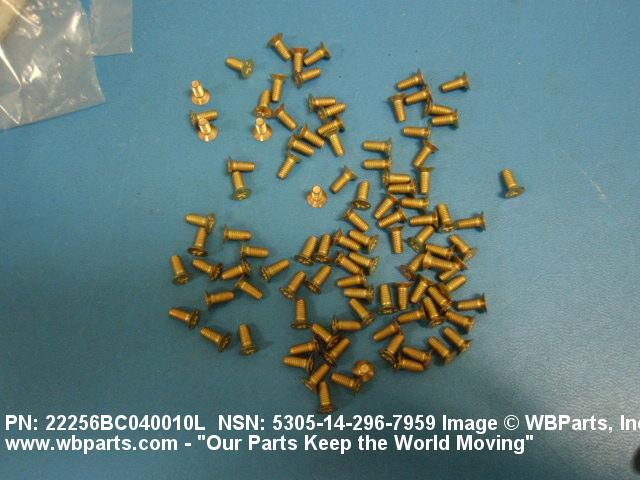

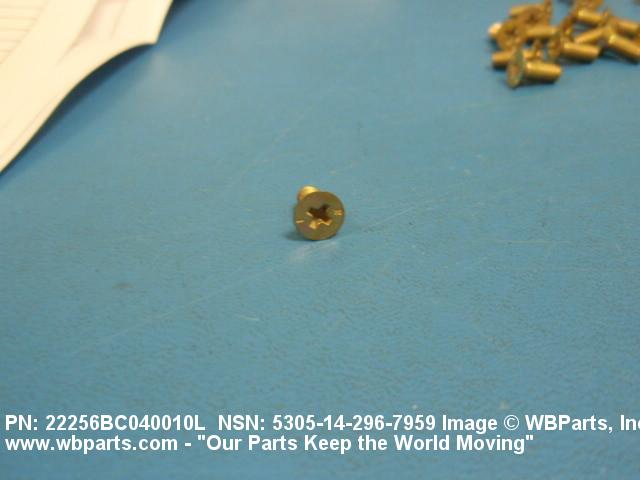

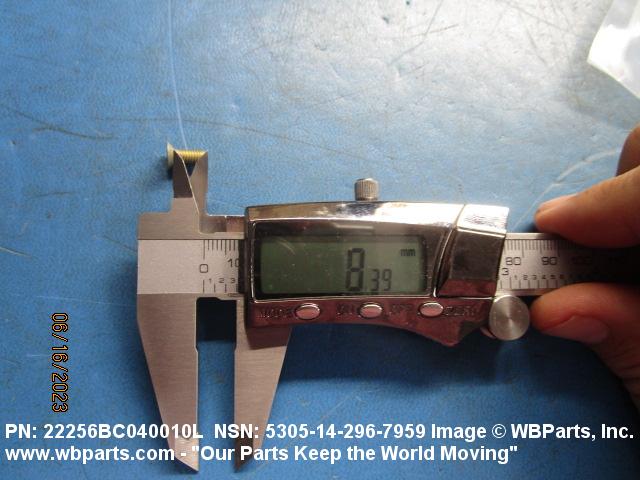

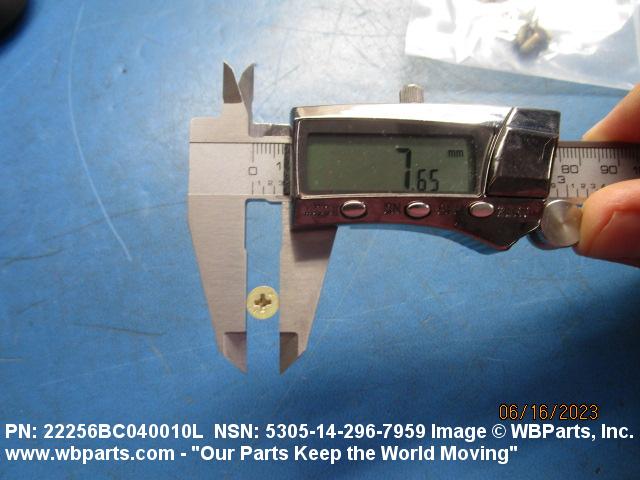

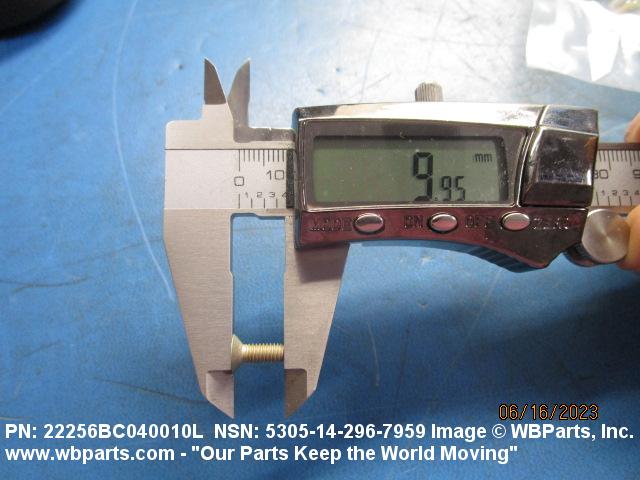

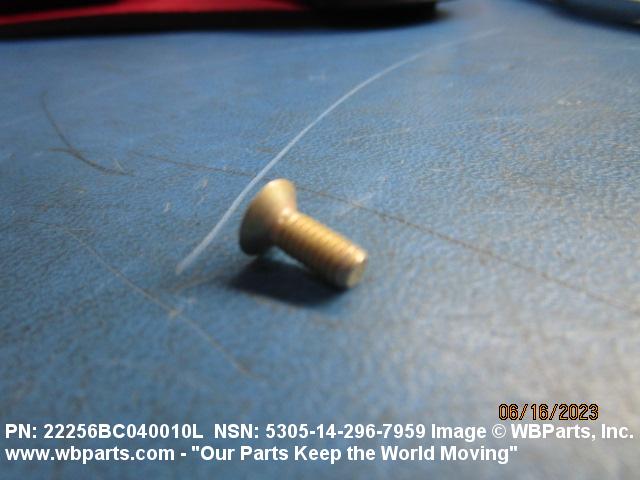

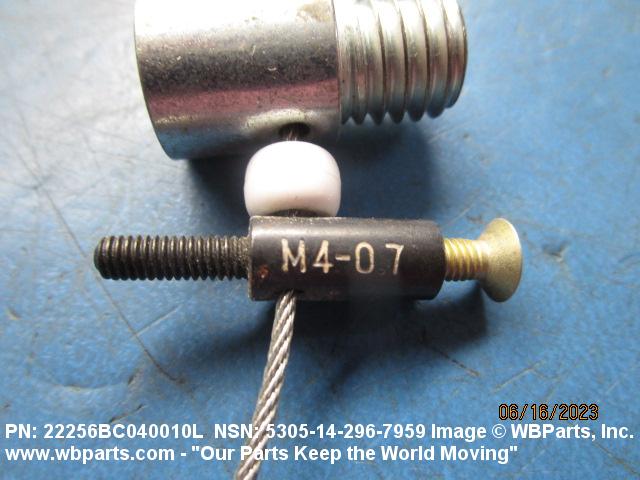

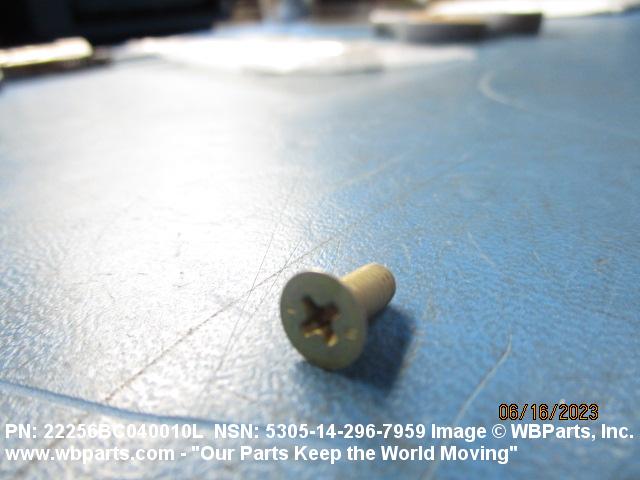

Drawings & Photos | NSN 5305-14-296-7959
Demand History | NSN 5305-14-296-7959
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 22256BC040010L | 2023-05-26 | 16 | United States |
| 22256BC040010L | 2023-04-20 | 16 | US |
| 22256BC040010L | 2018-01-08 | 1800 | US |
| 5305-14-296-7959 | 2017-12-06 | 20 | US |
| 22256BC040010L | 2014-11-13 | 100 | ZA |
| 22256BC040010L | 2013-02-04 | 20 | South Africa |
| 22256BC040010L | 2011-01-25 | 250 | France |
| 5305-14-296-7959 | 2010-06-18 | 500 | Spain |
| 5305-14-296-7959 | 2009-10-28 | 100 | South Africa |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5305-14-296-7959
5305-14-296-9905, 5305-14-298-1207, 5305-14-298-4055, 5305-14-299-9439, 5305-14-299-9440
Restrictions/Controls & Freight Information | NSN 5305-14-296-7959
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
