Product Details | SHOULDER BOLT
5306-00-709-8285 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It has a round unthreaded neck or shank all or part of which is of greater diameter than the threaded portion. The head is not designed to be held or driven with an inserted drivers. A locking feature may be incorporated in the design of the head or threads. For items with a thread diameter smaller than No. 10 (0.190 IN.) (5 mm) and those items with an inserted drive head, use SCREW, SHOULDER. For items which are No. 10 (0.190 IN.) (5 mm) or larger in size and are both shouldered and have an externally relieved body, use BOLT, EXTERNALLY RELIEVED BODY. Excludes THUMBSCREW.
Part Alternates: 2200021, 2-20002-1, 5306-00-709-8285, 00-709-8285, 5306007098285, 007098285
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-709-8285 | 04905 ( BOLT, SHOULDER ) |

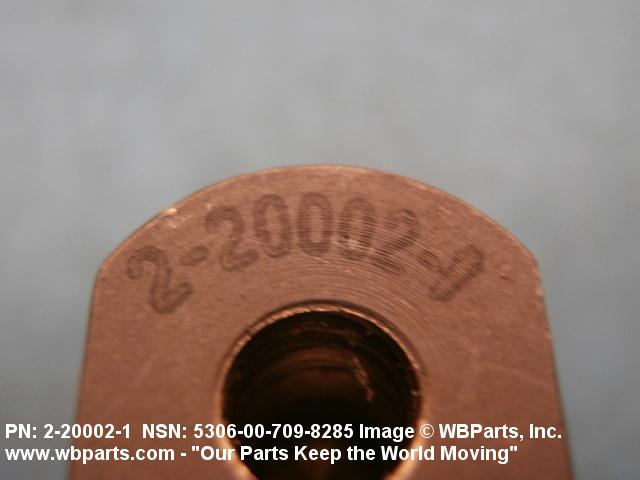

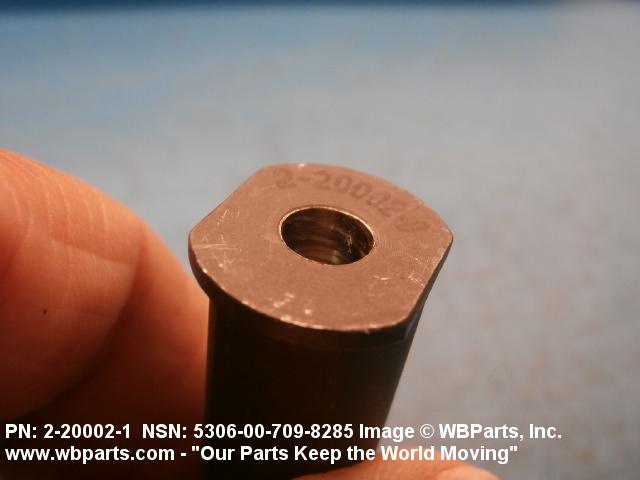

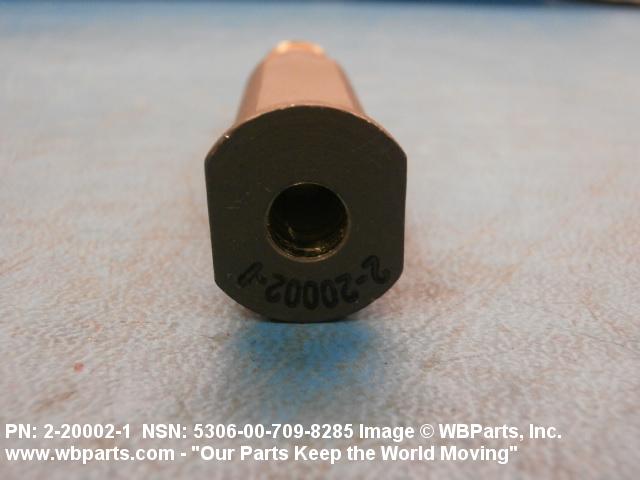

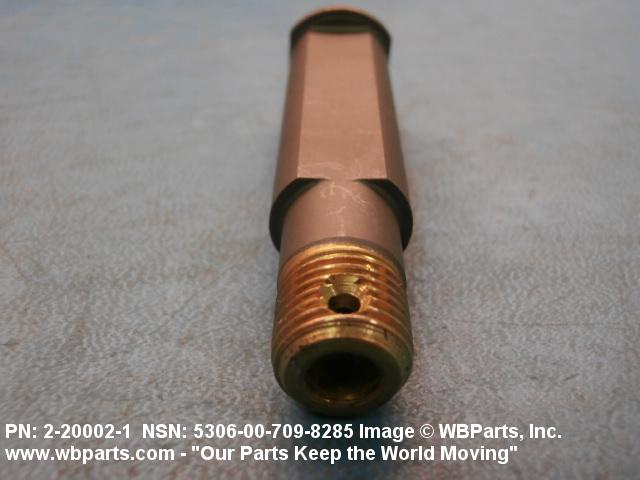

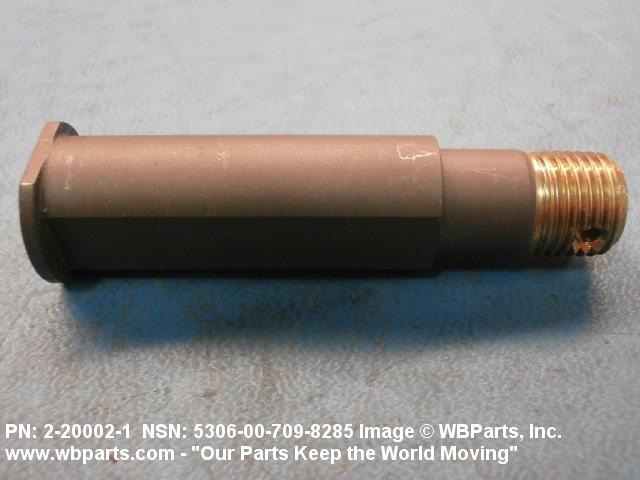

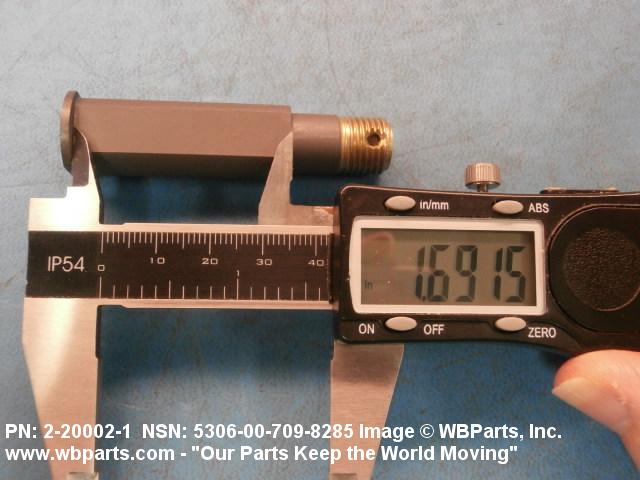

Drawings & Photos | NSN 5306-00-709-8285
Demand History | NSN 5306-00-709-8285
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2-20002-1 | 2020-01-16 | 100 | DIBBS |
| 2-20002-1 | 2019-11-17 | 100 | DIBBS |
| 2-20002-1 | 2019-10-20 | 100 | DIBBS |
| 2-20002-1 | 2019-09-15 | 177 | DIBBS |
| 5306-00-709-8285 | 2016-08-24 | 2 | United States |
| 5306-00-709-8285 | 2016-04-13 | 82 | DIBBS |
| 5306-00-709-8285 | 2015-04-20 | 459 | DIBBS |
| 5306-00-709-8285 | 2013-09-24 | 10 | US |
| 5306-00-709-8285 | 2012-03-14 | 31 | DIBBS |
| 5306-00-709-8285 | 2011-10-11 | 448 | DIBBS |
| 5306-00-709-8285 | 2011-05-11 | 217 | DIBBS |
| 5306-00-709-8285 | 2009-05-14 | 12 | United States |
| 5306-00-709-8285 | 2009-04-02 | 300 | DIBBS |
| 5306-00-709-8285 | 2009-01-08 | 575 | DIBBS |
| 5306-00-709-8285 | 2008-02-27 | 575 | DIBBS |
| 5306-00-709-8285 | 2008-02-05 | 575 | DIBBS |
| 5306-00-709-8285 | 2008-01-23 | 663 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5306-00-709-8285
Related Products | NSN 5306-00-709-8285
5306-00-709-8286, 5306-00-709-8287, 5306-00-709-8289, 5306-00-709-9158, 5306-00-709-9481
Technical Data | NSN 5306-00-709-8285
| Characteristic | Specifications |
|---|---|
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD DIAMETER | 0.500 INCHES |
| THREAD QUANTITY PER INCH | 20 |
| THREAD CLASS | 3A |
| THREAD DIRECTION | RIGHT-HAND |

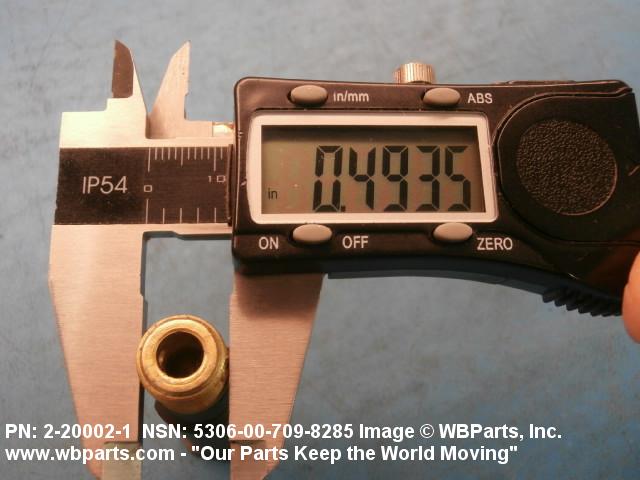

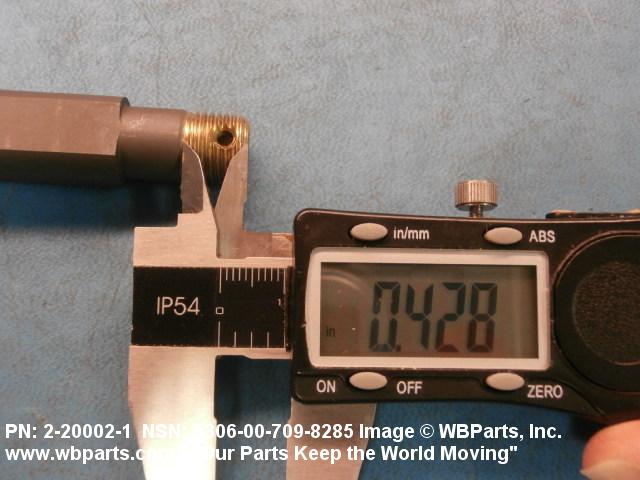

| THREAD LENGTH | 0.460 INCHES NOMINAL |

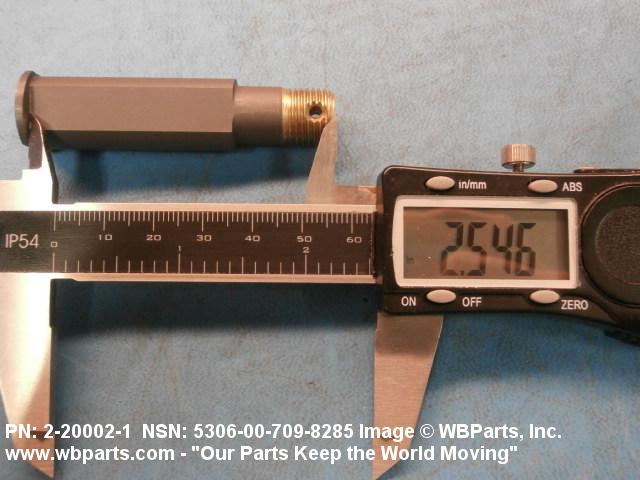

| FASTENER LENGTH | 2.520 INCHES MINIMUM AND 2.560 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| HEAD STYLE | C23 ROUND WITH WRENCH FLATS |

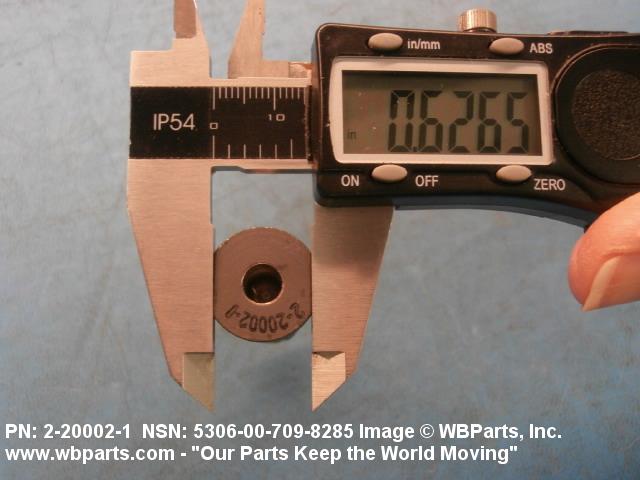

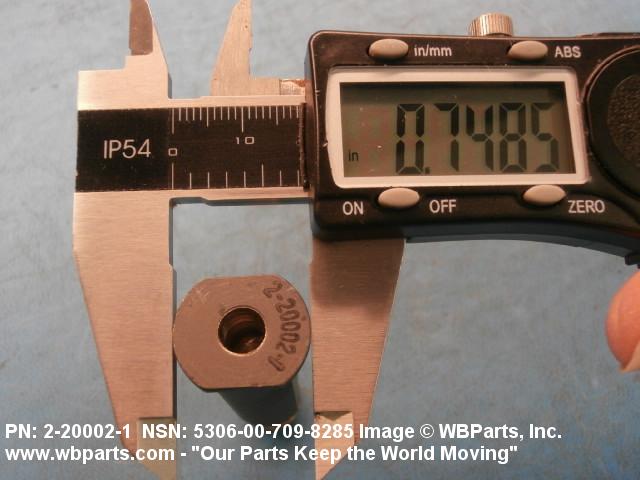

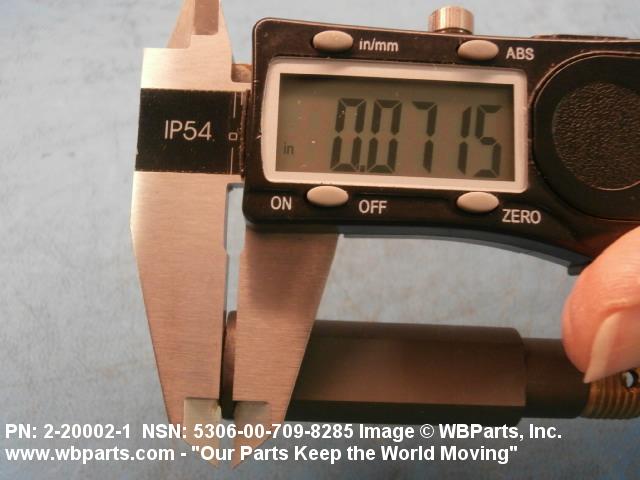

| HEAD DIAMETER | 0.750 INCHES NOMINAL |
| HEAD HEIGHT | 0.060 INCHES NOMINAL |

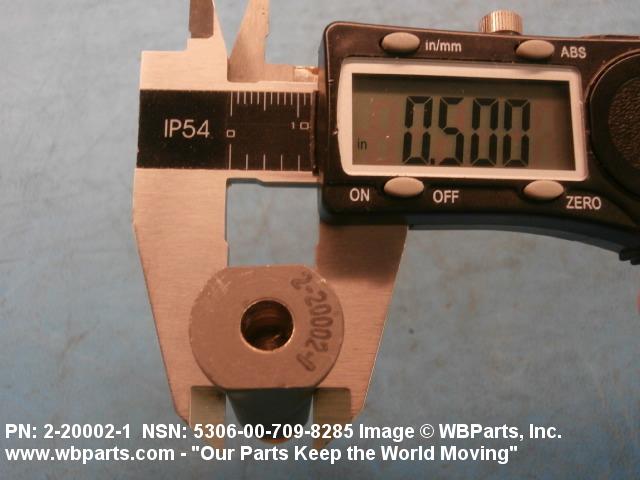

| WIDTH BETWEEN FLATS | 0.615 INCHES MINIMUM AND 0.627 INCHES MAXIMUM |
