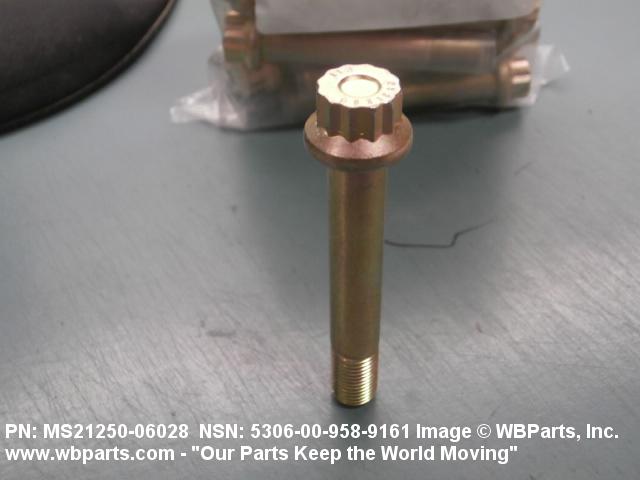

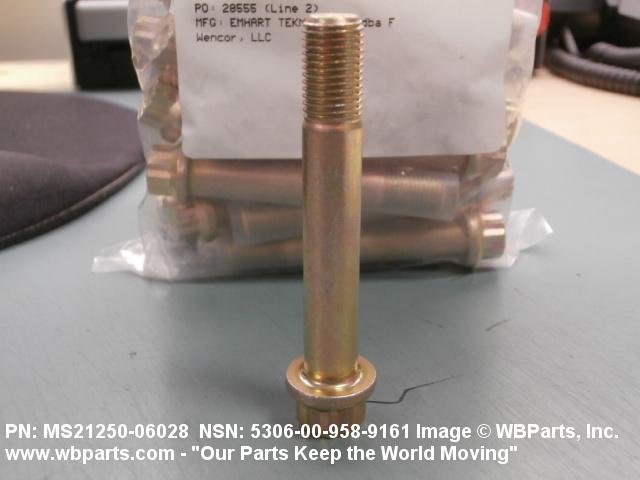

5306-00-958-9161 Request for Quote Plus Technical Data

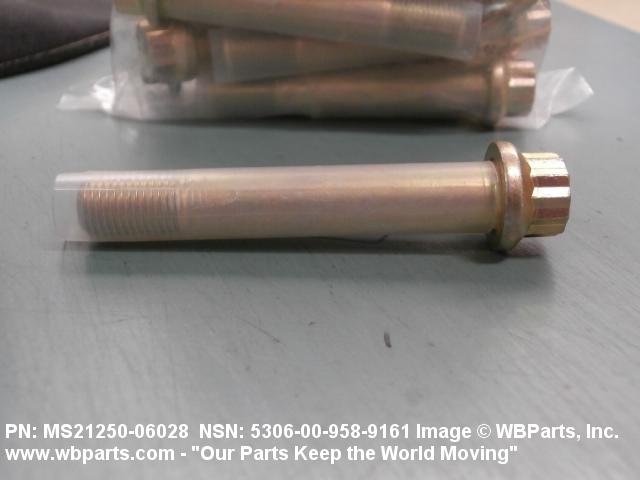

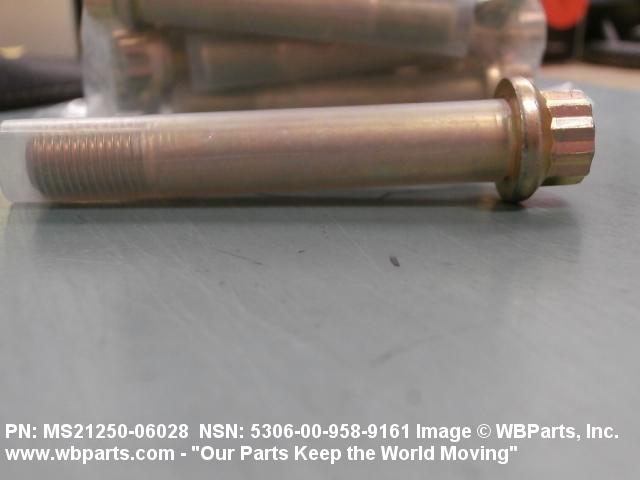

Manufacturing Part Numbers under this NSN: HS1446-6-28, MS21250-06028, VFK100G-06028


5306-00-958-9161 Characteristics Data
MRC	Criteria	Characteristic

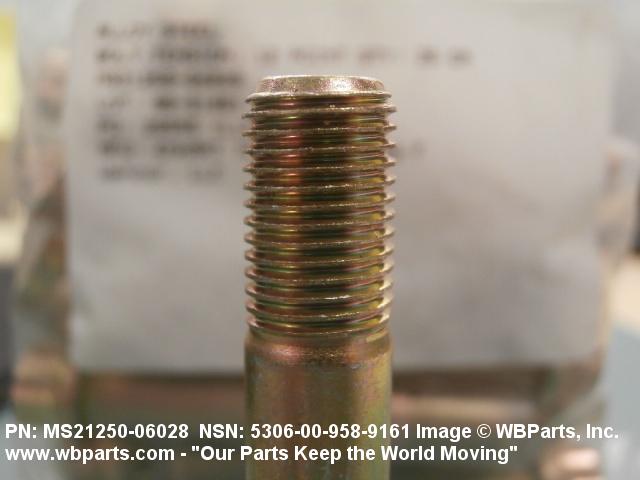

THSD	THREAD SERIES DESIGNATOR	UNJF
AHYM	NOMINAL THREAD DIAMETER	0.375 INCHES
CMLP	THREAD QUANTITY PER INCH	24
AAJD	THREAD CLASS	3A
AAJF	THREAD DIRECTION	RIGHT-HAND

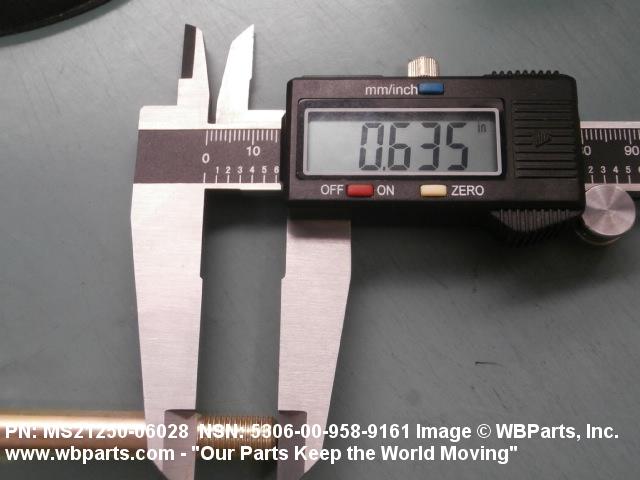

AASA	THREAD LENGTH	0.635 INCHES MINIMUM AND 0.655 INCHES MAXIMUM

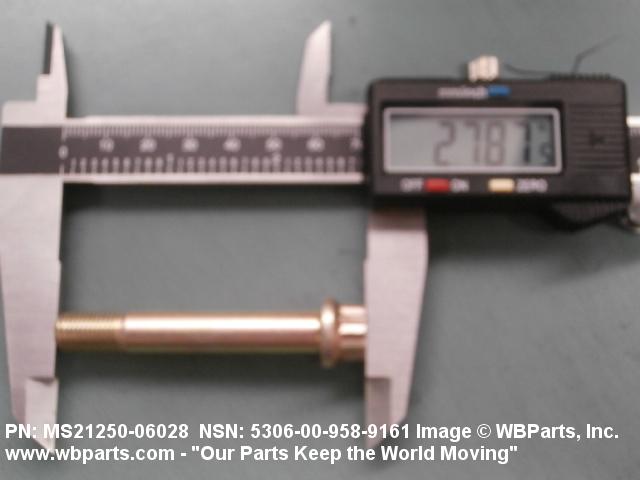

AASB	FASTENER LENGTH	2.395 INCHES NOMINAL
MATT	MATERIAL	STEEL COMP E4340 OR STEEL COMP 8740 OR STEEL COMP 6150 OR STEEL COMP 4140 OVERALL
MDCL	MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 4TH MATERIAL RESPONSE OVERALL
SFTT	SURFACE TREATMENT	CADMIUM AND CHROMATE OVERALL
STDC	SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY2, CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
CQFM	HARDNESS RATING	39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM OVERALL
CQBC	MINIMUM TENSILE STRENGTH	180000 POUNDS PER SQUARE INCH

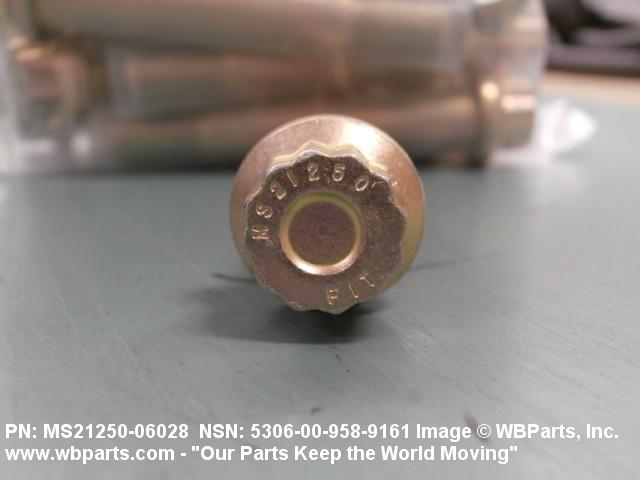

AASK	HEAD STYLE	C10 DOUBLE HEXAGON WITH HOLE

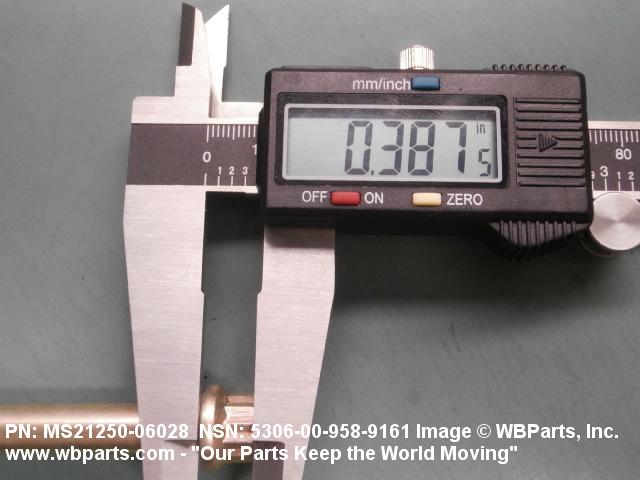

AASU	HEAD HEIGHT	0.388 INCHES NOMINAL
AATB	WIDTH BETWEEN FLATS	0.430 INCHES MINIMUM AND 0.459 INCHES MAXIMUM
AATC	EXTENDED WASHER DIAMETER	0.639 INCHES MINIMUM AND 0.649 INCHES MAXIMUM
AATD	EXTENDED WASHER THICKNESS	0.091 INCHES NOMINAL

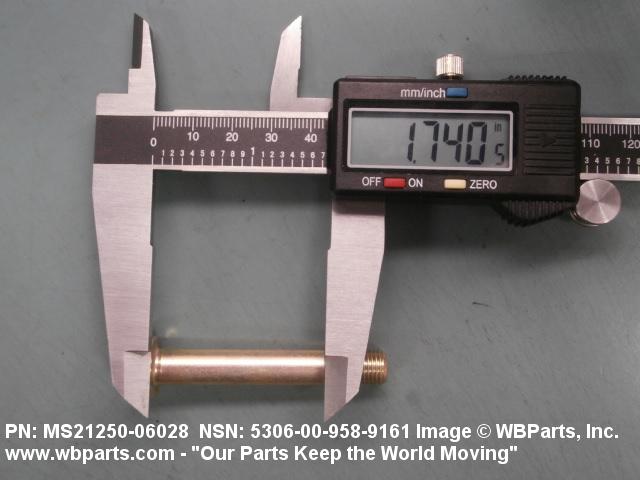

ANEE	GRIP LENGTH	1.740 INCHES MINIMUM AND 1.760 INCHES MAXIMUM
AAUR	GRIP DIAMETER	0.3735 INCHES MINIMUM AND 0.3745 INCHES MAXIMUM
SR-1	MANUFACTURERS CODE	96906
SR-1	DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS21250-06028
