Product Details | INTERNAL WRENCHING BOLT

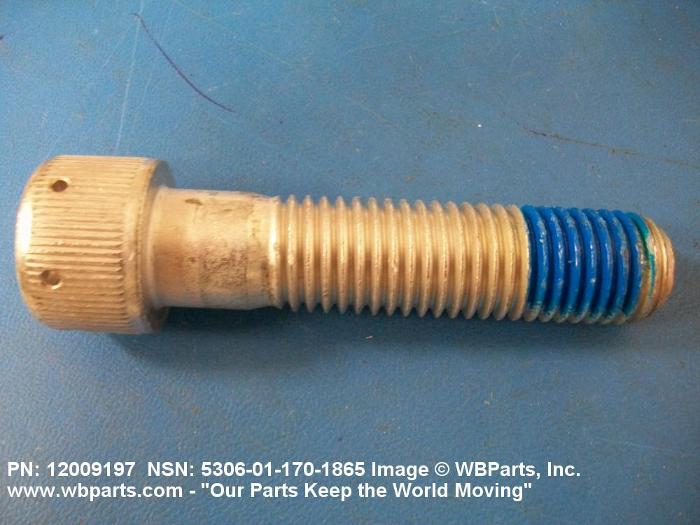

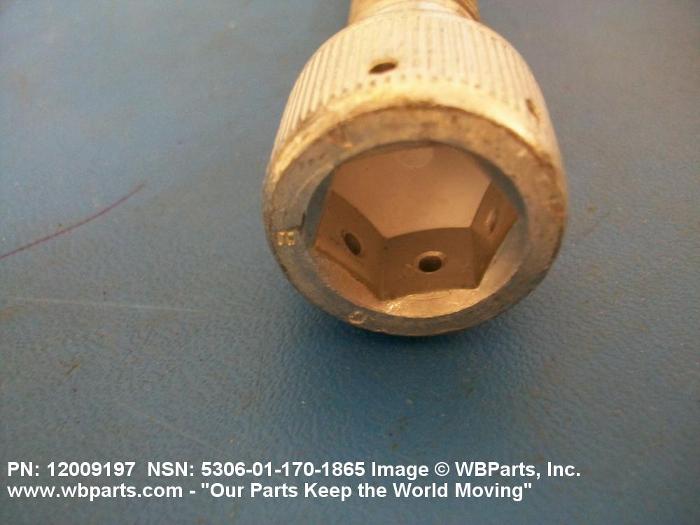

5306-01-170-1865 An externally threaded fastener whose threaded portion is of one nominal diameter, No. 10 (0.190 IN.) (5 mm) or larger. It is designed with an internal socket or internal multiple spline for use with an internal driver. The head is beveled (conical) or cylindrical in shape. Items with cylindrical shaped heads must have an externally relieved body. A locking feature may be incorporated in the design of the head or threads. See also SCREW, CAP, SOCKET HEAD. Excludes SETSCREW; SCREW, SHOULDER; BOLT, SHOULDER; SCREW, EXTERNALLY RELIEVED BODY; BOLT, EXTERNALLY RELIEVED BODY; and SCREW, MACHINE.
Part Alternates: 12009197, 5306-01-170-1865, 01-170-1865, 5306011701865, 011701865
Hardware and Abrasives | Bolts
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JAN 1984 | 01-170-1865 | 06666 ( BOLT, INTERNAL WRENCHING ) |
Drawings & Photos | NSN 5306-01-170-1865
Demand History | NSN 5306-01-170-1865
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12009197 | 2013-06-26 | 536 | United States |
| 5306-01-170-1865 | 2013-02-15 | 593 | DIBBS |
| 12009197 | 2013-01-11 | 404 | US |
| 12009197 | 2013-01-04 | 2264 | United States |
| 5306-01-170-1865 | 2013-01-04 | 2264 | MANUAL |
| 12009197 | 2013-01-03 | 1 | United States |
| 5306-01-170-1865 | 2012-12-03 | 1745 | DIBBS |
| 5306-01-170-1865 | 2011-06-16 | 100 | United States |
Cross Reference | NSN 5306-01-170-1865
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12009197 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5306-01-170-1865
Related Products | NSN 5306-01-170-1865
5306-01-170-2864, 5306-01-170-2865, 5306-01-170-2927, 5306-01-170-2938, 5306-01-170-2981
Technical Data | NSN 5306-01-170-1865
| Characteristic | Specifications |
|---|---|
| III END ITEM IDENTIFICATION | USED ON M198 HOWITZER |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 12009197 |
Restrictions/Controls & Freight Information | NSN 5306-01-170-1865
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5306-01-170-1865
