Product Details | WING PLAIN NUT
5310-00-146-8442 A nut having wings designed for manual turning without driver or wrench.
Part Alternates: MS354261, MS35426-1, AN3501032, AN350-1032, 3341011000, 334-1011-000, 404752, 5310-00-146-8442, 00-146-8442, 5310001468442, 001468442
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-146-8442 | 01862 ( NUT, PLAIN, WING ) |

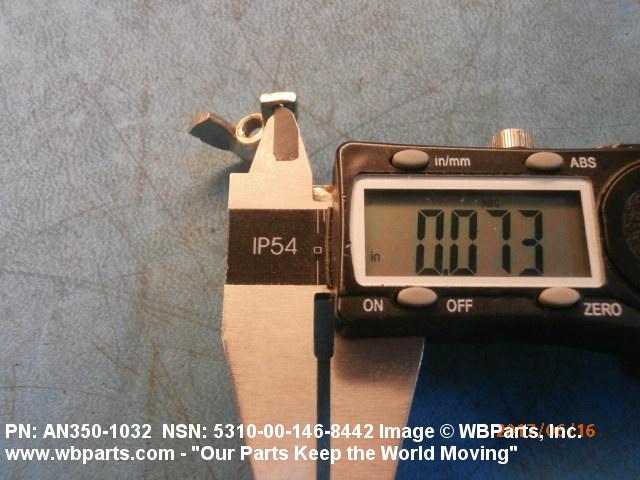

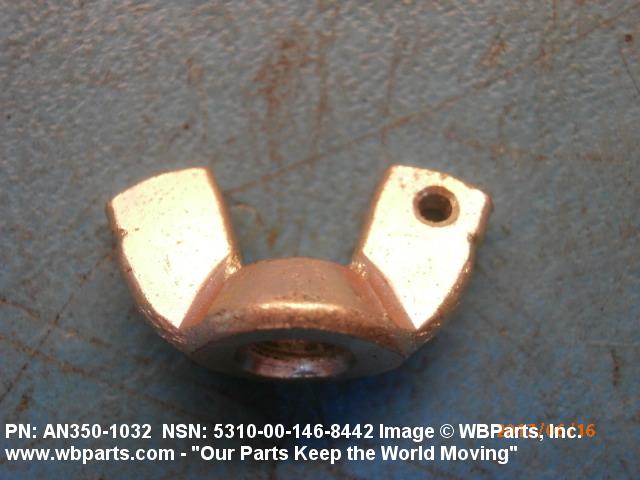

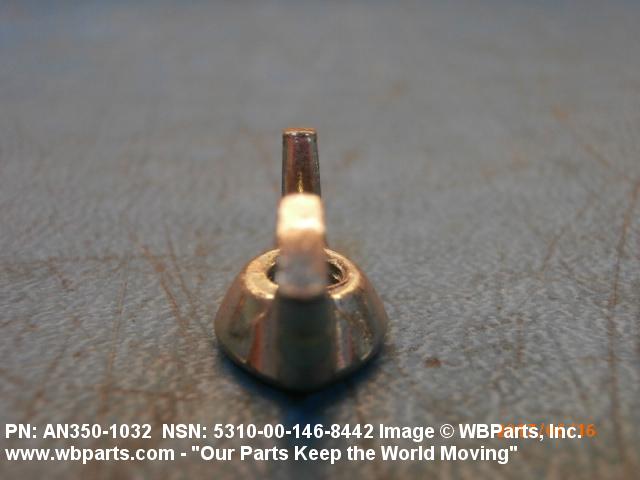

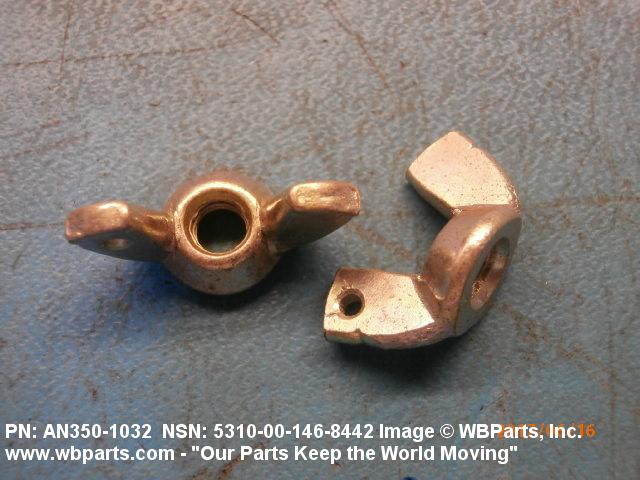

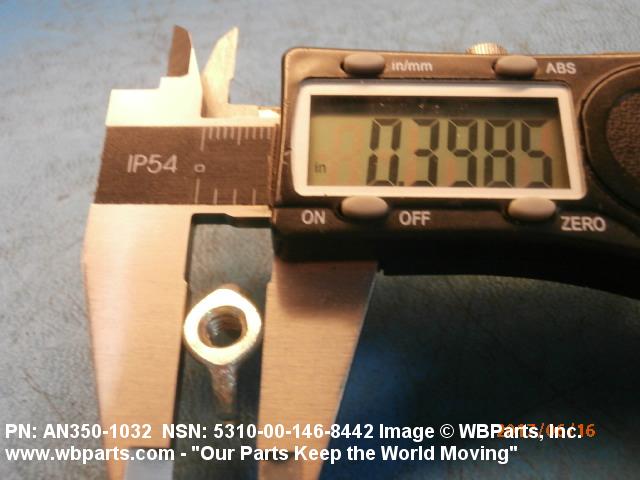

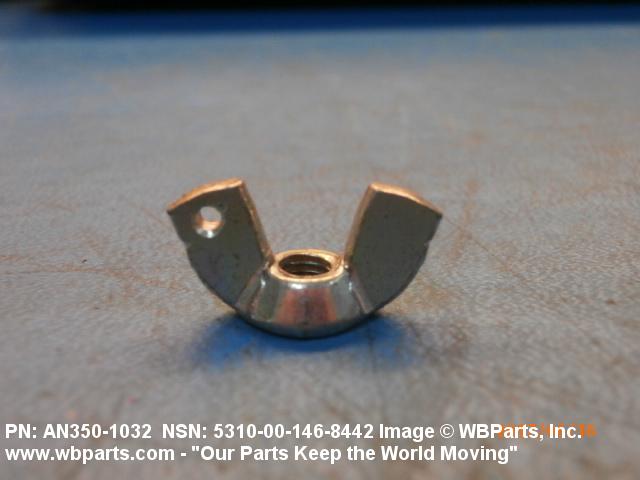

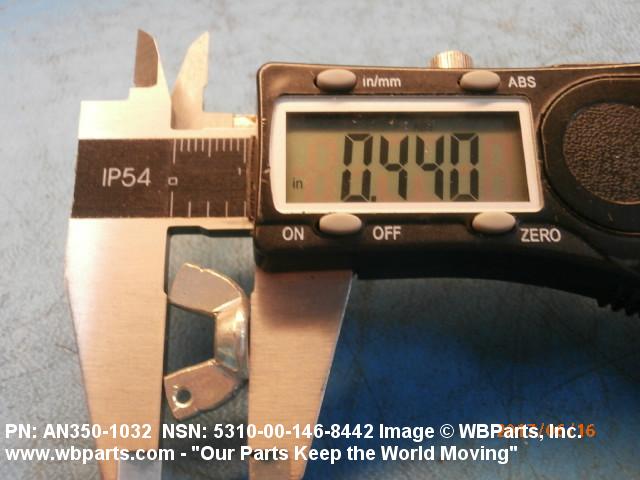

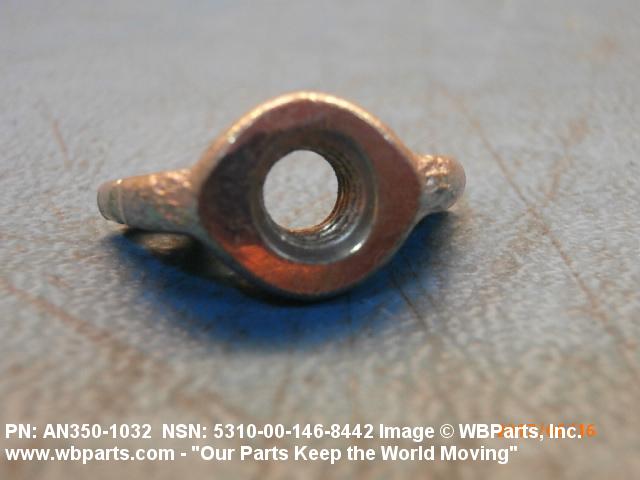

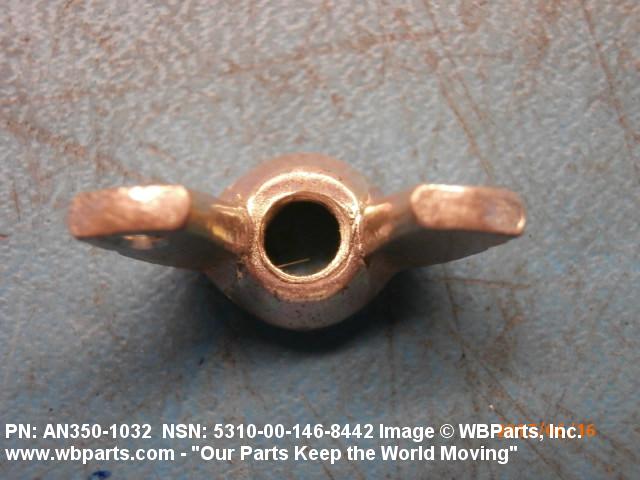

Drawings & Photos | NSN 5310-00-146-8442
Demand History | NSN 5310-00-146-8442
Cross Reference | NSN 5310-00-146-8442
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 334-1011-000 | 95105 | ROCKWELL COLLINS, INC. DIV GOVERNMENT SYSTEMS - DALLAS |
| 404752 | 77294 | PIPER AIRCRAFT INC. |
| AN350-1032 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| MS35426-1 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-00-146-8442
Related Products | NSN 5310-00-146-8442
5310-00-146-8443, 5310-00-146-8444, 5310-00-146-8445, 5310-00-146-8446, 5310-00-146-8447
Technical Data | NSN 5310-00-146-8442
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HARDNESS RATING | NOT RATED |

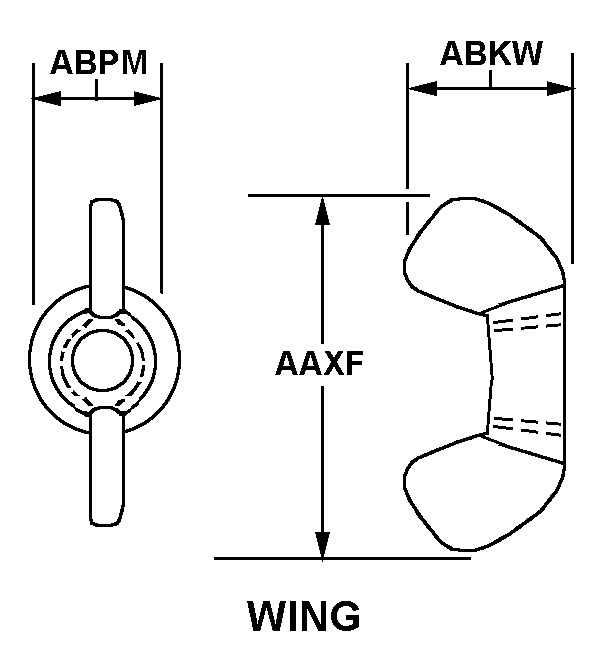

| NUT STYLE | A262 WING |

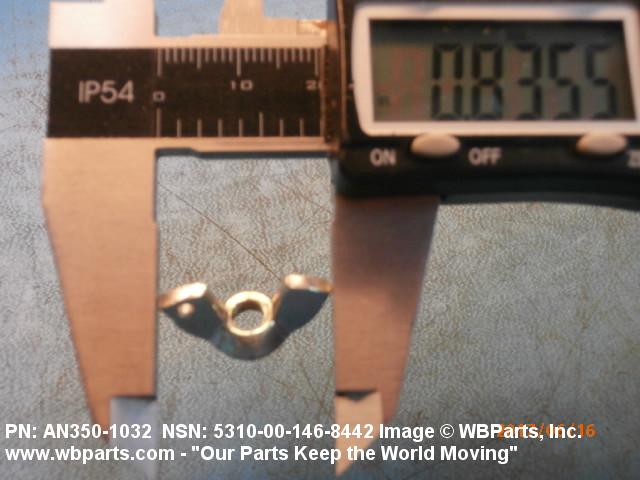

| WING SPREAD WIDTH | 0.858 INCHES NOMINAL |
| OVERALL HEIGHT | 0.452 INCHES NOMINAL |
| BODY DIAMETER | 0.265 INCHES NOMINAL |
| HOLE CONFIGURATION STYLE | H10 CONFIGURATION K |
| HOLE TYPE AND QUANTITY | 2 DRILLED |
| DRILLED HOLE DIAMETER | 0.190 INCHES NOMINAL |
| FABRICATION METHOD | FORGED |
| TEMP RATING | NOT RATED |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35426-1 |
Restrictions/Controls & Freight Information | NSN 5310-00-146-8442
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093486 | BOLTS,NUTS OR SCREWS, NOI (SUB 3) |
| Less than car load rating | U | 50 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
