Product Details | CONCAVE WASHER
5310-00-459-0866 A washer which is round with a centrally located hole. One bearing surface is smooth, flat, and unbroken, the other bearing surface is smooth, unbroken, and is recessed to form a curved or spherical contour. See also WASHER (1), CONVEX. Excludes WASHER (1), RECESSED and BEARING, WASHER, THRUST.
Part Alternates: TLN1020L4W, TLN10214W, TLN1021-4W, 607304, 6073-04, 3M348L4, 5310-00-459-0866, 00-459-0866, 5310004590866, 004590866
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 JAN 1970 | 00-459-0866 | 15930 ( WASHER, CONCAVE ) |

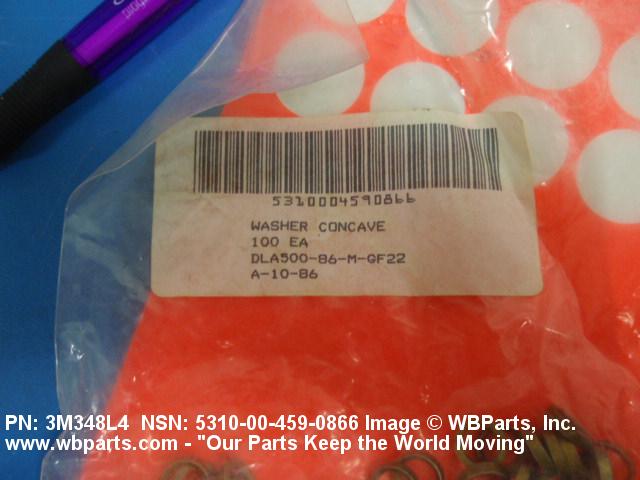

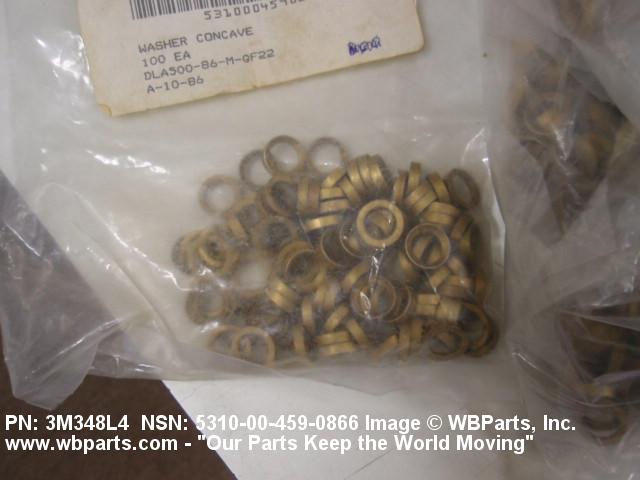

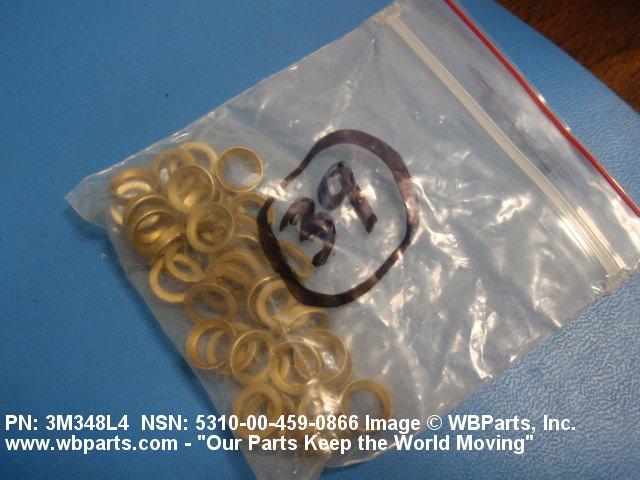

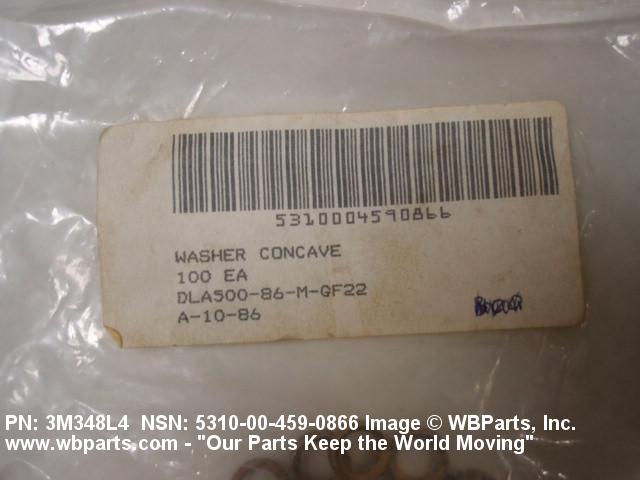

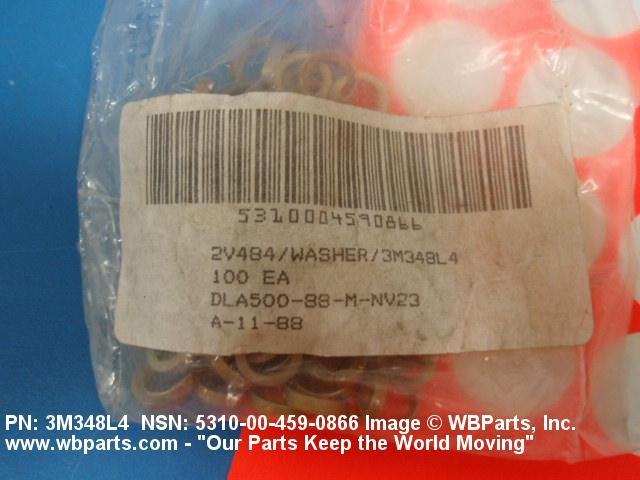

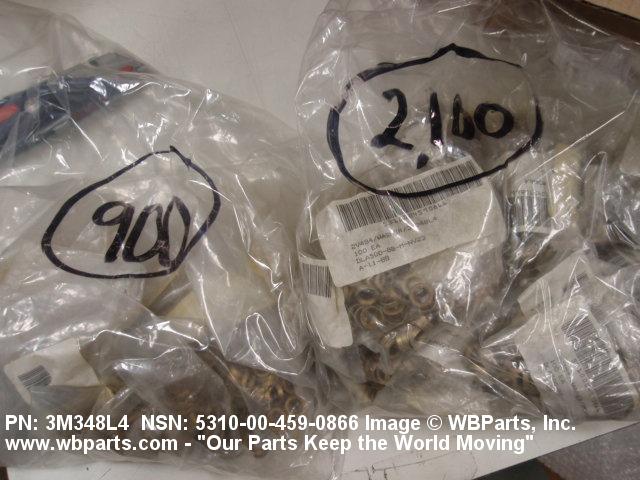

Drawings & Photos | NSN 5310-00-459-0866
Demand History | NSN 5310-00-459-0866
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5310-00-459-0866 | 2016-12-05 | 3780 | DIBBS |
| 5310-00-459-0866 | 2012-12-06 | 6400 | DIBBS |
| 5310-00-459-0866 | 2012-09-20 | 5306 | DIBBS |
| 5310-00-459-0866 | 2011-03-23 | 3497 | DIBBS |
| 5310-00-459-0866 | 2010-08-26 | 1196 | DIBBS |
| 5310-00-459-0866 | 2010-04-19 | 1196 | DIBBS |
| 5310-00-459-0866 | 2009-07-22 | 4281 | DIBBS |
| 5310-00-459-0866 | 2009-06-22 | 1711 | United States |
| 5310-00-459-0866 | 2009-06-22 | 1327 | United States |
| 5310-00-459-0866 | 2009-06-12 | 3038 | DIBBS |
Cross Reference | NSN 5310-00-459-0866
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M348L4 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| 3M348L4 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 3M348L4 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 6073-04 | 019L2 | MACLEAN-FOGG COMPANY DBA MAC LEAN-ESNA |
| 6073-04 | 72962 | HARVARD INDUSTRIES INC |
| TLN1020L4W | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| TLN1020L4W | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| TLN1020L4W | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| TLN1020L4W | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| TLN1020L4W | 97928 | HUCK INTL INC |
| TLN1020L4W | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| TLN1021-4W | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| TLN1021-4W | 97928 | HUCK INTL INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-00-459-0866
Related Products | NSN 5310-00-459-0866
5310-00-459-0875, 5310-00-459-0911, 5310-00-459-1134, 5310-00-459-1141, 5310-00-459-1166
Technical Data | NSN 5310-00-459-0866
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 OR STEEL COMP 4037 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC 1ST MATERIAL RESPONSE OR AMS 6300 ASSN STD 2ND MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| HARDNESS RATING | 38.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM |
| STYLE DESIGNATOR | 6 CONCAVE |
| HOLE DIAMETER | 0.348 INCHES MINIMUM AND 0.354 INCHES MAXIMUM |
| RADIUS | 0.300 INCHES MINIMUM AND 0.305 INCHES MAXIMUM |
| OUTSIDE DIAMETER | 0.505 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |
| MATERIAL THICKNESS | 0.113 INCHES MINIMUM AND 0.123 INCHES MAXIMUM |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 3M348L4 |
Restrictions/Controls & Freight Information | NSN 5310-00-459-0866
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194160 | WASHER OR GASKETS, IRON OR STEEL, |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5310-00-459-0866
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
Q EA : Each |
