Product Details | BLIND RIVET SELF-LOCKING NUT
5310-00-998-5058 A metallic headed fastener having internal threads for a portion of the full length. It may have a smooth, hexagon or splined shank with an open or closed end. It is designed to be expanded tightly against the material it is being installed in by means of a special tool. The item must have a specified grip range. The grip range is the thickness of the material the item is being installed in. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: C858P4282, C858P428-2, 65010C4282, 65010C428-2, 72CBD42, 72CBD4-2, 5310-00-998-5058, 00-998-5058, 5310009985058, 009985058
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 NOV 1967 | 00-998-5058 | 29724 ( NUT, SELF-LOCKING, BLIND RIVET ) |
Drawings & Photos | NSN 5310-00-998-5058
Demand History | NSN 5310-00-998-5058
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5310-00-998-5058
5310-00-998-5059, 5310-00-998-6420, 5310-00-998-6438, 5310-00-998-6439, 5310-00-998-6440
Technical Data | NSN 5310-00-998-5058
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD QUANTITY PER INCH | 28 |
| THREAD CLASS | 2B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A22 BLIND RIVET W/SMOOTH ROUND SHANK |
| NUT DIAMETER | 0.326 INCHES NOMINAL |
| NUT LENGTH | 1.000 INCHES NOMINAL |
| NUT GRIP RANGE | 0.420 TO 0.480 INCHES |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |

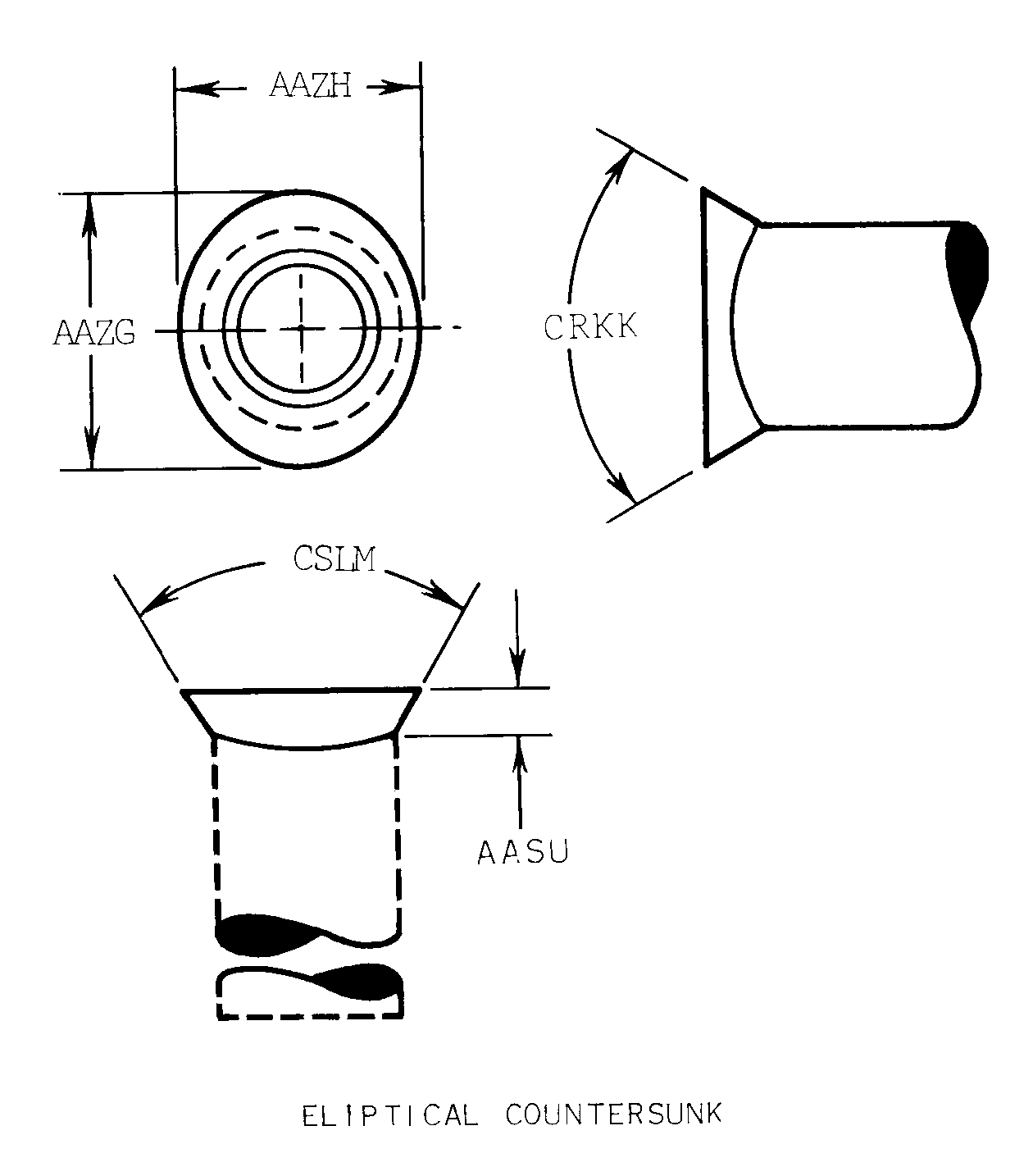

| HEAD STYLE | D24 ELIPTICAL COUNTERSUNK |
| HEAD HEIGHT | 0.070 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.430 INCHES NOMINAL |
| HEAD MINOR DIAMETER | 0.370 INCHES NOMINAL |
| HEAD MAJOR COUNTERSINK ANGLE | 82.0 DEGREES NOMINAL |
| HEAD MINOR COUNTERSINK ANGLE | 82.0 DEGREES NOMINAL |
| SHANK END TYPE | CLOSED |
| TEMP RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5310-00-998-5058
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093460 | BOLTS/NUTS NOI BBC/ZINC |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
