Product Details | PLATE SELF-LOCKING NUT
5310-01-032-6475 A nut with a flanged base of varied shapes which may be plain or mounted by rivets, bolts, welding or integral prongs. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: NS2027253, NS202725-3, ST3M726C3M, BSN726C3M, F504063, F50406-3, F526733, F52673-3, F527633, F52763-3, 10122012, 5310-01-032-6475, 01-032-6475, 5310010326475, 010326475
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 DEC 1976 | 01-032-6475 | 05280 ( NUT, SELF-LOCKING, PLATE ) |

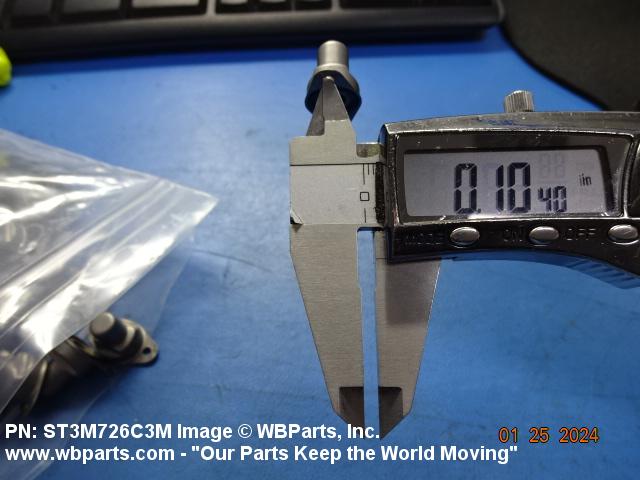

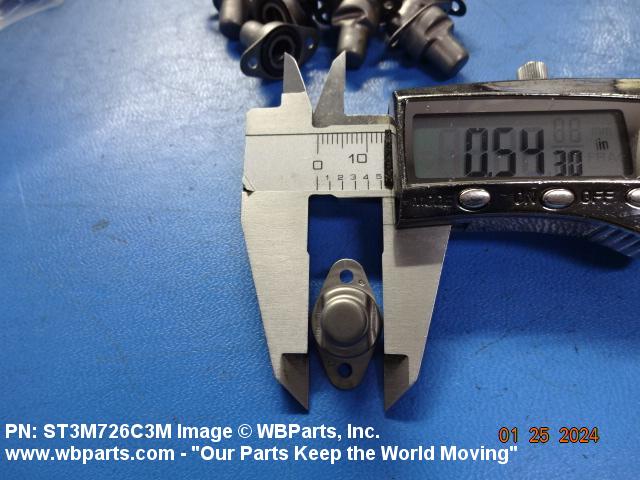

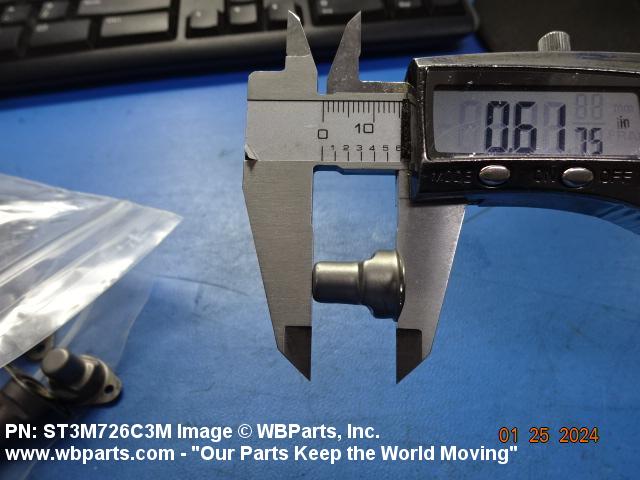

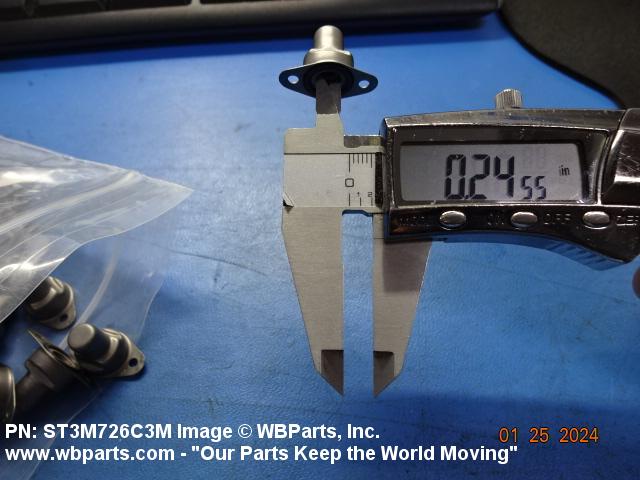

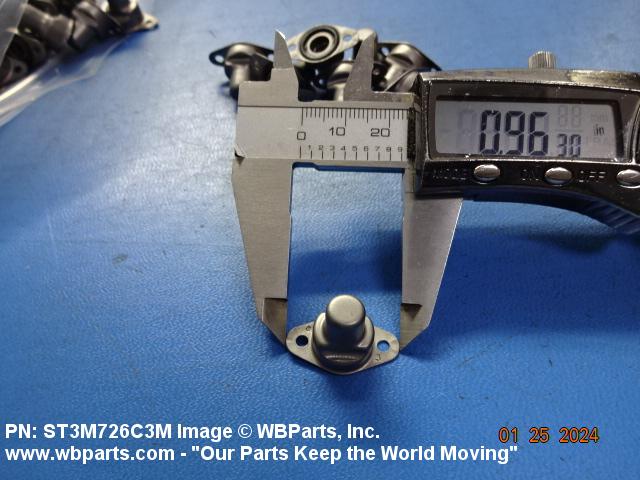

Drawings & Photos | NSN 5310-01-032-6475
Demand History | NSN 5310-01-032-6475
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| ST3M726C3M | 2024-01-19 | 134 | United States |
| ST3M726C3M | 2024-01-19 | 130 | United States |
| ST3M726C3M | 2024-01-12 | 130 | United States |
| ST3M726C3M | 2024-01-12 | 134 | United States |
| 5310-01-032-6475 | 2022-03-02 | 30 | SG |
| 5310-01-032-6475 | 2022-02-22 | 30 | Singapore |
| ST3M726C3M | 2014-09-09 | 50 | United States |
| 5310-01-032-6475 | 2011-11-30 | 160 | IL |
| 5310-01-032-6475 | 2011-02-08 | 4177 | DIBBS |
| ST3M726C3M | 2009-05-11 | 1001 | US |
| 5310-01-032-6475 | 2008-09-14 | 850 | Israel |
Cross Reference | NSN 5310-01-032-6475
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BSN726C3M | 27238 | BRISTOL INDUSTRIES |
| F50406-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F52673-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| F52763-3 | 15653 | ALCOA GLOBAL FASTENERS, INC. |
| NS202725-3 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| ST3M726C3M | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-01-032-6475
Related Products | NSN 5310-01-032-6475
5310-01-032-6477, 5310-01-032-6478, 5310-01-032-6479, 5310-01-032-6480, 5310-01-032-6481
Technical Data | NSN 5310-01-032-6475
| Characteristic | Specifications |
|---|---|
| THREAD SERIES | UNJF |
| NOMINAL THREAD SIZE | 0.190 INCHES |
| THREAD QUANTITY PER INCH | 32 |
| THREAD CLASS | 3B |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | IRON ALLOY 660 NUT IRON ALLOY 660 WASHER |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-R-6855 CL1 GRADE 60 MIL SPEC SINGLE MATERIAL RESPONSE LOCKING INSERT AMS5525 ASSN STD SINGLE MATERIAL RESPONSE NUT MIL-S-5059 MIL SPEC ALL MATERIAL RESPONSES SHELL AMS5732 ASSN STD SINGLE MATERIAL RESPONSE WASHER |
| SURFACE TREATMENT | PASSIVATE AND DICHROMATE OVERALL EXCEPT INSERT |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A116 PLATE |
| OVERALL HEIGHT | 0.640 INCHES MAXIMUM |
| NUT LENGTH | 0.984 INCHES MAXIMUM |
| NUT HEIGHT | ANY ACCEPTABLE |
| PLATE THICKNESS | ANY ACCEPTABLE |
| PLATE WIDTH | 0.562 INCHES MAXIMUM |
| LOCKING FEATURE | PREVAILING TORQUE ALL METAL DESIGN |
| NUT COUNTERBORE DEPTH | 0.100 INCHES MINIMUM NUT |
| COUNTERBORE DIAMETER | 0.255 INCHES MAXIMUM NUT |
| LUBRICATION | DRY FILM LUBRICANT |
| NUT MOUNTING PROVISION | STRAIGHT HOLES |
| MOUNTING HOLE ARRANGEMENT STYLE | F38 2 HOLES |
| MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.113 INCHES MAXIMUM |
| DISTANCE FROM APERTURE CENTER TO MOUNTING HOLE CENTER | 0.339 INCHES MINIMUM AND 0.349 INCHES MAXIMUM |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES ALONG LENGTH | 0.686 INCHES MINIMUM AND 0.690 INCHES MAXIMUM |
| TEMP RATING | -65.0 DEG FAHRENHEIT MINIMUM AND 225.0 DEG FAHRENHEIT MAXIMUM |
| FEATURES PROVIDED | FLOATING NUT |
| SPECIAL FEATURES | COLOR YELLOW |
| SPECIFICATION/STANDARD DATA | 76301-ST3M762 MANUFACTURERS STANDARD |
