Product Details | HEXAGON EXTENDED WASHER SELF-LOCKING NUT

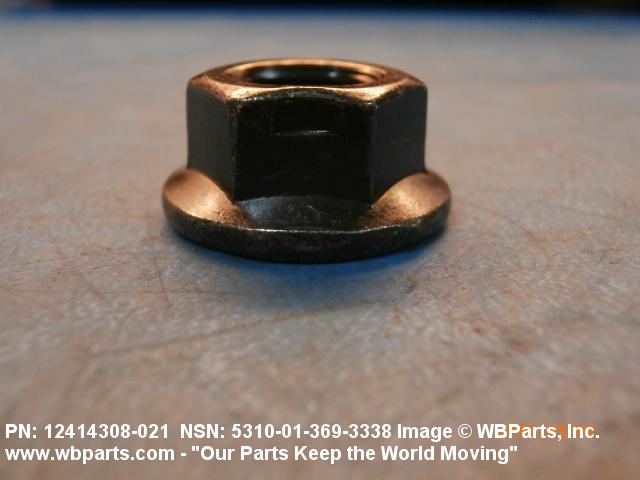

5310-01-369-3338 A nut having 6 flat sides and an integral washer which extends beyond the flats or periphery. An integral feature is incorporated for locking on the threads of a mating member.
Part Alternates: DIN6927VM12X15A0A3D, ISO7044-VM12X1.5-A0-A3D , ISO7044VM12X15A0A3D, 12414308 , 12414308021, 12414308-021, 5310-01-369-3338, 01-369-3338, 5310013693338, 013693338
Hardware and Abrasives | Nuts and Washers
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 DEC 1992 | 01-369-3338 | 29730 ( NUT, SELF-LOCKING, EXTENDED WASHER, HEXAGON ) |

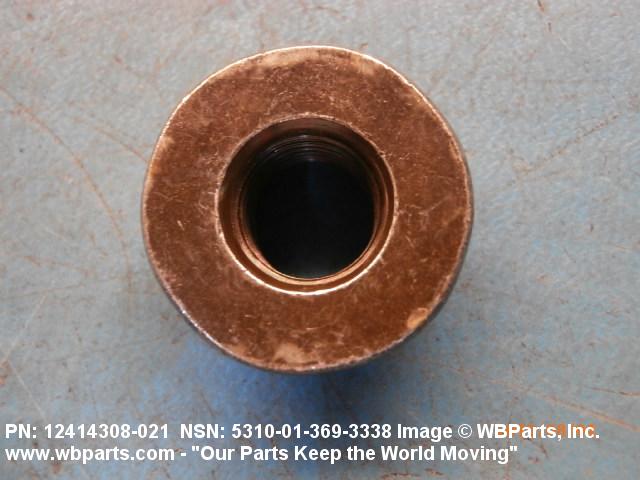

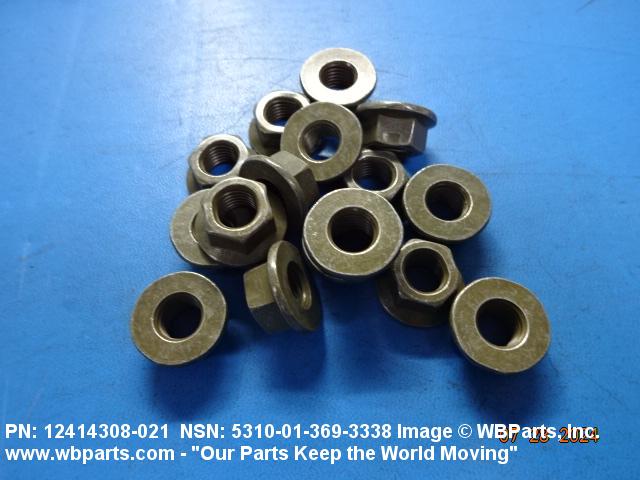

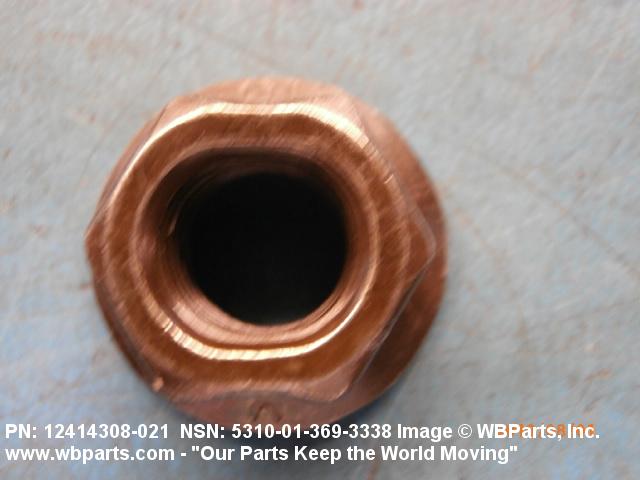

Drawings & Photos | NSN 5310-01-369-3338
Demand History | NSN 5310-01-369-3338
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12414308021 | 2024-01-10 | 150 | United States |
| 12414308021 | 2024-01-10 | 600 | United States |
| 5310-01-369-3338 | 2023-05-24 | 12950 | DIBBS |
| 5310-01-369-3338 | 2023-05-16 | 12950 | DIBBS |
| 5310-01-369-3338 | 2022-07-20 | 3125 | DIBBS |
| 5310-01-369-3338 | 2021-04-14 | 8100 | US |
| 12414308021 | 2019-03-27 | 90 | US |
| 5310-01-369-3338 | 2019-01-08 | 21264 | DIBBS |
| 5310-01-369-3338 | 2018-05-17 | 300 | US |
| 5310-01-369-3338 | 2018-03-05 | 300 | US |
| 5310-01-369-3338 | 2018-03-05 | 300 | MANUAL |
| 5310-01-369-3338 | 2018-01-24 | 440 | US |
| 12414308-021 | 2017-11-15 | 14 | |
| 12414308021 | 2017-07-20 | 135 | United States |
| 5310-01-369-3338 | 2017-04-25 | 126 | US |
| 12414308021 | 2017-01-05 | 159 | US |
| 12414308021 | 2016-12-16 | 159 | United States |
| 12414308-021 | 2016-04-19 | 300 | US |
| 12414308021 | 2014-02-27 | 48 | US |
| 5310-01-369-3338 | 2012-06-19 | 46684 | DIBBS |
| 5310-01-369-3338 | 2012-02-23 | 33540 | DIBBS |
| 5310-01-369-3338 | 2012-02-02 | 33540 | DIBBS |
| 12414308021 | 2011-03-24 | 20 | US |
| 12414308021 | 2011-03-04 | 20 | Singapore |
| 5310-01-369-3338 | 2010-10-11 | 1900 | United States |
| 5310-01-369-3338 | 2009-09-08 | 11740 | DIBBS |
| 5310-01-369-3338 | 2009-07-14 | 50081 | DIBBS |
| 5310-01-369-3338 | 2008-12-05 | 11740 | DIBBS |
| 5310-01-369-3338 | 2008-11-11 | 10521 | DIBBS |
| 5310-01-369-3338 | 2008-09-09 | 7505 | DIBBS |
| 5310-01-369-3338 | 2008-05-02 | 4031 | DIBBS |
Cross Reference | NSN 5310-01-369-3338
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12414308 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12414308-021 | 0FW39 | BAE SYSTEMS TACTICAL VEHICLE SYSTEMS LP |
| 12414308-021 | 19207 | U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM |
| 12414308-021 | 45152 | OSHKOSH CORPORATION |
| 12414308-021 | 75Q65 | OSHKOSH DEFENSE, LLC |
| DIN6927 VM12X1,5 A0-A3D | D8286 | DIN DEUTSCHES INSTITUT FUER NORMUNGEV |
| ISO7044-VM12X1.5-A0-A3D | I9008 | INTERNATIONAL ORGANIZATION FORSTANDARDIZATION (ISO) |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5310-01-369-3338
Related Products | NSN 5310-01-369-3338
5310-01-369-3339, 5310-01-369-3340, 5310-01-369-3483, 5310-01-369-3484, 5310-01-369-3488
Technical Data | NSN 5310-01-369-3338
| Characteristic | Specifications |
|---|---|
| NOMINAL THREAD SIZE | 12.0 MILLIMETERS |
| THREAD DIRECTION | RIGHT-HAND |
| MATERIAL | STEEL PROPERTY CLASS 10.9 OVERALL |
| SURFACE TREATMENT | ZINC OVERALL |
| HARDNESS RATING | NOT RATED |
| NUT STYLE | A294 HEXAGON |

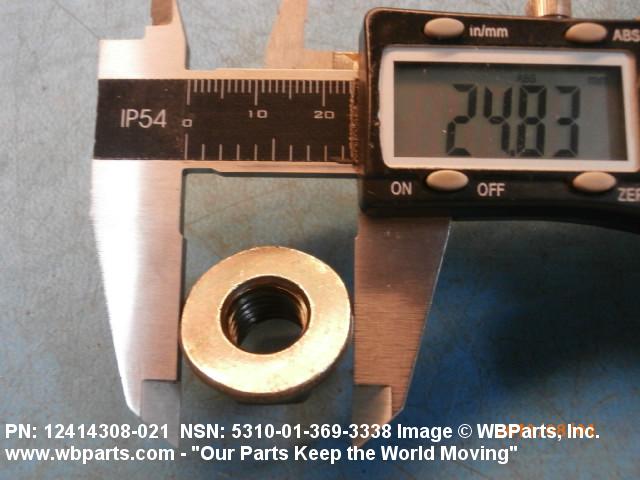

| WASHER OUTSIDE DIAMETER | 26.0 MILLIMETERS NOMINAL |

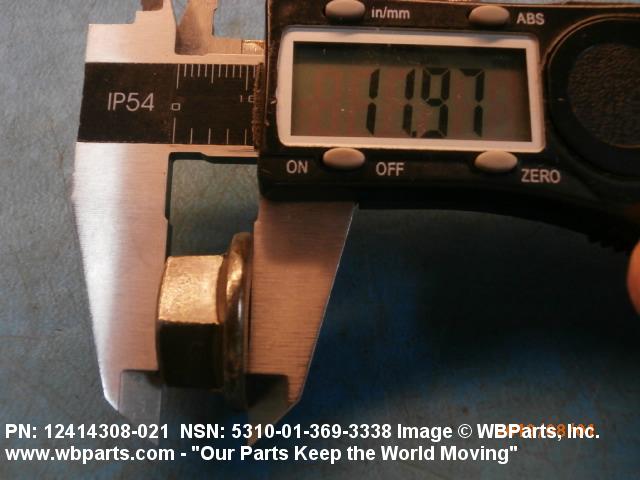

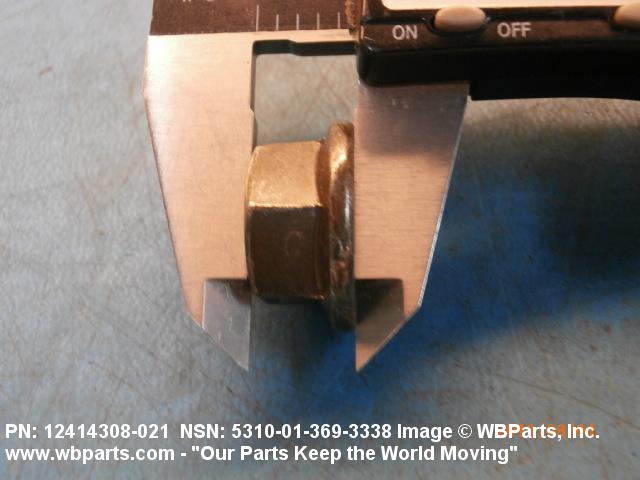

| OVERALL HEIGHT | 18.0 MILLIMETERS NOMINAL |

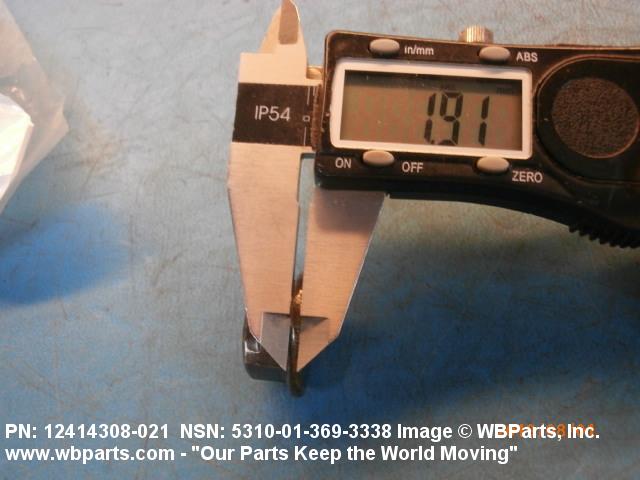

| WASHER THICKNESS | 1.8 MILLIMETERS NOMINAL |

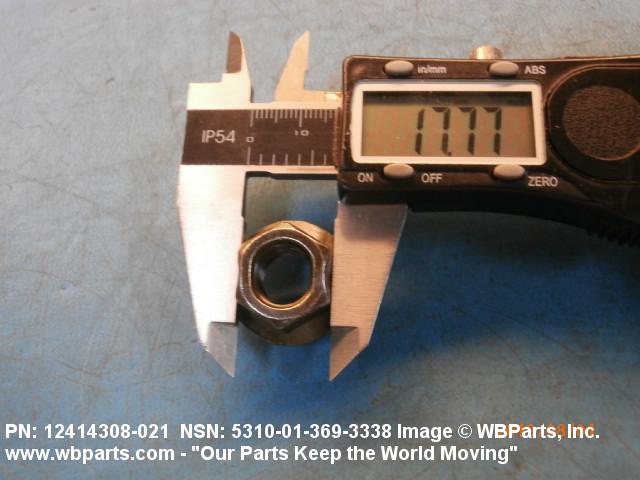

| WIDTH ACROSS FLATS | 17.73 MILLIMETERS MINIMUM AND 18.00 MILLIMETERS MAXIMUM |
