Product Details | HEADLESS GROOVED PIN
5315-00-212-1104 A headless item of various shapes, usually cylindrical, having either circular or longitudinal groove(s). Its length must not exceed 12 inches (304 MM). Excludes ROD, GROOVED, HEADLESS; SHAFT (as modified); and PIN, VEHICULAR LEAF SPRING SHACKLE.
Part Alternates: 29466351, 29-46635-1, 5315-00-212-1104, 00-212-1104, 5315002121104, 002121104
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 APR 1973 | 00-212-1104 | 02386 ( PIN, GROOVED, HEADLESS ) |

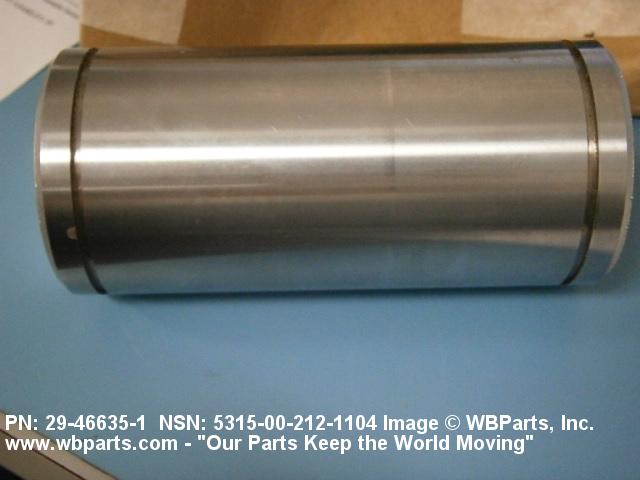

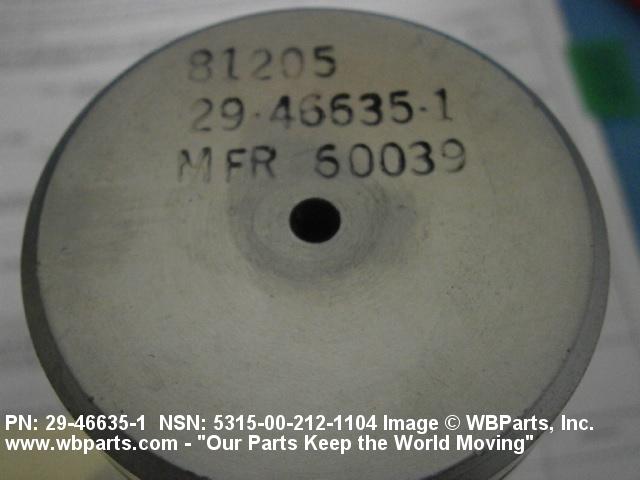

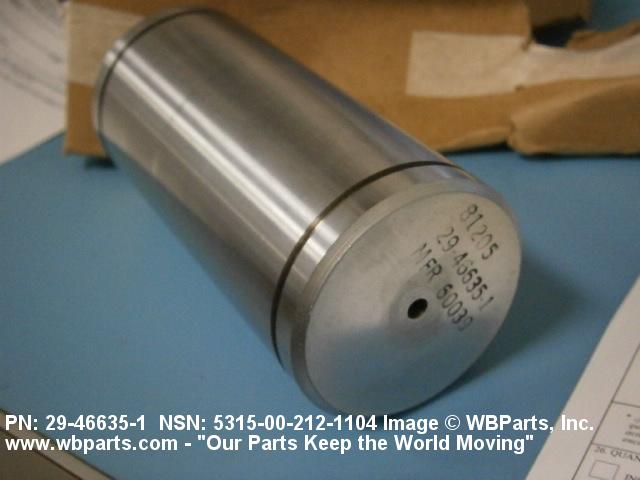

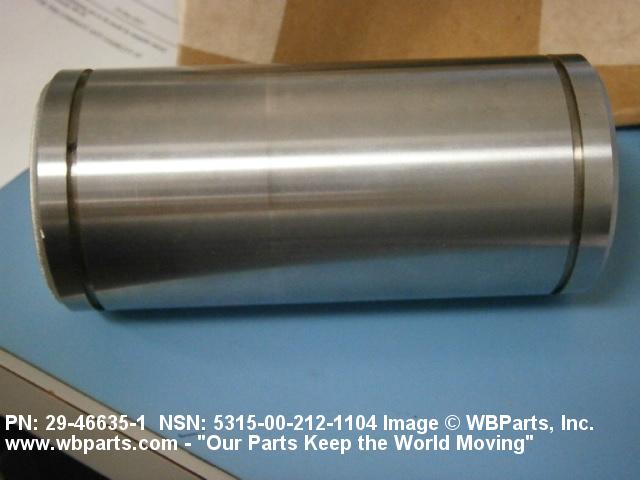

Drawings & Photos | NSN 5315-00-212-1104
Demand History | NSN 5315-00-212-1104
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-212-1104 | 2024-05-05 | 45 | DIBBS |
| 5315-00-212-1104 | 2018-05-21 | 1 | DIBBS-RFPs |
| 5315-00-212-1104 | 2018-02-08 | 298 | DIBBS |
| 5315-00-212-1104 | 2018-02-06 | 182 | DIBBS |
| 5315-00-212-1104 | 2018-02-02 | 116 | US |
| 5315-00-212-1104 | 2018-02-01 | 116 | DIBBS |
| 5315-00-212-1104 | 2017-09-14 | 253 | DIBBS |
| 5315-00-212-1104 | 2017-04-06 | 259 | DIBBS |
| 5315-00-212-1104 | 2016-11-01 | 58 | US |
| 5315-00-212-1104 | 2016-10-12 | 123 | DIBBS |
| 5315-00-212-1104 | 2016-09-12 | 54 | DIBBS |
| 5315-00-212-1104 | 2016-07-11 | 64 | DIBBS |
| 5315-00-212-1104 | 2011-12-02 | 0 | United States |
| 5315-00-212-1104 | 2011-11-28 | 69 | DIBBS |
| 5315-00-212-1104 | 2011-11-10 | 100 | DIBBS |
| 5315-00-212-1104 | 2010-05-05 | 4 | DIBBS |
Cross Reference | NSN 5315-00-212-1104
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 29-46635-1 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5315-00-212-1104
Related Products | NSN 5315-00-212-1104
5315-00-212-4255, 5315-00-212-4256, 5315-00-212-4483, 5315-00-212-5075, 5315-00-212-5124
Technical Data | NSN 5315-00-212-1104
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP E4340 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5000,COMP E 4340 COND A/A MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | F-1031 FSCM 81205 MFR REF SINGLE TREATMENT RESPONSE OVERALL |
| STYLE DESIGNATOR | F117 GROOVE |
| OVERALL LENGTH | 4.792 INCHES NOMINAL |
| DIAMETER | 2.250 INCHES MINIMUM AND 2.252 INCHES MAXIMUM |
| EFFECTIVE LENGTH | 4.040 INCHES MINIMUM AND 4.060 INCHES MAXIMUM |
| UNDERCUT DIAMETER | 2.114 INCHES MINIMUM AND 2.126 INCHES MAXIMUM |
| UNDERCUT WIDTH | 0.086 INCHES MINIMUM AND 0.091 INCHES MAXIMUM |
| SECOND UNDERCUT WIDTH | 0.086 INCHES MINIMUM AND 0.091 INCHES MAXIMUM |
| FIRST END STYLE | 1 CHAMFERED |
| FIRST END TAPER LENGTH | 0.100 INCHES NOMINAL |
| FIRST END TAPER ANGLE | 45.0 DEGREES NOMINAL |
| SECOND END RELATIONSHIP WITH FIRST END | IDENTICAL |
| FIRST END LOCATION | BOTH ENDS |
| SURFACE FINISH | 250.0 MICROINCHES BOTH ENDS 32.0 MICROINCHES GRIP |
| MANUFACTURERS CODE | 81205 |
| DESIGN CONTROL REFERENCE | 29-46635-1 |
Restrictions/Controls & Freight Information | NSN 5315-00-212-1104
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094380 | COTTER PINS/SPRING COTTERS IRON |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 573 | unknown |
| Originating Activity Code | SE | San Antonio Air Logistics Center Kelly AFB, TX 78241-5000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-212-1104
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | A | The standard price is being analyzed.
|
| Materiel Management Aggregation Code | AH | SU:LGM-30 MINUTEMAN |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
