Product Details | LOCK PIN
5315-00-298-3499 A fastening device formed from resilient wire stock into a shape resembling the letter "U", of which at least one of the prongs is straight for insertion into a hole; the other prong may have one or more curvatures along its length. It is designed to hold itself in place by its inherent spring action. See also CLIP, RETAINING and RING, RETAINING.
Part Alternates: 397397, 3-97397, 5315-00-298-3499, 00-298-3499, 5315002983499, 002983499
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-298-3499 | 02387 ( PIN, LOCK ) |

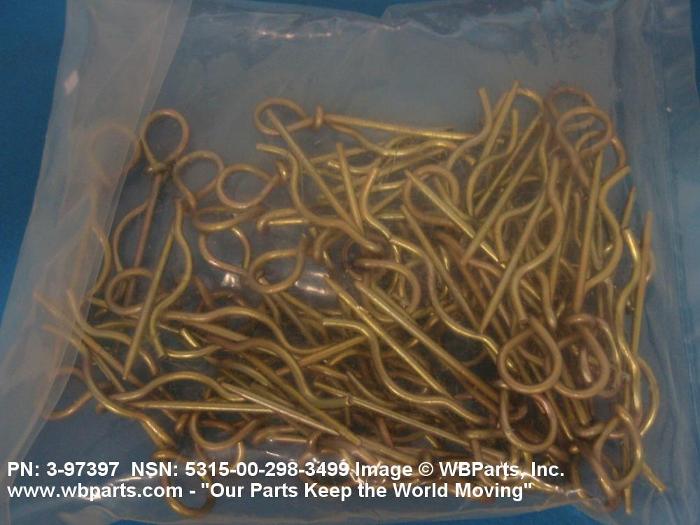

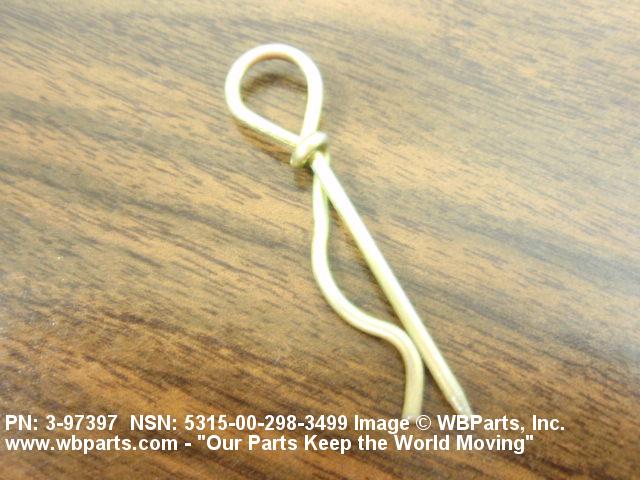

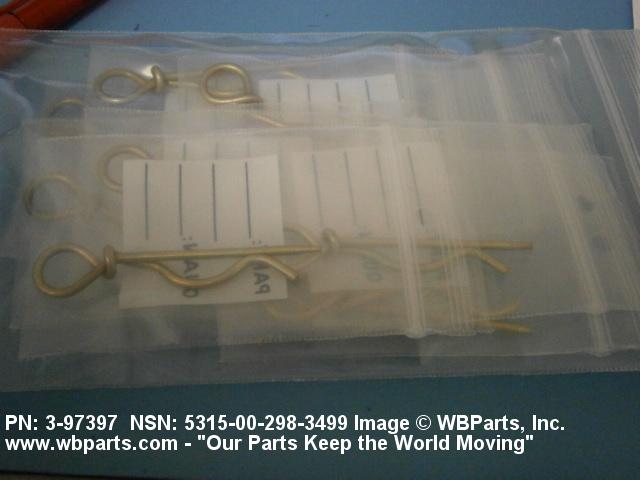

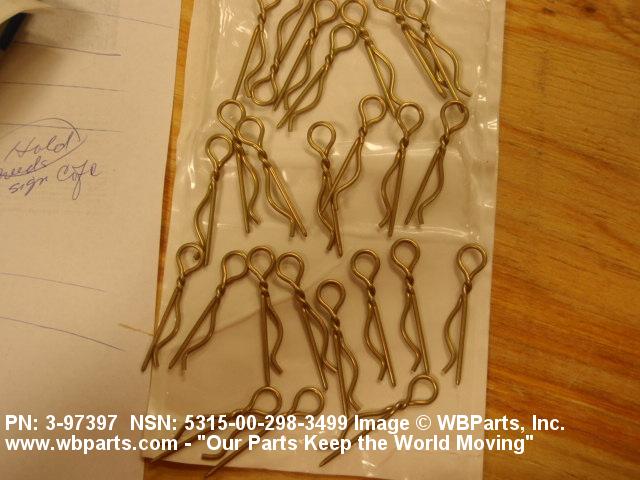

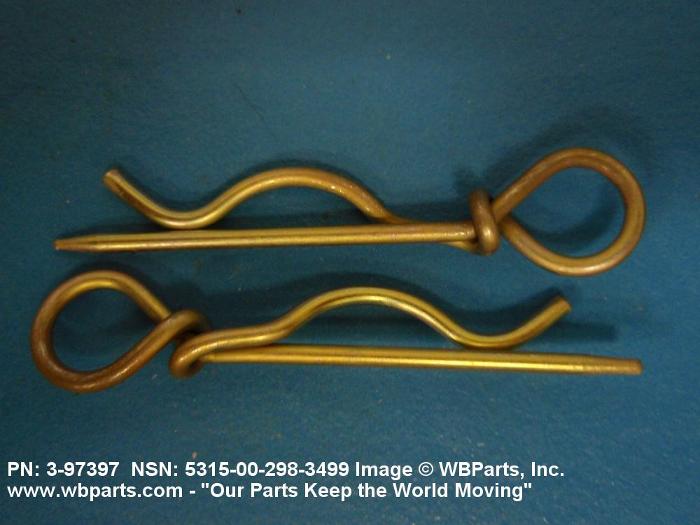

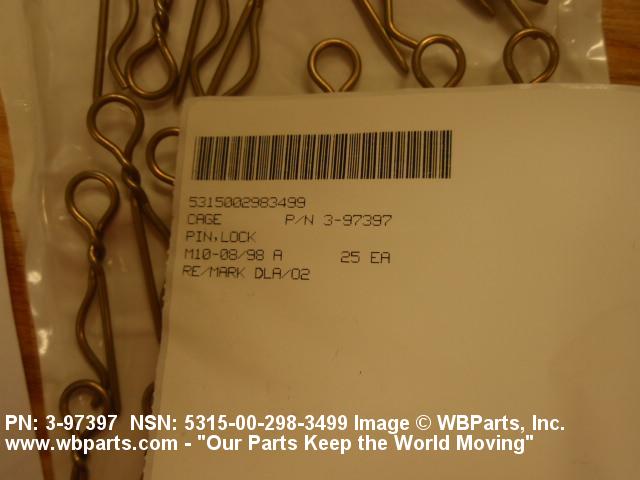

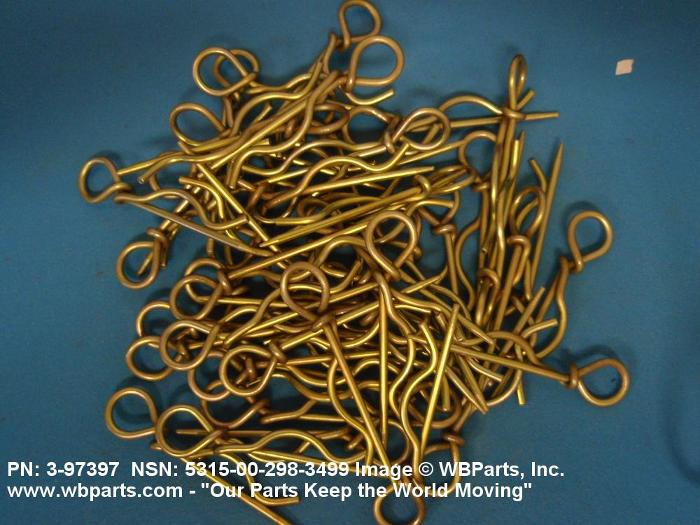

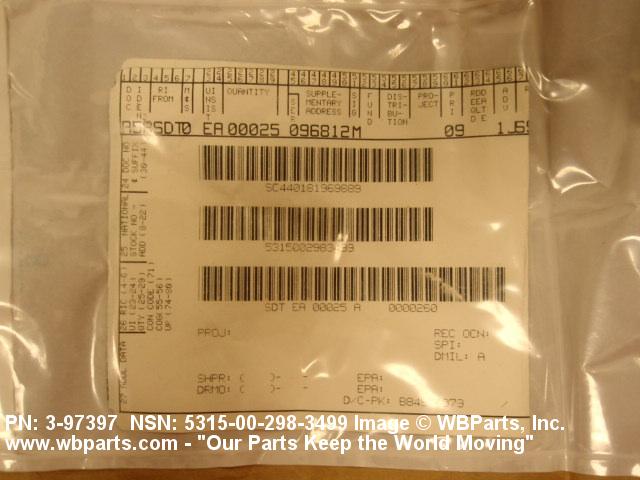

Drawings & Photos | NSN 5315-00-298-3499
Demand History | NSN 5315-00-298-3499
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-00-298-3499 | 2023-02-06 | 30 | US |
| 5315-00-298-3499 | 2022-09-02 | 650 | US |
| 5315-00-298-3499 | 2021-01-13 | 300 | DIBBS |
| 5315-00-298-3499 | 2020-10-26 | 300 | DIBBS |
| 5315-00-298-3499 | 2020-10-18 | 300 | DIBBS |
| 5315-00-298-3499 | 2020-10-07 | 20 | DIBBS |
| 5315-00-298-3499 | 2020-09-29 | 20 | DIBBS |
| 5315-00-298-3499 | 2020-08-06 | 20 | DIBBS |
| 5315-00-298-3499 | 2020-07-29 | 20 | DIBBS |
| 5315-00-298-3499 | 2020-03-31 | 311 | DIBBS |
| 5315-00-298-3499 | 2020-03-23 | 311 | DIBBS |
| 5315-00-298-3499 | 2019-11-13 | 311 | DIBBS |
| 5315-00-298-3499 | 2017-02-23 | 310 | DIBBS |
| 5315-00-298-3499 | 2017-02-15 | 310 | DIBBS |
| 5315-00-298-3499 | 2012-09-04 | 130 | DIBBS |
| 5315-00-298-3499 | 2012-08-30 | 35 | United States |
| 5315-00-298-3499 | 2012-06-01 | 87 | DIBBS |
| 5315-00-298-3499 | 2012-05-04 | 38 | DIBBS |
| 5315-00-298-3499 | 2011-12-06 | 10 | United States |
| 5315-00-298-3499 | 2010-11-10 | 20 | United States |
| 5315-00-298-3499 | 2010-11-10 | 50 | United States |
| 397397 | 2010-06-01 | 50 | United States |
| 397397 | 2010-06-01 | 150 | United States |
| 5315-00-298-3499 | 2010-04-23 | 201 | DIBBS |
| 397397 | 2010-04-16 | 25 | United States |
| 397397 | 2009-12-30 | 1 | United States |
| 5315-00-298-3499 | 2009-05-20 | 259 | DIBBS |
| 5315-00-298-3499 | 2008-11-28 | 142 | DIBBS |
| 5315-00-298-3499 | 2006-07-26 | 800 | US |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5315-00-298-3499
Related Products | NSN 5315-00-298-3499
5315-00-298-3503, 5315-00-298-3504, 5315-00-298-3515, 5315-00-298-3520, 5315-00-298-3521
Technical Data | NSN 5315-00-298-3499
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-W-6101 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| STYLE DESIGNATOR | G130 LOCK |
| WIRE STOCK DIAMETER | 0.080 INCHES NOMINAL |
| OPENING WIDTH | 0.440 INCHES NOMINAL |
| PRONG LENGTH | 2.380 INCHES MINIMUM AND 2.480 INCHES MAXIMUM |
| MANUFACTURERS CODE | 81205 |
| DESIGN CONTROL REFERENCE | 3-97397 |
Restrictions/Controls & Freight Information | NSN 5315-00-298-3499
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-00-298-3499
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
M EA : Each |
