Product Details | NAIL
5315-00-526-9994 A headed and pointed fastening device designed for impact insertion. It has a round, square, or rectangular shank usually over 1 inch (25.4 mm) in length. Includes large nails commonly referred to as "spikes" and cupped head nails commonly referred to as "brads" or "finishing nails.
Part Alternates: 1, 5315-00-526-9994, 00-526-9994, 5315005269994, 005269994
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-526-9994 | 29631 ( NAIL ) |
Drawings & Photos | NSN 5315-00-526-9994
Demand History | NSN 5315-00-526-9994
Cross Reference | NSN 5315-00-526-9994
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1 | 89029 | ARMCO INC KANSAS CITY WORKS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5315-00-526-9994
5315-00-526-9995, 5315-00-527-0147, 5315-00-527-0149, 5315-00-527-0150, 5315-00-527-0151
Technical Data | NSN 5315-00-526-9994
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL |
| FABRICATION METHOD | COLD FORMED |
| STERILIZED | NO |
| HEAT TREATMENT | ANNEALED |
| METALLIC HARDNESS RATING | NOT RATED |

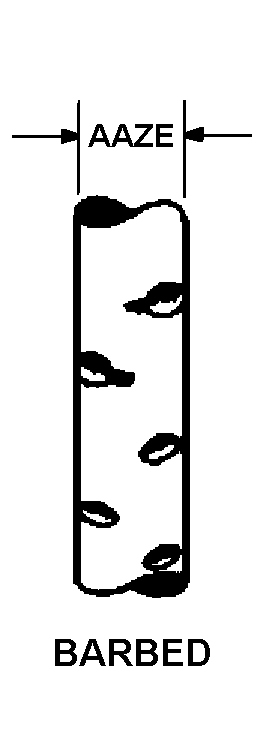

| SHANK STYLE | 1 BARBED |

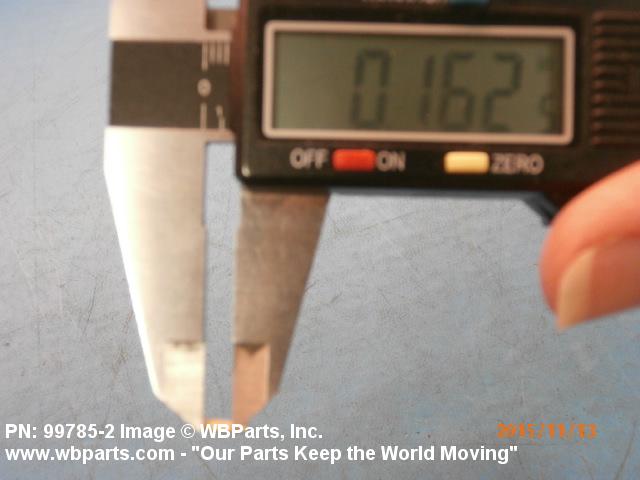

| SHANK DIAMETER | 0.162 INCHES NOMINAL |

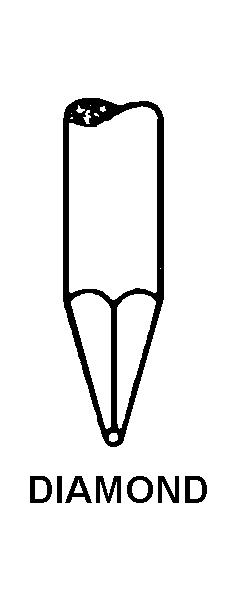

| POINT STYLE | 6 DIAMOND |
| FASTENER LENGTH | 1.000 INCHES NOMINAL |
| DECORATIVE HEAD | NO |
Restrictions/Controls & Freight Information | NSN 5315-00-526-9994
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
