Product Details | MACHINE KEY
5315-01-112-7666 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Part Alternates: 11579720, 5315-01-112-7666, 01-112-7666, 5315011127666, 011127666
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAY 1981 | 01-112-7666 | 02378 ( KEY, MACHINE ) |

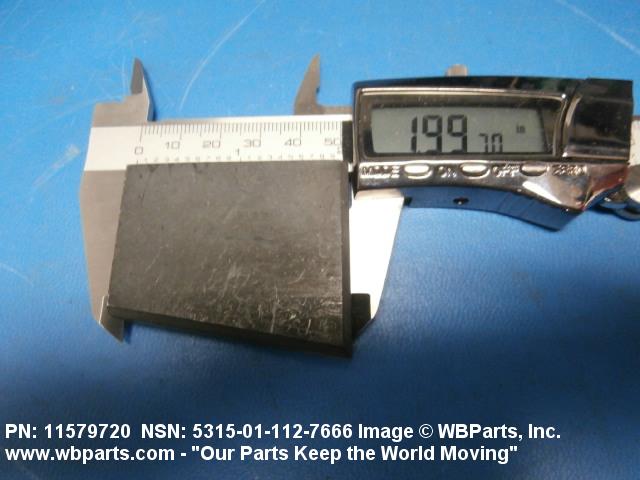

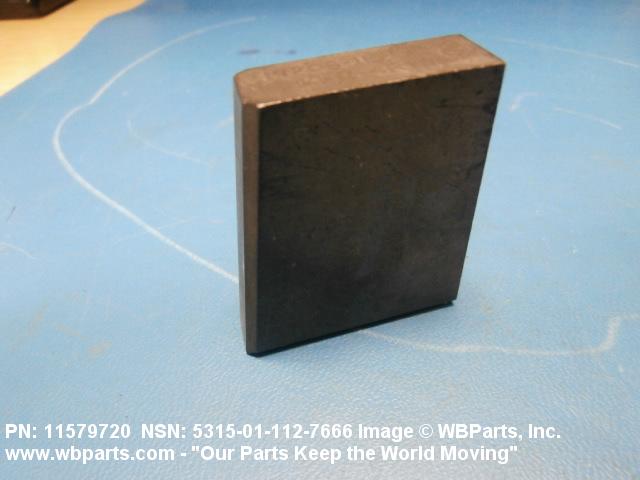

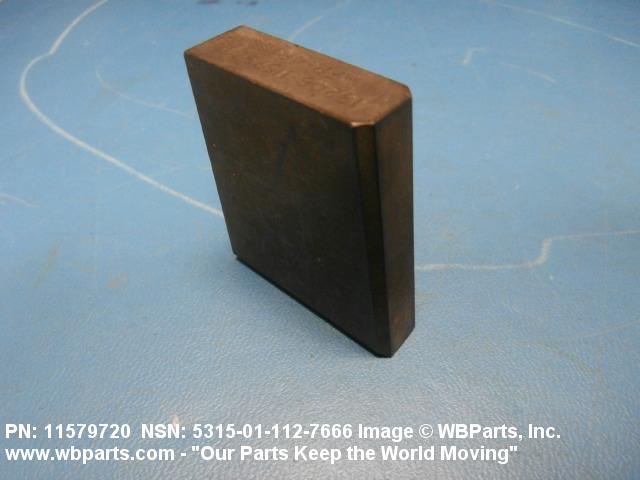

Drawings & Photos | NSN 5315-01-112-7666
Demand History | NSN 5315-01-112-7666
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-112-7666 | 2021-06-17 | 1 | DIBBS |
| 5315-01-112-7666 | 2021-03-31 | 1 | DIBBS |
| 5315-01-112-7666 | 2020-11-29 | 1 | DIBBS |
| 5315-01-112-7666 | 2018-11-13 | 4 | DIBBS |
| 5315-01-112-7666 | 2016-04-20 | 1 | United States |
| 5315-01-112-7666 | 2016-02-26 | 1 | DIBBS |
| 5315-01-112-7666 | 2016-02-18 | 1 | DIBBS |
Cross Reference | NSN 5315-01-112-7666
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11579720 | 19206 | ARMY, UNITED STATES DEPARTMENT OF THE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5315-01-112-7666
Related Products | NSN 5315-01-112-7666
5315-01-112-7759, 5315-01-112-8100, 5315-01-112-8101, 5315-01-112-8102, 5315-01-112-8103
Technical Data | NSN 5315-01-112-7666
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |

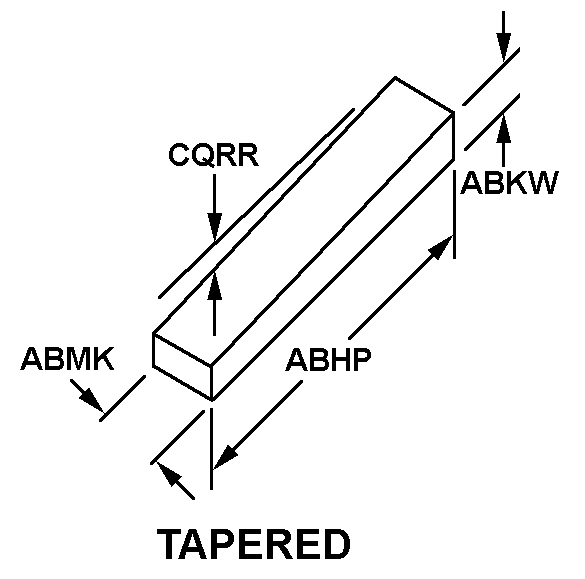

| STYLE DESIGNATOR | B20 TAPERED |
| OVERALL LENGTH | 1.970 INCHES MINIMUM AND 2.030 INCHES MAXIMUM |
| OVERALL HEIGHT | 1.730 INCHES NOMINAL |
| OVERALL WIDTH | 0.497 INCHES MINIMUM AND 0.498 INCHES MAXIMUM |
| TAPER | 0.350 PER FOOT IN INCHES |
| STARTING EDGE SHAPE | CHAMFERED |
| KEY CHAMFER LENGTH | 0.065 INCHES MINIMUM AND 0.075 INCHES MAXIMUM |
| KEY CHAMFER ANGLE | 45.0 DEGREES NOMINAL |
| MANUFACTURERS CODE | 19206 |
| DESIGN CONTROL REFERENCE | 11579720 |
Restrictions/Controls & Freight Information | NSN 5315-01-112-7666
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI SUB 9 |
| Less than car load rating | Q | 70 |
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | BF | U.S. Army Armament and Chemical Acquisition and Logistics Activity Rock Island, IL 61299-6000 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-112-7666
Marines| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Echelon Identification Code | K | Reserved |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
