Product Details | KNURLED STRAIGHT PIN
5315-01-471-6997 A headless, cylindrically-shaped, straight, solid item with or without a drilled hole(s). It has a straight or diamond knurl. Its length must not exceed 12 inches (304 MM). It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item.
Part Alternates: ATR1501875F, ATR-150-1875F, 5315-01-471-6997, 01-471-6997, 5315014716997, 014716997
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 FEB 2000 | 01-471-6997 | 33037 ( PIN, STRAIGHT, KNURLED ) |

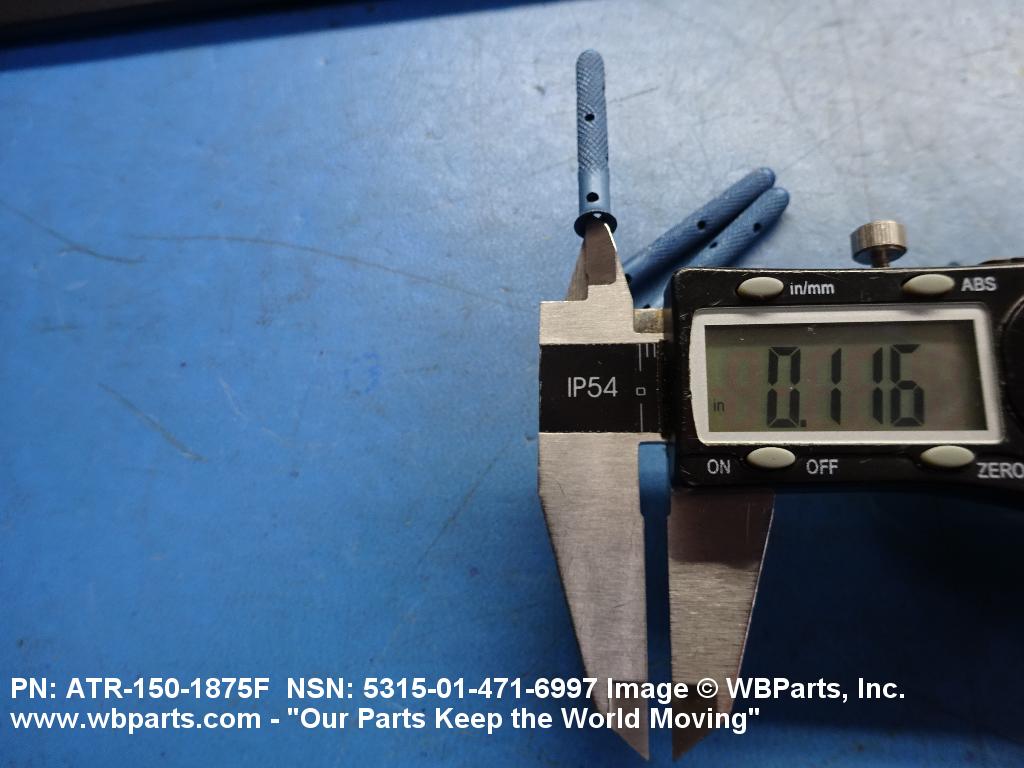

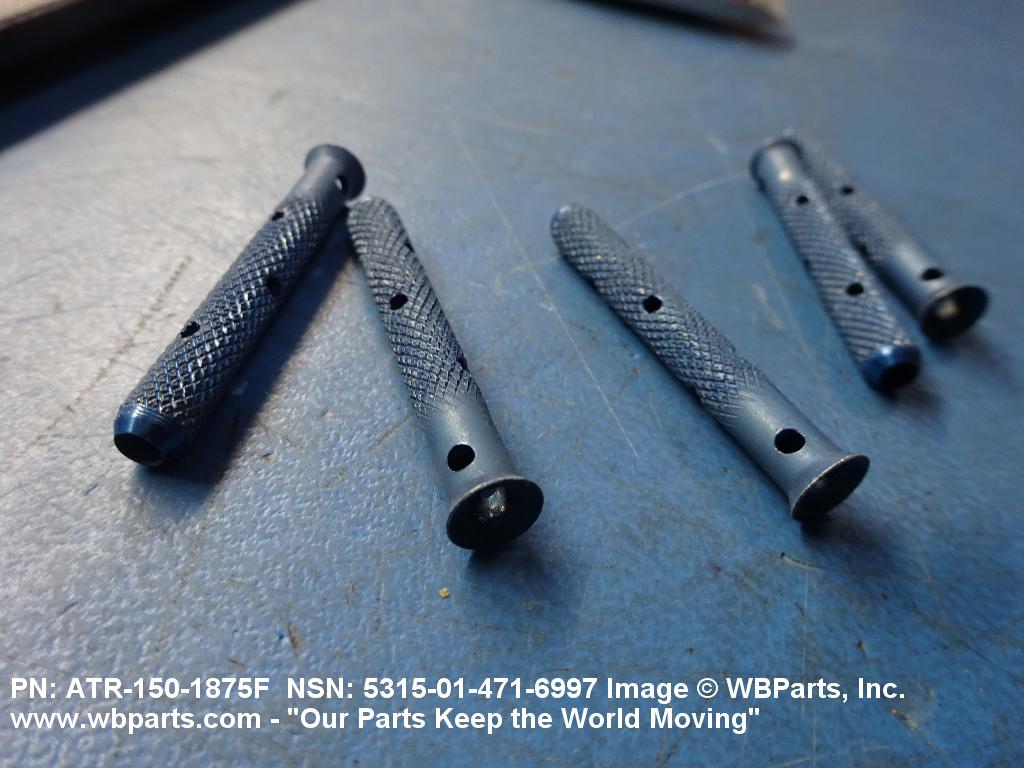

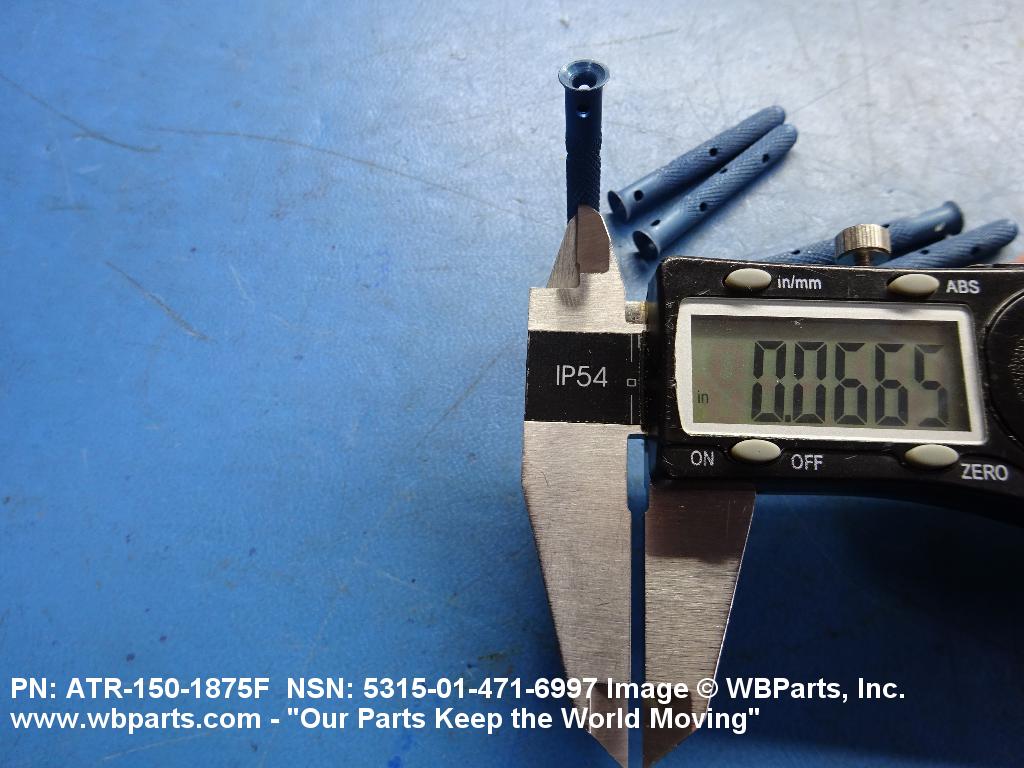

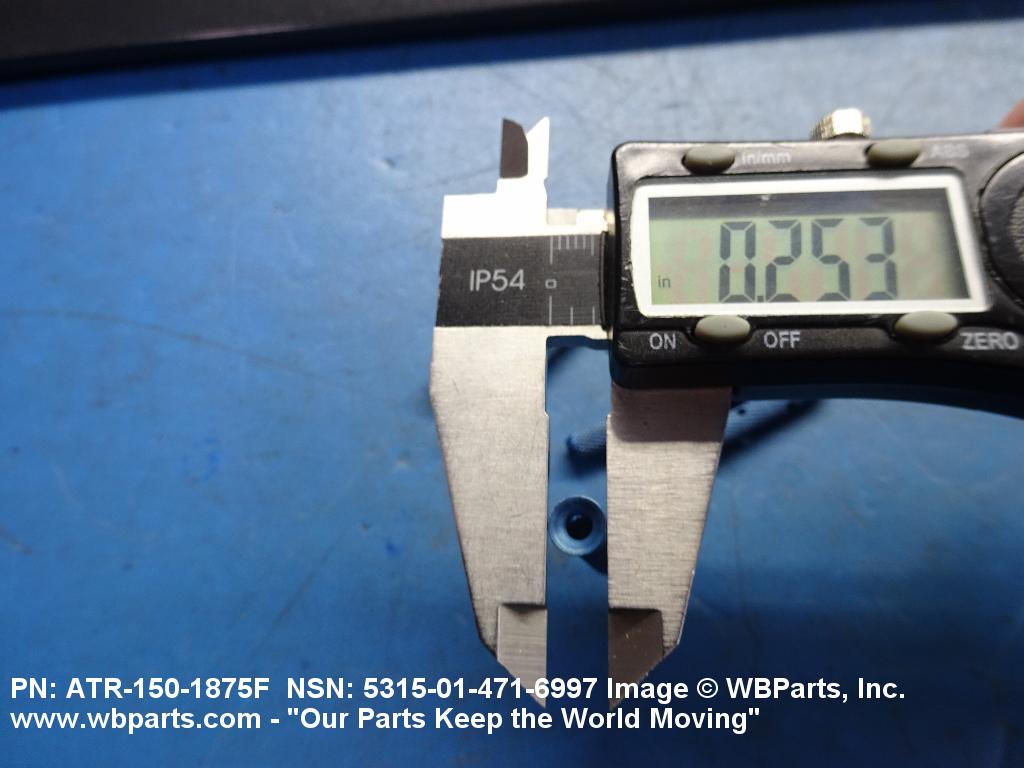

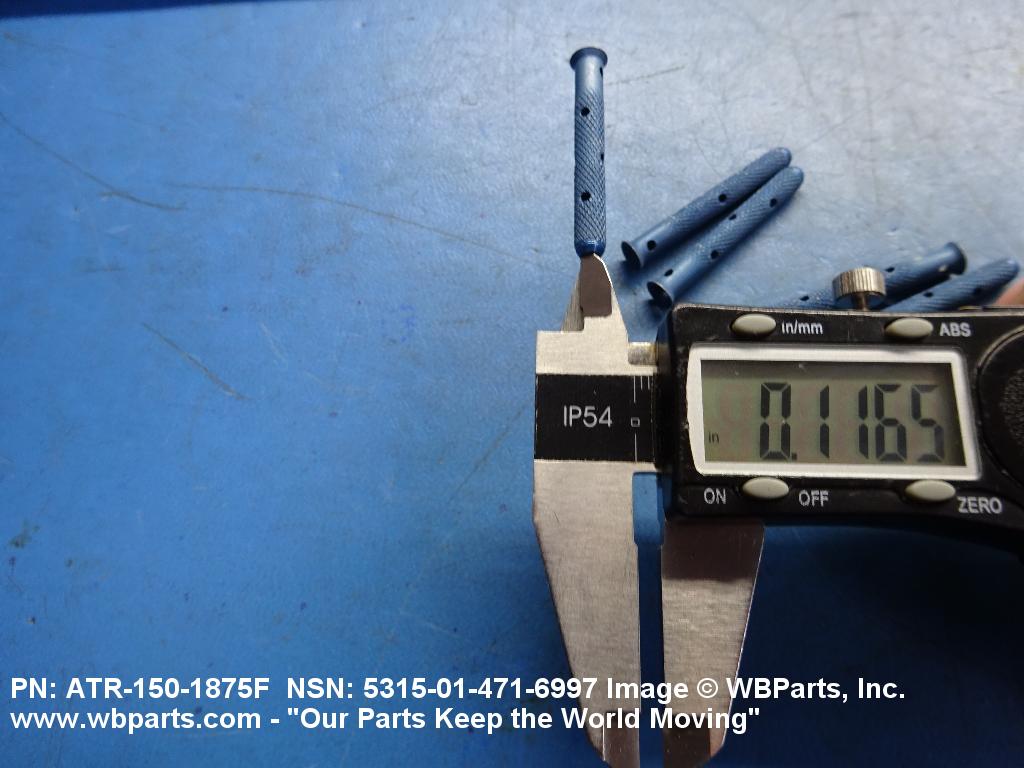

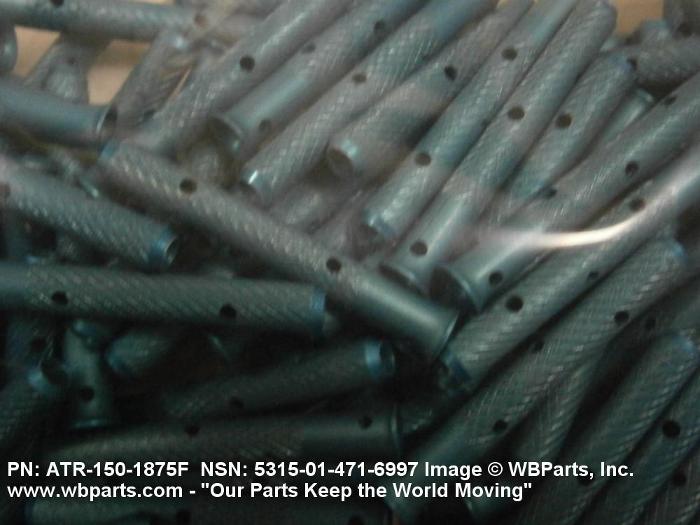

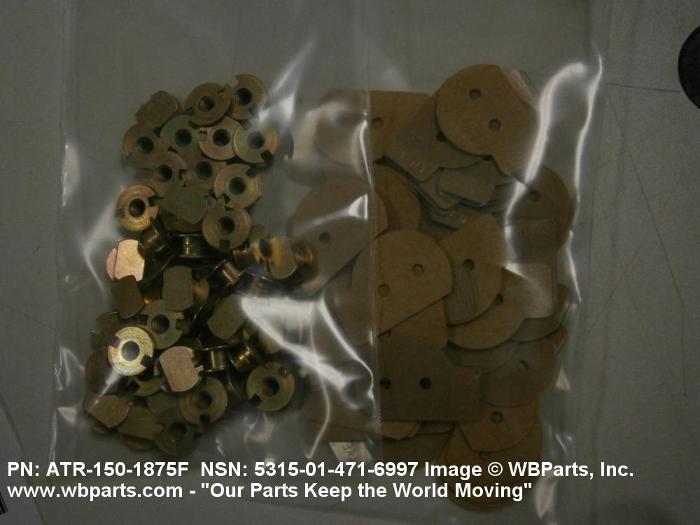

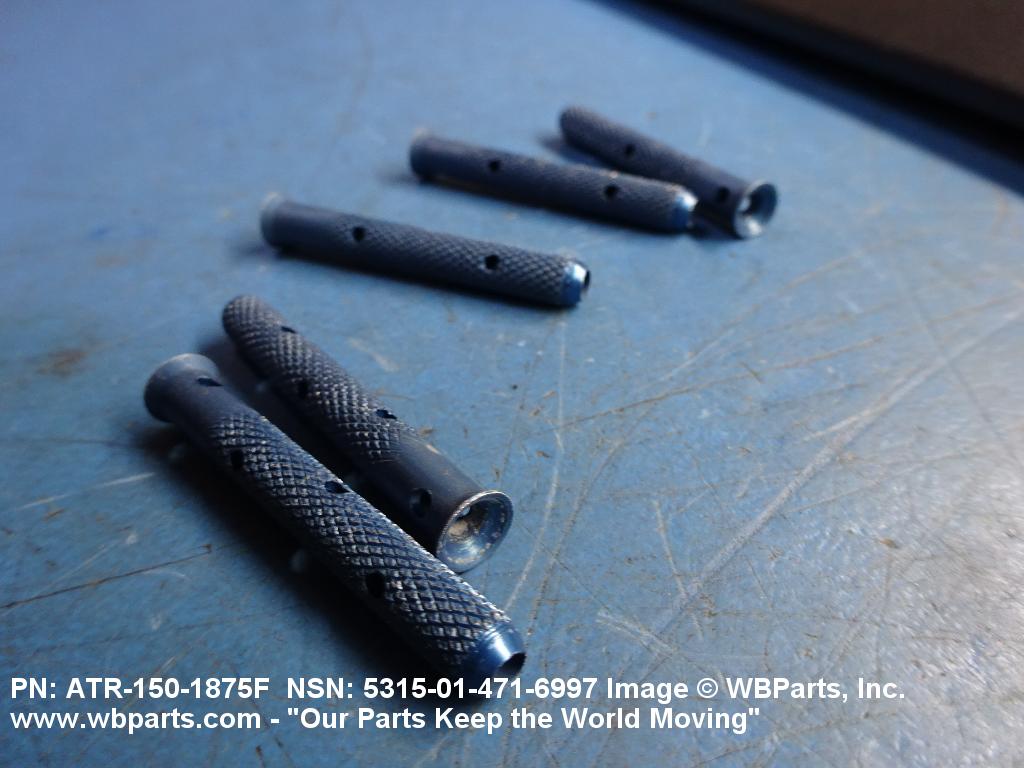

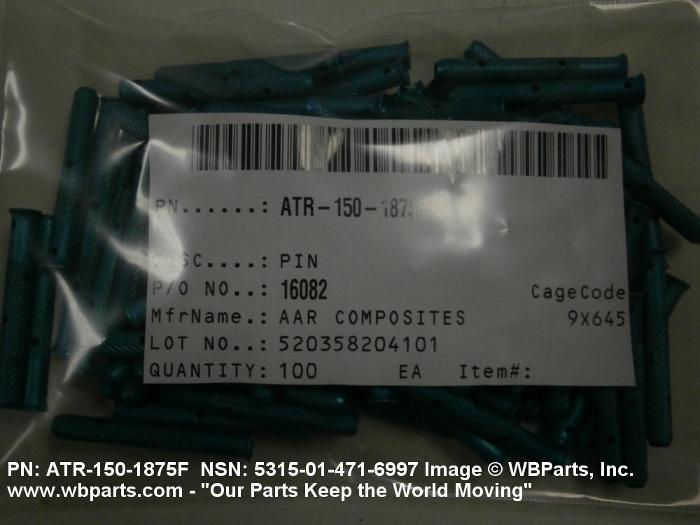

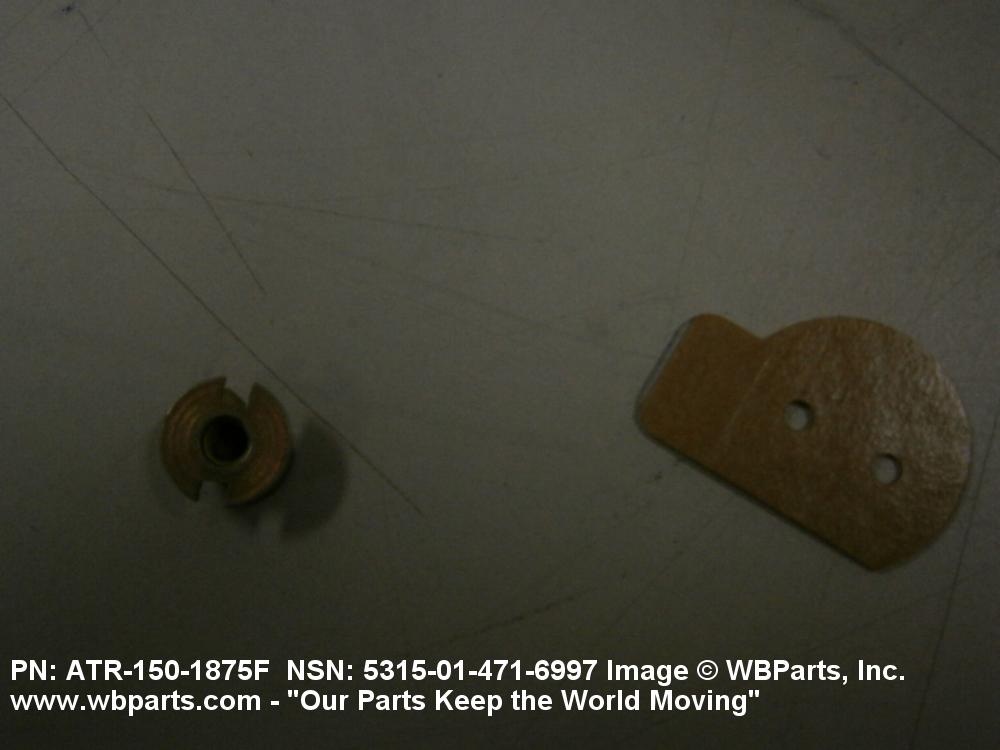

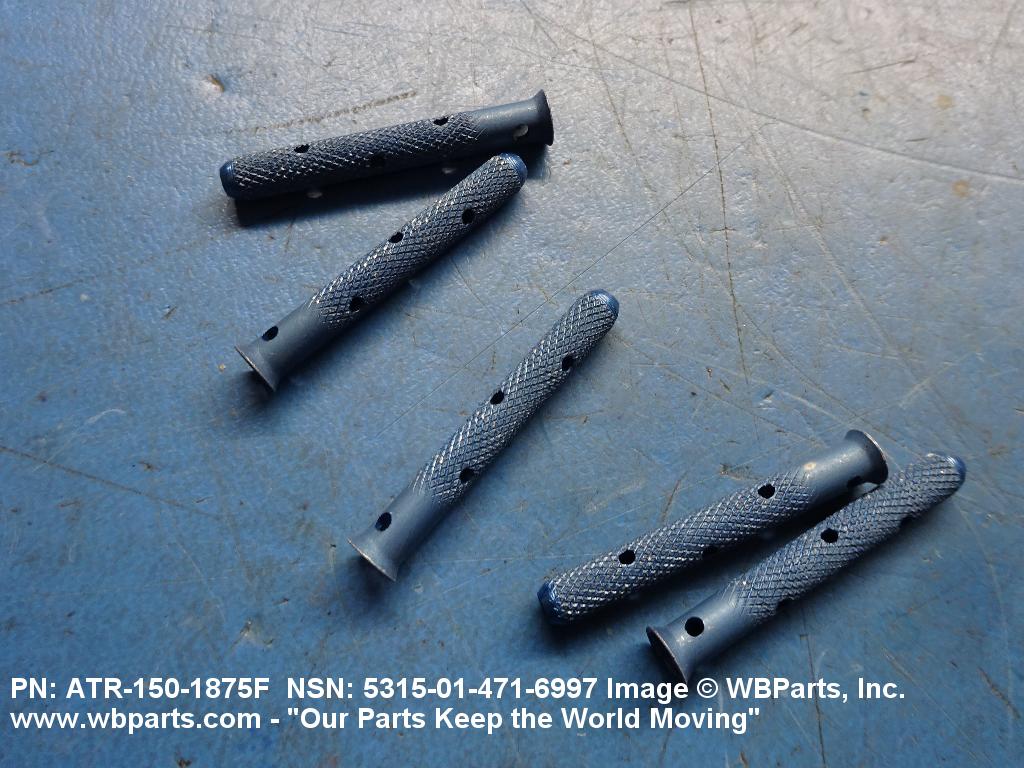

Drawings & Photos | NSN 5315-01-471-6997
Demand History | NSN 5315-01-471-6997
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-471-6997 | 2024-06-12 | 500 | FR |
| ATR1501875F | 2023-12-13 | 100 | US |
| 5315-01-471-6997 | 2023-11-20 | 100 | United States |
| ATR1501875F | 2023-07-28 | 300 | MY |
| 5315-01-471-6997 | 2023-05-04 | 5000 | United States |
| ATR1501875F | 2023-04-27 | 500 | US |
| ATR1501875F | 2023-04-27 | 1000 | US |
| ATR1501875F | 2023-04-27 | 2500 | US |
| ATR1501875F | 2023-04-27 | 5000 | US |
| ATR1501875F | 2023-03-02 | 100 | US |
| 5315-01-471-6997 | 2023-01-23 | 1 | US |
| 5315-01-471-6997 | 2023-01-20 | 100 | US |
| 5315-01-471-6997 | 2023-01-20 | 100 | US |
| ATR1501875F | 2022-12-29 | 100 | US |
| ATR1501875F | 2022-10-31 | 20 | US |
| ATR1501875F | 2022-10-31 | 100 | US |
| 5315-01-471-6997 | 2022-10-12 | 100 | US |
| ATR1501875F | 2022-08-09 | 1 | US |
| ATR1501875F | 2022-06-29 | 276 | United States |
| 5315-01-471-6997 | 2022-05-25 | 500 | US |
| 5315-01-471-6997 | 2022-03-17 | 2500 | UK |
| ATR1501875F | 2020-07-27 | 1850 | US |
| ATR1501875F | 2020-03-03 | 500 | United States |
| ATR1501875F | 2015-11-18 | 100 | United States |
| 5315-01-471-6997 | 2014-11-05 | 10000 | US |
| 5315-01-471-6997 | 2014-05-06 | 1000 | FR |
| ATR1501875F | 2013-07-12 | 500 | Switzerland |
| 5315-01-471-6997 | 2012-08-07 | 50 | United States |
| ATR1501875F | 2012-06-25 | 3 | United States |
| ATR1501875F | 2012-01-13 | 100 | United States |
| ATR1501875F | 2012-01-11 | 100 | United States |
| ATR1501875F | 2010-09-22 | 360 | FR |
| ATR1501875F | 2010-03-10 | 100 | Switzerland |
| ATR1501875F | 2009-12-07 | 1000 | US |
| ATR1501875F | 2009-12-04 | 2000 | United States |
| ATR1501875F | 2009-12-01 | 2000 | United States |
Cross Reference | NSN 5315-01-471-6997
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| ATR-150-1875F | 9X645 | AAR MANUFACTURING INC. DBA AAR COMPOSITES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5315-01-471-6997
Related Products | NSN 5315-01-471-6997
5315-01-471-7032, 5315-01-471-7425, 5315-01-471-7511, 5315-01-471-7513, 5315-01-471-7516
Technical Data | NSN 5315-01-471-6997
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 6061 OVERALL |

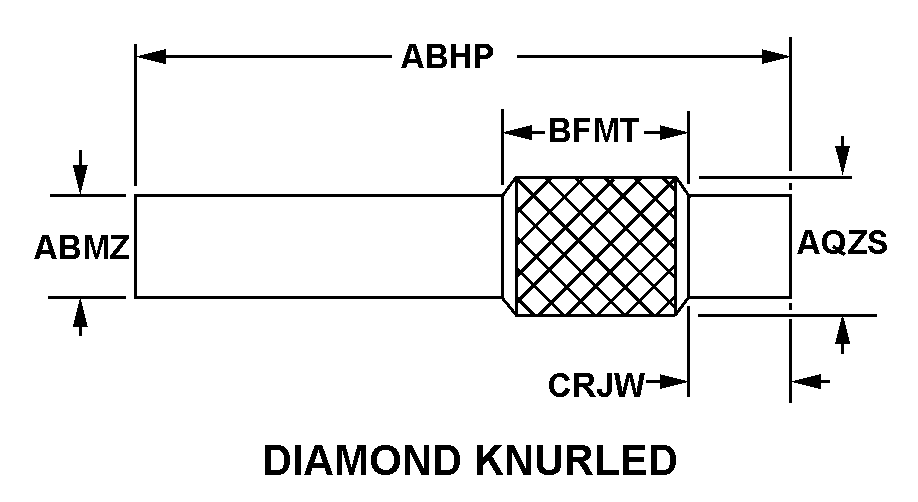

| STYLE DESIGNATOR | R265 DIAMOND KNURLED |
| OVERALL LENGTH | 1.500 INCHES NOMINAL |

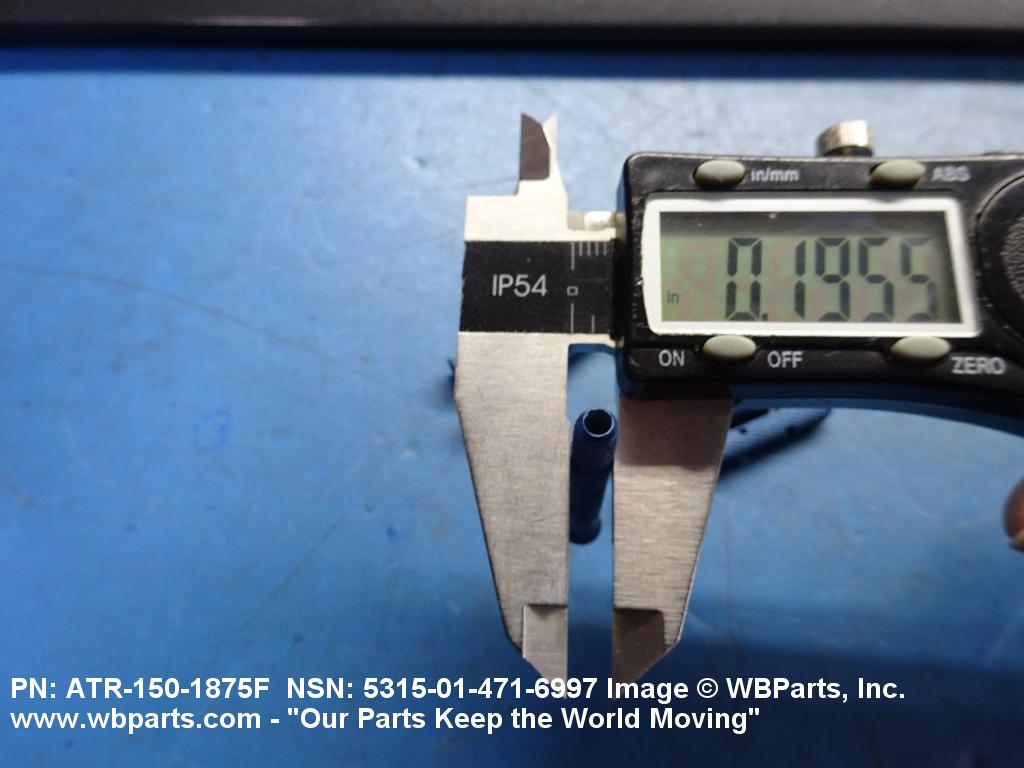

| DIAMETER | 0.188 INCHES NOMINAL |
| FIRST END STYLE | 1 CHAMFERED |
| SECOND END RELATIONSHIP WITH FIRST END | NOT IDENTICAL |
| SPECIAL FEATURES | BLUE ANODIZE OR DYE, WITH TWO HOLES |
Restrictions/Controls & Freight Information | NSN 5315-01-471-6997
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5315-01-471-6997
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BA | TB:C-17 PROGRAM |
| Price Validation | E | The current standard price is an estimated price.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F77 | Boeing Military Transportation Aircraft Los Angeles, CA 90307-3044 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
