Product Details | TURNLOCK FASTENER RECEPTACLE
5325-00-241-7284 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: M1950584, M1950-5-8-4, C393584, C393-5-8-4, PAF50584, PAF50-5-8-4, 1950584, 1950-5-8-4, 3M304584, 3M304-5-8-4, 5325-00-241-7284, 00-241-7284, 5325002417284, 002417284
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JUN 1969 | 00-241-7284 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

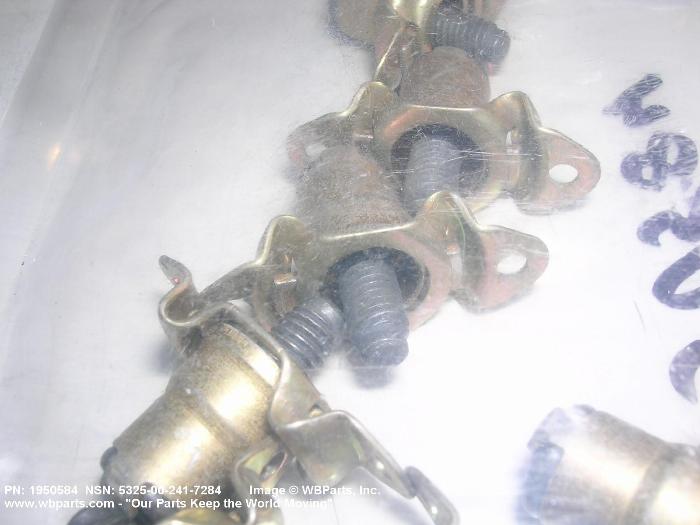

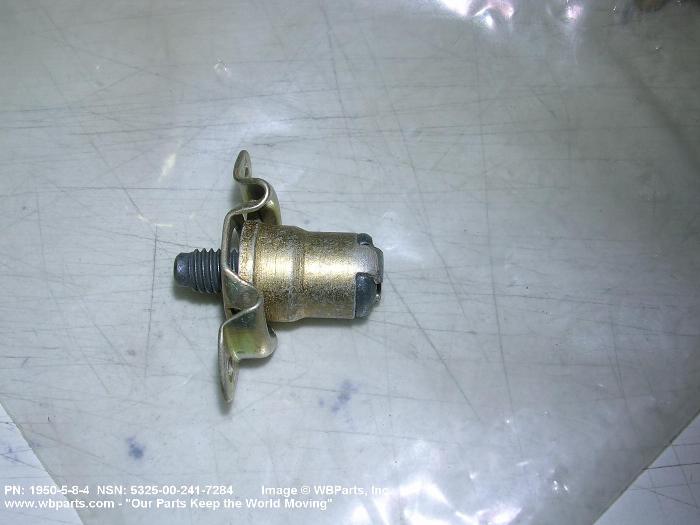

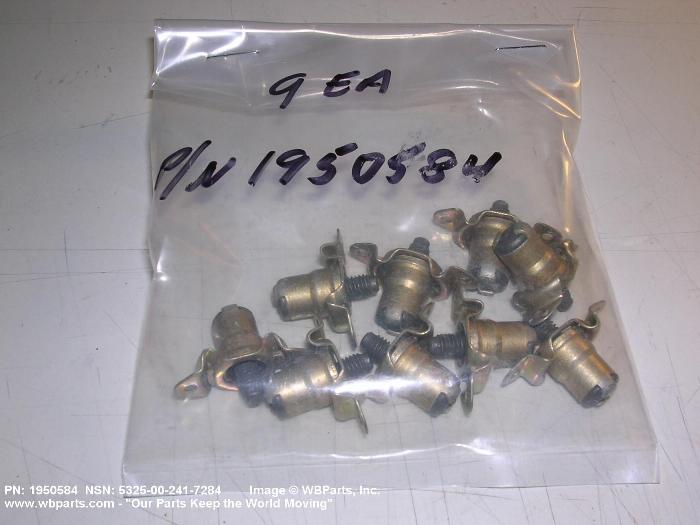

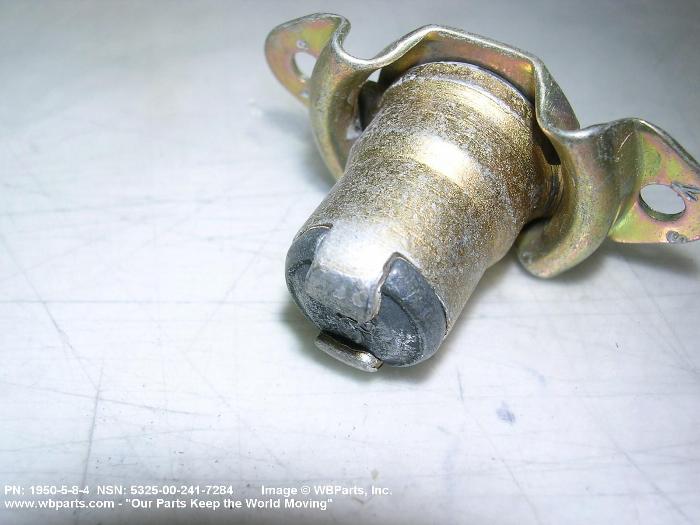

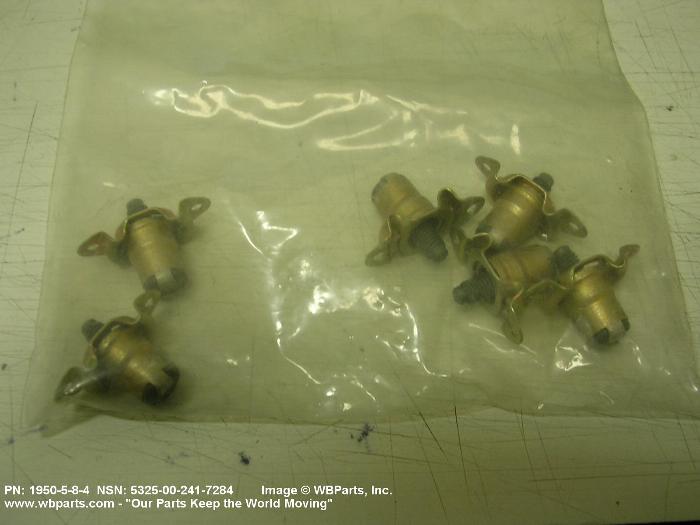

Drawings & Photos | NSN 5325-00-241-7284
Demand History | NSN 5325-00-241-7284
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-241-7284 | 2020-05-01 | 1 | DIBBS-RFPs |
| 3M304-5-8-4 | 2019-06-20 | 31 | DIBBS |
| 5325-00-241-7284 | 2018-11-01 | 117 | DIBBS |
| 5325-00-241-7284 | 2018-09-03 | 29 | DIBBS |
| 5325-00-241-7284 | 2013-02-28 | 263 | DIBBS |
| 5325-00-241-7284 | 2013-01-29 | 0 | DIBBS |
| 5325-00-241-7284 | 2013-01-14 | 245 | DIBBS |
| 5325-00-241-7284 | 2012-12-06 | 148 | DIBBS |
| 5325-00-241-7284 | 2011-01-04 | 434 | DIBBS |
| 3M304584 | 2009-03-30 | 30 | US |
| 1950584 | 2008-01-31 | 28 | United States |
| 1950584 | 2007-11-20 | 3 | United States |
| 1950584 | 2007-08-22 | 12 | US |
| 3M304584 | 2007-08-22 | 0 | US |
Cross Reference | NSN 5325-00-241-7284
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 1950-5-8-4 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 1950-5-8-4 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 1950-5-8-4 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3M304-5-8-4 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3M304-5-8-4 | 16258 | SPACELOK INC. |
| 3M304-5-8-4 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 3M304-5-8-4 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 3M304-5-8-4 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| C393-5-8-4 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| M1950-5-8-4 | 16258 | SPACELOK INC. |
| PAF50-5-8-4 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| PAF50-5-8-4 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5325-00-241-7284
Related Products | NSN 5325-00-241-7284
5325-00-241-7286, 5325-00-241-7287, 5325-00-241-7288, 5325-00-241-7289, 5325-00-241-7290
Technical Data | NSN 5325-00-241-7284
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 BARREL STEEL COMP 1050 RETAINER STEEL COMP 8740 STUD |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE 2 CLASS 2 FED SPEC ALL TREATMENT RESPONSES OVERALL |
| TURNLOCK RECEPTACLE STYLE | 33 RECEPTACLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.873 INCHES MINIMUM AND 0.877 INCHES MAXIMUM |
| RECEPTACLE OVERALL LENGTH | 1.140 INCHES MAXIMUM |
| RECEPTACLE HEIGHT | 0.617 INCHES MAXIMUM |
| RECEPTACLE WIDTH | 0.500 INCHES MAXIMUM |
| RECEPTACLE THREAD SIZE AND SERIES/TYPE DESIGNATOR | UMJF0.190-32 |
| MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |
| TURNLOCK MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| SPECIAL FEATURES | DOUBLE LEAD THREAD,STUD PROTRUSION 0.250 IN. NOM |
Restrictions/Controls & Freight Information | NSN 5325-00-241-7284
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-241-7284
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
A EA : Each |
