Product Details | TURNLOCK FASTENER STUD

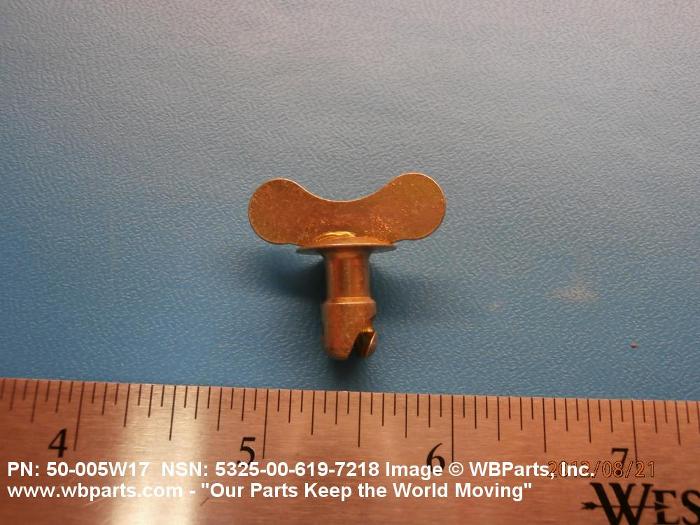

5325-00-619-7218 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: AW5T17, 2501W2017DC3Y, 2501-W20-17D-C3Y , 50005W16, 50-005W16 , 50005W17, 50-005W17, 5325-00-619-7218, 00-619-7218, 5325006197218, 006197218
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-619-7218 | 18421 ( STUD, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-619-7218
Demand History | NSN 5325-00-619-7218
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-619-7218 | 2024-02-29 | 40 | United States |
| 5325-00-619-7218 | 2021-08-30 | 10 | AE |
| AW5T17 | 2020-02-26 | 10 | US |
| 5325-00-619-7218 | 2019-04-10 | 1 | DIBBS-RFPs |
| 5325-00-619-7218 | 2018-06-18 | 786 | DIBBS |
| 5325-00-619-7218 | 2017-11-02 | 425 | DIBBS |
| 5325-00-619-7218 | 2017-09-17 | 306 | DIBBS |
| 50005W17 | 2016-06-09 | 15 | Taiwan |
| AW5T17 | 2016-06-09 | 4 | Taiwan |
| 50005W16 | 2016-06-07 | 20 | Taiwan |
| 50-005W16 | 2015-03-17 | 30 | TH |
| 50-005W17 | 2015-03-17 | 30 | TH |
| 50-005W17 | 2013-01-07 | 10 | Indonesia |
| 5325-00-619-7218 | 2012-12-24 | 1036 | DIBBS |
| 5325-00-619-7218 | 2012-11-13 | 0 | DIBBS |
| 5325-00-619-7218 | 2012-08-07 | 12 | United States |
| 5325-00-619-7218 | 2012-07-20 | 775 | DIBBS |
| 5325-00-619-7218 | 2010-02-24 | 1411 | DIBBS |
Cross Reference | NSN 5325-00-619-7218
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 2501-W20-17D-C3Y | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| 50-005W16 | 97499 | BELL HELICOPTER TEXTRON INC. |
| 50-005W17 | 97499 | BELL HELICOPTER TEXTRON INC. |
| AW5T17 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5325-00-619-7218
Related Products | NSN 5325-00-619-7218
5325-00-619-7229, 5325-00-619-7231, 5325-00-619-7261, 5325-00-619-7307, 5325-00-619-7309
Technical Data | NSN 5325-00-619-7218
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |

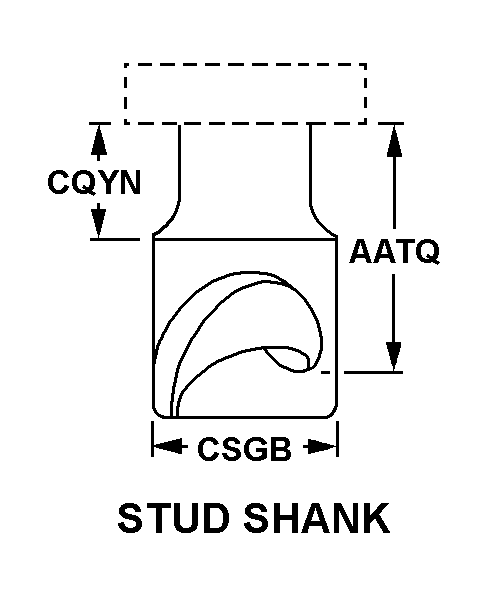

| TURNLOCK STUD SHANK STYLE | 1 STUD SHANK |
| GRIP LENGTH | 0.470 INCHES NOMINAL |
| SHANK NECK LENGTH | 0.290 INCHES NOMINAL |
| STUD SHANK MAJOR DIAMETER | 0.312 INCHES NOMINAL |
| TURNLOCK STUD HEAD STYLE | 10 FILLISTER WING |
| HEAD LENGTH | 1.125 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.438 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.161 INCHES MINIMUM AND 0.170 INCHES MAXIMUM |
| NONDEFINITIVE SPEC/STD DATA | 3 TYPE AND 1 STYLE AND A CLASS AND B CLASS AND 5 SIZE |
