Product Details | METALLIC GROMMET
5325-01-368-8468 A two-piece metallic item, one piece usually tubular in appearance and flanged at one end, the other piece a plain tooth or spur washer or retaining ring. It is primarily used for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and retained in place by being crimped over the plain or tooth washer or retaining ring or by clinching action between the spur washer and the flanged end. Excludes EYELET, METALLIC.
Part Alternates: CA210386B1, CA21038-6B1, 5325-01-368-8468, 01-368-8468, 5325013688468, 013688468
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 DEC 1992 | 01-368-8468 | 06314 ( GROMMET, METALLIC ) |

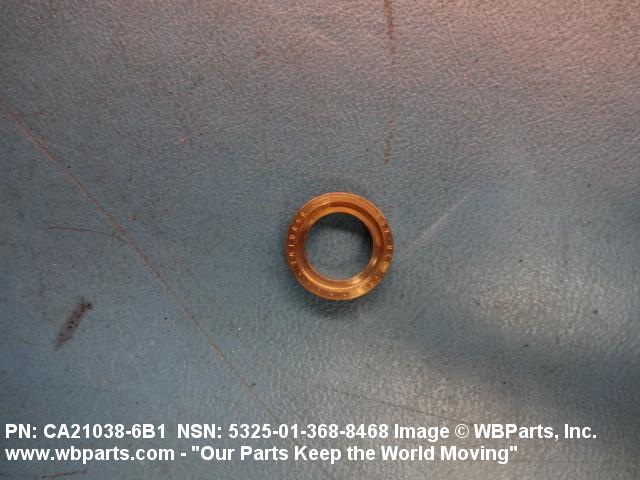

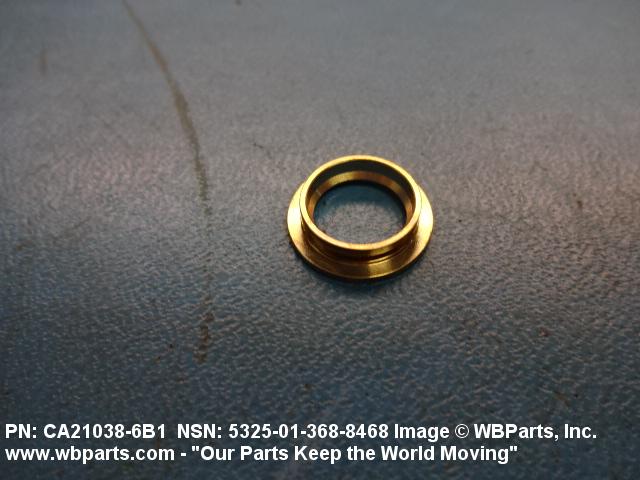

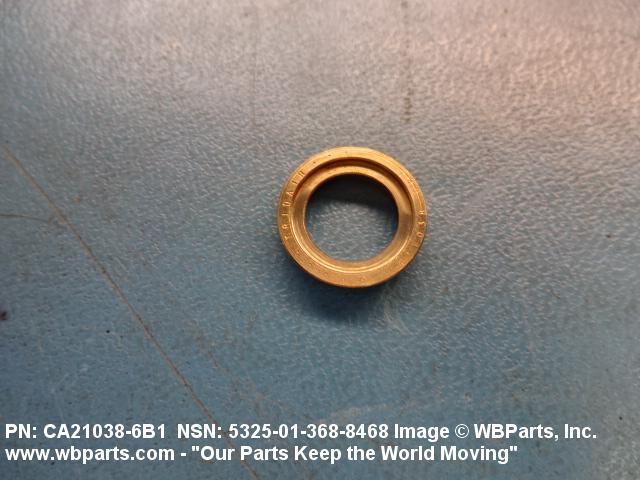

Drawings & Photos | NSN 5325-01-368-8468
Demand History | NSN 5325-01-368-8468
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CA21038-6B1 | 2021-01-10 | 274 | DIBBS |
| CA21038-6B1 | 2020-04-21 | 286 | DIBBS |
| 5325-01-368-8468 | 2020-04-04 | 446 | United States |
| CA21038-6B1 | 2020-01-30 | 446 | DIBBS |
| CA21038-6B1 | 2019-09-15 | 181 | DIBBS |
| 5325-01-368-8468 | 2019-05-06 | 193 | United States |
| CA21038-6B1 | 2019-03-12 | 193 | DIBBS |
| CA21038-6B1 | 2019-03-03 | 193 | DIBBS |
| 5325-01-368-8468 | 2016-01-13 | 285 | DIBBS |
| 5325-01-368-8468 | 2015-04-30 | 266 | DIBBS |
| 5325-01-368-8468 | 2008-05-06 | 1104 | DIBBS |
Cross Reference | NSN 5325-01-368-8468
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CA21038-6B1 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5325-01-368-8468
Related Products | NSN 5325-01-368-8468
5325-01-368-8600, 5325-01-368-8703, 5325-01-368-8704, 5325-01-368-8882, 5325-01-368-8883
Technical Data | NSN 5325-01-368-8468
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING GROMMET |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE OR MIL-S-5059 MIL SPEC SINGLE MATERIAL RESPONSE GROMMET |
| SURFACE TREATMENT | PASSIVATE GROMMET |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE GROMMET |
| BARREL STYLE | 1 STRAIGHT ROUND TYPE |

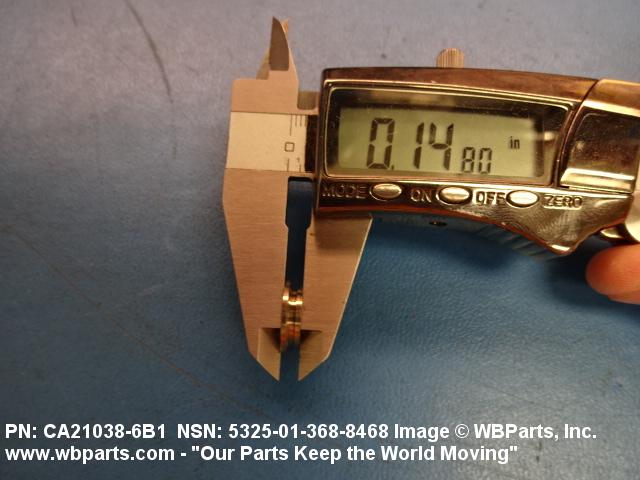

| BARREL HEIGHT | 0.105 INCHES NOMINAL |

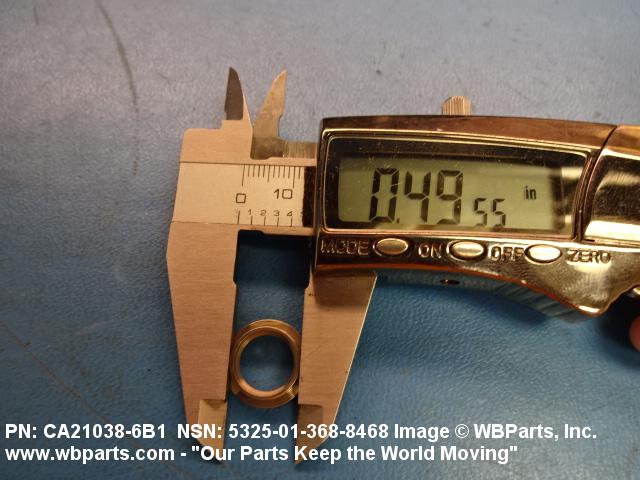

| BARREL OUTSIDE DIAMETER | 0.493 INCHES MINIMUM AND 0.497 INCHES MAXIMUM |
| FLANGE STYLE | 1 FLANGE |

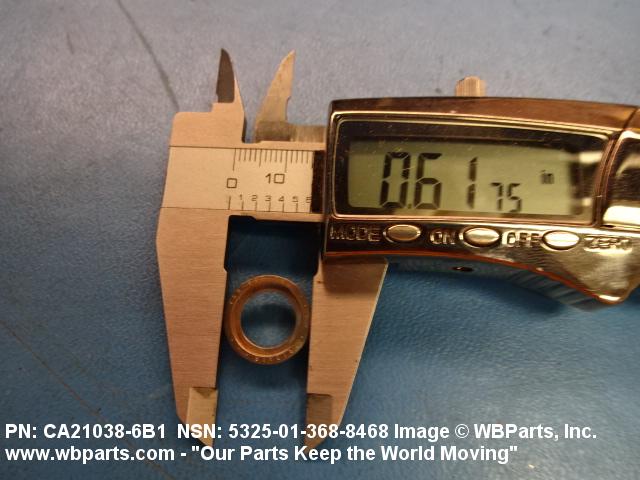

| FLANGE OUTSIDE DIAMETER | 0.610 INCHES MINIMUM AND 0.630 INCHES MAXIMUM |
| WASHER STYLE | 2 FLAT W/FORMED INNER EDGE |
| MANUFACTURERS CODE | 29372 |
| DESIGN CONTROL REFERENCE | CA21038-6B1 |
Restrictions/Controls & Freight Information | NSN 5325-01-368-8468
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094533 | EYELETS OR EYELET HOOKS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SU | Ogden Air Logistics Center Hill AFB, UT 84056-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-01-368-8468
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | WF | SU:F-16 AIR COMBAT FIGHTER |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
