Product Details | PLAIN ENCASED SEAL
5330-01-035-1741 A pliable rubber, felt, leather, or composition ring-shaped element, split or solid; with or without spring or spreader, having a metal shell on all or a portion of at least two of the outer surfaces. It may be designed to be either bolt mounted or pressmounted between fixed and moveable parts to form a tight and effective seal by the pressure of the spring or spreader or the resiliency inherent in the element material. Excludes PACKING WITH RETAINER.
Part Alternates: 10759, 49750087, 4975-0087, 5330-01-035-1741, 01-035-1741, 5330010351741, 010351741
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05-FEB-77 | 01-035-1741 | 04214 ( SEAL, PLAIN ENCASED ) |
Drawings & Photos | NSN 5330-01-035-1741
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5330-01-035-1741
5330-01-035-1742, 5330-01-035-1800, 5330-01-035-1801, 5330-01-035-1802, 5330-01-035-1803
Technical Data | NSN 5330-01-035-1741
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER CHLOROPRENE CLASS CR SEALING ELEMENT |
| CASE STYLE | 1 SQUARE |

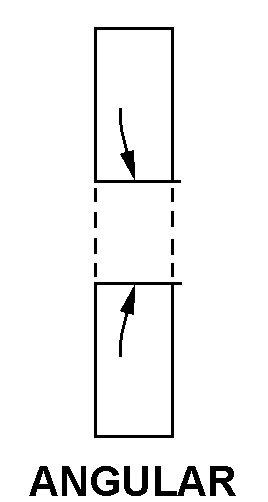

| SEALING ELEMENT STYLE | 3 ANGULAR |
| SEAL WIDTH | 0.625 INCHES NOMINAL |
| ACCOMMODATED SHAFT DIAMETER | 1.250 INCHES NOMINAL |
| HOUSING BORE DIAMETER | 2.002 INCHES MINIMUM AND 2.006 INCHES MAXIMUM |
| MANUFACTURERS CODE | 61482 |
| DESIGN CONTROL REFERENCE | 4975-0087 |
Restrictions/Controls & Freight Information | NSN 5330-01-035-1741
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
