Product Details | NONMETALLIC ROUND SECTION SEAL
5330-01-524-5946 An item fabricated from nonmetallic material designed to be used where there is no relative motion between joined parts. Items with a solid cross section must be a single piece whose ends may have been secured together to form a specific shape. It may be formed to specific shape with or without joints. It may be a straight item of a specific length with end cuts or joints. It may have a solid or tubular cross section. Except for molded corners, end cuts, and mounting facilities such as mounting holes, slots, press-fit buttons, or the like, the item must be of one continuous round cross section. It may have fabric, cord or metal reinforcement. For straight items with square end cuts and without mounting holes, slots or press-fit buttons see RUBBER ROUND SECTION and TUBING, NONMETALLIC. Excludes GASKET and PACKING, PREFORMED.
Part Alternates: BACS11T4A, 5330-01-524-5946, 01-524-5946, 5330015245946, 015245946
Hardware and Abrasives | Packing and Gasket Materials
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 OCT 2004 | 01-524-5946 | 36873 ( SEAL, NONMETALLIC ROUND SECTION ) |

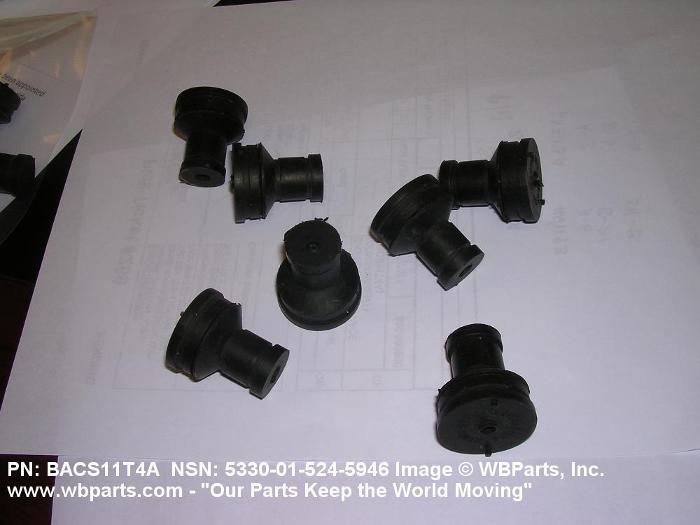

Drawings & Photos | NSN 5330-01-524-5946
Demand History | NSN 5330-01-524-5946
Cross Reference | NSN 5330-01-524-5946
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BACS11T4A | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5330-01-524-5946
5330-01-524-5963, 5330-01-524-5987, 5330-01-524-5988, 5330-01-524-6044, 5330-01-524-6045
Technical Data | NSN 5330-01-524-5946
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| CONSTRUCTION | SPLIT |
Restrictions/Controls & Freight Information | NSN 5330-01-524-5946
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
