Product Details | O-RING

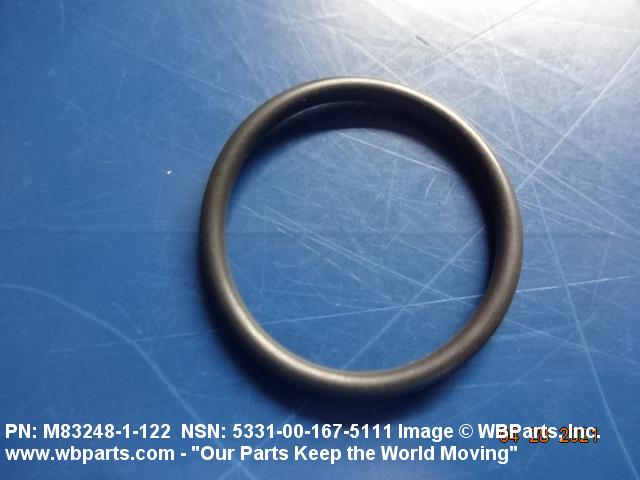

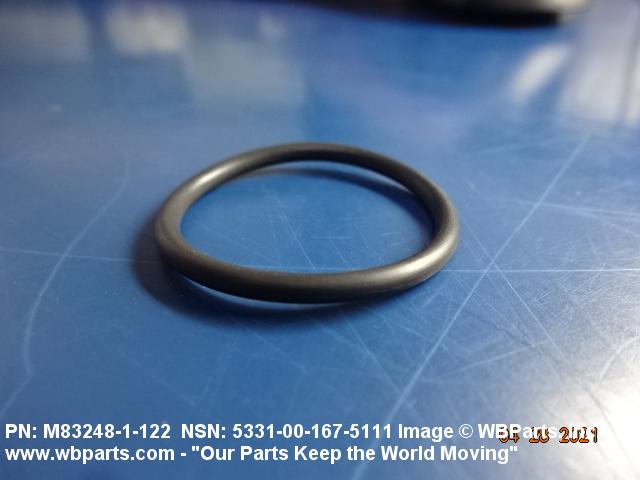

5331-00-167-5111 A nonmetallic circular item with an aperature, having a solid round cross-section. They are used primarily for sealing. For items with other than round cross section, see PACKING,PREFORMED. For noncircular items with a round cross-section, see SEAL,NONMETALLIC ROUND SECTION and RUBBER,ROUND SECTION.
Part Alternates: MS9388122, MS9388-122, M83248/1-122, M8324811122, M83248-1-1-122, M832481122, M832481122ES, M83248-1-122ES, A49626, AS3209122, AS3209-122, BACP11P122, S9413122, S9413-122, MILR83248, 8361B, 3627-7-97-70, 3799813 FIND 19, 3799813FIND19, 44005711220, 4400571-1220, 451231, 5681227, 568122-7, 6493931220, 649-393-122-0, 83248/1-122, 10017001 , 10017003 ITEM 5 , 10017003ITEM5, 10017048, 10145372 , 1090-41565 ITEM 15, 109041565ITEM15, 1210012203, 121-00122-03, 15094-41655 ITEM 20, 1509441655ITEM20, 15095-41525 ITEM 14, 1509541525ITEM14, 15098-41540 ITEM 15, 1509841540ITEM15, 15099-41550 ITEM 21, 1509941550ITEM21, 18106, 2-122 V709-90, 2-122 V747-75, 2122V074775, 2-122V0747-75, 2122V116475, 2-122V1164-75, 2122V122675, 2-122V1226-75, 2122V70990, 2122V74775, 2-122V747-75, 281250-0008 ITEM 62, 2812500008ITEM62, 29935892, 2993589-2, 30159 ITEM 22, 30159ITEM22, 32122D, 5331-00-167-5111, 00-167-5111, 5331001675111, 832481122, 001675111, 362779770
Hardware and Abrasives | O-Ring
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 NOV 1971 | 00-167-5111 | 47946 ( O-RING ) |
Drawings & Photos | NSN 5331-00-167-5111
Demand History | NSN 5331-00-167-5111
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M832481122 | 2023-11-30 | 1 | US |
| 5331-00-167-5111 | 2023-04-10 | 2778 | US |
| 5331-00-167-5111 | 2023-04-06 | 2778 | DIBBS |
| 5331-00-167-5111 | 2022-12-01 | 6200 | DIBBS |
| 5331-00-167-5111 | 2022-09-07 | 7817 | DIBBS |
| AS3209122 | 2022-03-16 | 10 | MX |
| MS9388122 | 2021-12-17 | 1 | IN |
| 5331-00-167-5111 | 2021-04-14 | 8 | United States |
| 5331-00-167-5111 | 2019-09-08 | 1298 | DIBBS |
| 5681227 | 2019-06-03 | 10 | United States |
| 5331-00-167-5111 | 2019-03-03 | 2885 | DIBBS |
| M832481122 | 2019-01-29 | 4 | IN |
| 5331-00-167-5111 | 2018-11-04 | 6604 | DIBBS |
| 5331-00-167-5111 | 2018-06-10 | 7028 | DIBBS |
| MS9388-122 | 2017-07-19 | 8 | Canada |
| MS9388-122 | 2017-07-19 | 8 | Canada |
| MILR83248 | 2017-03-24 | 3 | United States |
| 5331-00-167-5111 | 2016-08-01 | 12260 | DIBBS |
| 5331-00-167-5111 | 2016-04-24 | 3931 | DIBBS |
| 5331-00-167-5111 | 2016-03-27 | 4307 | DIBBS |
| MILR83248 | 2016-03-21 | 18 | United States |
| MILR83248 | 2016-03-21 | 9 | United States |
| M83248/1-122 | 2015-03-26 | 64 | US |
| M83248/1-122 | 2015-03-10 | 500 | US |
| M83248/1-122 | 2014-06-06 | 50 | United States |
| M832481122 | 2014-03-04 | 6 | RU |
| 5331-00-167-5111 | 2013-10-02 | 6664 | DIBBS |
| AS3209-122 | 2013-08-17 | 10 | Canada |
| AS3209122 | 2013-07-16 | 10 | LK |
| 5331-00-167-5111 | 2013-07-02 | 4870 | DIBBS |
| M83248/1-122 | 2012-06-19 | 10 | Malaysia |
| 5331-00-167-5111 | 2011-12-30 | 11109 | DIBBS |
| AS3209122 | 2011-11-30 | 16 | Sri Lanka |
| MILR83248 | 2011-10-31 | 301 | KR |
| MILR83248 | 2011-01-05 | 1 | CA |
| 5331-00-167-5111 | 2010-10-04 | 8373 | DIBBS |
| 5331-00-167-5111 | 2009-07-27 | 5900 | DIBBS |
| 5331-00-167-5111 | 2009-02-20 | 6000 | DIBBS |
| 5331-00-167-5111 | 2008-11-14 | 6500 | DIBBS |
| 5331-00-167-5111 | 2008-10-17 | 6500 | DIBBS |
| MILR83248 | 2007-08-09 | 4 | US |
| M832481122 | 2006-06-21 | 1 | SV |
Cross Reference | NSN 5331-00-167-5111
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10017001 | 90800 | ROMAC INDUSTRIES, INC. DBA HAYS FLUID CONTROL DIVISION |
| 10017003 ITEM 5 | 90800 | ROMAC INDUSTRIES, INC. DBA HAYS FLUID CONTROL DIVISION |
| 10017048 | 90800 | ROMAC INDUSTRIES, INC. DBA HAYS FLUID CONTROL DIVISION |
| 1090-41565 ITEM 15 | 07270 | MOOG INC. |
| 121-00122-03 | 79470 | DANA CORP WEATHERHEAD DIV |
| 15094-41655 ITEM 20 | 07270 | MOOG INC. |
| 15095-41525 ITEM 14 | 07270 | MOOG INC. |
| 15098-41540 ITEM 15 | 07270 | MOOG INC. |
| 15099-41550 ITEM 21 | 07270 | MOOG INC. |
| 18106 | 72352 | CURTISS-WRIGHT FLOW CONTROL CORPORATION |
| 18106 | 95169 | CURTISS-WRIGHT FLOW CONTROL CORPORATION |
| 2-122 V709-90 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 2-122 V747-75 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 2-122V0747-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-122V1164-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-122V1226-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 2-122V747-75 | 02697 | PARKER-HANNIFIN CORPORATION DBA O'RING DIVISION OF PARKER |
| 281250-0008 ITEM 62 | 99657 | MAROTTA CONTROLS, INC. |
| 2993589-2 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 30159 ITEM 22 | 72352 | CURTISS-WRIGHT FLOW CONTROL CORPORATION |
| 30159 ITEM 22 | 95169 | CURTISS-WRIGHT FLOW CONTROL CORPORATION |
| 32122D | 07270 | MOOG INC. |
| 3627-7-97-70 | 99166 | SUNDSTRAND CORP SUNDSTRAND HYDRAULICS DIV |
| 3799813 FIND 19 | 59364 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| 4400571-1220 | 99657 | MAROTTA CONTROLS, INC. |
| 451231 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 568122-7 | 81400 | HASKEL INTERNATIONAL, INC. DBA BUTECH PRESSURE SYSTEMS |
| 649-393-122-0 | 58828 | CFM INTERNATIONAL, INC. |
| 83248/1-122 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 8361B | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| A49626 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| AS3209-122 | 81343 | SOCIETY OF AUTOMOTIVE ENGINEERS INC |
| BACP11P122 | 77272 | THE BOEING COMPANY DBA BOEING |
| M83248-1-1-122 | 00GJU | ROTSAS INTERNATIONAL LTD |
| M83248-1-1-122 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| M83248-1-122ES | H2313 | ERIKS B.V. |
| M83248/1-122 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILR83248 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS9388-122 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| S9413-122 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5331-00-167-5111
Related Products | NSN 5331-00-167-5111
5331-00-167-5112, 5331-00-167-5113, 5331-00-167-5114, 5331-00-167-5115, 5331-00-167-5116
Technical Data | NSN 5331-00-167-5111
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER FLUOROCARBON CLASS FPM |

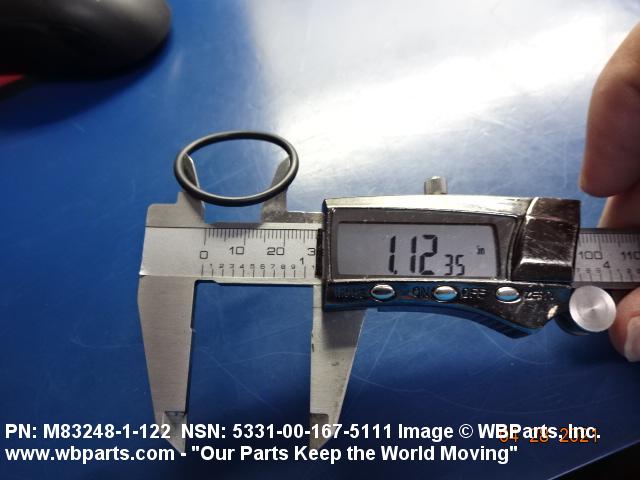

| CENTER HOLE DIAMETER | 1.102 INCHES MINIMUM AND 1.122 INCHES MAXIMUM |

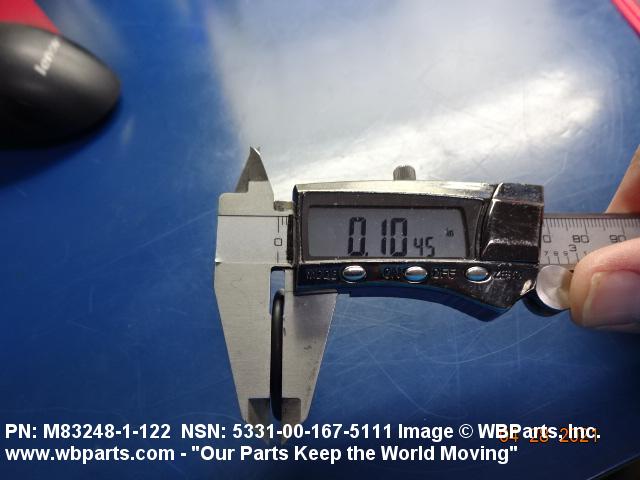

| CROSS-SECTIONAL HEIGHT | 0.100 INCHES MINIMUM AND 0.106 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5331-00-167-5111
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 596 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5331-00-167-5111
Army
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BK | CH-47 |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Physical Category Code | 1 | Bin |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
