5331-01-005-0507 Request for Quote Plus Technical Data

Manufacturing Part Numbers under this NSN: 2-107V0747-75, 2-107V1164-75, 2-107V1226-75, AS3209-107, M83248-1-107, M83248/1-107, MIL-R-83248/1

5331-01-005-0507 NSN Information

NSN FSC NIIN Item Name INC HMIC ESDC CANCELLED NSN

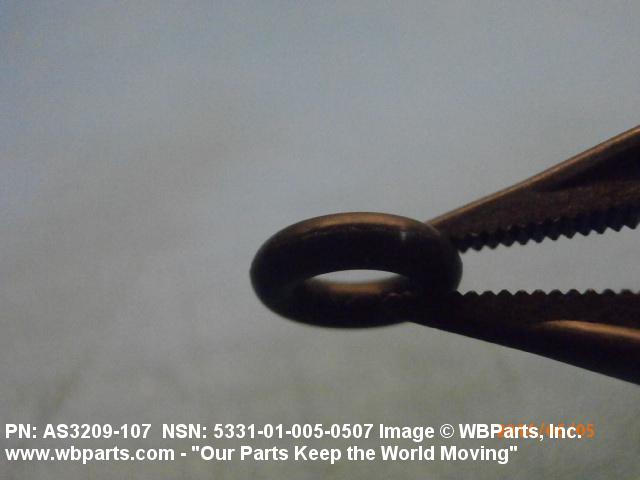

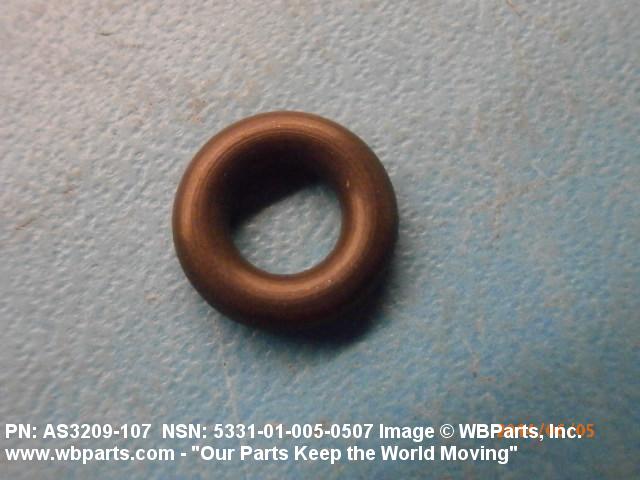

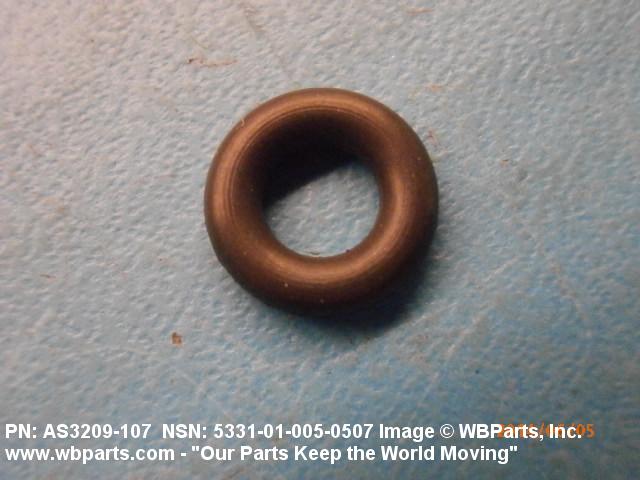

 5331-01-005-0507   5331   01-005-0507   O-RING   47946   N



5331-01-005-0507 Master Cross Reference Data

Mfg. Part Number ISC RNVC RNCC HCC MSDS SADC DAC
 2-107V0747-75   5   2   5
 2-107V1164-75   5   2   5
 2-107V1226-75   5   2   5
 AS3209-107   5   2   3
 M83248-1-107   5   1   C
 M83248/1-107   5   9   5
 MIL-R-83248/1   5   9   5         N



5331-01-005-0507 Characteristics Data

MRC Criteria Characteristic
MATT MATERIAL RUBBER FLUOROCARBON CLASS FPM

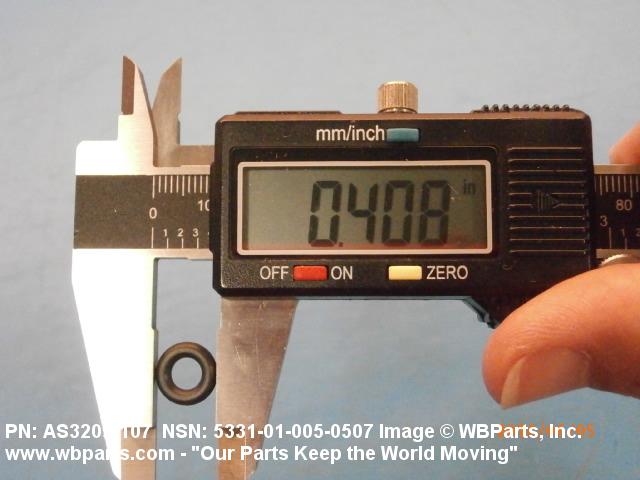

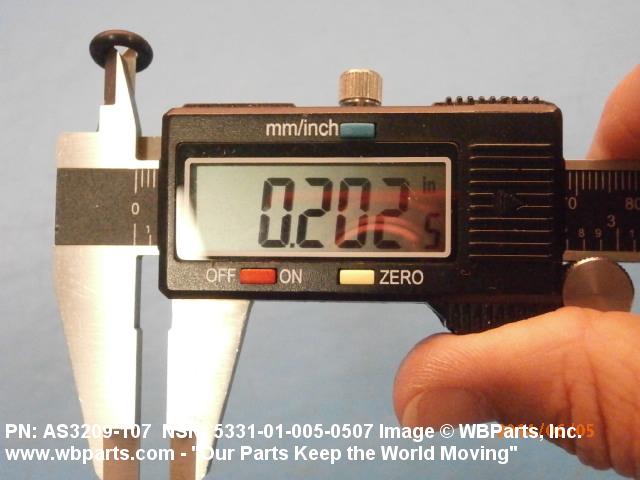

ADYT CENTER HOLE DIAMETER 0.200 INCHES MINIMUM AND 0.212 INCHES MAXIMUM

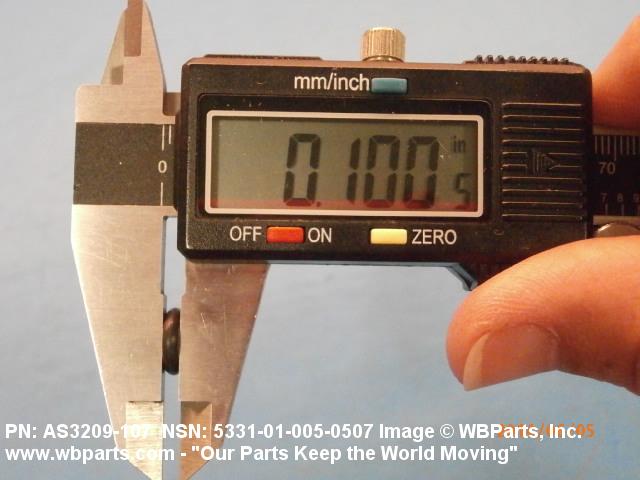

ADVN CROSS-SECTIONAL HEIGHT 0.100 INCHES MINIMUM AND 0.106 INCHES MAXIMUM


Submit Request for Quote (RFQ)

Part:
Qty:
Email:
Parts similar to 5331-01-005-0507: 2-122S1032-70, 412-1980-0000, 3071109 ITEM 47, 22-38625 PC 9CP, 2574737-10, C-69-214, MIL-R-25988/1, 3912881203, 2026C873-70
