Product Details | TURNBUCKLE BODY
5340-00-321-5445 A metal loop, sleeve or solid item having both ends threaded or one end threaded and the other end designed to accommodate a swivel. Items with both ends threaded shall have right hand screw threads on one and left hand screw threads on the other. It is a component of TURNBUCKLE. See also TIE ROD, TENSIONING, THREADED END. For items specifically designed for aviation, see TURNBUCKLE BODY, AVIATION.
Part Alternates: 48B20058, 5340-00-321-5445, 00-321-5445, 5340003215445, 003215445
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-321-5445 | 19315 ( TURNBUCKLE BODY ) |

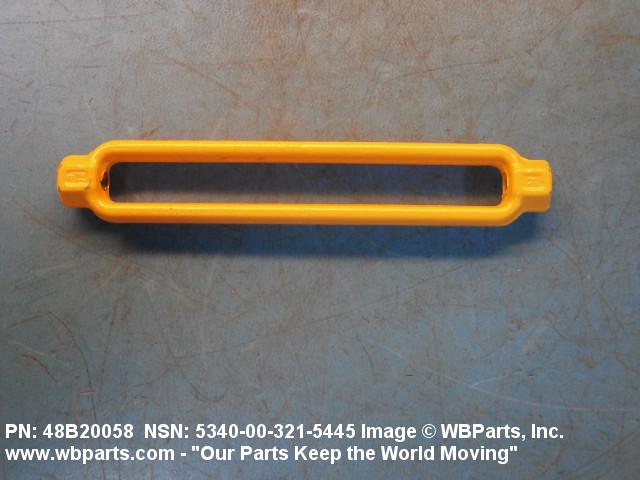

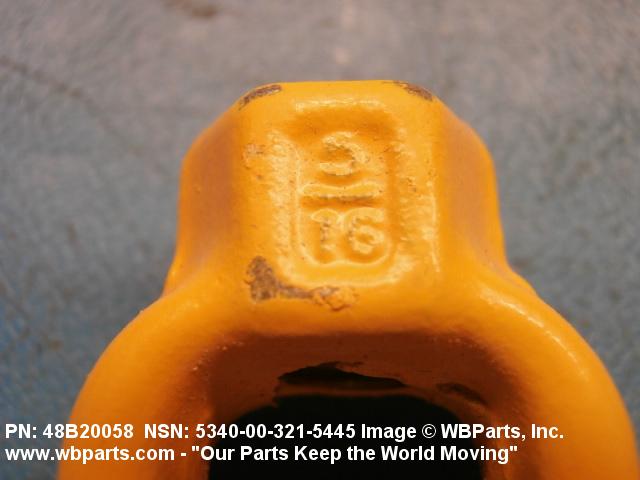

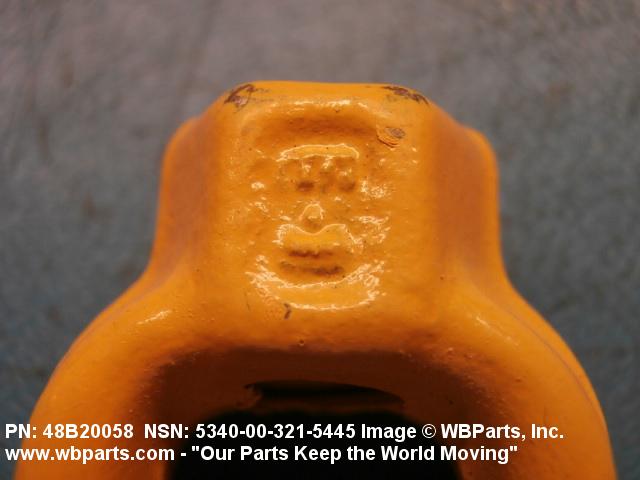

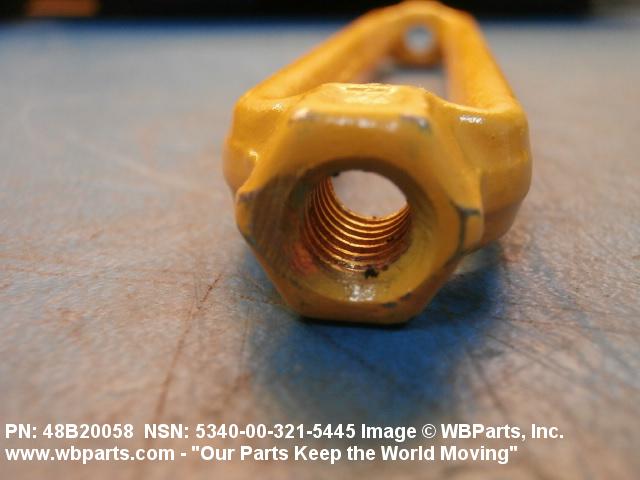

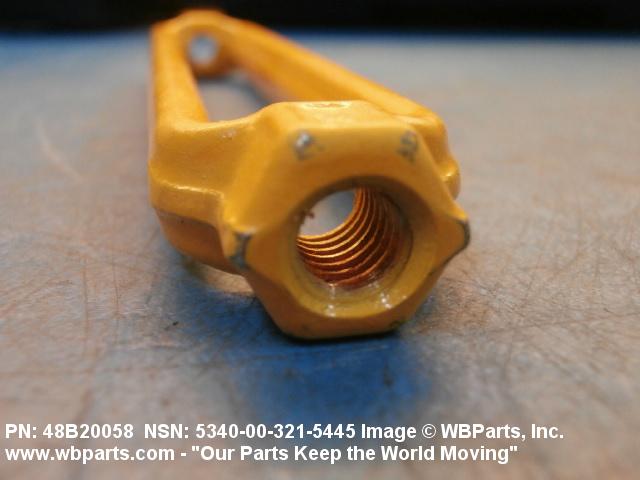

Drawings & Photos | NSN 5340-00-321-5445
Demand History | NSN 5340-00-321-5445
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-00-321-5445 | 2020-12-27 | 245 | DIBBS |
| 5340-00-321-5445 | 2020-04-01 | 1 | DIBBS-RFPs |
| 5340-00-321-5445 | 2019-05-15 | 328 | DIBBS |
| 48B20058 | 2018-06-01 | 10 | United States |
| 5340-00-321-5445 | 2017-02-21 | 615 | DIBBS |
| 5340-00-321-5445 | 2016-05-11 | 256 | DIBBS |
| 5340-00-321-5445 | 2014-08-25 | 551 | DIBBS |
| 5340-00-321-5445 | 2014-08-14 | 551 | DIBBS |
| 5340-00-321-5445 | 2014-08-03 | 551 | DIBBS |
| 5340-00-321-5445 | 2011-11-10 | 315 | DIBBS |
| 5340-00-321-5445 | 2011-07-07 | 345 | DIBBS |
| 5340-00-321-5445 | 2011-06-06 | 356 | DIBBS |
| 5340-00-321-5445 | 2010-02-24 | 349 | DIBBS |
| 5340-00-321-5445 | 2009-09-01 | 308 | DIBBS |
| 5340-00-321-5445 | 2008-12-09 | 414 | DIBBS |
| 5340-00-321-5445 | 2008-11-14 | 1 | UM |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5340-00-321-5445
Related Products | NSN 5340-00-321-5445
5340-00-321-5530, 5340-00-321-5554, 5340-00-321-5555, 5340-00-321-5558, 5340-00-321-5561
Technical Data | NSN 5340-00-321-5445
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE AND ENAMEL OVERALL |
| THREAD SERIES DESIGNATOR | UNC BODY |
| NOMINAL THREAD SIZE | 0.312 INCHES BODY |
| THREAD CLASS | 2B BODY |
| BODY STYLE | 251 HEX OPEN BODY |

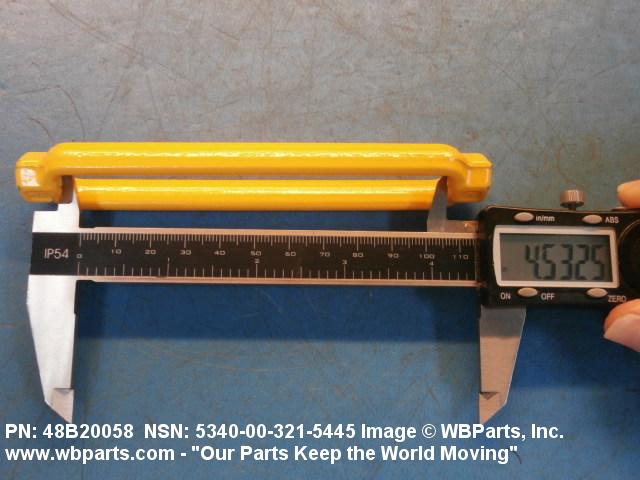

| BODY LENGTH | 4.500 INCHES NOMINAL |
| MANUFACTURERS CODE | 98750 |
| DESIGN CONTROL REFERENCE | 48B20058 |
Restrictions/Controls & Freight Information | NSN 5340-00-321-5445
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 107340 | TURNBUCKLES/SLEEVE NUTS NOI I/S |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-00-321-5445
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
