Product Details | GENERAL PURPOSE RESILIENT MOUNT
5340-00-355-9732 An item made of material having elastic properties. It may have rigid mounting facilities such as a flange(s), sleeve(s), stud(s) or the like. It is designed to isolate or dampen shock and/or vibration of a continuous or intermittent origin and serve as a support for an item to be isolated. Excludes MOUNT, RESILIENT, WEAPON SYSTEM; SPRING (as modified); BUMPER, NONMETALLIC; BUMPER, RUBBER; BUSHING, NONMETALLIC; hydraulic and pneumatic shock absorbers, dashpots, grommets and shock pads.
Part Alternates: 150PD6, 5340-00-355-9732, 00-355-9732, 5340003559732, 003559732
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-355-9732 | 53590 ( MOUNT, RESILIENT, UTILITY ) |

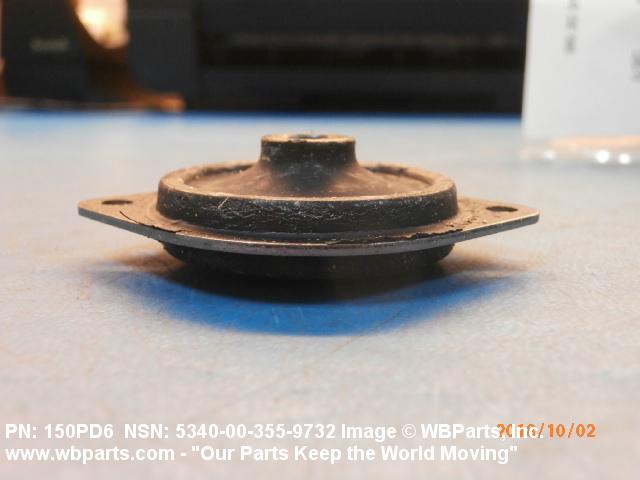

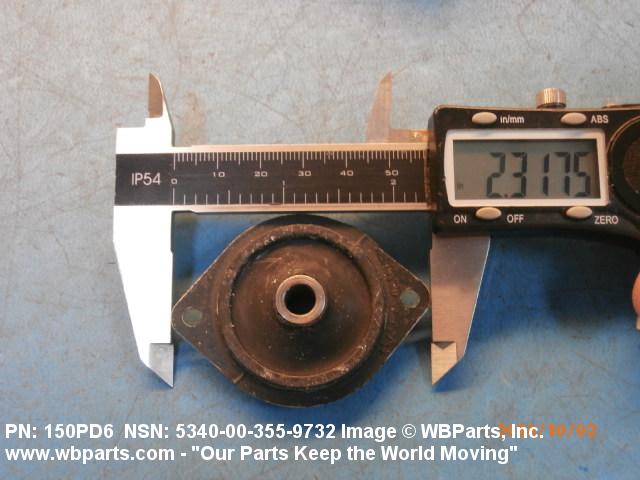

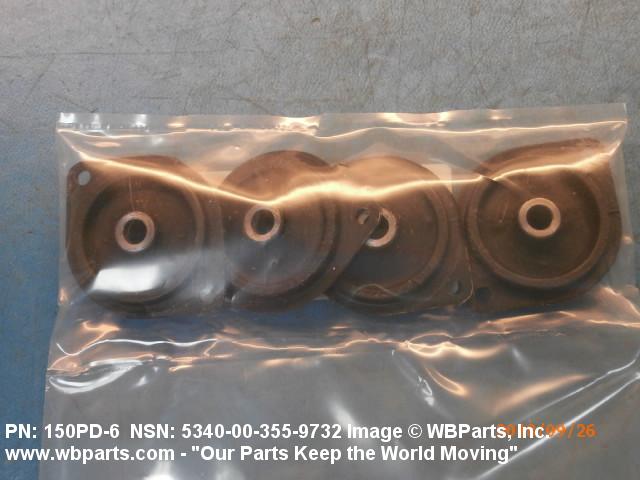

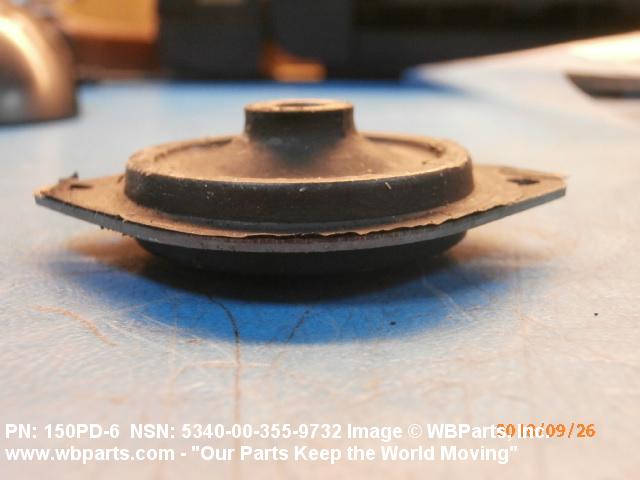

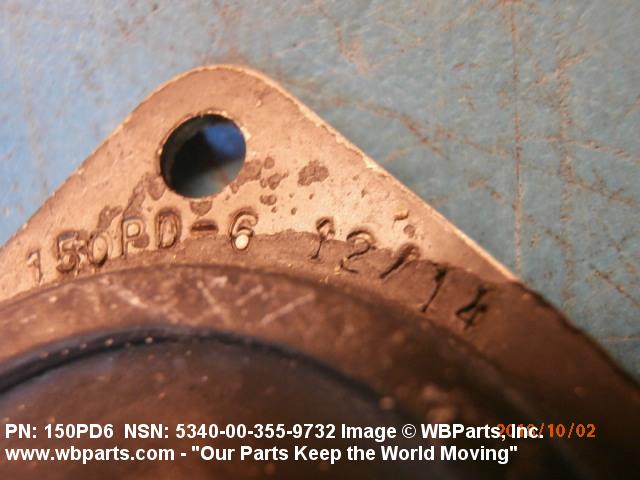

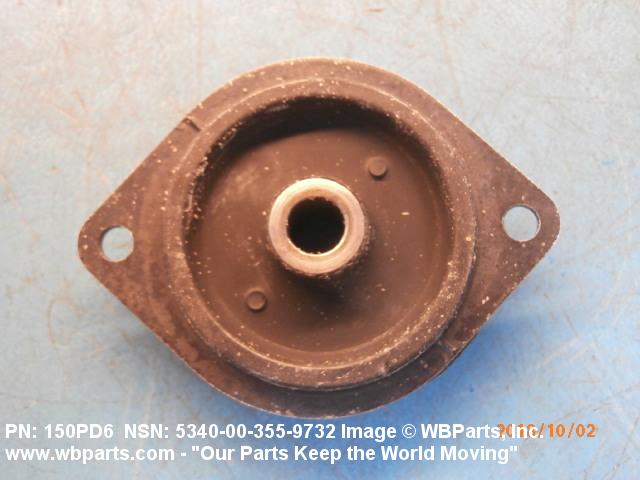

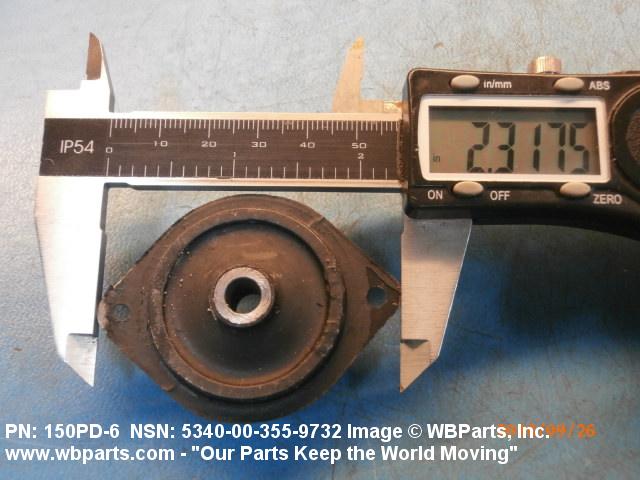

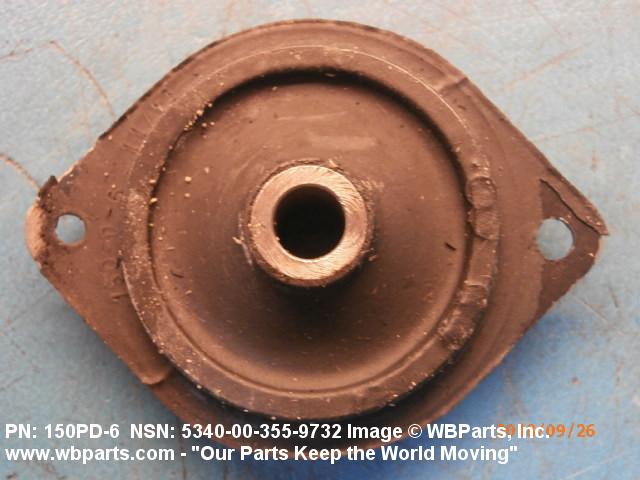

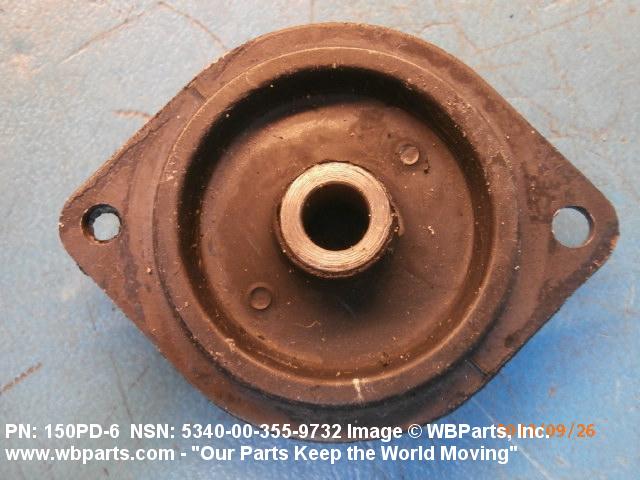

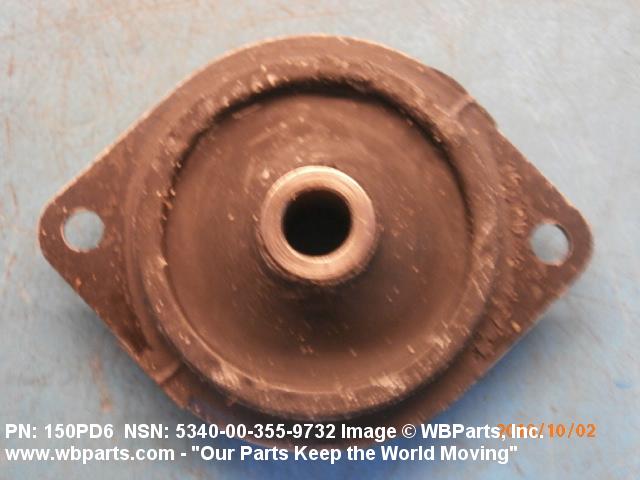

Drawings & Photos | NSN 5340-00-355-9732
Demand History | NSN 5340-00-355-9732
Cross Reference | NSN 5340-00-355-9732
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 150PD6 | 76005 | LORD CORPORATION DBA AEROSPACE DIVISION |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5340-00-355-9732
5340-00-355-9733, 5340-00-355-9745, 5340-00-355-9755, 5340-00-355-9763, 5340-00-355-9766
Technical Data | NSN 5340-00-355-9732
| Characteristic | Specifications |
|---|---|
| RESILIENT MEMBER MATERIAL | RUBBER |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| STYLE DESIGNATOR | C30 ROUND W/BUSHING TWO-HOLE FLANGE |

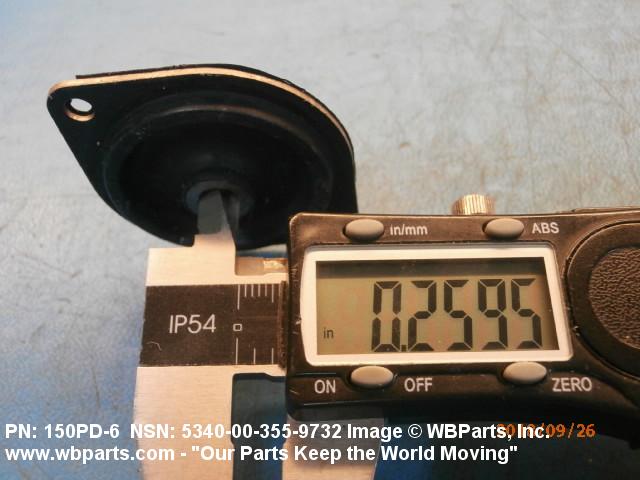

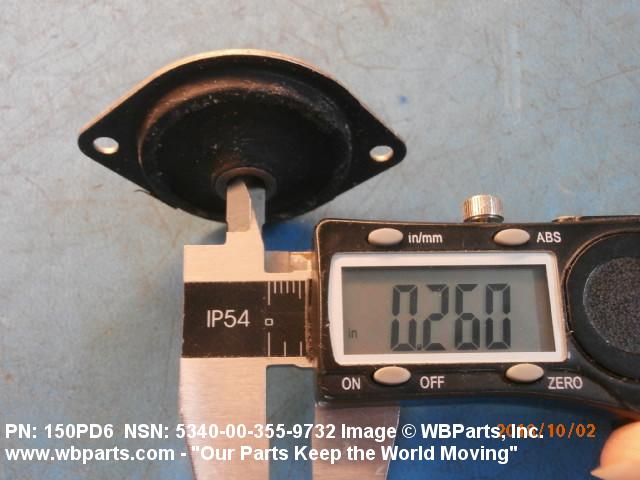

| INSIDE DIAMETER | 0.257 INCHES NOMINAL |

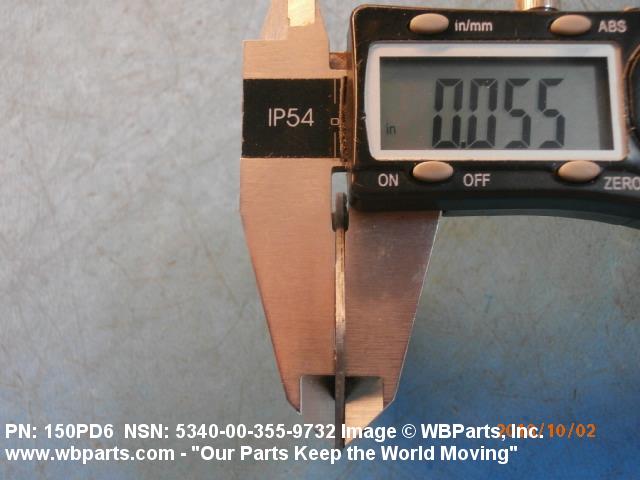

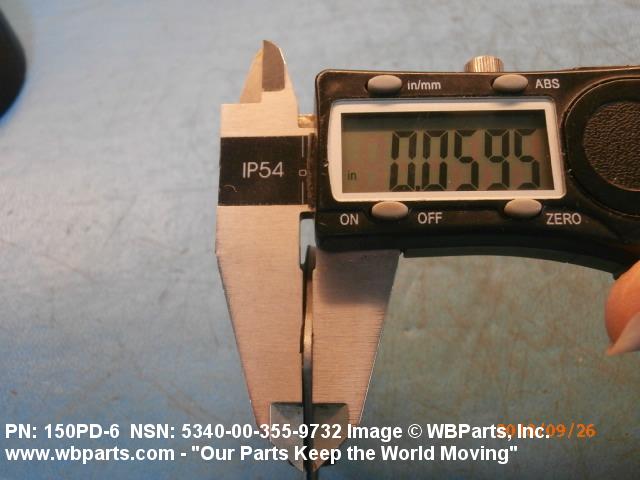

| FLANGE THICKNESS | 0.050 INCHES NOMINAL |

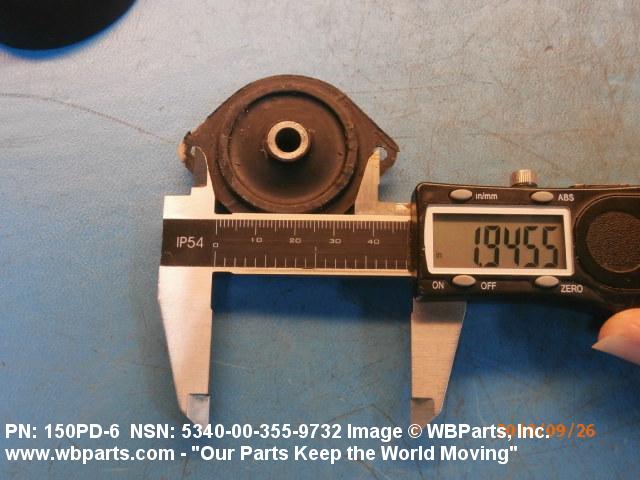

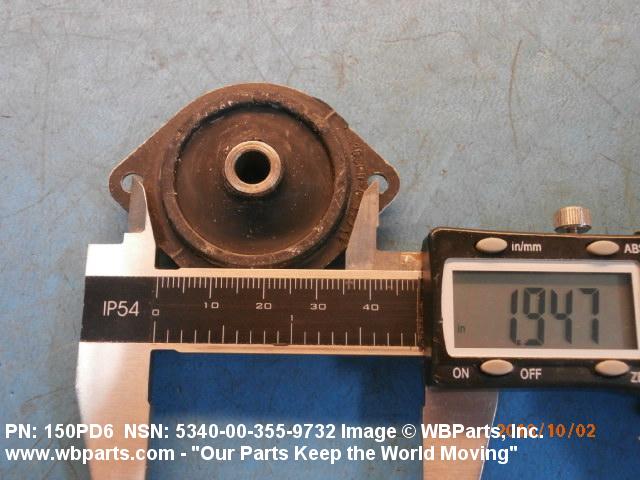

| DISTANCE BETWEEN MOUNTING HOLE CENTERS | 1.945 INCHES NOMINAL |
| FLANGE LENGTH | 2.313 INCHES NOMINAL |

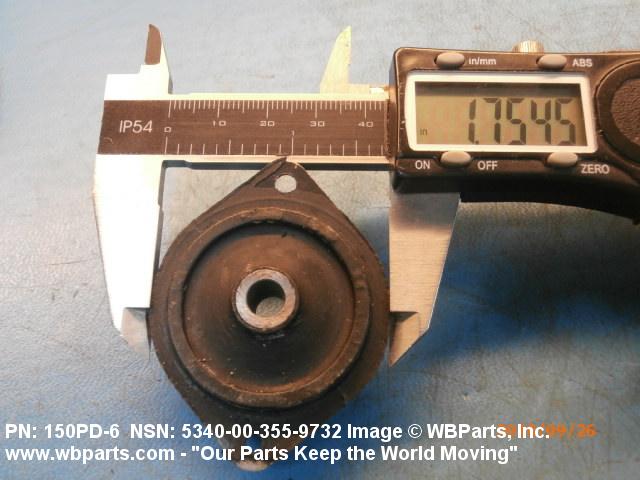

| FLANGE WIDTH | 1.750 INCHES NOMINAL |

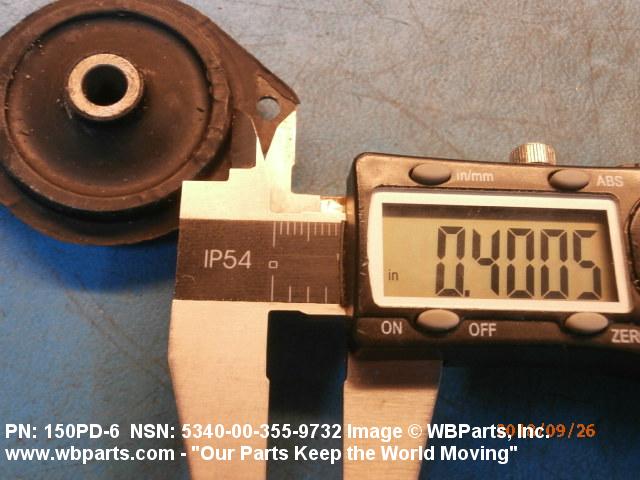

| DISTANCE FROM FLANGE TO END | 0.400 INCHES NOMINAL |

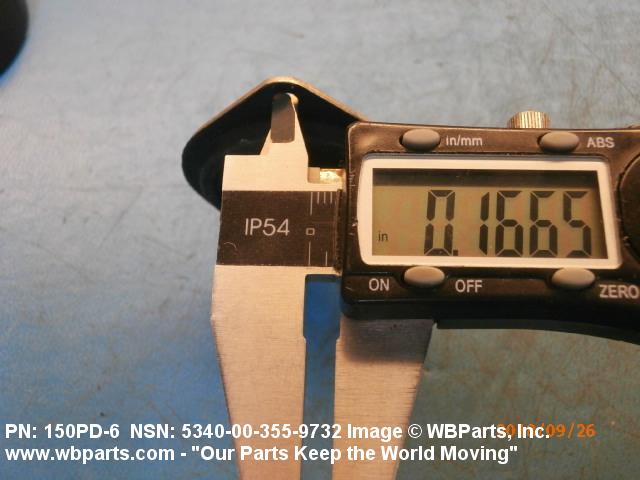

| FLANGE MOUNTING HOLE DIAMETER | 0.166 INCHES NOMINAL |

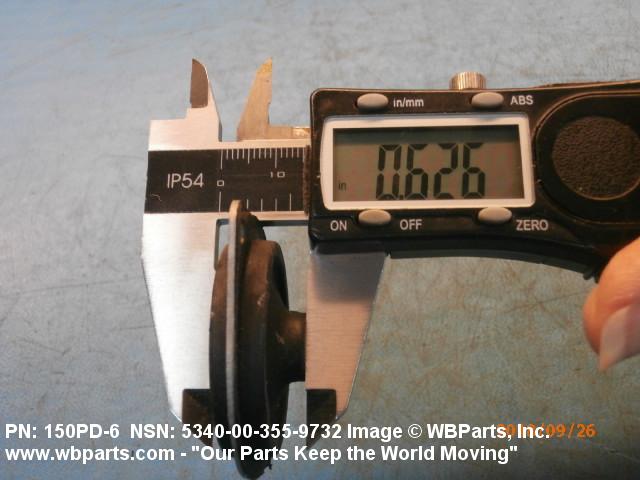

| HEIGHT | 0.625 INCHES NOMINAL |
| STATIC LOAD RATING AT SPECIFIED DEFLECTION | 6 LB LOAD RATING AT 1/16 IN. |
| LOAD/FREQUENCY RANGE | NOT RATED |
| MAXIMUM LOAD RATING | NOT RATED |
Restrictions/Controls & Freight Information | NSN 5340-00-355-9732
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
