Product Details | METAL GRILLE
5340-01-212-4958 A metal frame enclosing a metal core which is constructed of perforated sheet metal, bars, core material, or the like. It is used to form an openwork barrier or screen to allow the passage of a maximum quantity of air and/or light, but excluding the passage of foreign objects. Excludes GUARD, FAN IMPELLER.20616600062Aircraft Air Conditioning, Heating, and Pressurizing Equipment25100052Vehicular Cab, Body, and Frame Structural Components29250058Engine Electrical System Components, Aircraft Prime Moving4130000053400020Hardware, Commercial56700034Building Components, Prefabricated
Part Alternates: 75A3212142001, 75A321214-2001, 5340-01-212-4958, 01-212-4958, 5340012124958, 012124958
Hardware and Abrasives | Hardware, Commercial
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 JUL 1985 | 01-212-4958 | 04236 ( GRILLE, METAL ) |

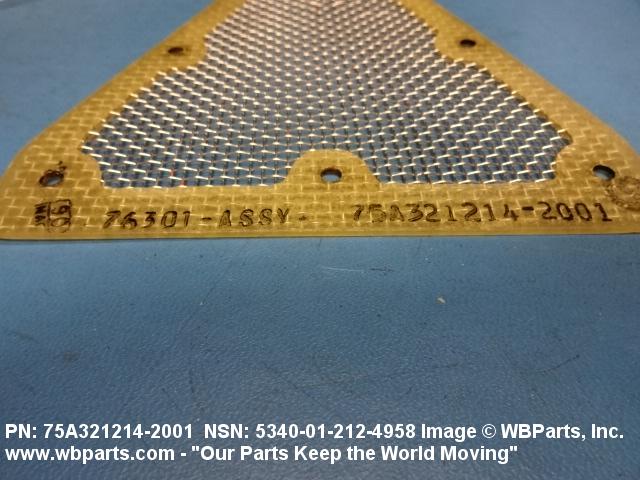

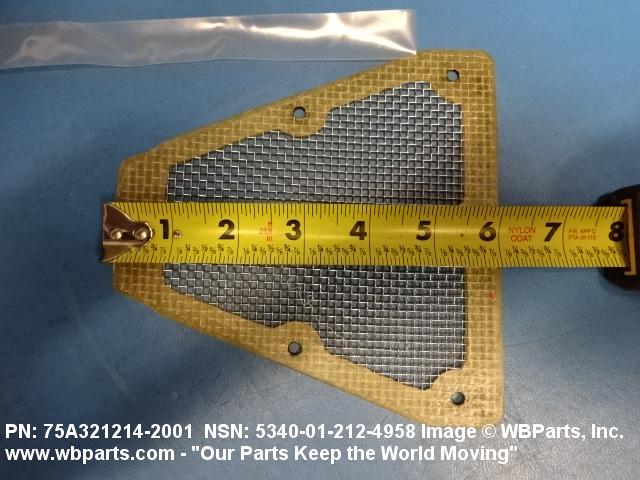

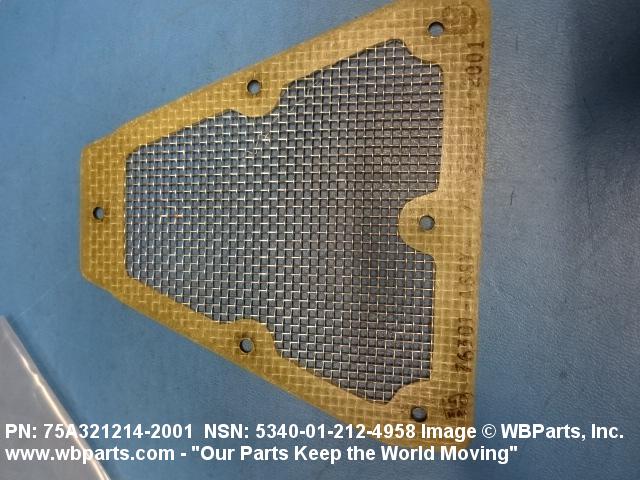

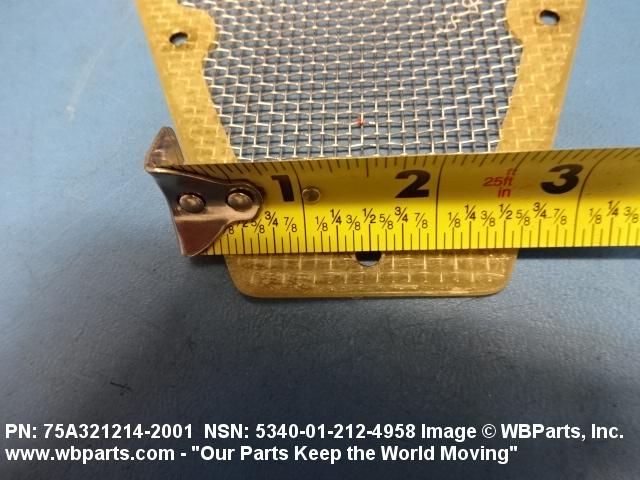

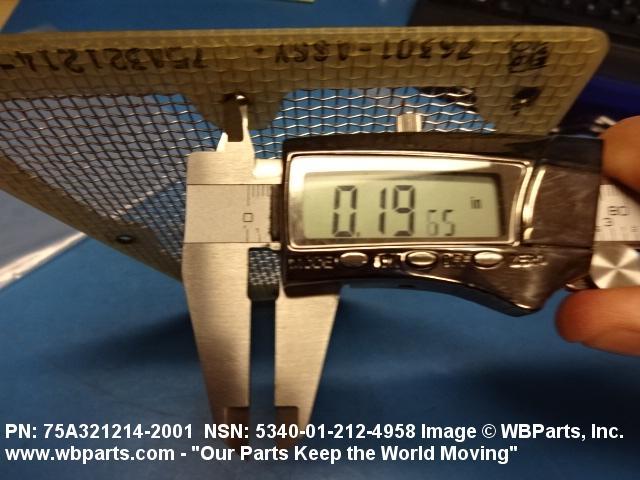

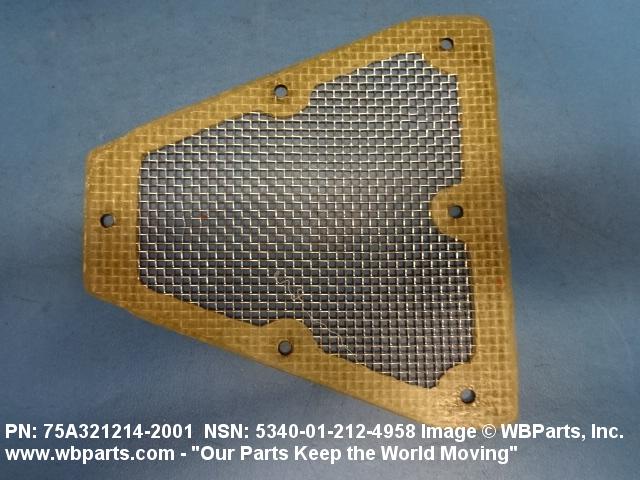

Drawings & Photos | NSN 5340-01-212-4958
Demand History | NSN 5340-01-212-4958
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5340-01-212-4958 | 2020-06-22 | 5 | DIBBS |
| 5340-01-212-4958 | 2020-06-14 | 5 | DIBBS |
| 5340-01-212-4958 | 2020-04-07 | 2 | DIBBS |
| 5340-01-212-4958 | 2020-03-24 | 2 | DIBBS |
| 5340-01-212-4958 | 2019-07-09 | 5 | DIBBS |
| 5340-01-212-4958 | 2019-06-27 | 5 | DIBBS |
| 5340-01-212-4958 | 2018-09-24 | 5 | DIBBS |
| 5340-01-212-4958 | 2018-08-08 | 3 | DIBBS |
| 5340-01-212-4958 | 2018-07-26 | 3 | DIBBS |
| 5340-01-212-4958 | 2017-10-17 | 3 | DIBBS |
| 5340-01-212-4958 | 2017-09-22 | 1 | United States |
| 5340-01-212-4958 | 2017-05-01 | 1 | DIBBS |
| 5340-01-212-4958 | 2017-04-13 | 1 | DIBBS |
| 5340-01-212-4958 | 2009-05-04 | 1 | DIBBS |
| 5340-01-212-4958 | 2008-06-30 | 3 | DIBBS |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5340-01-212-4958
5340-01-212-4974, 5340-01-212-4978, 5340-01-212-4982, 5340-01-212-4987, 5340-01-212-5015
Technical Data | NSN 5340-01-212-4958
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING MESH |
| SHAPE | IRREGULAR |
| FRAME TYPE | CHANNEL |

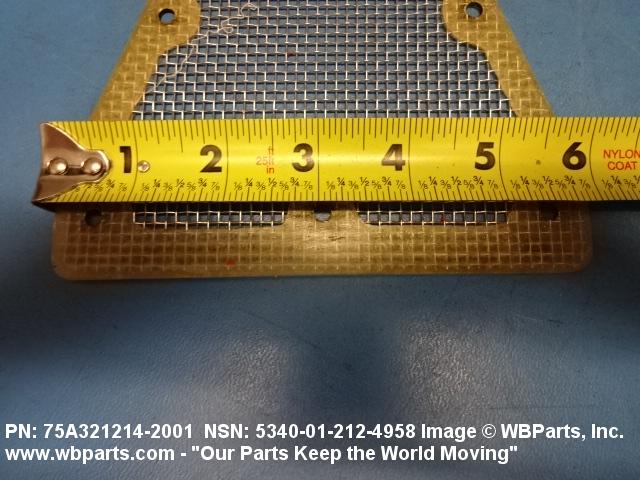

| FRAME OVERALL WIDTH | 6.120 INCHES NOMINAL |
| FRAME OVERALL HEIGHT | 6.130 INCHES NOMINAL |

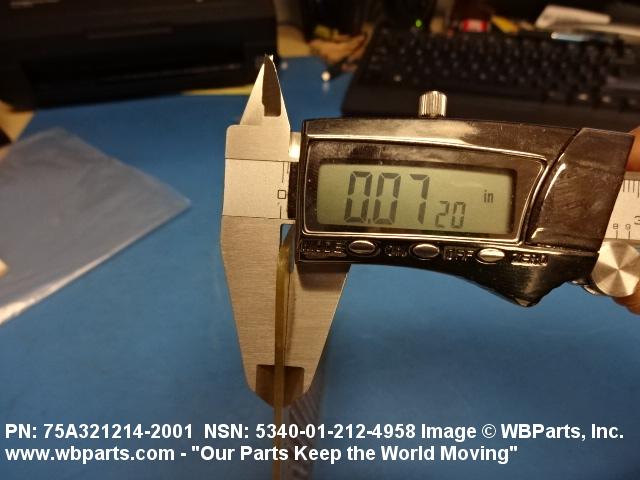

| FRAME OVERALL THICKNESS | 0.070 INCHES NOMINAL |
| FRAME MOUNTING HOLES | INCLUDED |
| MOUNTING HOLE QUANTITY | 6 |
| MOUNTING HOLE DIAMETER | 0.350 INCHES NOMINAL |
| MOUNTING HOLE SPACING | 3 HOLES SPACED 2.610 IN. AT BASE ALONG W,ONE HOLE AT TOP ALONG W,1.100 IN. DISTANCE FROM EDGE ALONG LG TO CENTERLINE OF HOLE,ONE HOLE IN EACH SIDE ALONG LG,3.240 IN. DISTANCE FROM EDGE ALONG W TO CENTERLINE OF HOLE |
| SPECIAL FEATURES | PLASTIC FRAME |
| MANUFACTURERS CODE | 76301 |
| DESIGN CONTROL REFERENCE | 75A321214-2001 |
Restrictions/Controls & Freight Information | NSN 5340-01-212-4958
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | P | There is no information in the HMIS; however, the NSN is in an FSC in Table II of Federal Standard 313 and an MSDS may be required by the user. The requirement for an MSDS is dependent on a hazard determination of the supplier or the intended end use of the product |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 018260 | AUTO BODY PART VIZ: |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | V | Vehicles, machinery, shop and warehouse equipment and supplies, including special tools and equipment, ground servicing and special purpose vehicles, marine equipment and supplies, repair and maintenance parts for the above. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5340-01-212-4958
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
